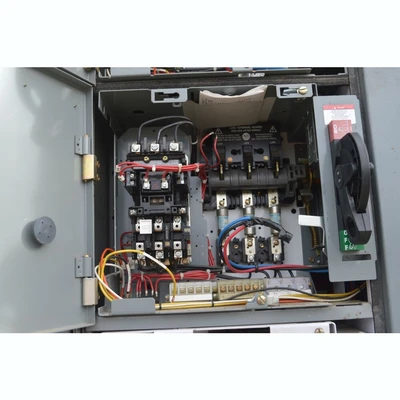

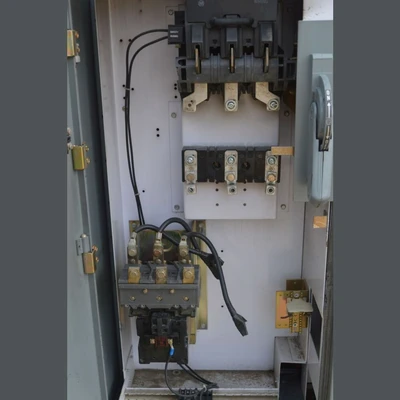

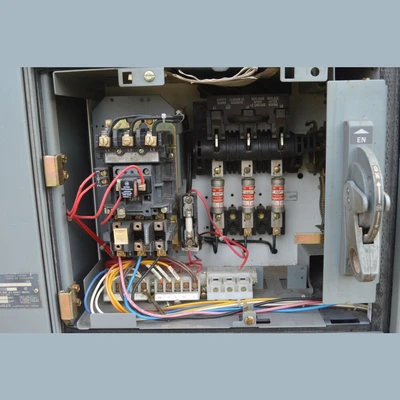

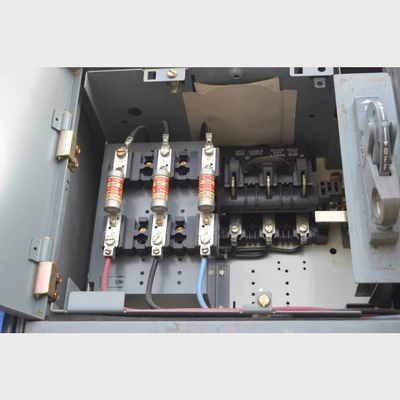

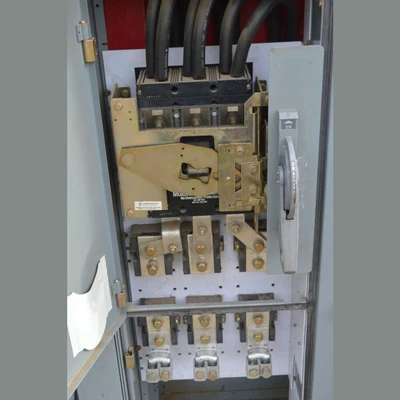

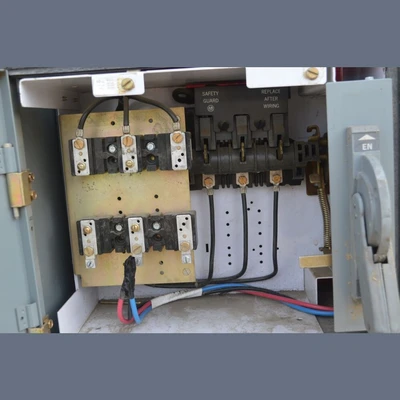

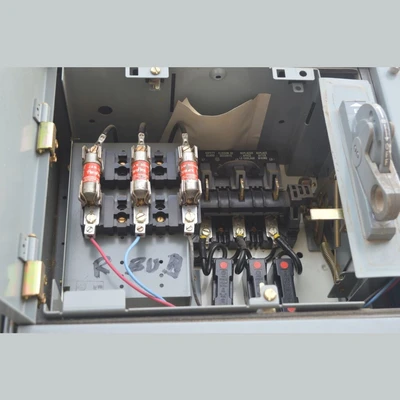

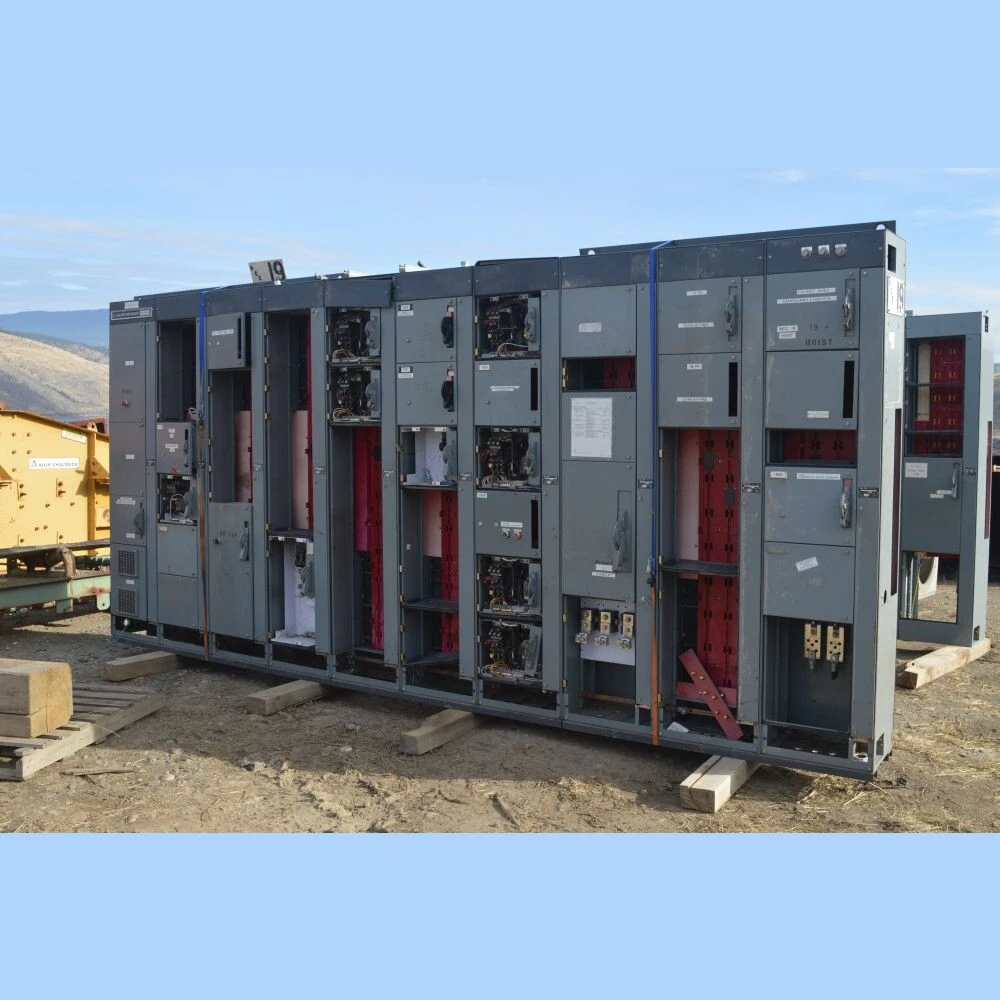

Allen Bradley 10 Bank Center Line 2100 Series MCC Panel

Bank of 10.
Vertical amps: 300.
Horizontal amps: 1,000.

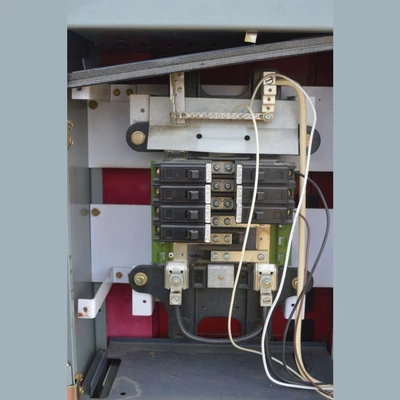

Bank 1:
12 circuit breaker panel:
2 – 30 amp single pole breaker.
1 – 20 amp single pole breaker.
1 – 20 amp single pole breaker.
4 – 15 amp single pole breaker.
30 amp fusible disconnect.
2 – 20 amp fuses.

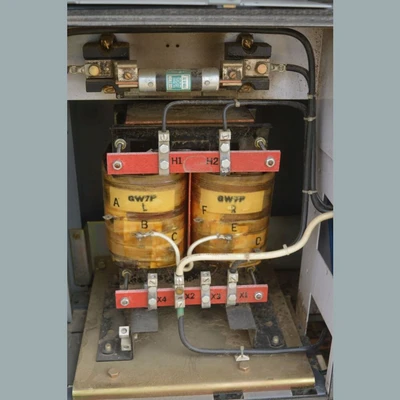

Includes transformer.
12 circuit breaker panel:
2 – 30 amp single pole breaker.
1 – 20 amp single pole breaker.
1 – 20 amp single pole breaker.
4 – 15 amp single pole breaker.
2 – 30 amp single pole breaker.
1 – 20 amp single pole breaker.
1 – 20 amp single pole breaker.
4 – 15 amp single pole breaker.
30 amp fusible disconnect.
2 – 20 amp fuses.
2 – 20 amp fuses.
Includes transformer.
Bank 2:

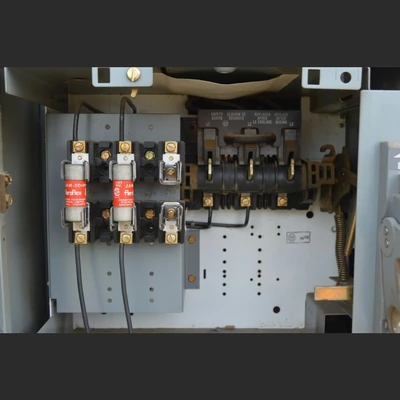

60 amp fusible disconnect.

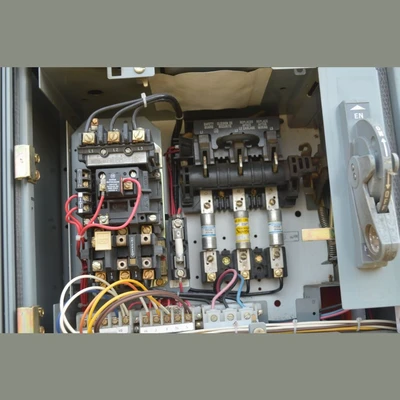

Size 2 starter.
60 amp fusible disconnect.
3 – 50 amp fuses.
Overload: W64.
60 amp fusible disconnect.
Size 2 starter.
60 amp fusible disconnect.
3 – 50 amp fuses.
Overload: W64.
60 amp fusible disconnect.
3 – 50 amp fuses.
Overload: W64.
Bank 3:

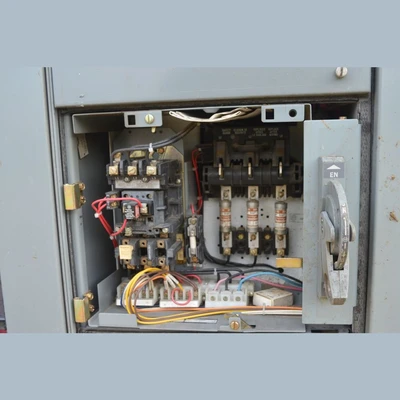

Size 3 starter.
100 amp fusible disconnect.

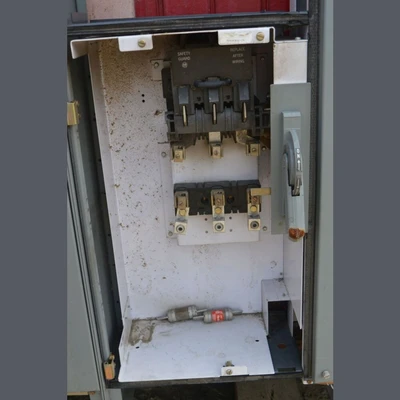

Bank 4:
100 amp fusible disconnect.
100 amp fusible disconnect.
Bank 5:
Size 1 starter.
30 amp disconnect.
6 – 20 amp fuses.
Bank 6:

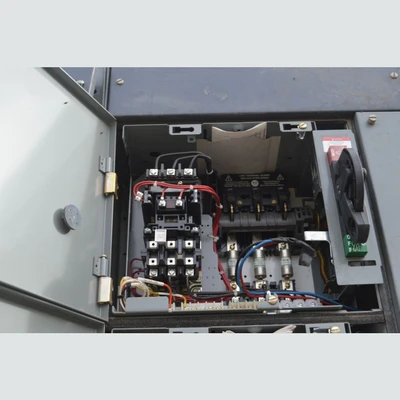

Size 1 starter.
30 amp disconnect.
6 – 30 amp fuses.
30 amp fusible disconnect.
Size 1 starter.
30 amp disconnect.
6 – 30 amp fuses.
30 amp disconnect.
6 – 30 amp fuses.
30 amp fusible disconnect.
Bank 7:
Size 1 starter.
Qty: 4.
30 amp fusible disconnect.
Size 1 starter.
Qty: 4.
Qty: 4.
30 amp fusible disconnect.
Bank 8:

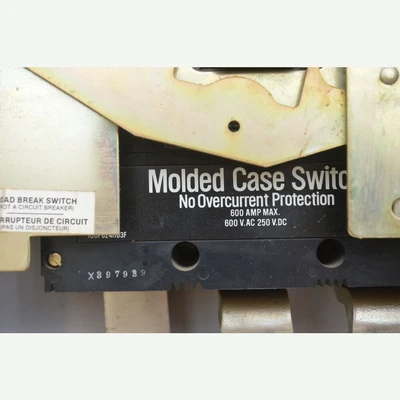

Westinghouse 600 amp interrupter breaker.
Westinghouse 600 amp interrupter breaker.

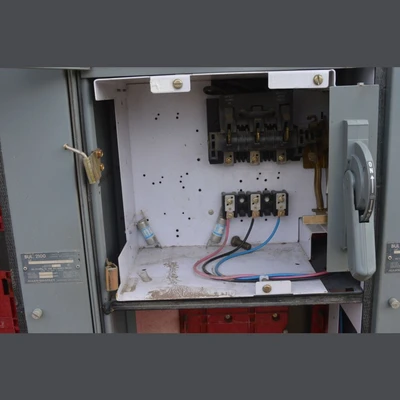

Bank 9:
30 amp fusible disconnect.
30 amp fusible disconnect.
Bank 10:
30 amp fusible disconnect.
30 amp fusible disconnect.
Location: British Columbia, Canada.
