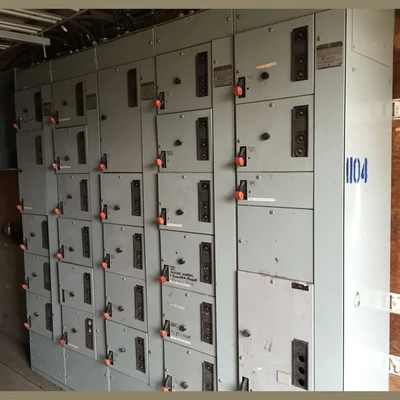

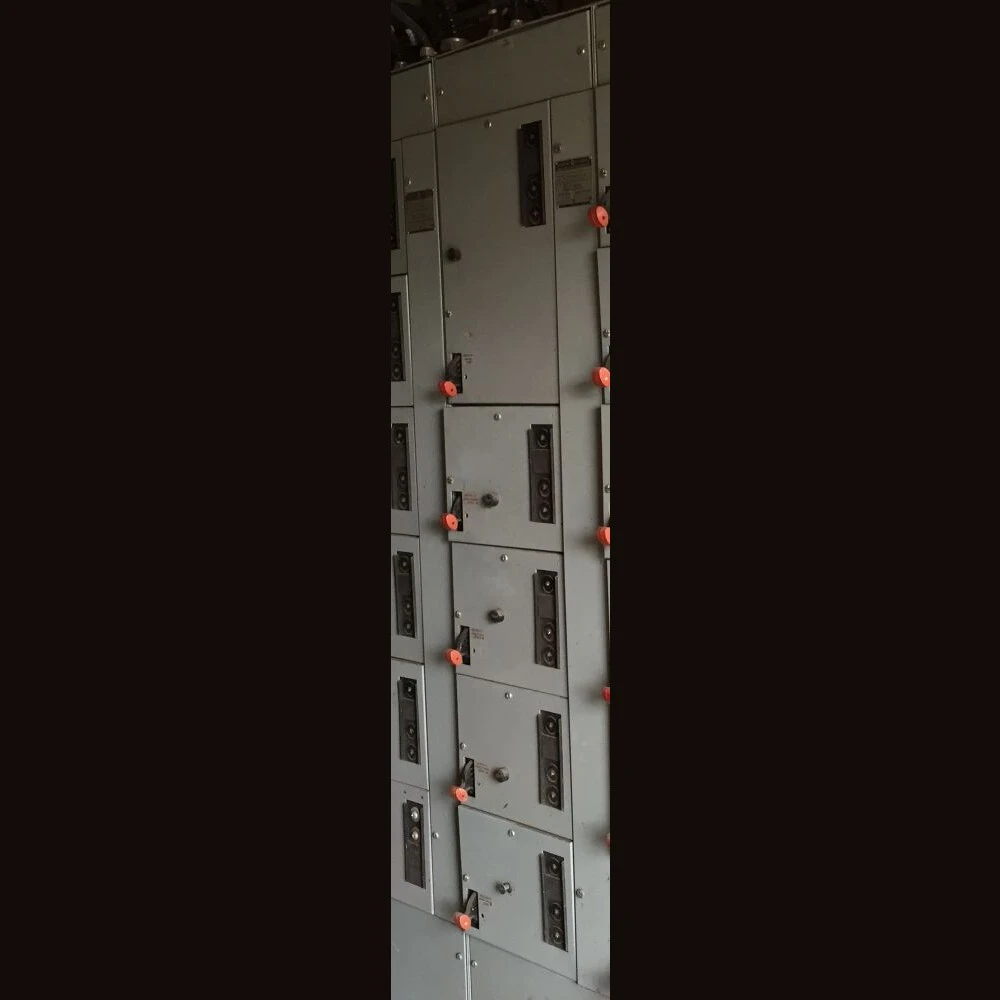

General Electric 600 Volt 8000 Line MCC Section

600A vertical.
600A horizontal.
Bucket 1:
GE size 3 starter - 120 coil.
Overload: 123F467B.
GE 100A breaker - adjustable trip.
GE size 3 starter - 120 coil.
Overload: 123F467B.
GE 100A breaker - adjustable trip.
Bucket 2 & 4:
GE size 2 starter - 120 coil.
Overload = C21.4B.
100VA control transformer - 600/120V.
GE 50A breaker - adjustable trip.
GE size 2 starter - 120 coil.
Overload = C21.4B.
100VA control transformer - 600/120V.
GE 50A breaker - adjustable trip.
Buckets 3:
GE size 1 starter - 120 coil.
Overload: C6.30A.
100VA control transformer - 600/120V.
GE 7A breaker - adjustable trip.
GE size 1 starter - 120 coil.
Overload: C6.30A.
100VA control transformer - 600/120V.
GE 7A breaker - adjustable trip.
Bucket 5:
GE size 1 starter - 120 coil.
Overload: C1.96A.
100VA control transformer - 600/120V.
GE 7 amp breaker - adjustable trip.
GE size 1 starter - 120 coil.
Overload: C1.96A.
100VA control transformer - 600/120V.
GE 7 amp breaker - adjustable trip.
Dimensions (Single section) L x W x H:
20 in. x 20 in. x 94 in.
51 cm x 51 cm x 239 cm.
20 in. x 20 in. x 94 in.
51 cm x 51 cm x 239 cm.
