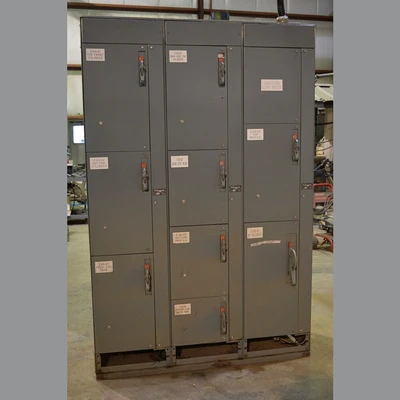

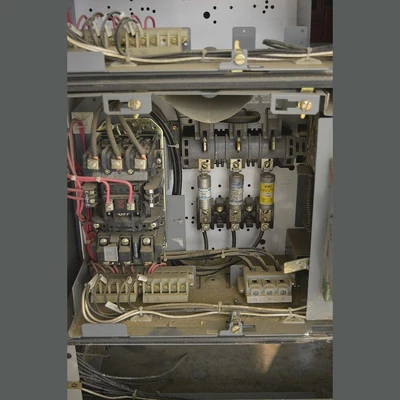

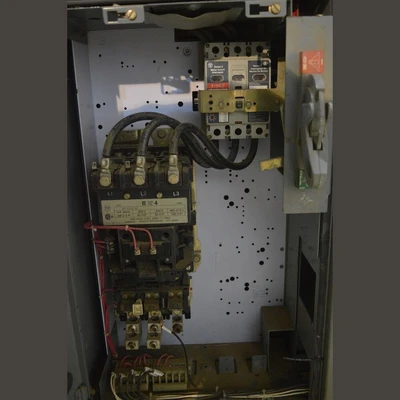

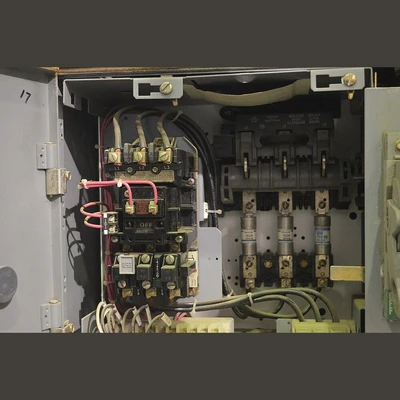

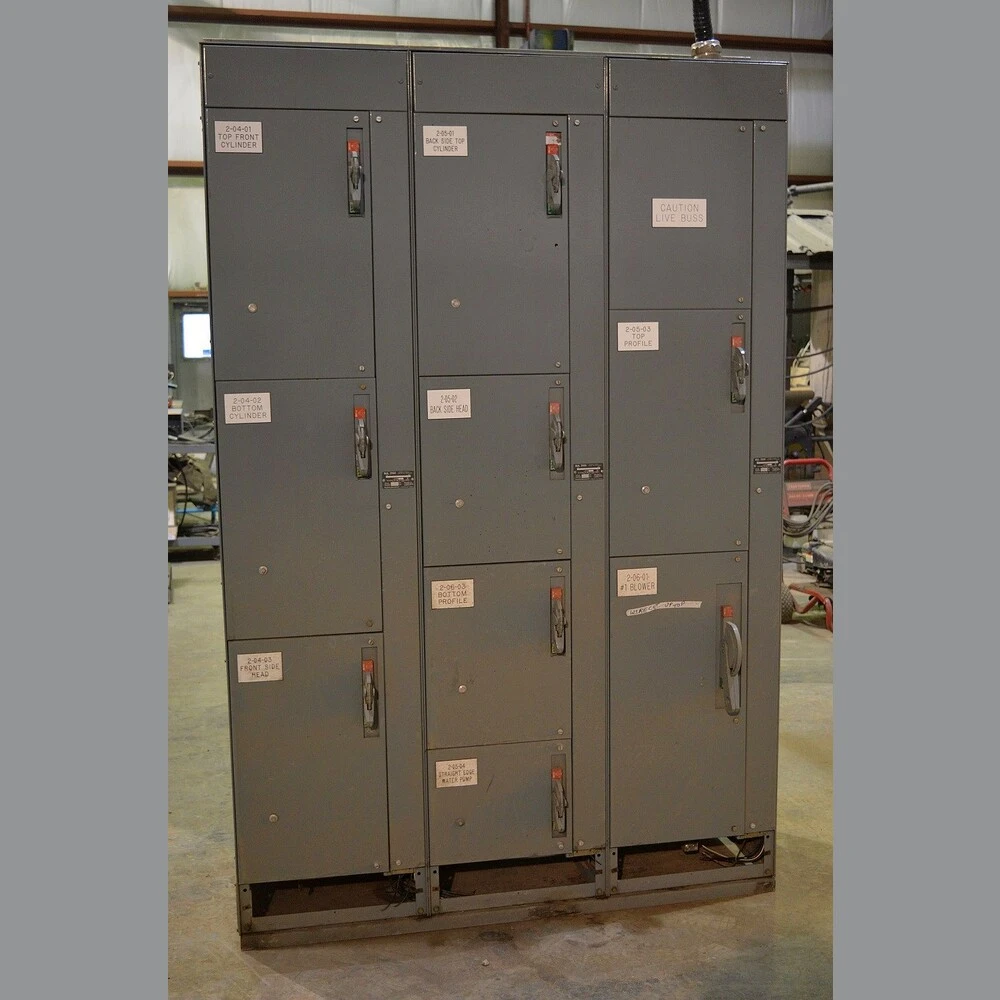

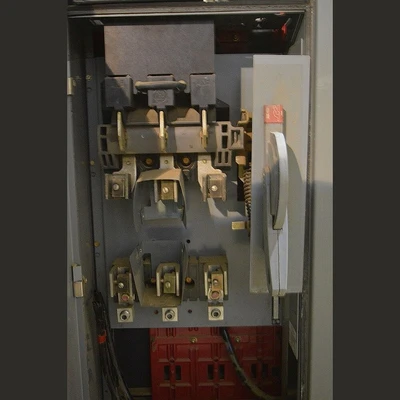

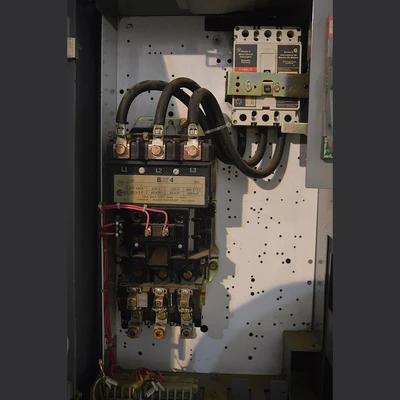

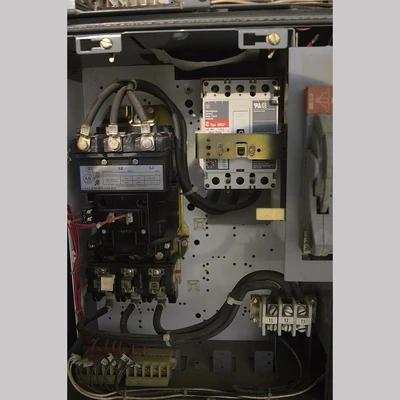

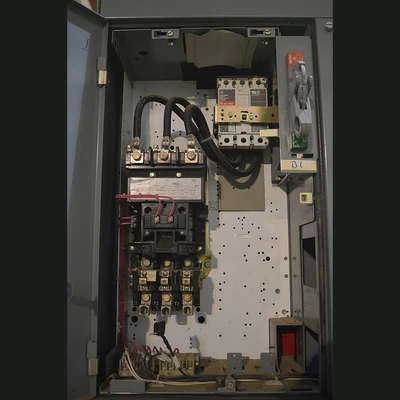

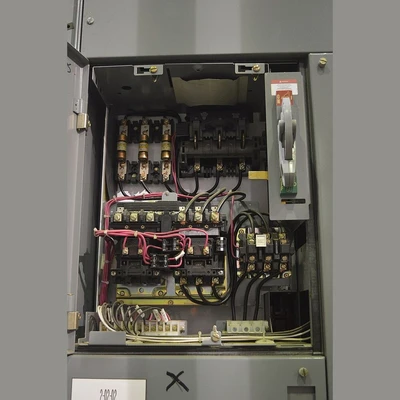

Allen Bradley 2100 Series Back to Back Six Column MCC Panel

Back to Back six columns

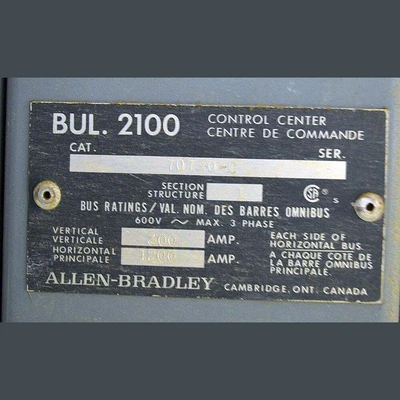

Vertical Amps: 300
Horizontal Amps: 1200
Section 1

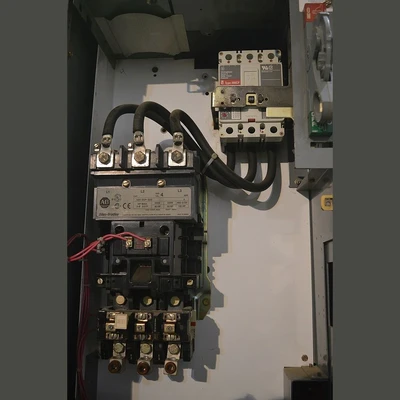

Size 4 Starter 509 Style
Quantity: 3
Westing house 150 Amp type HMCP Breaker
Overload: W74, W73 and W79
Size 4 Starter 509 Style
Quantity: 3
Westing house 150 Amp type HMCP Breaker
Overload: W74, W73 and W79
Quantity: 3
Westing house 150 Amp type HMCP Breaker
Overload: W74, W73 and W79
Section 2
Size 4 Starter 509 Style
Westing house 150 Amp type HMCP Breaker
Overload: W74
Size 3 Starter 509 Style
Quantity: 2
Westing house 100 Amp type HMCP Breaker
Overload: W68 and W69
Size 1 Starter 509 Style
Fuseable
6 Amp Fuses
Overload: W34
Size 4 Starter 509 Style
Westing house 150 Amp type HMCP Breaker
Overload: W74
Westing house 150 Amp type HMCP Breaker
Overload: W74
Size 3 Starter 509 Style
Quantity: 2
Westing house 100 Amp type HMCP Breaker
Overload: W68 and W69
Quantity: 2
Westing house 100 Amp type HMCP Breaker
Overload: W68 and W69
Size 1 Starter 509 Style
Fuseable
6 Amp Fuses
Overload: W34
Fuseable
6 Amp Fuses
Overload: W34
Section 3
Size 4 Starter 509 Style
Westing house 150 Amp type HMCP Breaker
Overload: W79
400 Amp Fuseable Disconnect
Size 4 Starter 509 Style
Westing house 150 Amp type HMCP Breaker
Overload: W79
Westing house 150 Amp type HMCP Breaker
Overload: W79
400 Amp Fuseable Disconnect
Section 4

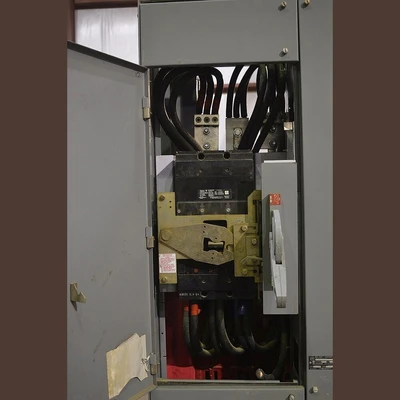

1200 Amp Westing House VISA Breaker
1000 Amp Trip
200 Amp Fuseable Disconnect
1200 Amp Westing House VISA Breaker
1000 Amp Trip
200 Amp Fuseable Disconnect
Section 5
Size 1 Reversing Starter 509 Style
Quantity: 2
Fuseable
4 and 10 Amp Fuses
Overload: W30 and W37
Size 1 Starter 509 Style
Fuseable
20 Amp Fuses
Overload: W48
Size 3 Starter 509 Style
Westing House 100 Amp HMCP Breaker
Overload : W89
Size 1 Reversing Starter 509 Style
Quantity: 2
Fuseable
4 and 10 Amp Fuses
Overload: W30 and W37
Quantity: 2
Fuseable
4 and 10 Amp Fuses
Overload: W30 and W37
Size 1 Starter 509 Style
Fuseable
20 Amp Fuses
Overload: W48
Fuseable
20 Amp Fuses
Overload: W48
Size 3 Starter 509 Style
Westing House 100 Amp HMCP Breaker
Overload : W89
Westing House 100 Amp HMCP Breaker
Overload : W89
Section 6
Size 1 Starter 509 Style
Quantity: 3
Fuseable
20 and 30 Amp fuses
Overload: W48 and W52
Size 1 Starter 509 Style
Quantity: 3
Fuseable
20 and 30 Amp fuses
Overload: W48 and W52
Quantity: 3
Fuseable
20 and 30 Amp fuses
Overload: W48 and W52
Located: British Columbia, Canada
