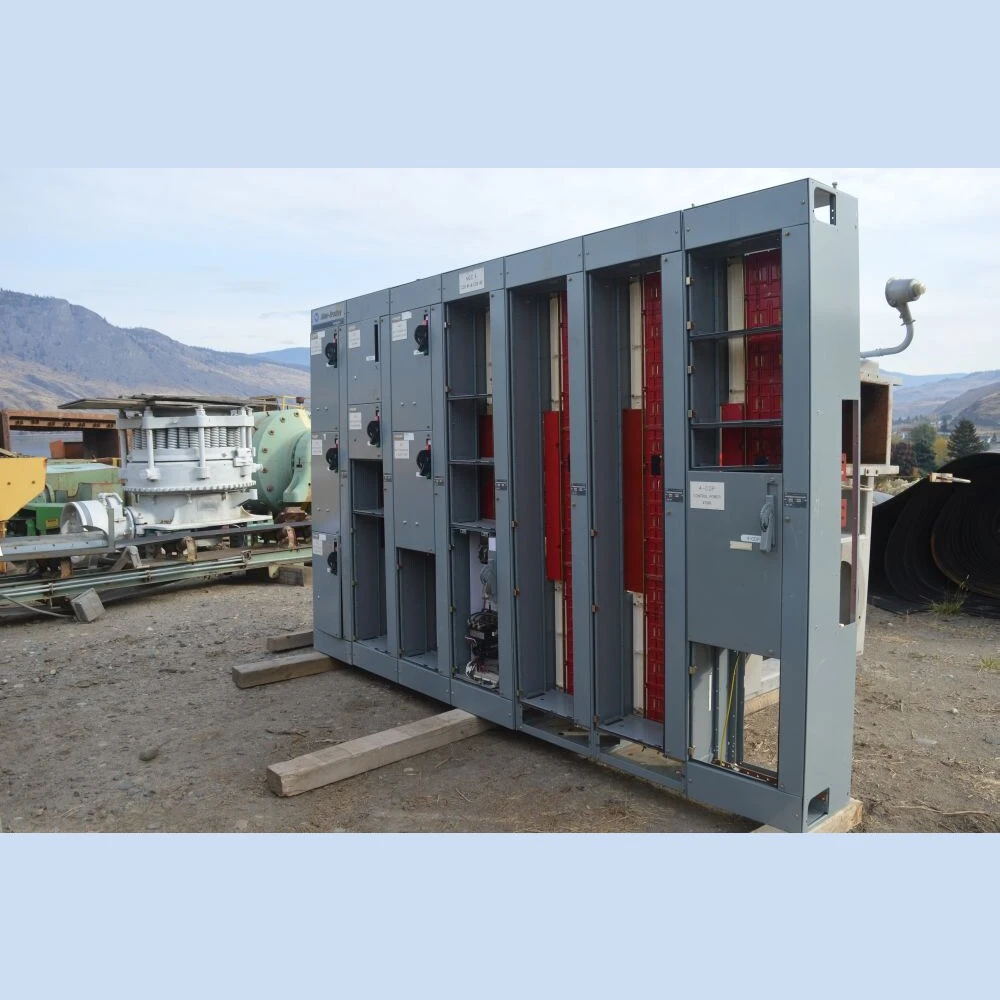

Allen Bradley 7 Bank Center Line 2100 Series MCC Panel
Overview
Specifications
Bank of 7.

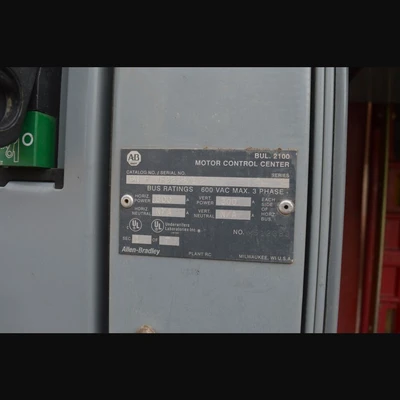

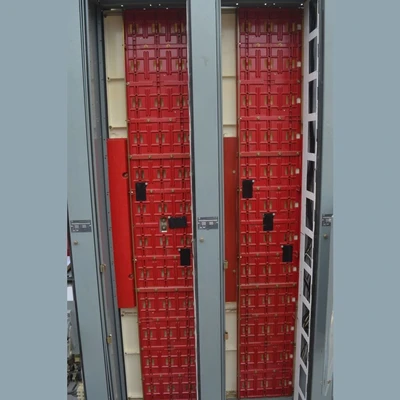

Vertical amps: 300.
Horizontal amps: 800.
Bank 1:

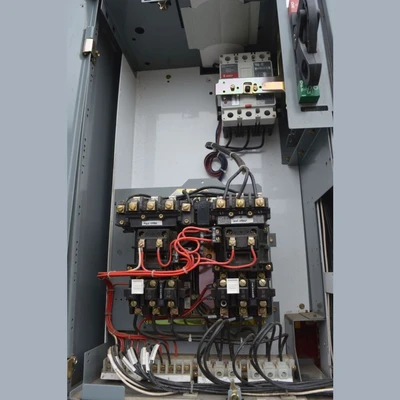

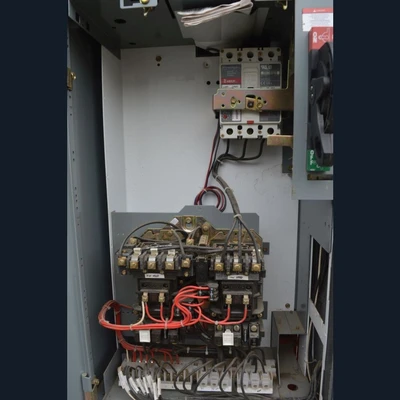

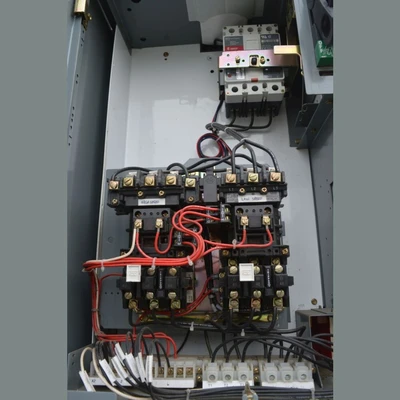

Size 1 reversing starter (509 style).
Qty: 2.
Cutler Hammer 15 amp HMCP Breakers.
Over Loads: W49 and W48.

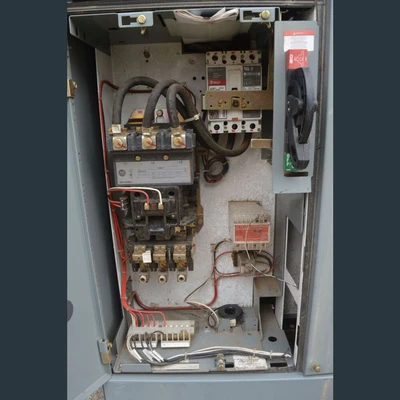

Size 4 Starter.
Quantity: 1.
Cutler Hammer 150 amp HMCP Breaker.
Overload: W80.
Size 1 reversing starter (509 style).
Qty: 2.
Cutler Hammer 15 amp HMCP Breakers.
Over Loads: W49 and W48.
Qty: 2.
Cutler Hammer 15 amp HMCP Breakers.
Over Loads: W49 and W48.
Size 4 Starter.
Quantity: 1.
Cutler Hammer 150 amp HMCP Breaker.
Overload: W80.
Quantity: 1.
Cutler Hammer 150 amp HMCP Breaker.
Overload: W80.
Bank 2:

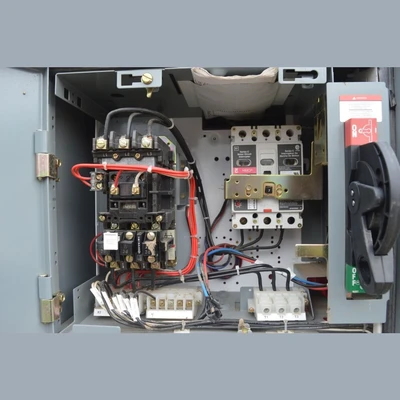

Size 1 starter.
Quantity: 1.
Cutler Hammer 7 amp breaker.
Overload: W36.
Size 1 starter.
Quantity: 1.
Cutler Hammer 7 amp breaker.
Overload: W36.
Quantity: 1.
Cutler Hammer 7 amp breaker.
Overload: W36.
Bank 3:

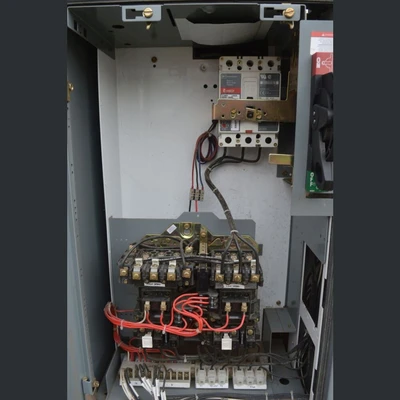

Size 1 reversing starter.
Quantity: 2.
Cutler Hammer 15 amp Breaker.
Overloads: W49 and W48.
Size 1 reversing starter.
Quantity: 2.
Cutler Hammer 15 amp Breaker.
Overloads: W49 and W48.
Quantity: 2.
Cutler Hammer 15 amp Breaker.
Overloads: W49 and W48.
Bank 4:

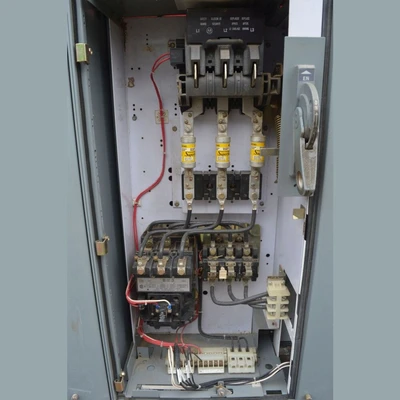

Size 3 Starter.
Quantity: 1.
100 amp fuseable disconnect.
80 amp fuses.
Overload: W68.
Bank 5 and 6:
Bank 7:

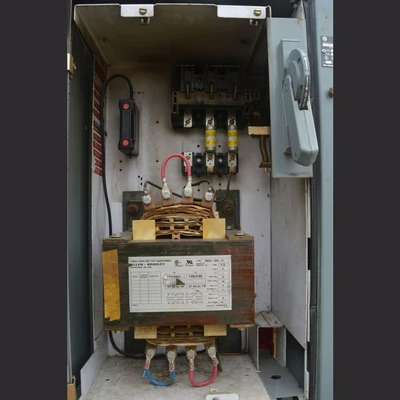

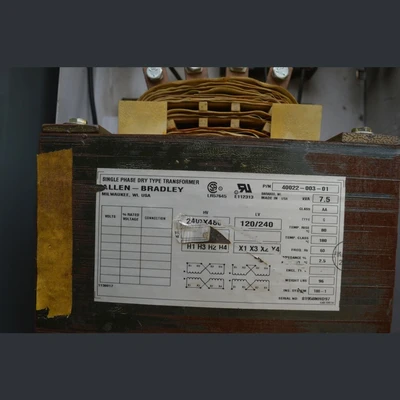

A-B 7.5 kVA control transformer.
High voltage: 240/480.
Low voltage: 120/240.
A-B 7.5 kVA control transformer.
High voltage: 240/480.
Low voltage: 120/240.
High voltage: 240/480.
Low voltage: 120/240.
Location: British Columbia, Canada.
