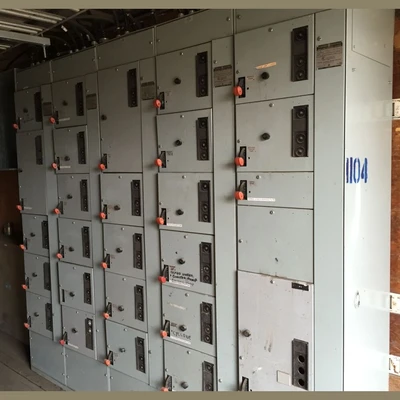

General Electric 600 Volt 8000 Line MCC Section
Overview
Specifications
600A vertical.
600A horizontal.
Bucket 1:
GE size 2 starter - 120 coil.
Overload: 16.3B.
100 VA control transformer - 600/120V.
30A breaker - adjustable trip.
GE size 2 starter - 120 coil.
Overload: 16.3B.
100 VA control transformer - 600/120V.
30A breaker - adjustable trip.
Bucket 2:
GE size 1 starter - 120 coil.
Adjustable overload = C8.67A.
75VA control transformer - 600/120V.
GE 15A breaker - adjustable trip.
GE size 1 starter - 120 coil.
Adjustable overload = C8.67A.
75VA control transformer - 600/120V.
GE 15A breaker - adjustable trip.
Bucket 3:
100VA control transformer - 600/120V.
GE 15A breaker - adjustable trip.
100VA control transformer - 600/120V.
GE 15A breaker - adjustable trip.
Bucket 4:
GE size 3 starter - 120 coil.
Overload: 123F658B.
GE 100A new style breaker - adjustable trip.
GE size 3 starter - 120 coil.
Overload: 123F658B.
GE 100A new style breaker - adjustable trip.
Dimensions (Single section) L x W x H:
20 in. x 20 in. x 94 in.
51 cm x 51 cm x 239 cm.
20 in. x 20 in. x 94 in.
51 cm x 51 cm x 239 cm.
