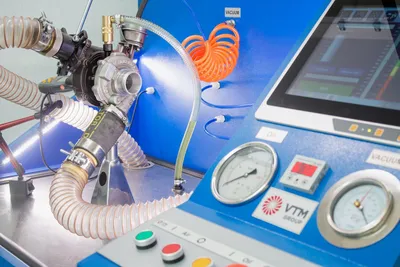

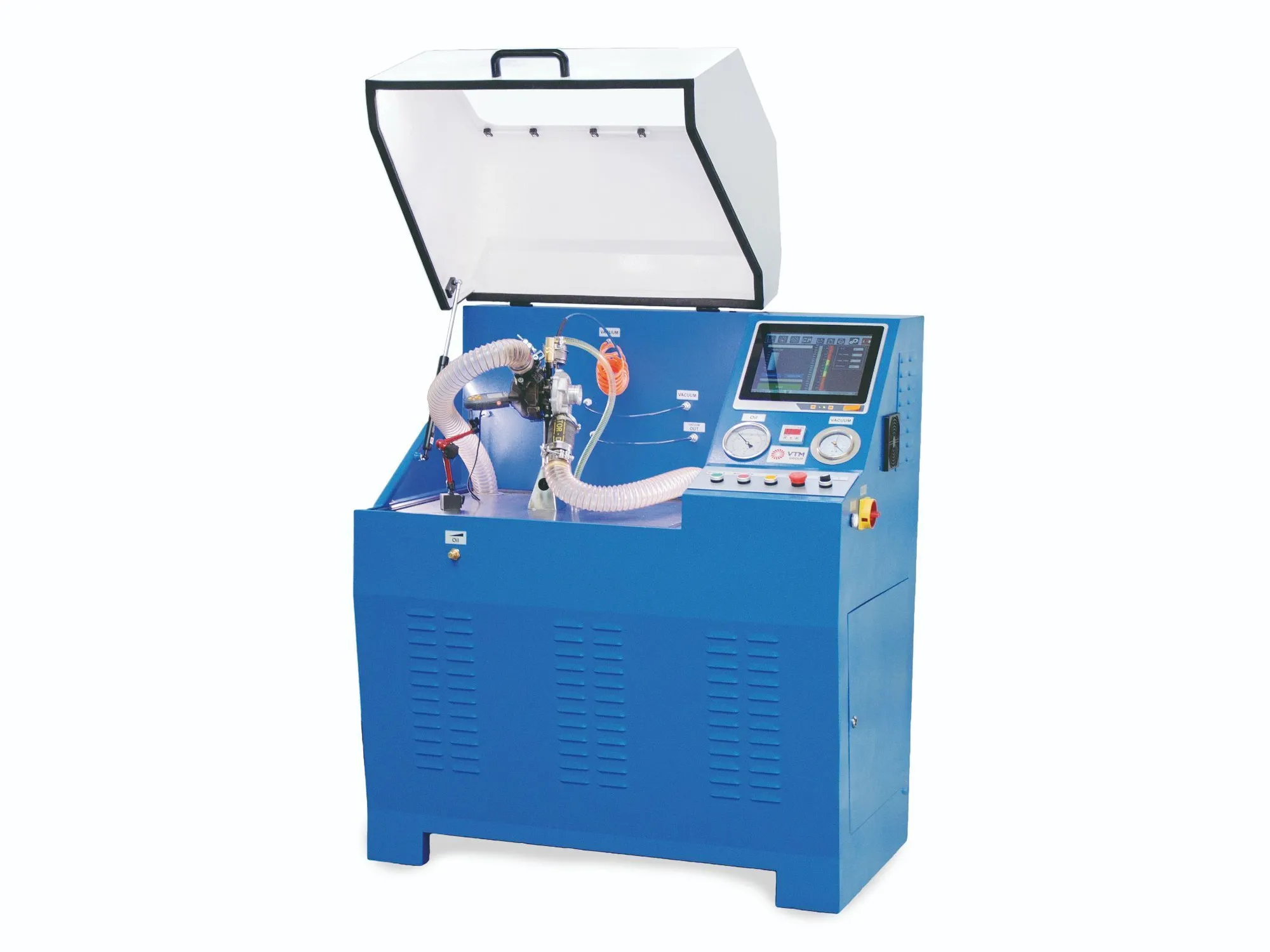

NEW VTM GROUP Turbo-Boost-Test

Turbocharger boost testing bench allows for professional turbocharger calibration and performance evaluation.
The test bench can be used in turbo tuning and refinement, in the manufacture of hybrid turbos, to test changes in turbo performance after tuning.
.
Our test benches are advanced systems for turbocharger tuning and testing in dynamic mode.
Its provide turbocharger testing under near realistic operating conditions, ensuring full process control and detection of any potential problems, including oil leaks.
.
ADVANTAGES AND FEATURES
• Accessories for mounting any turbocharger included in the kit
• Calibration of maximum airflow point
• Testing geometry performance over the entire range with graphing
• Vacuum actuator trigger point adjustment
• Check supercharging under realistic conditions
• Plotting of turbocharger operation with electronic actuator
• Plotting the supercharger inlet and turbocharger outlet boost to flow rate graphs
• Plotting the power output of the engine with the turbocharger under test
• Testing backlash in geometry and wear assessment
• Testing the correct operation of the N75 control valve over the entire vacuum range
• Testing the turbocharger for oil leaks
• The machine does not require any other connections except 380V power supply.
.
.
HIGHLIGHTS
• Complete finish testing and tuning of automotive turbochargers for engines up to 3 liters
• Dynamic turbocharger testing
• Installation on the regular surfaces of fastening
• Running in and check on an oil leak
• Tuning of electronically driven turbos is done by connecting to an external tester ATP-3000
• Installation of turbochargers of any design
• More than 6000 turbo references database
• Plot supercharging vs. inlet and outlet flow graph;
• N75 valve testing function
• Built-in blower pump to create a constant airflow
• Creation and printing of reports on the tuning process.
