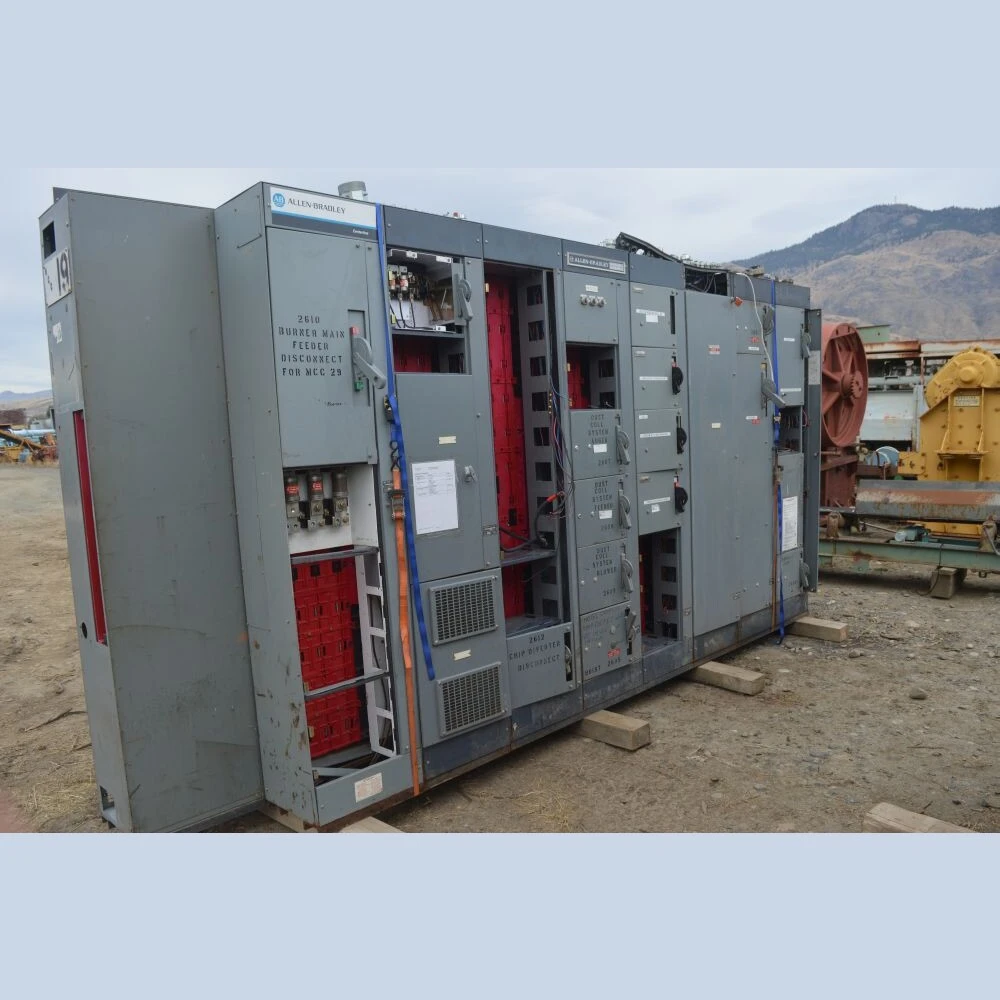

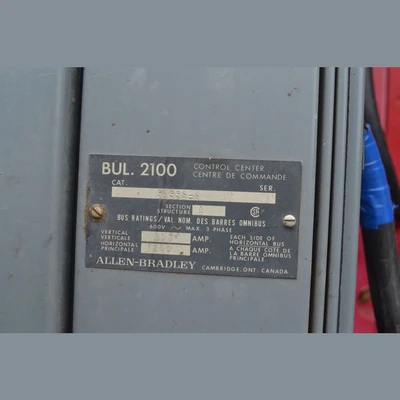

Allen Bradley 8 Bank Center Line 2100 Series MCC Panel

Bank of 8.
Vertical amps: 300.
Horizontal amps: 1200.
Bank 1:
Main infeed.
Qty: 1.

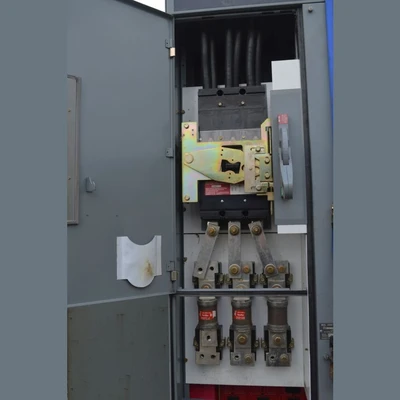

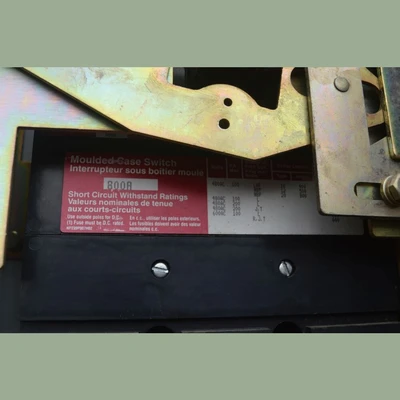

Westinghouse 800 amp interrupter breaker.
Main infeed.
Qty: 1.
Westinghouse 800 amp interrupter breaker.
Qty: 1.
Westinghouse 800 amp interrupter breaker.
Bank 2:

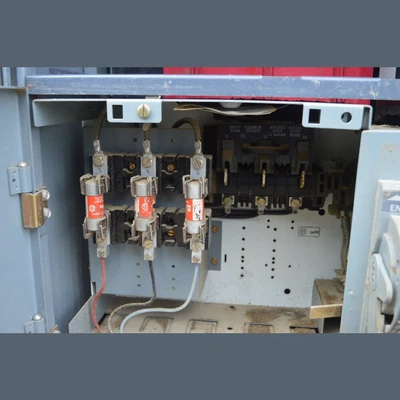

60 amp fusible disconnect – Qty: 1.
60 amp fuses – Qty: 2.

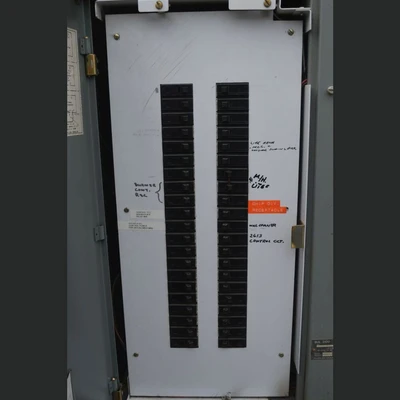

42 circuit breaker panel.
Bank 3:

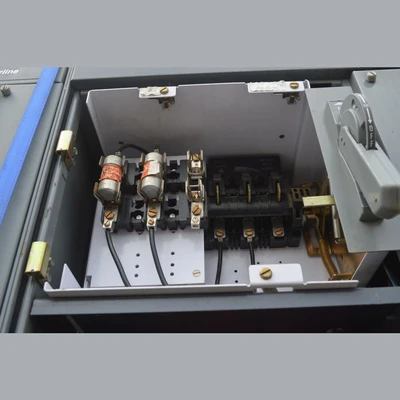

30 amp fusible disconnect.
25 amp fuses – Qty: 3.
30 amp fusible disconnect.
25 amp fuses – Qty: 3.
Bank 4:

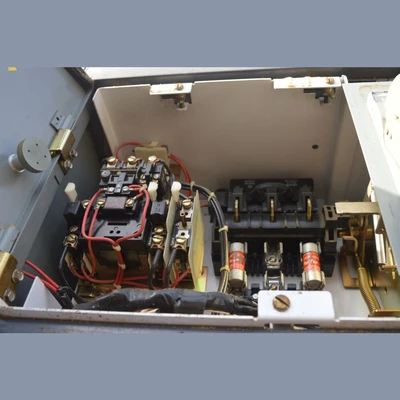

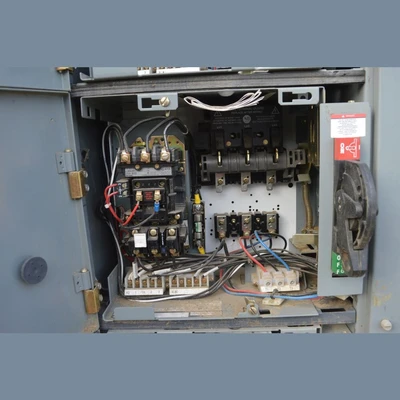

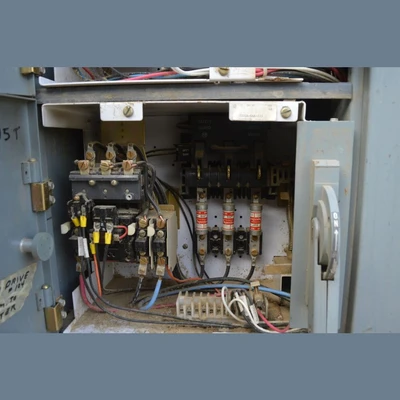

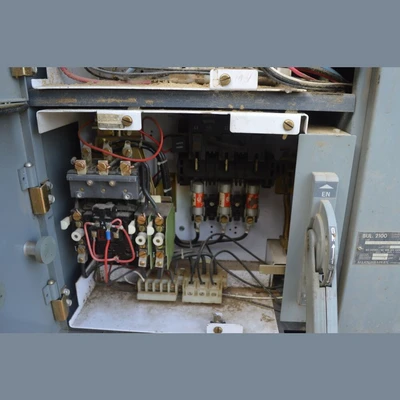

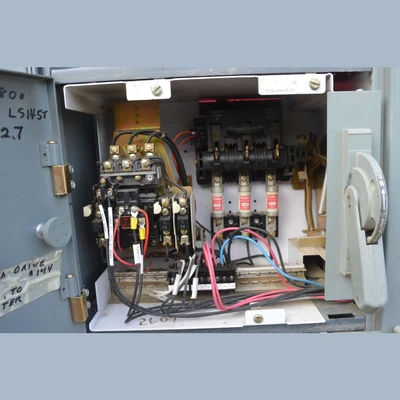

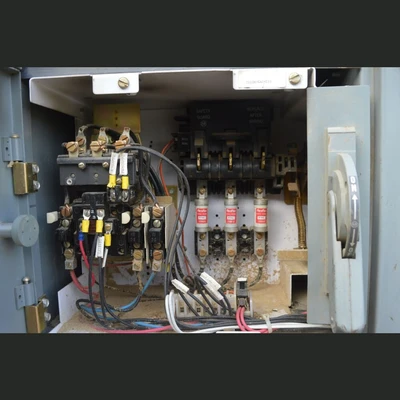

Size 1 Starter (709 starter).
30 amp disconnect.
10 amp fuses – Qty: 3.
Overload: W36.

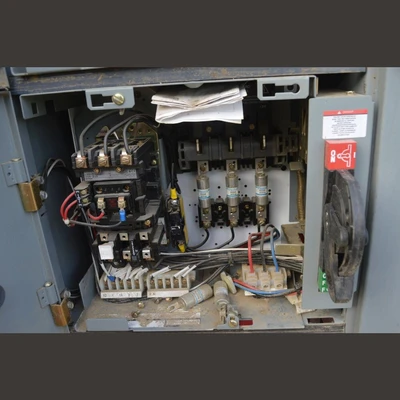

Size 2 starters (709 starter).
Qty: 3.
30 amp fusible disconnect.
6 – 30 amp fuses.
3 – 10 amp fuses.
Overload: S
Size 1 Starter (709 starter).
30 amp disconnect.
10 amp fuses – Qty: 3.
Overload: W36.
30 amp disconnect.
10 amp fuses – Qty: 3.
Overload: W36.

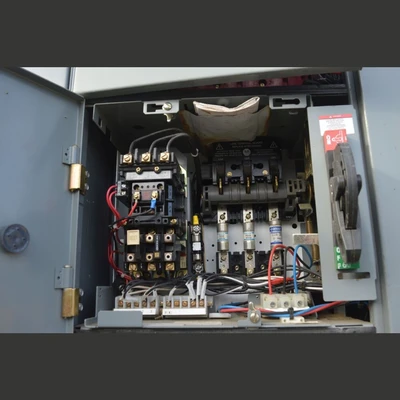

Size 2 starters (709 starter).
Qty: 3.
30 amp fusible disconnect.
6 – 30 amp fuses.
3 – 10 amp fuses.
Overload: S
Qty: 3.
30 amp fusible disconnect.
6 – 30 amp fuses.
3 – 10 amp fuses.
Overload: S
Bank 5:
Size 1 starter.
Qty: 3.
30 amp disconnects.
Size 1 starter.
Qty: 3.
30 amp disconnects.
Qty: 3.
30 amp disconnects.
Bank 6:
Bank 7:
Size 1 starter.
30 amp fusible disconnect.
2 – 30 amp fuses.
Overloads: 2 – N32.
Size 5 starter.

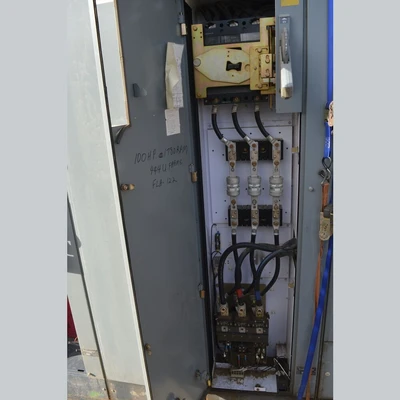

ITE 600 amp interrupter breaker.
Built in 300:5 current transformers.
Overloads: 2 – W42.
Size 1 starter.
30 amp fusible disconnect.
2 – 30 amp fuses.
Overloads: 2 – N32.
30 amp fusible disconnect.
2 – 30 amp fuses.
Overloads: 2 – N32.
Size 5 starter.
ITE 600 amp interrupter breaker.
Built in 300:5 current transformers.
Overloads: 2 – W42.
ITE 600 amp interrupter breaker.
Built in 300:5 current transformers.
Overloads: 2 – W42.
Bank 8:
Size 3 Starter.
Qty: 1.
100 amp disconnect.
Size 1 starter.
30 amp disconnect.
3 – 10 amp fuses.
Size 3 Starter.
Qty: 1.
100 amp disconnect.
Qty: 1.
100 amp disconnect.
Size 1 starter.
30 amp disconnect.
3 – 10 amp fuses.
30 amp disconnect.
3 – 10 amp fuses.
Location: British Columbia, Canada.
