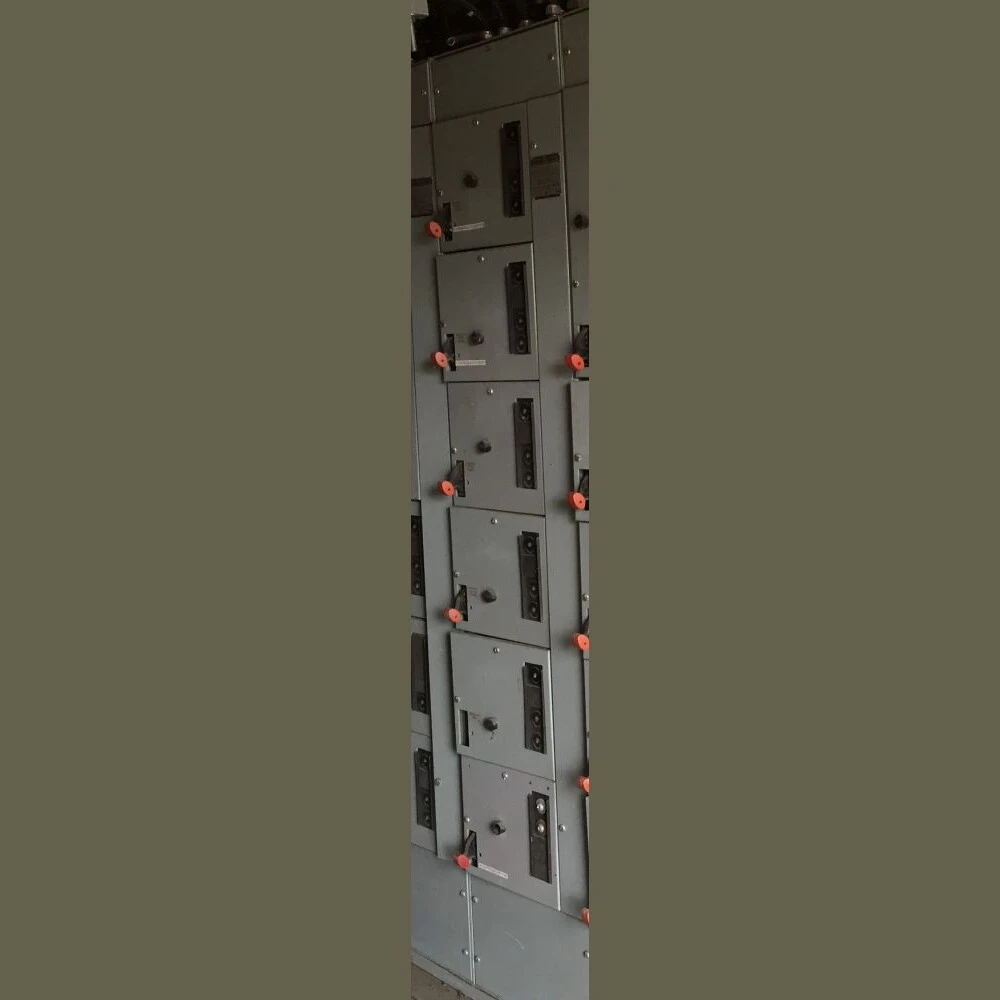

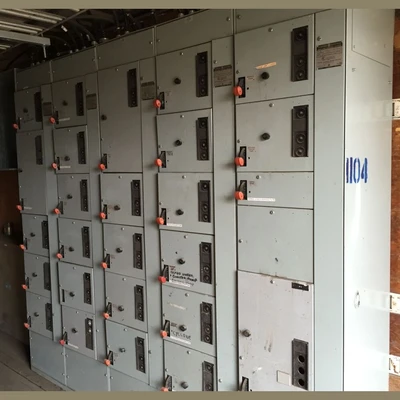

General Electric 600 Volt 8000 Line MCC Section

600A vertical.
600A horizontal.
Bucket 1, 2, 3 & 4:
GE size 1 starter - 120 coil.
Overload: C8.67A.
75 VA control transformer - 600/120V.
GE 15A breaker - adjustable trip.
GE size 1 starter - 120 coil.
Overload: C8.67A.
75 VA control transformer - 600/120V.
GE 15A breaker - adjustable trip.
Bucket 5:
Moeller size 2 starter - 120 coil.
Adjustable overload = 16-24A.
100VA control transformer - 600/120V.
GE 50A breaker - adjustable trip.
Moeller size 2 starter - 120 coil.
Adjustable overload = 16-24A.
100VA control transformer - 600/120V.
GE 50A breaker - adjustable trip.
Bucket 6:
Telemecanique size 2 starter - 120 coil.
Adjustable overload: 23-32A.
100VA control transformer - 600/120V.
GE 50A new style breaker - adjustable trip.
Telemecanique size 2 starter - 120 coil.
Adjustable overload: 23-32A.
100VA control transformer - 600/120V.
GE 50A new style breaker - adjustable trip.
Dimensions (Single section) L x W x H:
20 in. x 20 in. x 94 in.
51 cm x 51 cm x 239 cm.
20 in. x 20 in. x 94 in.
51 cm x 51 cm x 239 cm.
