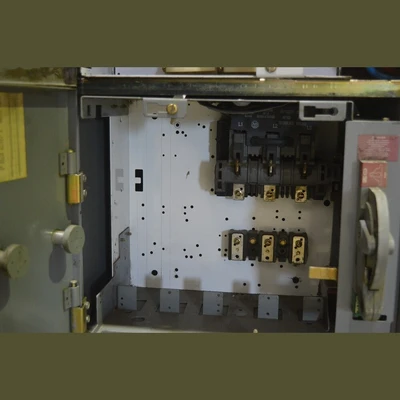

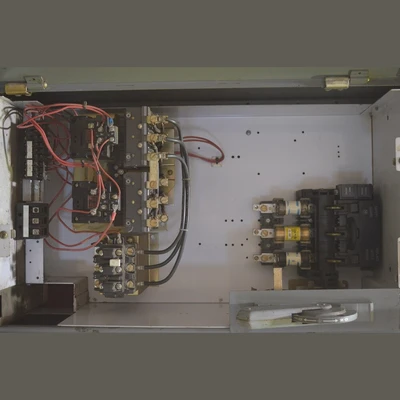

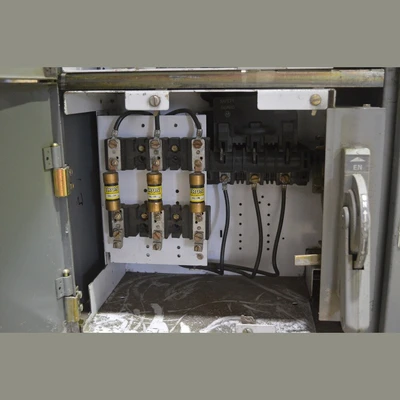

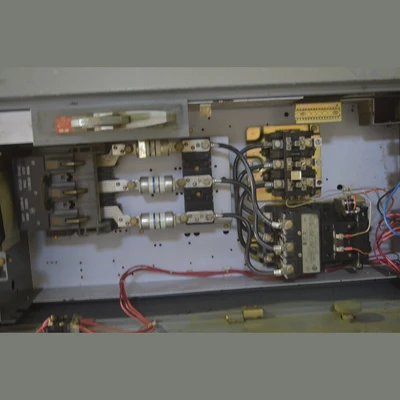

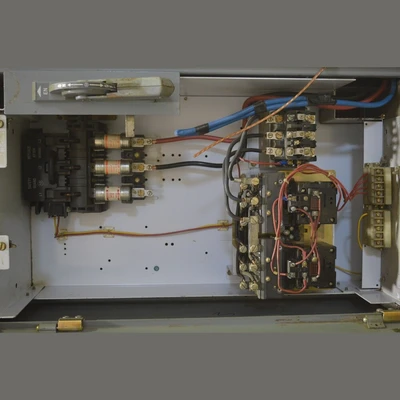

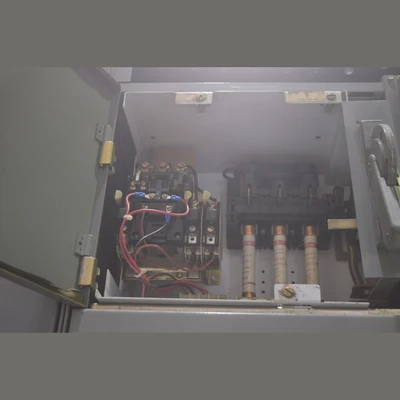

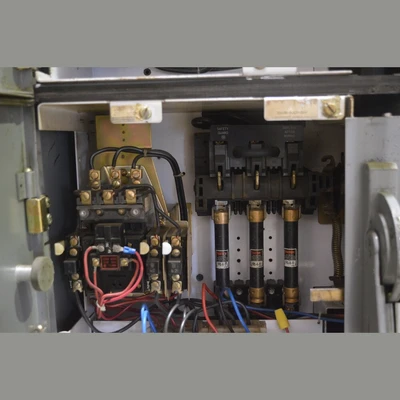

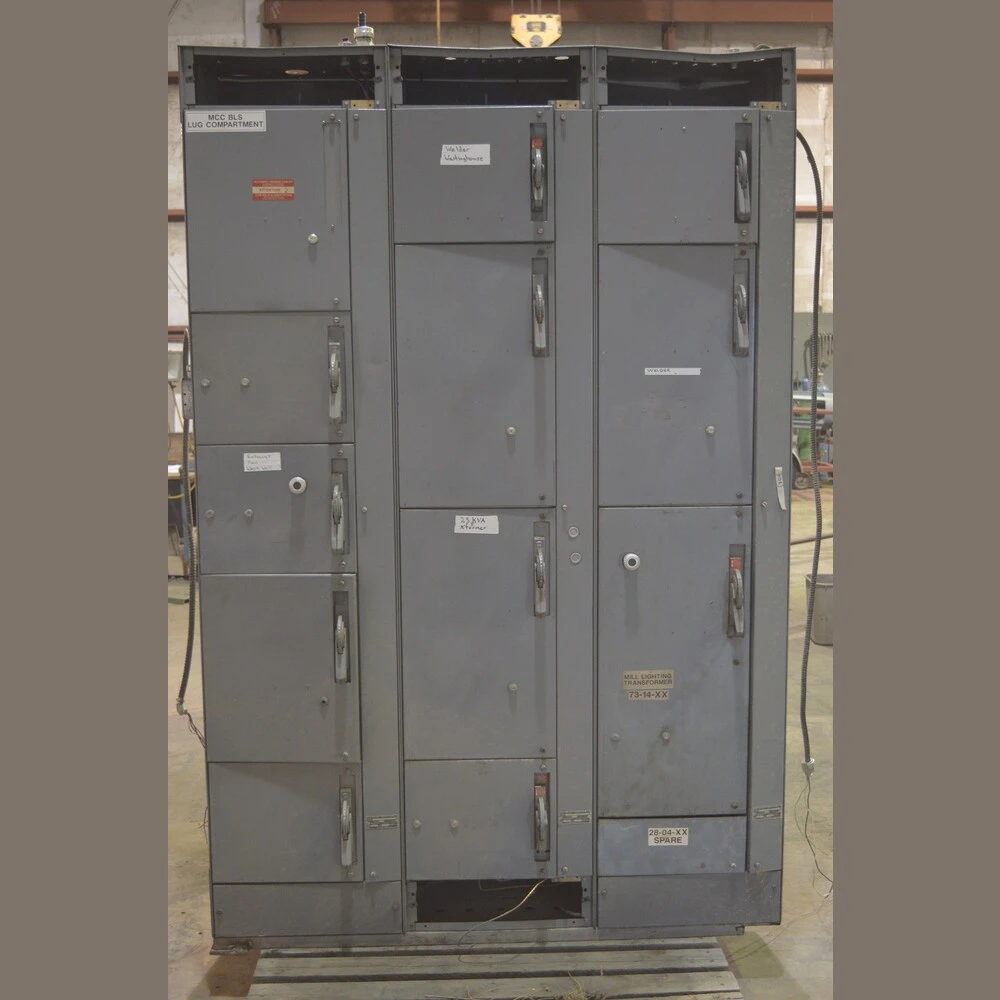

Allen Bradley 2100 Series MCC Panel

Bank of 3

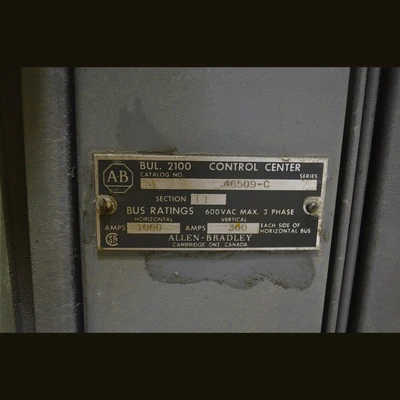

Vertical Amps: 300
Horizontal Amps: 1000
Section 1
30 Amp Fusable Disconnect
Quantity: 2
Size 1 Starter 709 style
Overload: W42

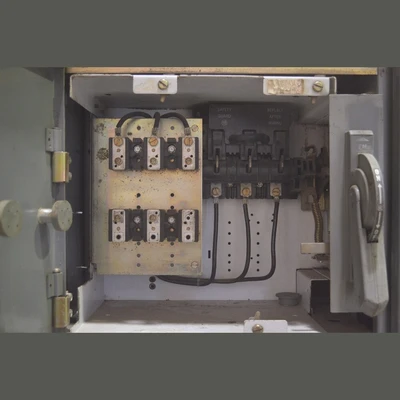

Fusable Disconnect
15 Amp Fuses

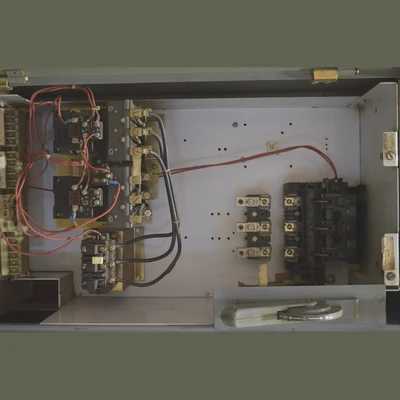

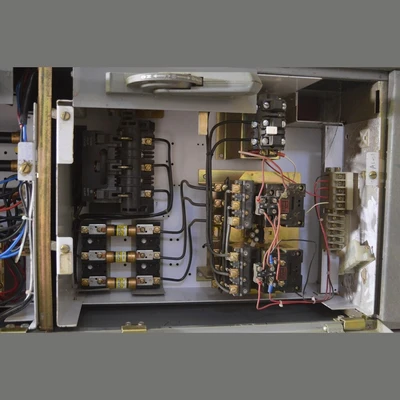

Size 1 Reversing Starter 709 Style
Fusable Disconnect
15 Amp Fuses
Overload: W54
30 Amp fuses
30 Amp Fusable Disconnect
Quantity: 2
Quantity: 2
Size 1 Starter 709 style
Overload: W42
Fusable Disconnect
15 Amp Fuses
Overload: W42
Fusable Disconnect
15 Amp Fuses
Size 1 Reversing Starter 709 Style
Fusable Disconnect
15 Amp Fuses
Overload: W54
Fusable Disconnect
15 Amp Fuses
Overload: W54
30 Amp fuses
Section 2
60 Amp Fusable Disconnect
60 Amp fuses
Size 2 Reversing Starter 709 Style
Fuseable Disconnect
Overload: W56
Size 2 Reversing Starter 709 Style
Fuseable Disconnect
60 Amp Fuses
Overload: W59
30 Amp Fuseable Disconnect
60 Amp Fusable Disconnect

60 Amp fuses
Size 2 Reversing Starter 709 Style
Fuseable Disconnect
Overload: W56
Fuseable Disconnect
Overload: W56
Size 2 Reversing Starter 709 Style
Fuseable Disconnect
60 Amp Fuses
Overload: W59
Fuseable Disconnect
60 Amp Fuses
Overload: W59
30 Amp Fuseable Disconnect
Section 3
Size 1 Starter 709 Style
Fuseable Disconnect
25 Amp Fuses
Overload: W44
Size 2 Reversing Starter 709 Style
Fuseable Disconnect
40 Amp Fuses
Overload: W36
Size 3 Starter 509 Style
Fuseable Disconnect
80 Amp Fuses
Overload: W63
Size 1 Starter 709 Style
Fuseable Disconnect
25 Amp Fuses
Overload: W44
Fuseable Disconnect
25 Amp Fuses
Overload: W44
Size 2 Reversing Starter 709 Style
Fuseable Disconnect
40 Amp Fuses
Overload: W36
Fuseable Disconnect
40 Amp Fuses
Overload: W36
Size 3 Starter 509 Style
Fuseable Disconnect
80 Amp Fuses
Overload: W63
Fuseable Disconnect
80 Amp Fuses
Overload: W63
Location: British Columbia, Canada
