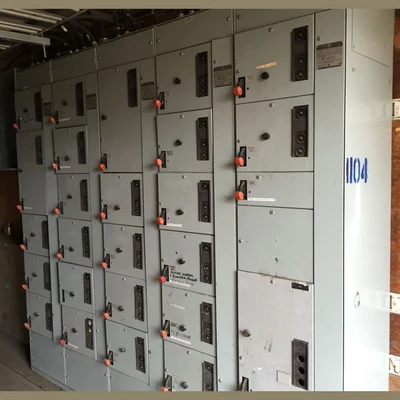

General Electric 600 Volt 8000 Line MCC Section

600A vertical.
600A horizontal.
Bucket 1:
GE size 1 starter - 120 coil.
75 VA control transformer - 600/120V.
GE 15A breaker - adjustable trip.
GE size 1 starter - 120 coil.
75 VA control transformer - 600/120V.
GE 15A breaker - adjustable trip.
Bucket 2:
GE size 2 starter - 120 coil.
Overload = C303B.
100VA control transformer - 600/120V.
GE 30A breaker - adjustable trip.
GE size 2 starter - 120 coil.
Overload = C303B.
100VA control transformer - 600/120V.
GE 30A breaker - adjustable trip.
Buckets 3, 4 & 5:
GE size 2 starter - 120 coil.
100VA control transformer - 600/120V.
GE 15A breaker - adjustable trip.
GE size 2 starter - 120 coil.
100VA control transformer - 600/120V.
GE 15A breaker - adjustable trip.
Bucket 6:
GE size 1 starter - 120 coil.
100VA control transformer - 600/120V.
GE 3 amp breaker - adjustable trip.
Allen Bradley timer.
GE size 1 starter - 120 coil.
100VA control transformer - 600/120V.
GE 3 amp breaker - adjustable trip.
Allen Bradley timer.
Dimensions (Single section) L x W x H:
20 in. x 20 in. x 94 in.
51 cm x 51 cm x 239 cm.
20 in. x 20 in. x 94 in.
51 cm x 51 cm x 239 cm.
