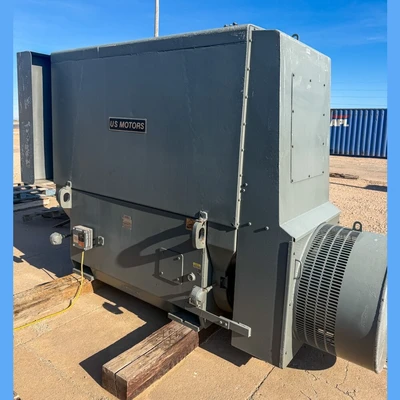

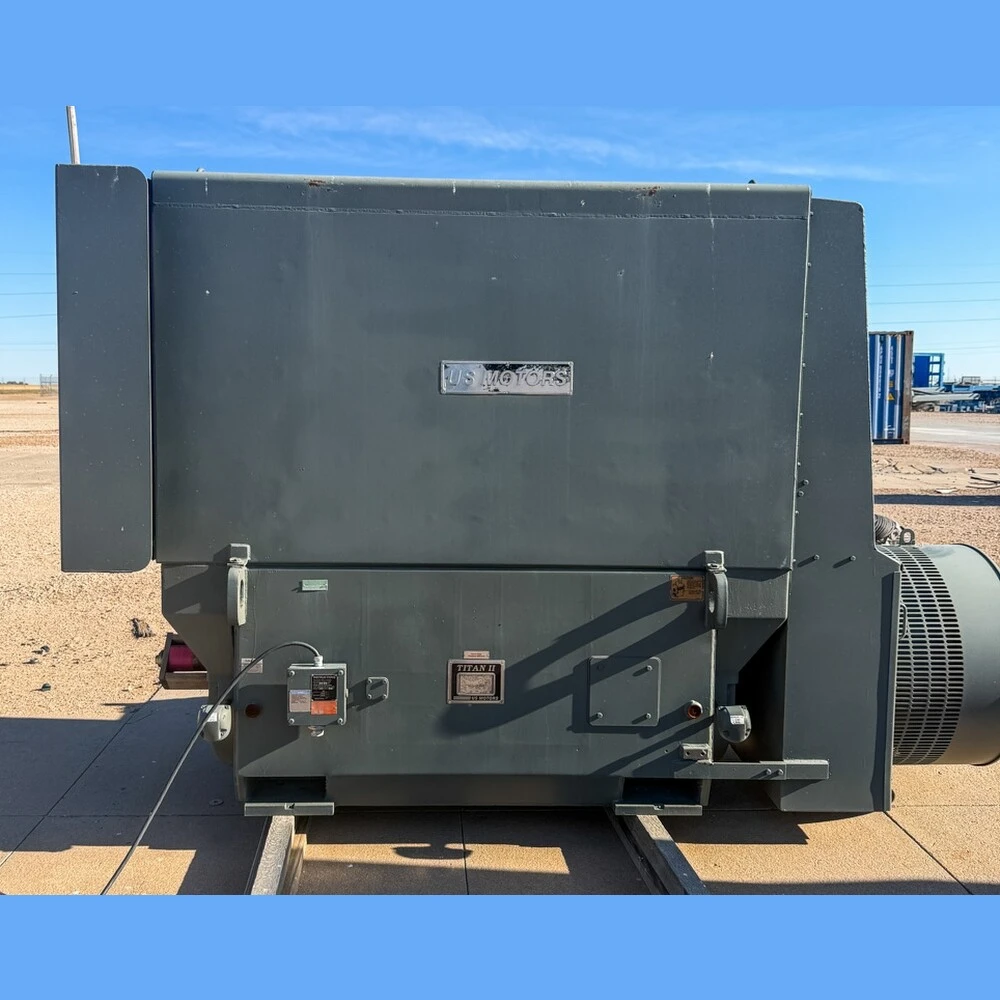

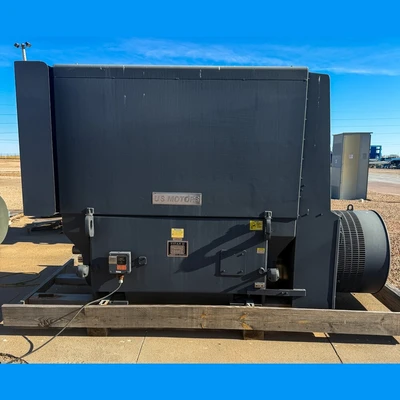

NEW 2023 NIDEC US MOTORS TITAN II

1500HP Nidec Titan II Electric Motors

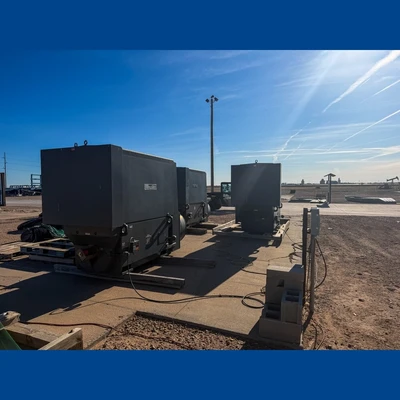

Quantity: (3) Units Available
Description: The Totally Enclosed Tube Cooled Titan® Motor Type JT has a cast iron brackets and heavy fabricated steel frame construction with oversized grease lubricated anti-friction bearings. To ensure a high degree of corrosion resistance, steel tube construction is standard. Further, the top hat assembly is treated with a Vacuum Pressure Impregnation cycle of 100% solid epoxy coating all surfaces. The VPI system, along with other internal and external protective treatments, provides exceptional durability in hostile environments. The winding is constructed with full Class F materials and receives two cycles of 100% solid epoxy VPI.
Make: Nidec US Motors
Model: Titan II
Type: Electric Motor
Style: High Voltage Electric Motor
Duty: Inverter Duty
Year: 2023
Condition: New Unused Condition - New "Old" Stock
Power Output: 1500 HP
Torque: 2198.4 ft.-Lbs.
Rotating Speed: 3585 RPM
Voltage: 4160 Volts
Current: 177 Amps
Frequency: 60Hz
Phase: 3-Phase
Enclosure: TETC (Totally Enclosed, Tube Cooled)
Weight: 11,200 Lbs.
Frame: 5813 S
Location: Mid West USA
