USED TOSHIBA B0036FLF20MH04
Overview
Specifications

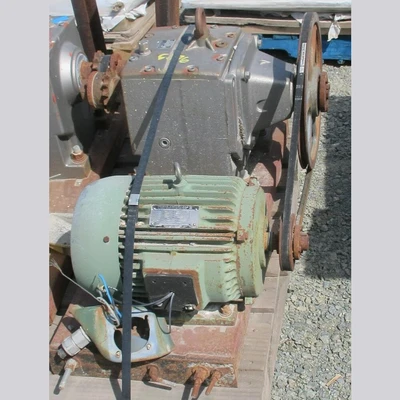

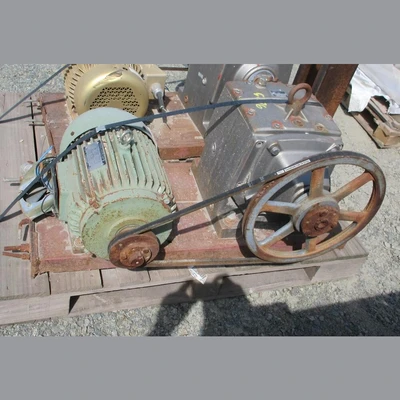

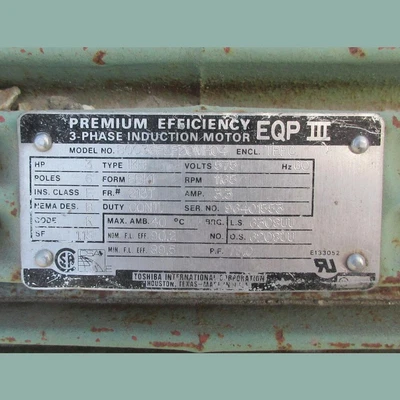

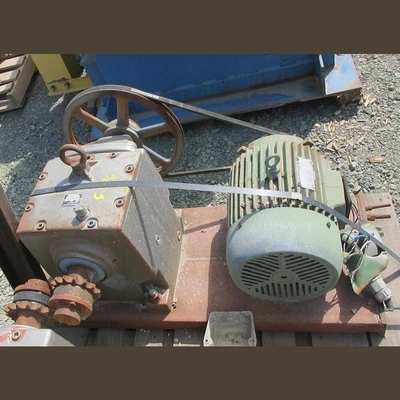

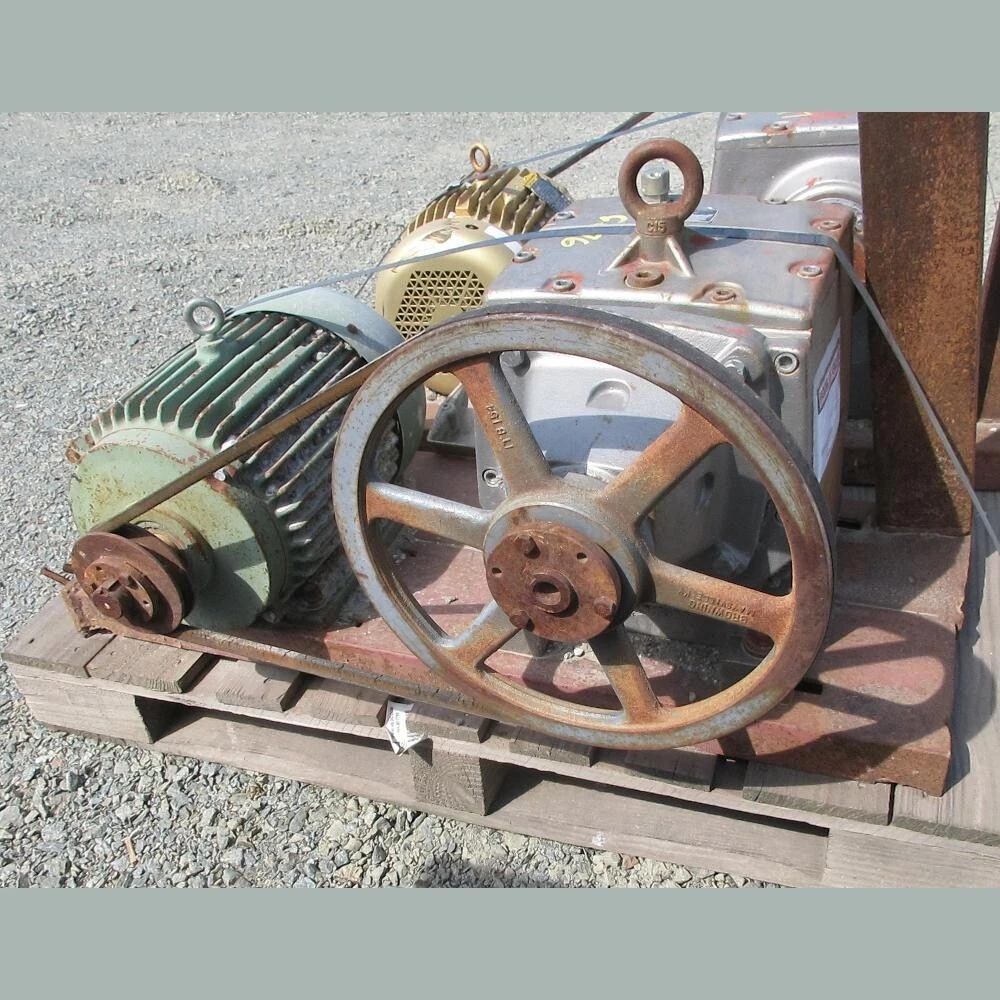

3HP Toshiba Electric Motor with Nord Reducer
Make: Toshiba
Model: B0036FLF20MH04
Type: IKH
Form: FBK1
Condition: Used Condition
Power Output: 3HP
Rotating Speed: 1165 RPM
Voltage: 575 Volt
Current: 3.3 Amps
Frequency: 60Hz
Phase: 3-Phase
Frame: 213T
Motor Pulley: 5in Dia.

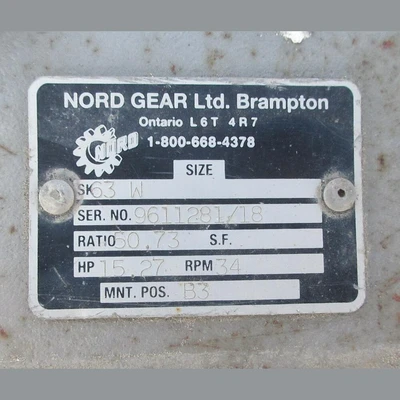

Nord Gear Reducer:
Type: Inline/Concentric
Size: SK 63 W
Ratio: 50.73:1
Power Rating: 15.27HP
Drive Side Pulley: 16in Dia.
Output Sprocket: 5in Dia. - 15-Tooth Sprocket
Type: Inline/Concentric
Size: SK 63 W
Ratio: 50.73:1
Power Rating: 15.27HP
Drive Side Pulley: 16in Dia.
Output Sprocket: 5in Dia. - 15-Tooth Sprocket
Overall Dimensions:
Length: 44in
Width: 23in
Height: 45in
Length: 44in
Width: 23in
Height: 45in
Location: Savona, British Columbia, Canada
