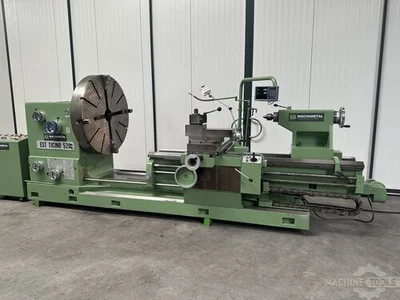

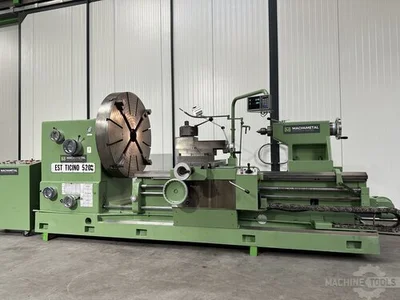

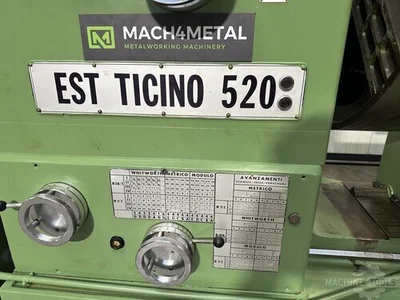

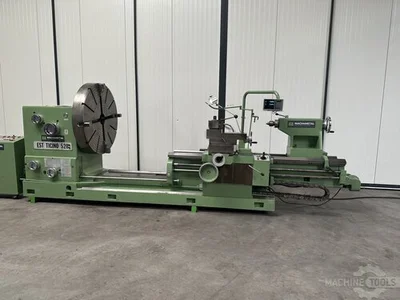

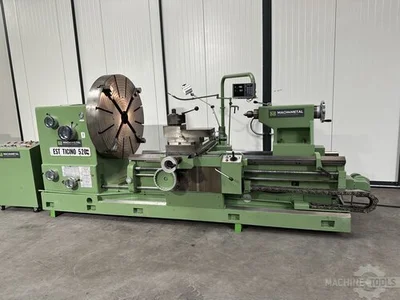

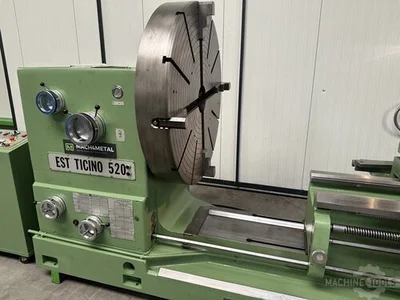

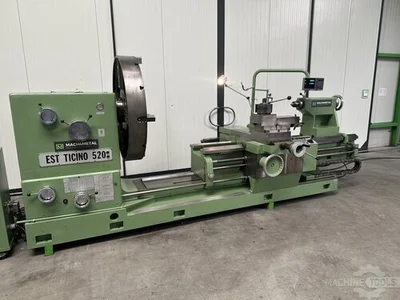

USED EST TICINO ET-BM 520 X3000

Optional chuck 1200 mm

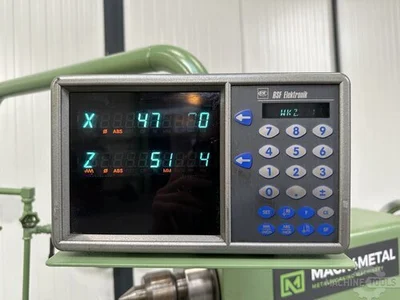

2 Axis RSF Digital read out
Conical turning attachment
Spindle bore 130 mm
Central lubrication

DBC Turning Length: 2000 mm
Swing over bed Ø: 1040 mm
Swing over cross slide Ø: 710 mm
Swing in the gap Ø: 1780 mm
Gap length: 1000 mm
Spindle bore: 130 mm
Bed width: 600 mm
Tailstock spindle Ø: 130 Ø
Stroke pinole: 300 mm
Spindle taper: 6 Mk
Power: 22 kW
Speeds / ranges: 600 Rpm
Feed rate X-Axis: 4000 mm/min.
Feed rate Z-Axis: 4000 mm/min.
Length: 6000 mm
Width: 2100 mm
Height: 2100 mm
Weight: 8300 kg
