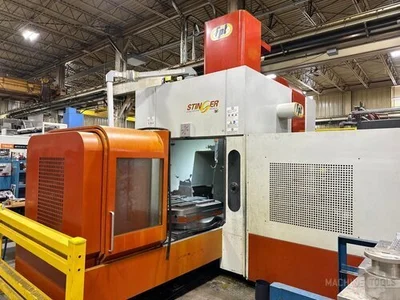

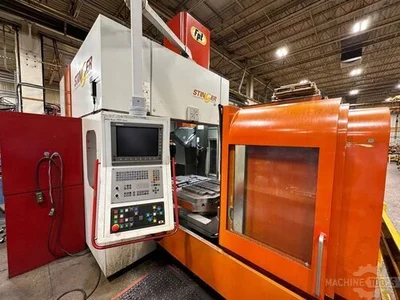

USED 2004 FPT STINGER

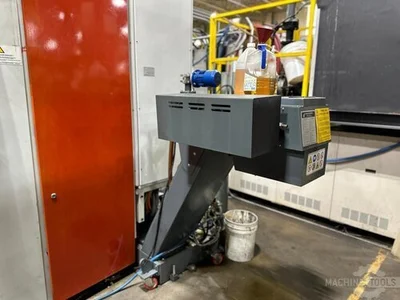

Chip conveyor

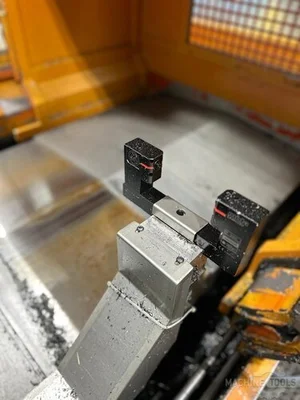

Laser tool setter
Portal Handwheel

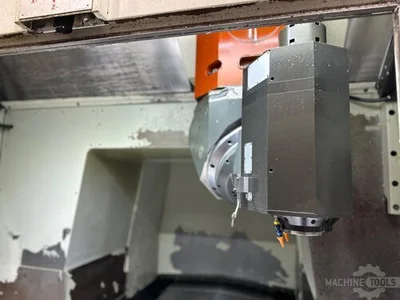

Full A/B-Automatic head
High pressure coolant

X - Travel: 1750 mm
Y - Travel: 1400 mm
Z - Travel: 600 mm

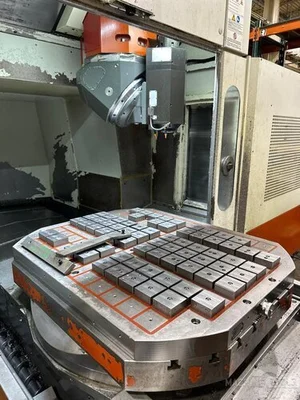

Table Length: 1200 mm
Table Width: 1000 mm
Table load: 5000
Feed rate X-Axis: 35000 mm/min.
Feed rate Y-Axis: 35000 mm/min.
Feed rate Z-Axis: 35000 mm/min.
Spindle Taper: HSK 63 ISO/Bt/Mk
Power on spindle: 25 kW
Speeds / ranges: 18000 Rpm

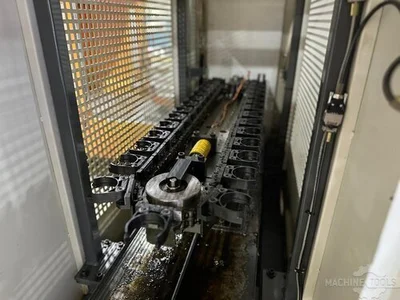

ATC / revolver: 30
Coolant through spindle / Bar: 20
Number of controlled axis: 5
Chip conveyor: Yes
Coolantsystem: Yes
Length: 6000 mm
Width: 4000 mm
Height: 3850 mm
Weight: 21000 kg
