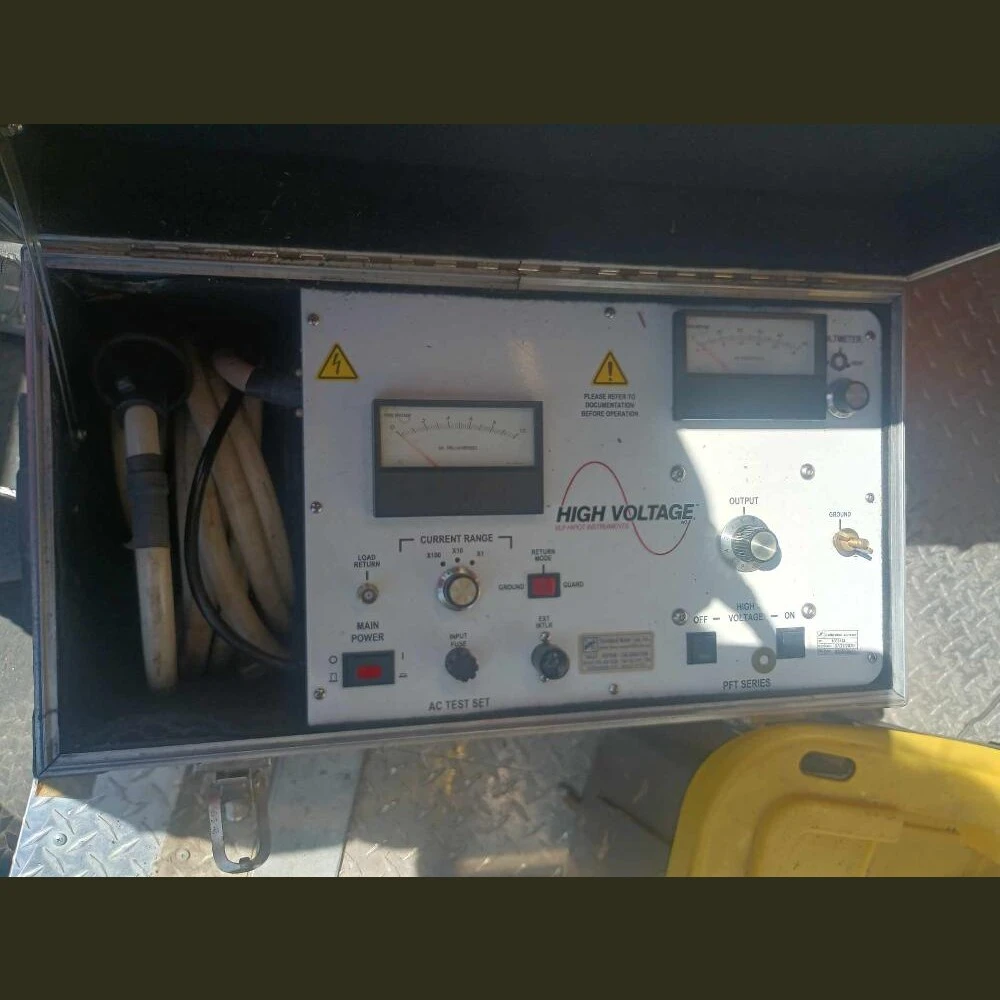

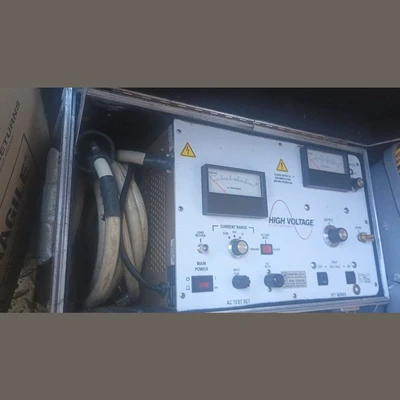

USED HIGH VOLTAGE INC. PFT-503CM

HVI PFT-503CM AC High Voltage Dielectric Test Set
Make: High Voltage Inc.
Model: PFT-503CM
Type: AC High Voltage Dielectric Test Set
Condition: Used Condition
Specifications: Model PFT-503CM / PFT-503CMF
Input:
PFT-503CM: 120 V, 60 Hz, 15 A
PFT-503CMF: 230 V, 50/60 Hz, 8 A
Output: 0-50 kV AC, 1 kVA Resistive Load, 3 kVA Capacitive Load, up to 60 mA Current (Output Current is Reduced at Lower Voltages)
Duty:
3 kVA: ½ Hour ON, 2 Hours OFF
2 kVA: 1 Hour ON, 1 Hour OFF
1 kVA: Continuous

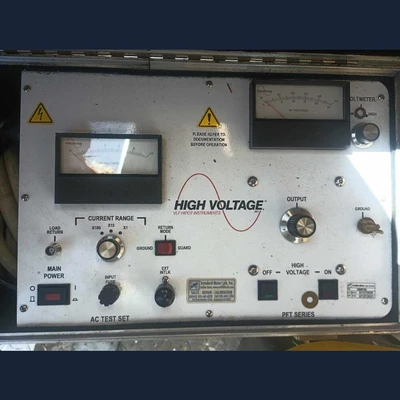

Voltmeter: 3.5”, Scaled 0-25/50 kV AC, ±2% F.S.
Current Meter: 3.5”, Scaled 0-1 mA, ±2% F.S. with Range Multipliers of x1, x10, x100
Distortion: Less than 5%
Output Termination: 20ft. (6m) Shielded Output Cable with Alligator Clamp
Size & Weight
Width: 21in (534mm)
Depth: 11.25in (286mm)
Height: 15.25in (387mm)
Weight: 75 Lbs. (34kg)
Input:
PFT-503CM: 120 V, 60 Hz, 15 A
PFT-503CMF: 230 V, 50/60 Hz, 8 A
PFT-503CM: 120 V, 60 Hz, 15 A
PFT-503CMF: 230 V, 50/60 Hz, 8 A
Output: 0-50 kV AC, 1 kVA Resistive Load, 3 kVA Capacitive Load, up to 60 mA Current (Output Current is Reduced at Lower Voltages)
Duty:
3 kVA: ½ Hour ON, 2 Hours OFF
2 kVA: 1 Hour ON, 1 Hour OFF
1 kVA: Continuous
3 kVA: ½ Hour ON, 2 Hours OFF
2 kVA: 1 Hour ON, 1 Hour OFF
1 kVA: Continuous
Voltmeter: 3.5”, Scaled 0-25/50 kV AC, ±2% F.S.
Current Meter: 3.5”, Scaled 0-1 mA, ±2% F.S. with Range Multipliers of x1, x10, x100
Distortion: Less than 5%
Output Termination: 20ft. (6m) Shielded Output Cable with Alligator Clamp
Size & Weight
Width: 21in (534mm)
Depth: 11.25in (286mm)
Height: 15.25in (387mm)
Weight: 75 Lbs. (34kg)
Width: 21in (534mm)
Depth: 11.25in (286mm)
Height: 15.25in (387mm)
Weight: 75 Lbs. (34kg)
Location: Southwest USA
