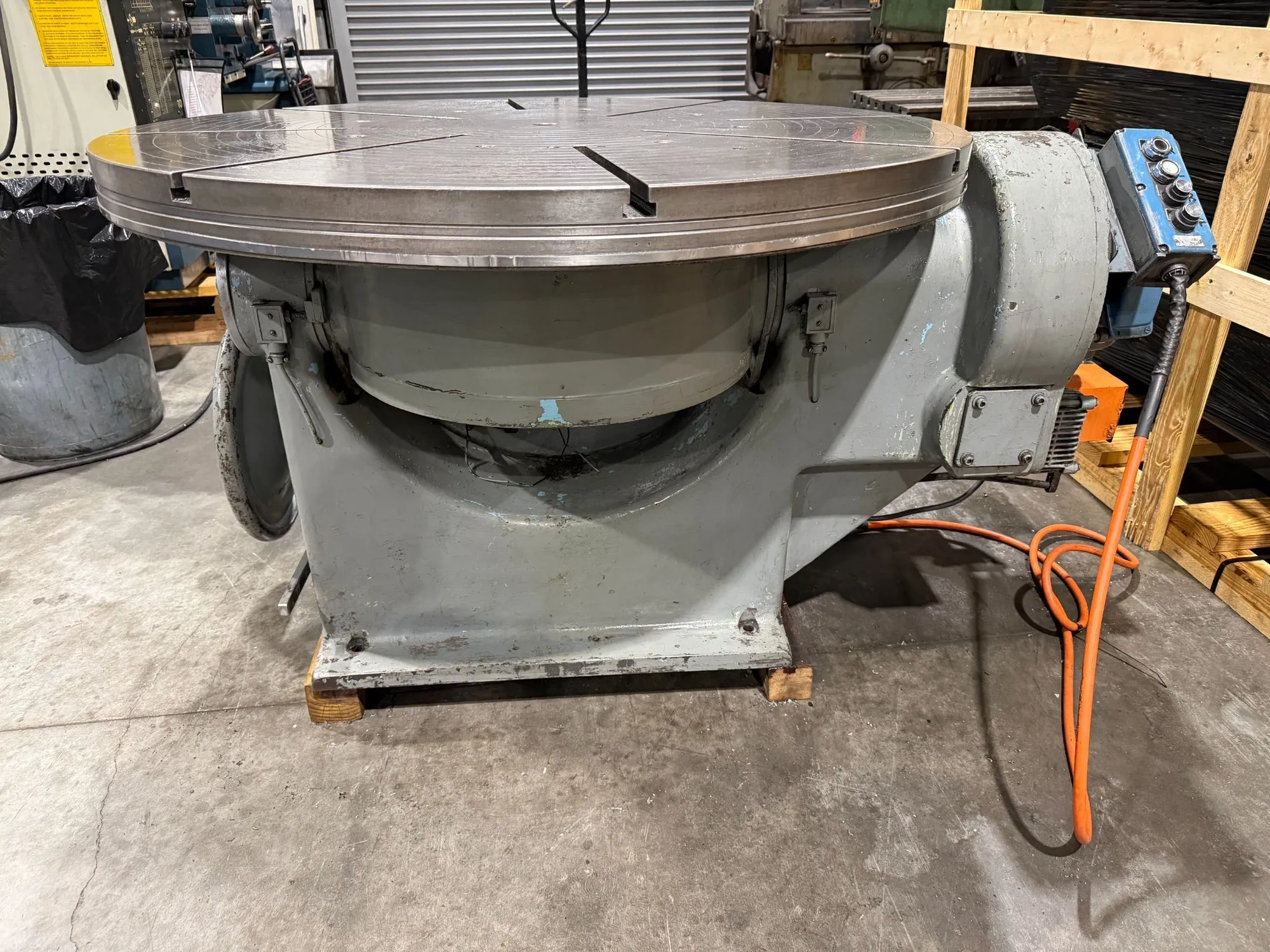

ROTAB 48” T-Slotted Powered Precision Rotary Table USA #8321
| Table Size-X | 48" | 1,219.2 mm |
| Table Size-Y | 48" | 1,219.2 mm |
| Dimensions | 65” L x 56” W x 36’’ H | 65” L x 56” W x 36’’ H |
| Weight | 3,850 Lbs. | 3,850 Lbs. |
ROTAB 48” T-Slotted Powered Precision Rotary Table USA #8321
Reference #8321
Model # 48”
Serial # 112
Table diameter- 48”
Maximum tilt- 90°
Number of radial t-slots- (8)
Load capacity- 2,800 ft/lb.
Powered tilt
Powered rotate
Graduations in degrees
Bijur one shot lube pump
1-1/2 H.P. Tilt motor
1/2 H.P. Rotation motor
Machine is wired for 460 volt / 3 phase / 60 H.Z.
Machine weight- 3,850 Lbs.
Machine dimensions- 65” L x 56” W x 36’’ H
Machine location- F.O.B. Sarasota, Florida
