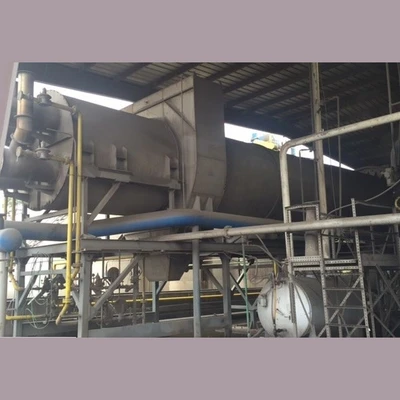

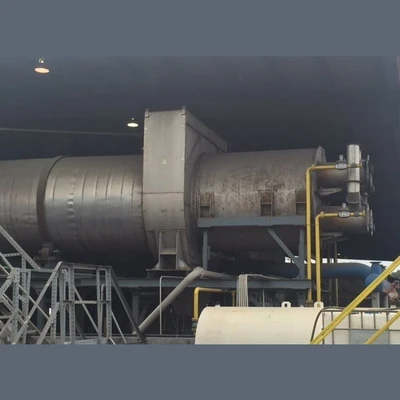

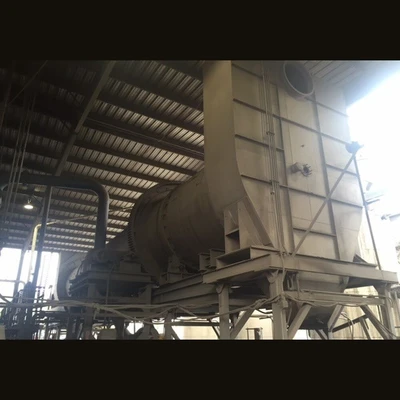

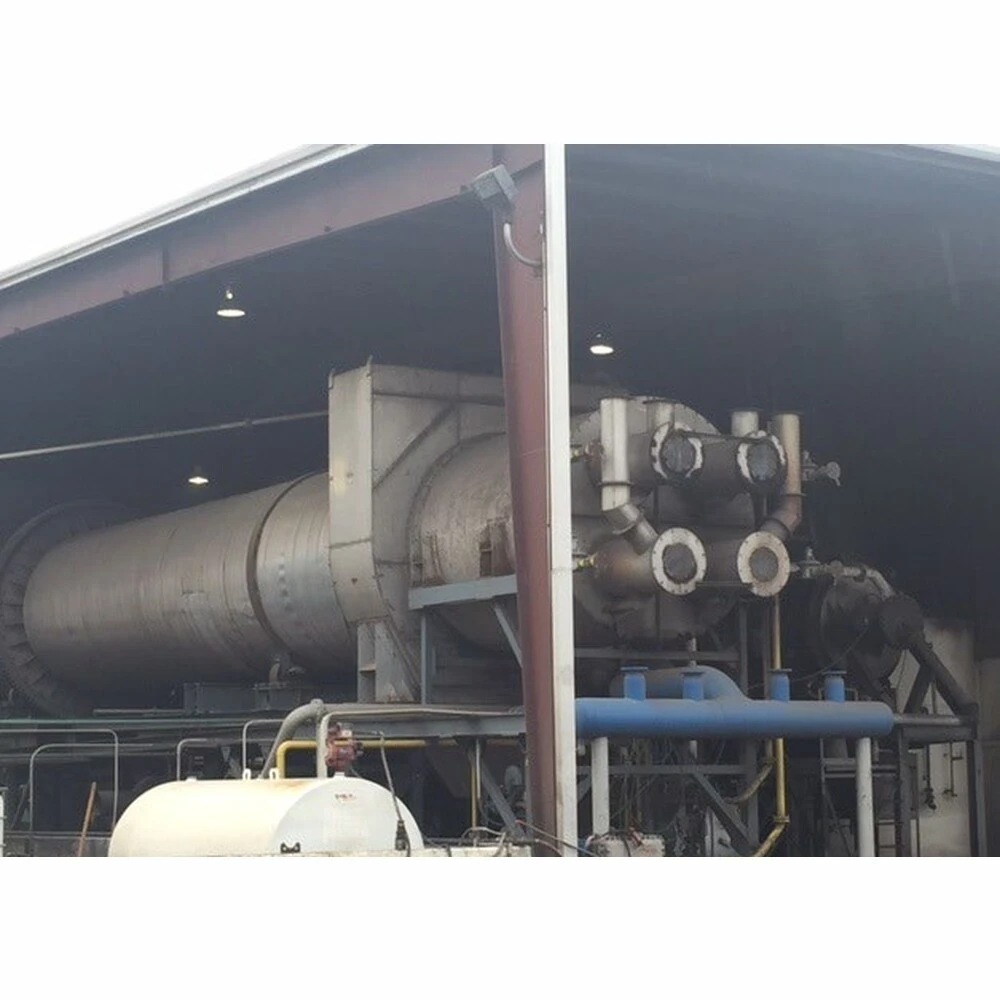

9ft Dia. x 60ft Long Rotary Drum Dryer

9ft Dia. x 60ft Long Rotary Drum Dryer
Make: Vulcan
Year: Refurbished 2010
Type: Rotary Drum
Style: Horizontal
Condition: Used Condition
Prior Service: Dryer, Ag Products, Hydrocarbons

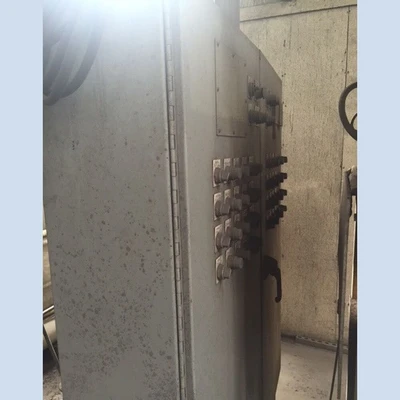

Dryer Completely Refurbished 2010 With New Controls & Instrumentation
Limited Service, Project Cancelled, Mothballed. Burners Removed and In Storage. System Installed Under Cover
Prior Service: Dryer, Ag Products, Hydrocarbons
Dryer Completely Refurbished 2010 With New Controls & Instrumentation
Limited Service, Project Cancelled, Mothballed. Burners Removed and In Storage. System Installed Under Cover
Limited Service, Project Cancelled, Mothballed. Burners Removed and In Storage. System Installed Under Cover
Capacity: 20-300 TPH - Dependent on Process and Product
Diameter: 9ft Approx.
Length: 60ft Approx.
Counter-Current, Fired at Discharge End - Can be Reversed by Adding Feed Section Between Combustion Chamber and Retort
Shell Internals: Internal Lifters Length of Shell
Construction: Carbon Steel

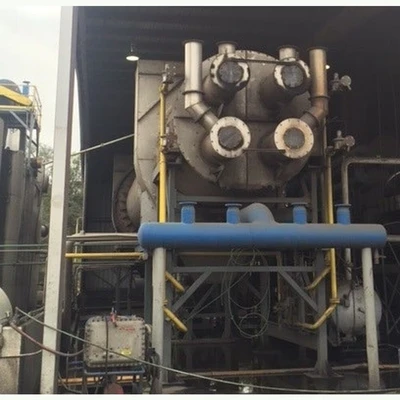

Combustion - Burner: Gas Fired, 40MM Btu/Hr. Total (4 Burners @ 10MM BTU/HR Ea.)
Combustion - Blower: Equipped
Combustion - Chamber: Equipped
Temperature: 650° F (Approx.)
Driven By: 50HP Electric Motor
Drive Via: Gear Reducer, Westinghouse, Via Bull Gear & Pinion
Rotating Speed: Variable RPM
Running Gear: Trunnions & Rollers - 30in Dia. x 13in Wide. 13ft 3in OD Bull Gear
Shipping Dimensions:
Length: 70ft
Width: 13ft
Height: 13ft
Weight: 70,000 Lbs. (Approx.)
Length: 70ft
Width: 13ft
Height: 13ft
Weight: 70,000 Lbs. (Approx.)
Location: Southern USA
