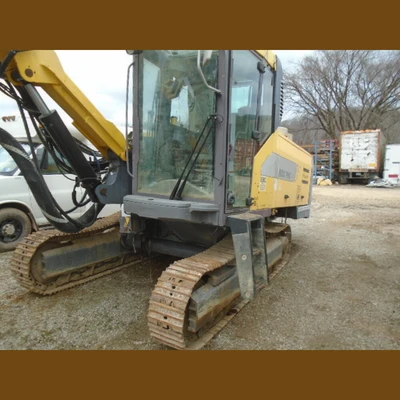

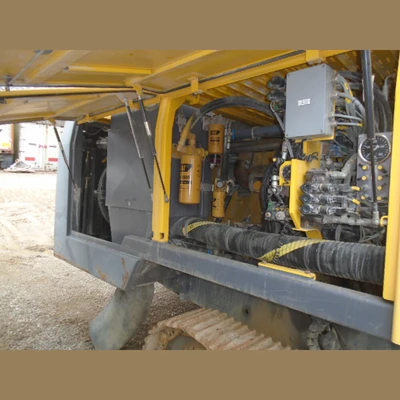

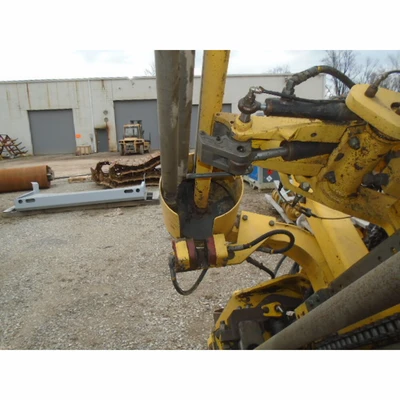

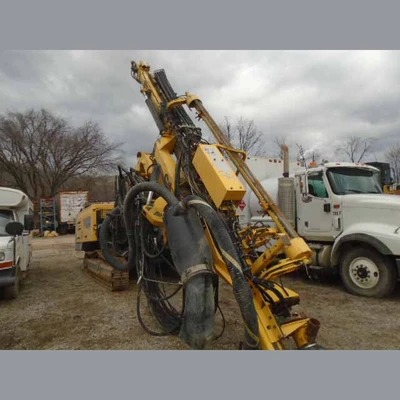

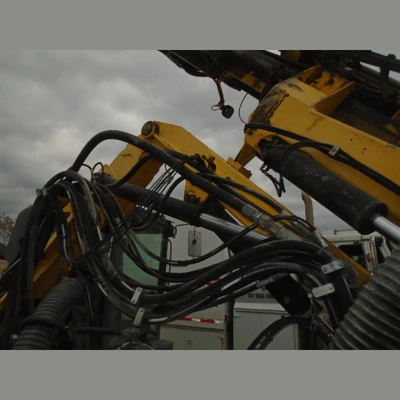

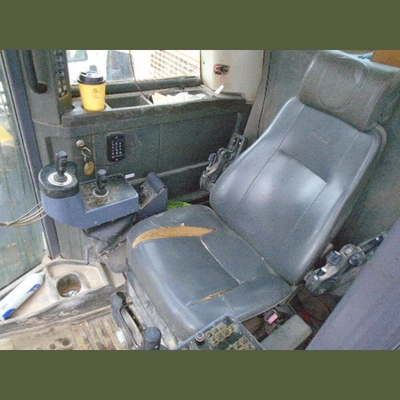

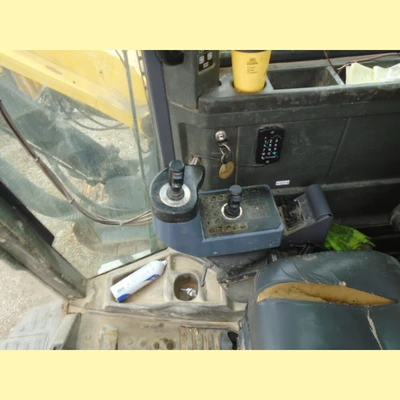

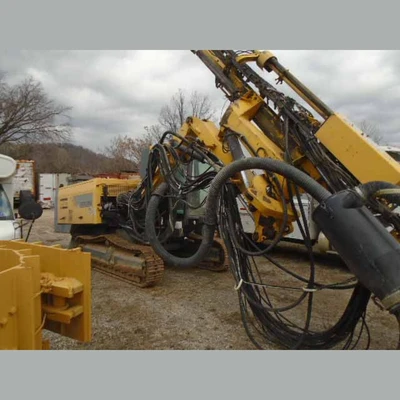

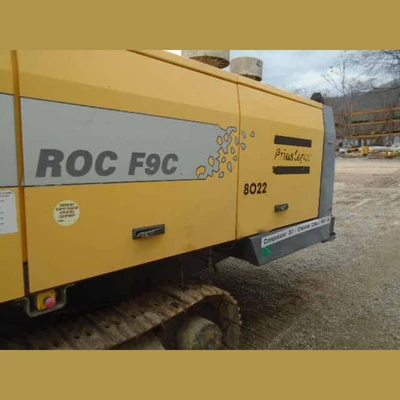

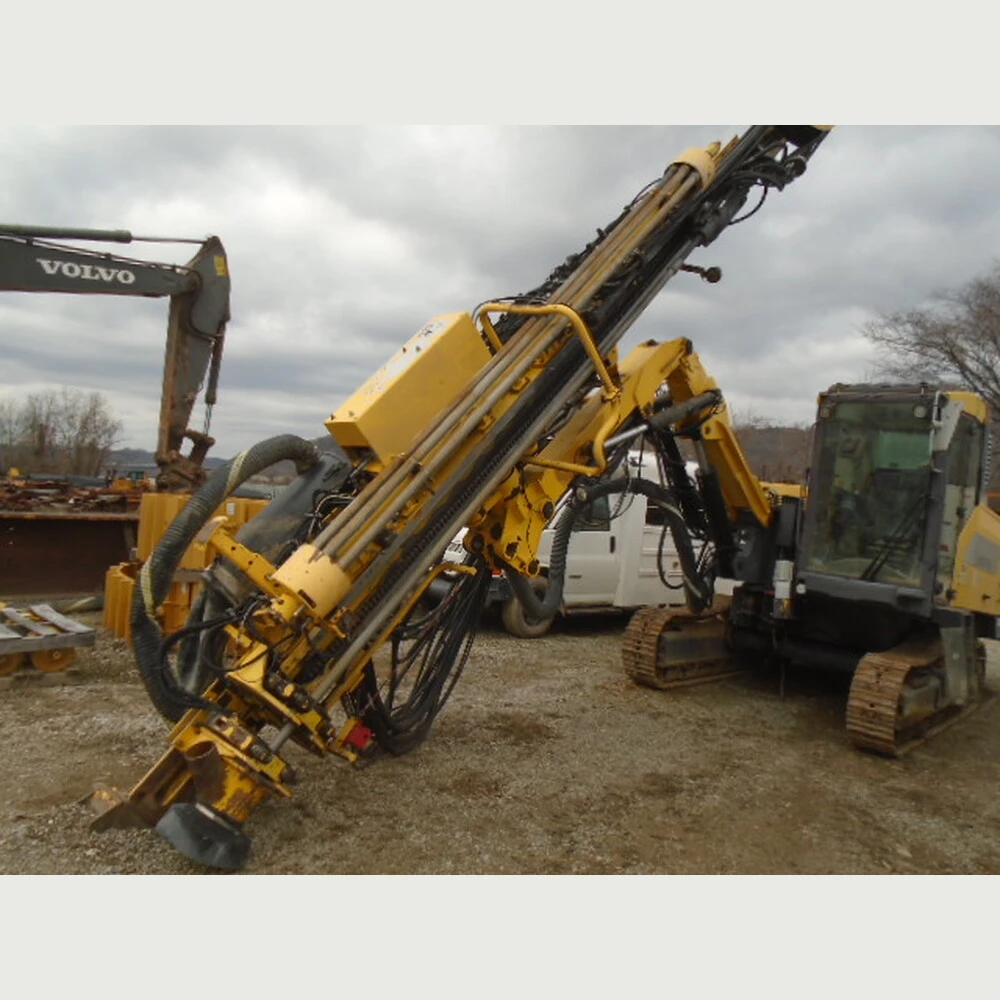

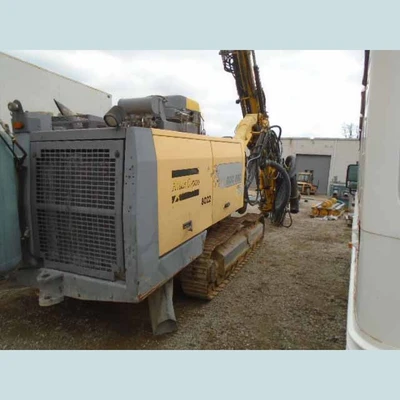

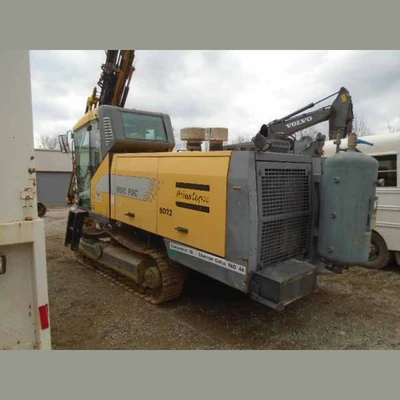

USED 2010 ATLAS COPCO ROC F9C

2010 Atlas Copco ROC F9C Drill
Make: Atlas Copco
Model: ROC F9C
Type: Quarry Rig, Tophammer Rig
Condition: Used, Reported in Good Condition, Ready-to-Work
Year: 2010
Hours: 6,842 Hours
Drifter: 314 Hours
Engine: 1,220 Hours
Drifter: 314 Hours
Engine: 1,220 Hours

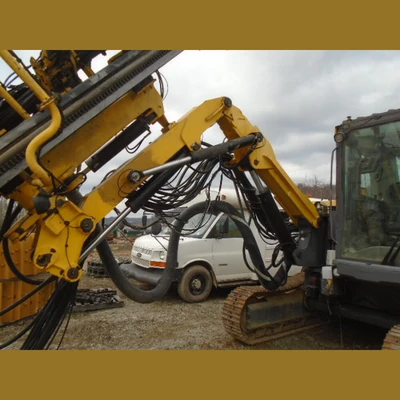

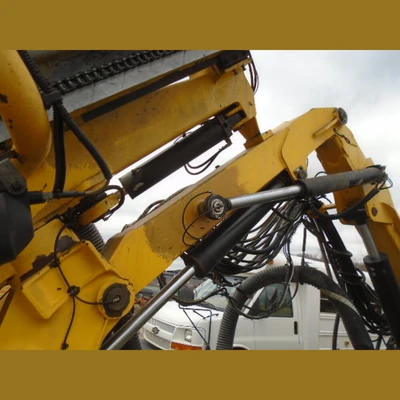

Boom: 2 Piece Articulated Boom - Non-Extendable
Engine: CAT Diesel

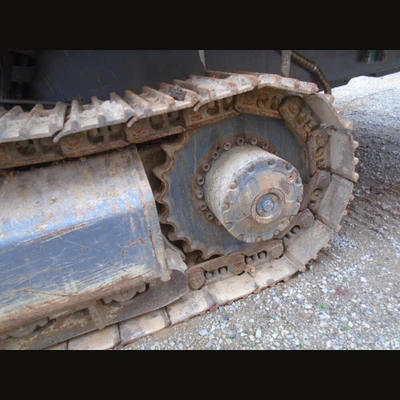

Motion: Crawler Tracks
Setup for T51 Drill Steel

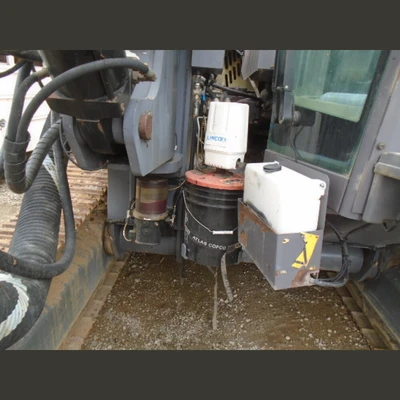

Auto Grease
Carousel Type Tube Handling System
Dust Collector
General Model Specifications:
Hole Range:
Recommended Hole Range: T45 or T51 - 89-127 mm (3 ½”- 5”)
Hydraulic Rod Handling System for Max Hole Depth (with 3.6m (12’ ) Extension Rods): 28m (92')
Hydraulic Rock Drill: COP 2560 or COP 2560EX
Impact Power: 25kW (33.5HP)
Hydraulic Pressure, Max: 230 bar (3,335 PSI)
Impact Rate: 44Hz
Torque, Max: 1,810Nm (1,335 lbf/ft)

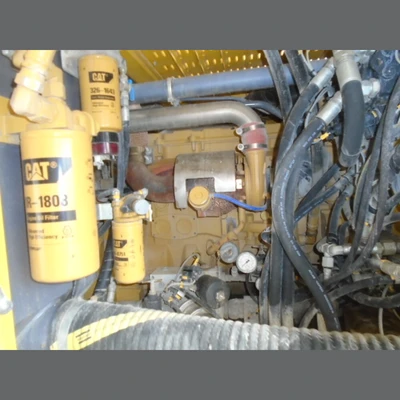

Engine: Caterpillar C9 Diesel Engine Tier III/Stage 3
Power Output: 300HP (224kW)
Feed: Hydraulic Chain Feed with Hose Guide and Double Drill Steel Support with Movable Lower Guide/Dust Hood
Feed Extension: 1,150mm (3’ 9’’)
Feed Rate, Max: 0.92 m/s (180 ft/min)
Feed force, Max: 20 kN  (4,500 lbf)
Tractive Pull, Max: 30 kN (6,750 lbf)
Folding Boom:
Total Length: 7,700mm (25’ 3’’)
Travel Length: 4,610mm (15’ 2’’)

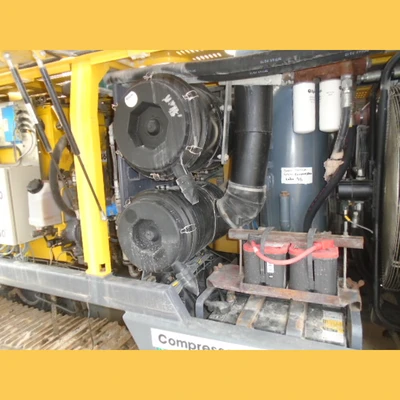

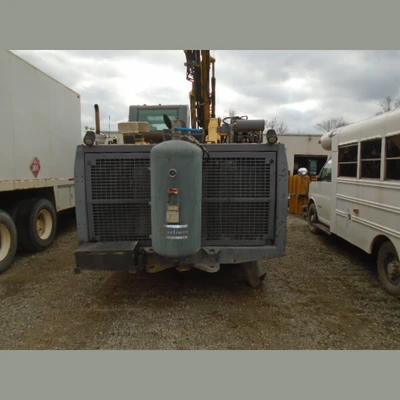

Compressor: Atlas Copco M-01, Screw Type Compressor
Working Pressure, Max: 12 bar (175 PSI)
FAD, at Normal Working Pressure: 213 l/s (450 CFM)
Dust Collector: DCT 150 F
Filter Area: 15m² (164ft²)
Number of Filter Elements: 15 pcs
Suction Capacity at 500mm W.G.: 350 l/s (741 CFM)
Suction Hose Dia: 127mm (5’’)
Cleaning Air Pressure, Max: 8 bar (116 PSI)
Cleaning Air Consumption: 2-4 l/pulse (4-8 CFM)
Hole Range:
Recommended Hole Range: T45 or T51 - 89-127 mm (3 ½”- 5”)
Hydraulic Rod Handling System for Max Hole Depth (with 3.6m (12’ ) Extension Rods): 28m (92')
Recommended Hole Range: T45 or T51 - 89-127 mm (3 ½”- 5”)
Hydraulic Rod Handling System for Max Hole Depth (with 3.6m (12’ ) Extension Rods): 28m (92')
Hydraulic Rock Drill: COP 2560 or COP 2560EX
Impact Power: 25kW (33.5HP)
Hydraulic Pressure, Max: 230 bar (3,335 PSI)
Impact Rate: 44Hz
Torque, Max: 1,810Nm (1,335 lbf/ft)
Impact Power: 25kW (33.5HP)
Hydraulic Pressure, Max: 230 bar (3,335 PSI)
Impact Rate: 44Hz
Torque, Max: 1,810Nm (1,335 lbf/ft)
Engine: Caterpillar C9 Diesel Engine Tier III/Stage 3
Power Output: 300HP (224kW)
Power Output: 300HP (224kW)
Feed: Hydraulic Chain Feed with Hose Guide and Double Drill Steel Support with Movable Lower Guide/Dust Hood
Feed Extension: 1,150mm (3’ 9’’)
Feed Rate, Max: 0.92 m/s (180 ft/min)
Feed force, Max: 20 kN  (4,500 lbf)
Tractive Pull, Max: 30 kN (6,750 lbf)
Folding Boom:
Total Length: 7,700mm (25’ 3’’)
Travel Length: 4,610mm (15’ 2’’)
Feed Extension: 1,150mm (3’ 9’’)
Feed Rate, Max: 0.92 m/s (180 ft/min)
Feed force, Max: 20 kN  (4,500 lbf)
Tractive Pull, Max: 30 kN (6,750 lbf)
Folding Boom:
Total Length: 7,700mm (25’ 3’’)
Travel Length: 4,610mm (15’ 2’’)
Total Length: 7,700mm (25’ 3’’)
Travel Length: 4,610mm (15’ 2’’)
Compressor: Atlas Copco M-01, Screw Type Compressor
Working Pressure, Max: 12 bar (175 PSI)
FAD, at Normal Working Pressure: 213 l/s (450 CFM)
Working Pressure, Max: 12 bar (175 PSI)
FAD, at Normal Working Pressure: 213 l/s (450 CFM)
Dust Collector: DCT 150 F
Filter Area: 15m² (164ft²)
Number of Filter Elements: 15 pcs
Suction Capacity at 500mm W.G.: 350 l/s (741 CFM)
Suction Hose Dia: 127mm (5’’)
Cleaning Air Pressure, Max: 8 bar (116 PSI)
Cleaning Air Consumption: 2-4 l/pulse (4-8 CFM)
Filter Area: 15m² (164ft²)
Number of Filter Elements: 15 pcs
Suction Capacity at 500mm W.G.: 350 l/s (741 CFM)
Suction Hose Dia: 127mm (5’’)
Cleaning Air Pressure, Max: 8 bar (116 PSI)
Cleaning Air Consumption: 2-4 l/pulse (4-8 CFM)
Location: Eastern USA
