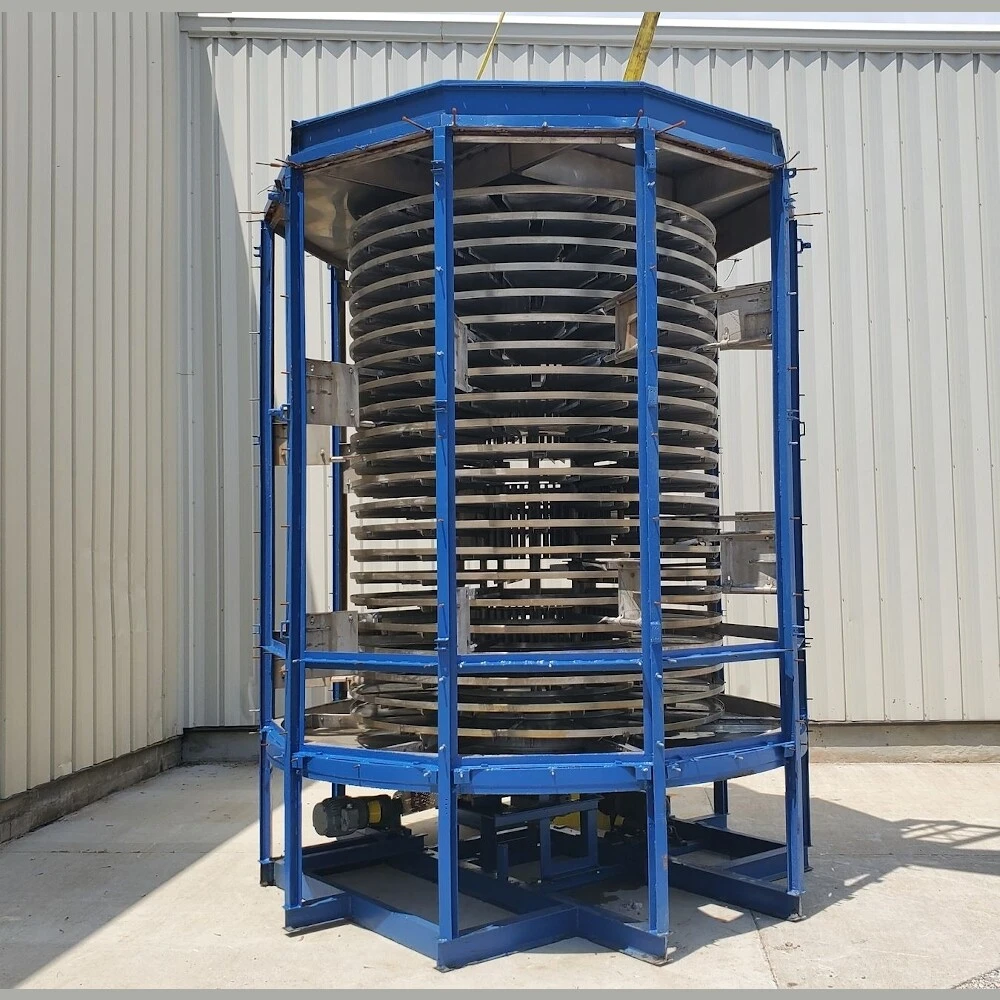

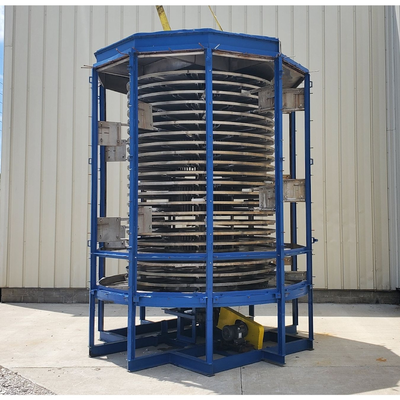

USED WYSSMONT TURBO TRAY DRYER N22

Make: Wyssmont Turbo Tray Dryer
Model: N22
Weight: 12,000 lbs.
Structural steel support frame with 1.5in thick insulated panels, stainless steel sheet cladded
Base area is a decagon shape measuring 9ft 9in across corners
Roof:
Height: 12ft
With a 5in step-down level.
Height: 12ft
With a 5in step-down level.

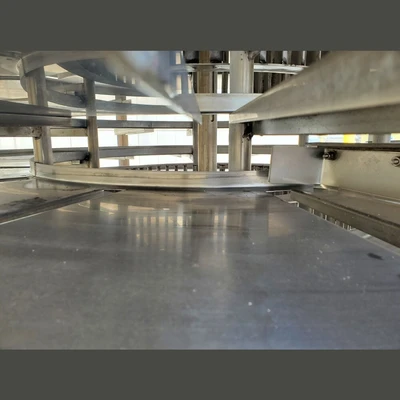

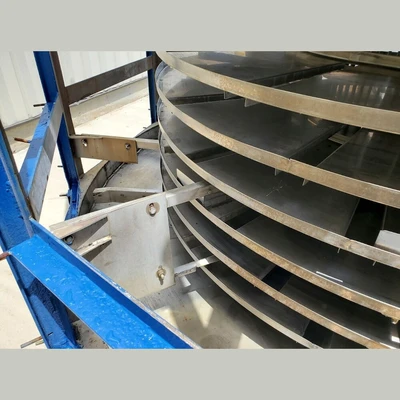

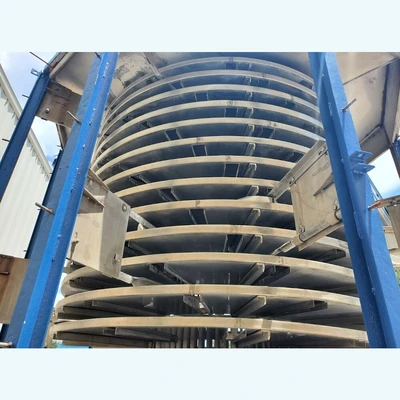

Dryer Trays:
Qty: 22
Diameter: 78in
Stacked at 4-11/16in spaces
Qty: 22
Diameter: 78in
Stacked at 4-11/16in spaces
Product Inlet (roof): 5in x 15in Sleeve @ 12ft 7in Elev.
Product Discharge: 5.5in x 23in Opening @ 2ft 5-1/4in Elev.
Drying Air Outlet (roof): 18in Diameter Opening @ 12ft Elev.

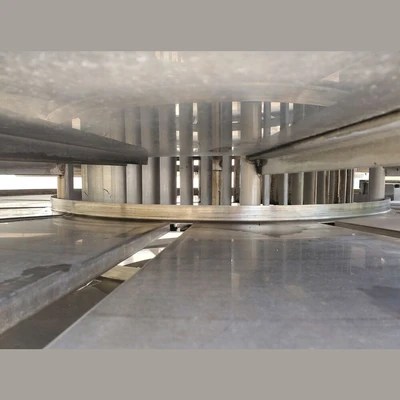

Turbo Fan Drive:
Power Output: 1.5HP
With Roto-clone variable speed pulley
Power Output: 1.5HP
With Roto-clone variable speed pulley

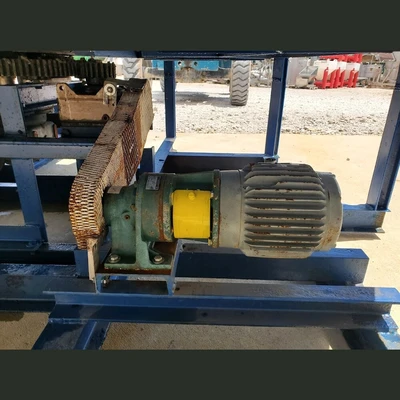

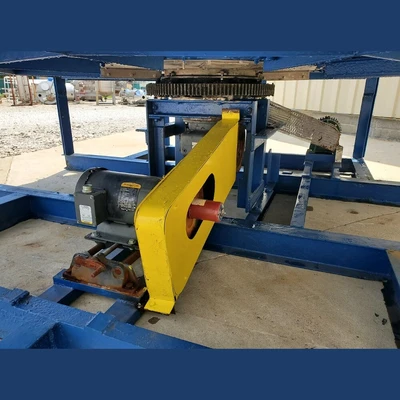

Tray Drive: Gearmotor & Chain
Power Output: 1HP
Power Output: 1HP
Heating Coils:
Qty: 3
Inline Aerofin steam coil heating units
Qty: 3
Inline Aerofin steam coil heating units
Inlet Air Filter: Filter Housing, holds 44in Wide x 35in Tall HEPA filters
Does not include heater fan
Overall Dimensions:
Diameter: 120in
Width: 129in
Height: 151in
Weight: 12,000 lbs.
Diameter: 120in
Width: 129in
Height: 151in
Weight: 12,000 lbs.
Cover Panels Included
Location: Eastern USA
