USED WYSSMONT N-16/22

Make: Wyssmont
Model: N-16/22

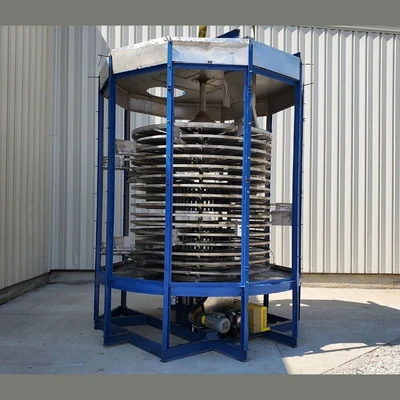

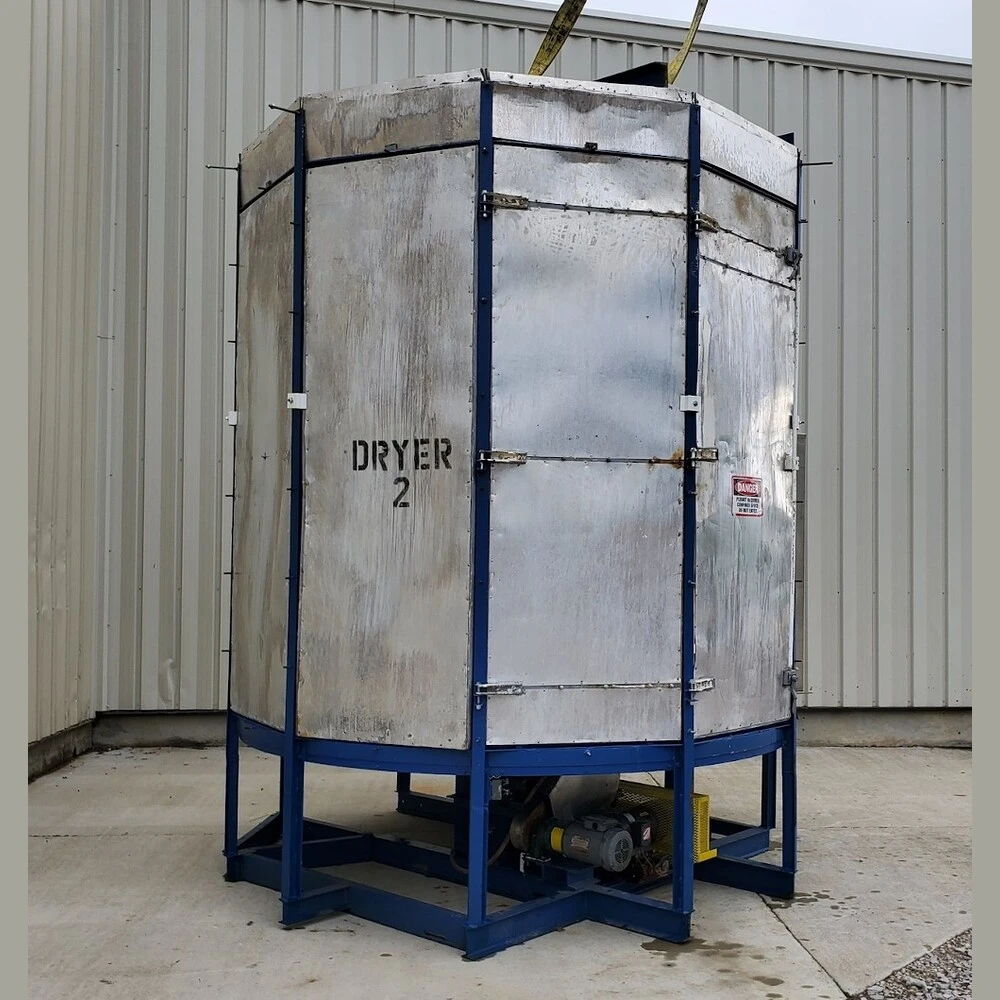

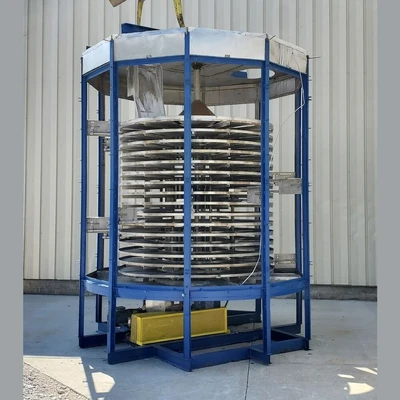

Structural steel support frame with 1.5in thick insulated panels, stainless steel sheet cladded
Base area is a decagon shape measuring 9ft 9in across corners and a 11ft 7in roof height

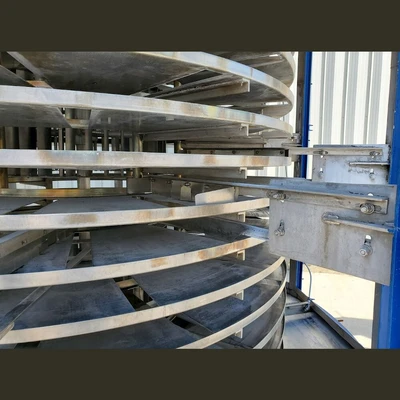

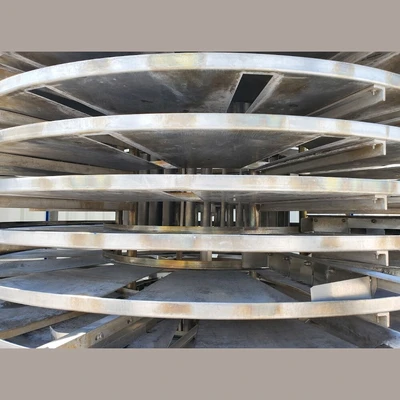

Dryer Trays:
Qty: 16
Diameter: 78in
Stacked on 4-11/16in spaces
Qty: 16
Diameter: 78in
Stacked on 4-11/16in spaces
Product Inlet: 5ft x 15in sleeve @ 12ft 7in Elev.
Product Discharge: 5.5in X 25.5in Opening @ 2ft 5.5in Elev.
Drying Air Outlet: 24in Diameter Opening @ 11ft 7in Elev.
Turbo Fan Drive: 1.5HP with Roto-clone variable speed pulley

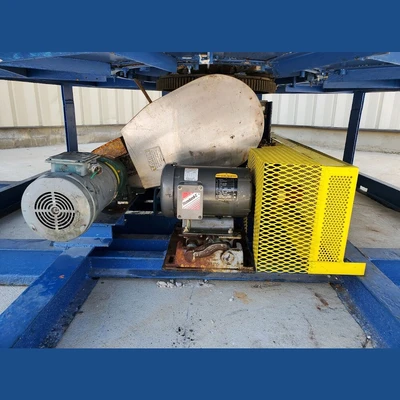

Tray Drive: Gearmotor & Chain
Power Output: 1HP
Power Output: 1HP

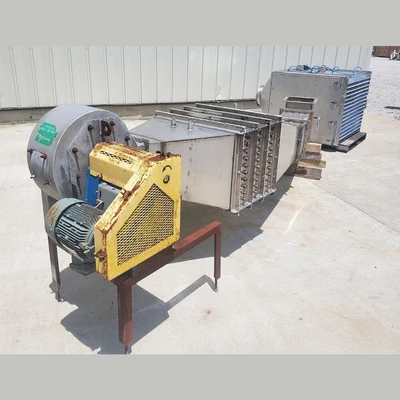

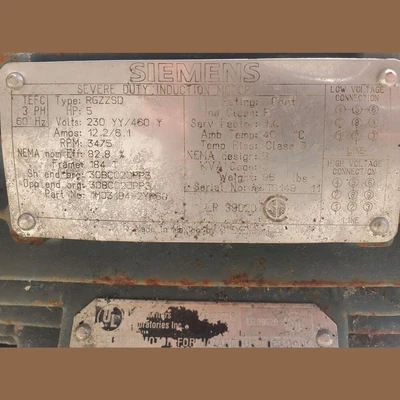

Heater Fan:
Power Output: 5HP
Stainless Steel
Backward Incline,
Rotation Speed: 3,475RPM
Power Output: 5HP
Stainless Steel
Backward Incline,
Rotation Speed: 3,475RPM

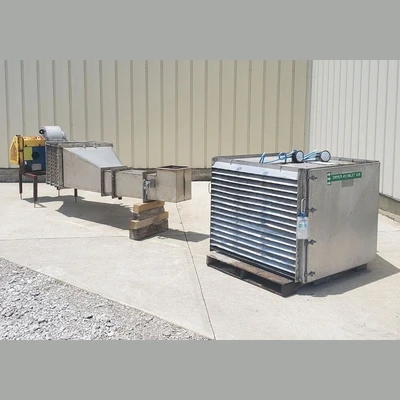

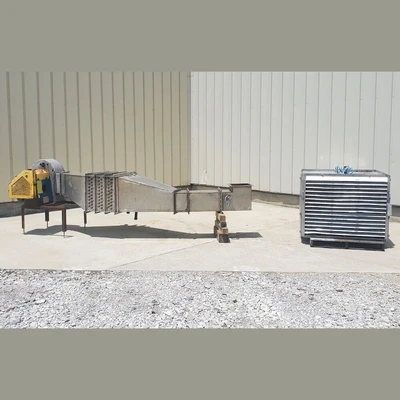

Heating Coils:
Inline Aerofin steam coil heating units
Qty: 3
Inline Aerofin steam coil heating units
Qty: 3
Inlet Air Filter: filter housing, holds 44in Wide X 35in Tall HEPA filters
Includes inlet air header and some stainless steel duct
Approximate Weight: 15,000lbsView Spec Sheet Below
Location: Eastern USA
