USED BOYLES BROS. X-RAY
Overview
Specs

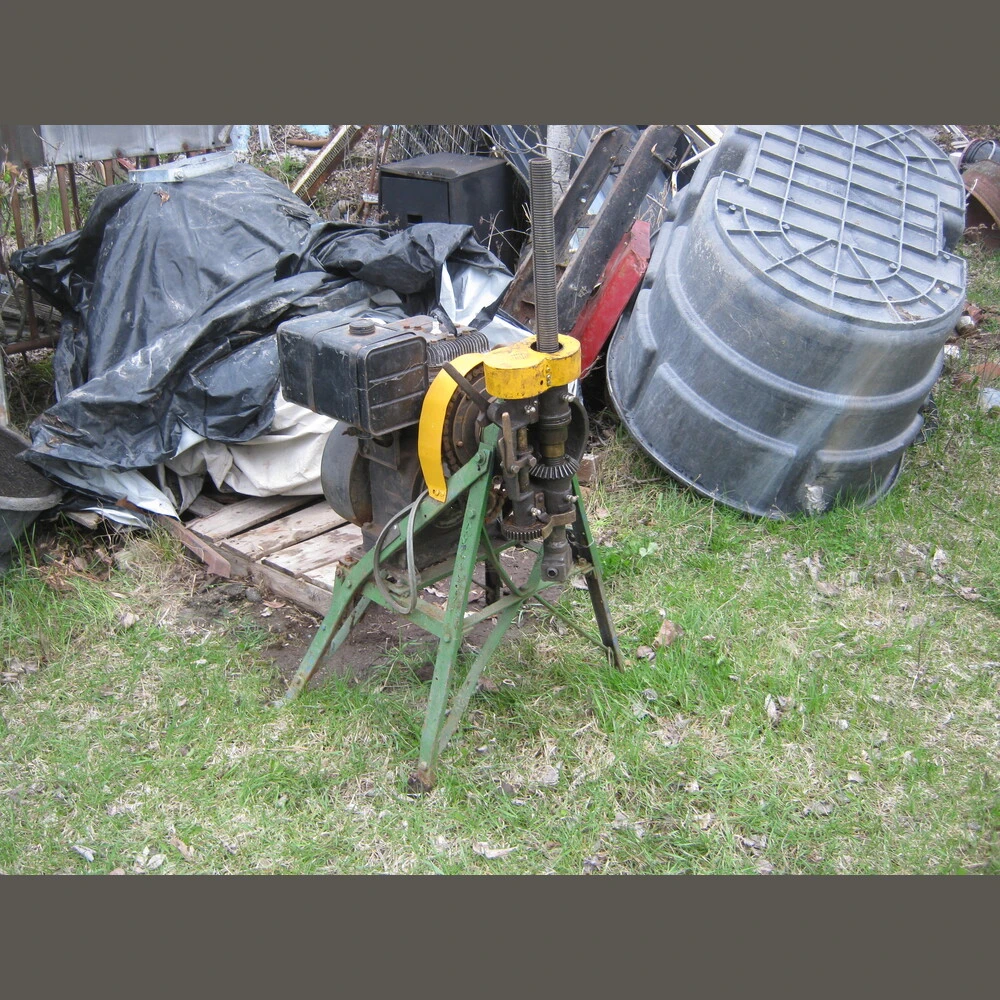

Boyles Bros. X-Ray Diamond Core Drill
Quantity: (2) Drill Package
Make: Boyles Bros.
Model: X-Ray
Type: Diamond Core Drill
Condition: Used Condition - Drill Heads are Complete and in Good Shape, as are the Frames

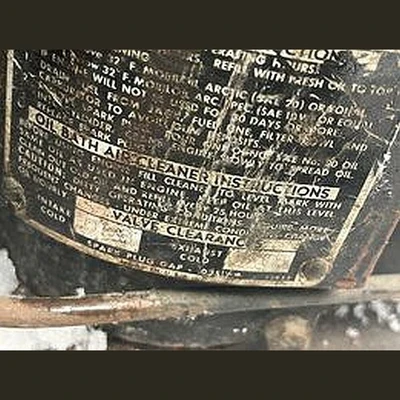

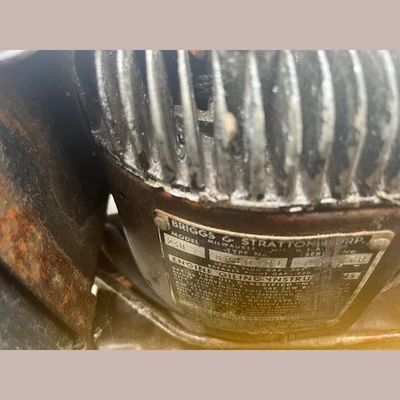

Drives: (3) Briggs-Stratton 9HP Engines
One Engine is for Parts
One Engine is for Parts
General Specifications:
Depth Rating:
RW: 250ft (76m)
EW: 150ft (46m)
AW: 100ft (30m)
BW: 75ft (23m)

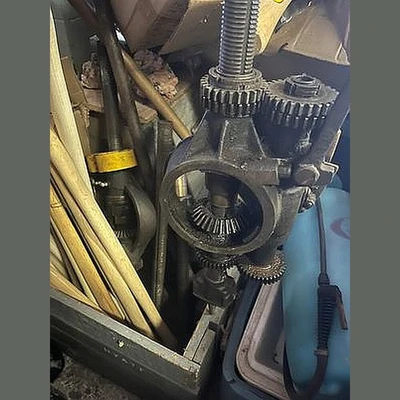

"X-RAY" Swivelheads:
Gear-Feed:
I.D. Feedscrew: 1-1/8in (28.6mm)
Feed Travel: 16in
Chuck RPM:
Standard 1:1 Bevel Gear: 720 to 1440 RPM
Low Speed 2:1 Bevel Gear: 360 to 720 RPM
Length: 32in (813mm)
Weight: 39 Lbs. (17.7kg)
Feed Gears:
Standard: 300 RPM and 550 RPM
Optional: 75, 200, 400, 675, 800 and 900 RPM
Hand-Feed:
I.D. Feedscrew: 1-1/8in (28.6mm)
Feed Travel: 10in (254mm)
Chuck RPM:
Standard 1:1 Bevel Gear: 720 to 1440 RPM
Low Speed 2: 1 Bevel Gear: 360 to 720 RPM
Length: 39in (990mm)
Weight: 68 Lbs. (31kg)
Depth Rating:
RW: 250ft (76m)
EW: 150ft (46m)
AW: 100ft (30m)
BW: 75ft (23m)
RW: 250ft (76m)
EW: 150ft (46m)
AW: 100ft (30m)
BW: 75ft (23m)
"X-RAY" Swivelheads:
Gear-Feed:
I.D. Feedscrew: 1-1/8in (28.6mm)
Feed Travel: 16in
Chuck RPM:
Standard 1:1 Bevel Gear: 720 to 1440 RPM
Low Speed 2:1 Bevel Gear: 360 to 720 RPM
Length: 32in (813mm)
Weight: 39 Lbs. (17.7kg)
Feed Gears:
Standard: 300 RPM and 550 RPM
Optional: 75, 200, 400, 675, 800 and 900 RPM
Hand-Feed:
I.D. Feedscrew: 1-1/8in (28.6mm)
Feed Travel: 10in (254mm)
Chuck RPM:
Standard 1:1 Bevel Gear: 720 to 1440 RPM
Low Speed 2: 1 Bevel Gear: 360 to 720 RPM
Length: 39in (990mm)
Weight: 68 Lbs. (31kg)
Gear-Feed:
I.D. Feedscrew: 1-1/8in (28.6mm)
Feed Travel: 16in
Chuck RPM:
Standard 1:1 Bevel Gear: 720 to 1440 RPM
Low Speed 2:1 Bevel Gear: 360 to 720 RPM
Length: 32in (813mm)
Weight: 39 Lbs. (17.7kg)
Feed Gears:
Standard: 300 RPM and 550 RPM
Optional: 75, 200, 400, 675, 800 and 900 RPM
I.D. Feedscrew: 1-1/8in (28.6mm)
Feed Travel: 16in
Chuck RPM:
Standard 1:1 Bevel Gear: 720 to 1440 RPM
Low Speed 2:1 Bevel Gear: 360 to 720 RPM
Standard 1:1 Bevel Gear: 720 to 1440 RPM
Low Speed 2:1 Bevel Gear: 360 to 720 RPM
Length: 32in (813mm)
Weight: 39 Lbs. (17.7kg)
Feed Gears:
Standard: 300 RPM and 550 RPM
Optional: 75, 200, 400, 675, 800 and 900 RPM
Standard: 300 RPM and 550 RPM
Optional: 75, 200, 400, 675, 800 and 900 RPM
Hand-Feed:
I.D. Feedscrew: 1-1/8in (28.6mm)
Feed Travel: 10in (254mm)
Chuck RPM:
Standard 1:1 Bevel Gear: 720 to 1440 RPM
Low Speed 2: 1 Bevel Gear: 360 to 720 RPM
Length: 39in (990mm)
Weight: 68 Lbs. (31kg)
I.D. Feedscrew: 1-1/8in (28.6mm)
Feed Travel: 10in (254mm)
Chuck RPM:
Standard 1:1 Bevel Gear: 720 to 1440 RPM
Low Speed 2: 1 Bevel Gear: 360 to 720 RPM
Standard 1:1 Bevel Gear: 720 to 1440 RPM
Low Speed 2: 1 Bevel Gear: 360 to 720 RPM
Length: 39in (990mm)
Weight: 68 Lbs. (31kg)
Location: Eastern Canada
