Tracked Hydracore 2000 Diamond Core Drill
Make: Hydracore
Model: 2000
Condition: Used, Reported in Good Condition

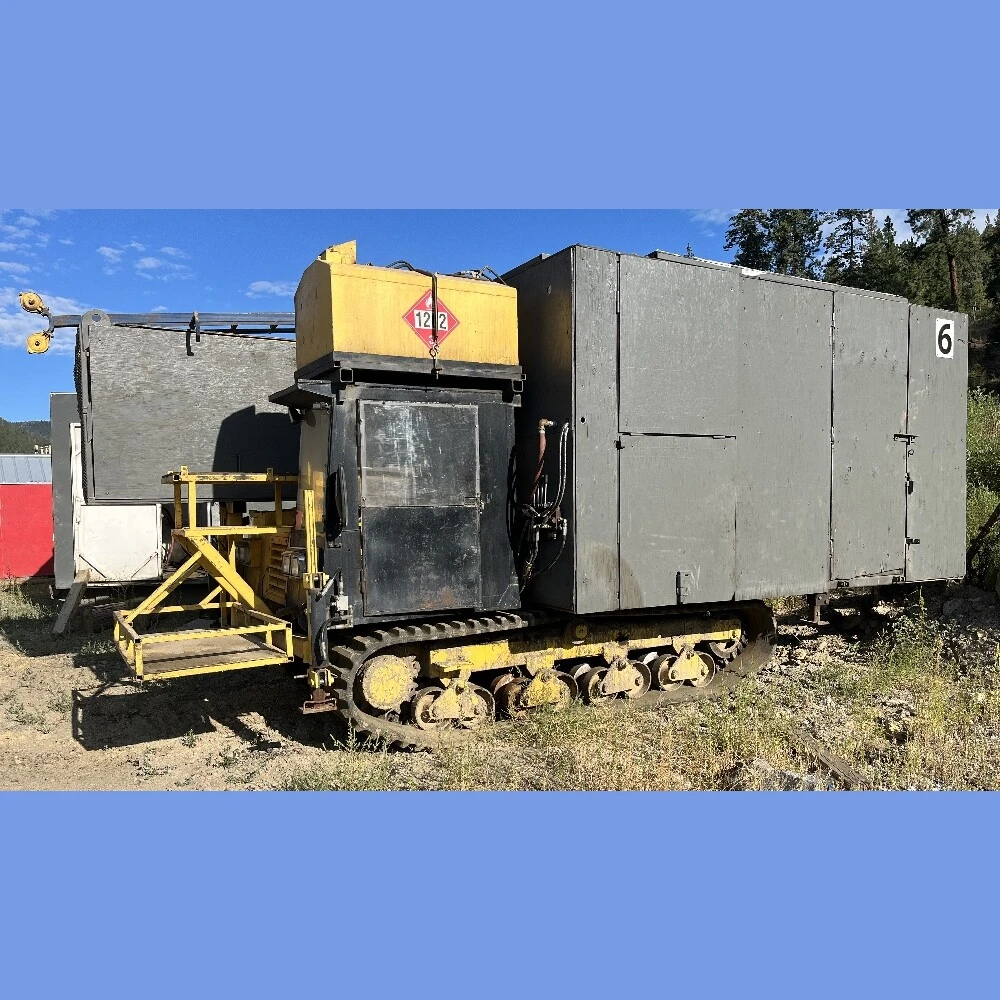

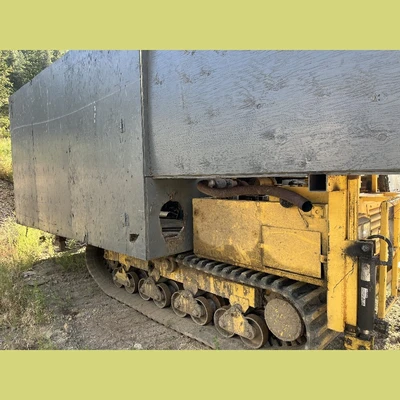

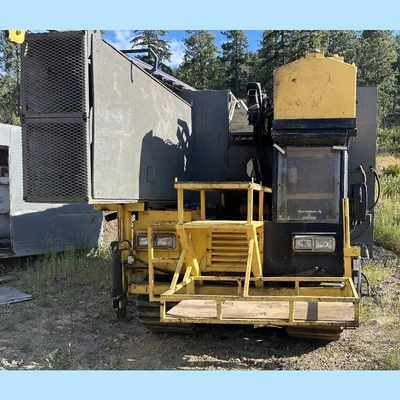

Mounted on Tracked Carrier
Marooka MTS 700
New Rubber Tracks
Marooka MTS 700
New Rubber Tracks
New Style Hydracore Head
Stringer has been Revamped
Engine Had Cylinder Replaced
Engine has been Maintained Regularly
Engine has been Maintained Regularly
Spare Deutz Engine
Spare Engine has been Maintained Regularly
Spare Engine has been Maintained Regularly
Injectors have been Redone
Pumps have Been Rebuilt
Spare Hydraulic Pump

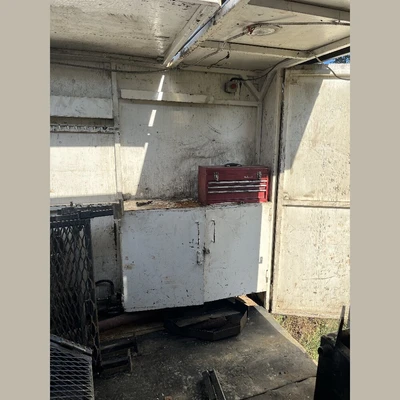

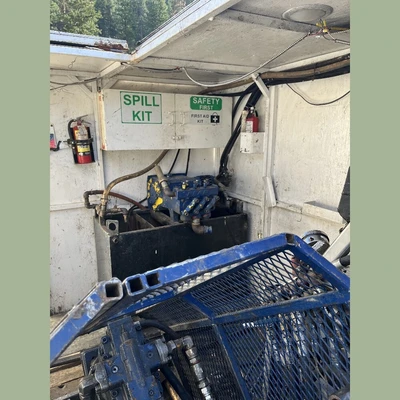

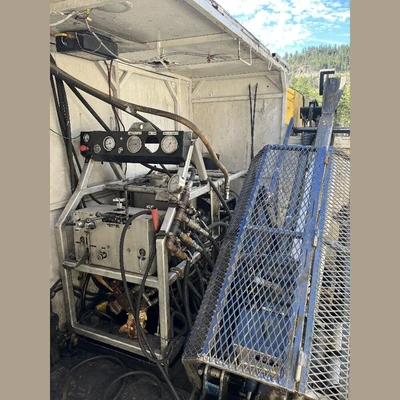

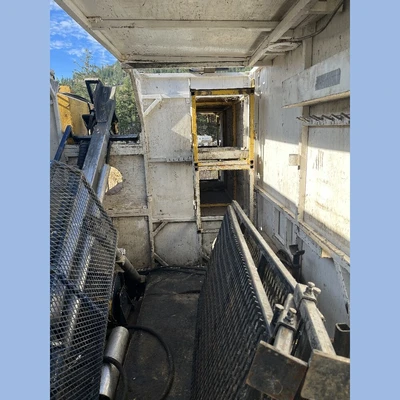

Fully Enclosed Shack with Pony Walls for Cold Climates
Hydraulic Leveling Jacks
General Model Specifications:
Depth Capacity:
B Size: 5,700 feet (1,750m)
N Size: 4,250 feet (1,300m)
H Size: 2,700 feet (825m)
Drill Head
H Size Hydraulic Chuck
Belt Drive with 2.77:1 Ratio
Torque
Maximum: 1,254 ft-lbs. @522 RPM
Minimum: 428 ft-lbs. @1,500 RPM
More Torque is Available in Reverse for Rod Breaking, (1,790 ft-lbs.) Reverse Pressure is set at 5,000 PSI While Max Pressure Forward is 3,500 PSI
Hydraulic Chuck (Hydracore Link Chuck)
Operation: Spring Closed, Hydraulic Opened
Axial Thrust: 30,000 lbs.
Capacity: B to H
No. of Jaws: 3
Maximum Rod Size: 3-1/2 inches
Foot Clamp
Operation: Accumulator Closed, Hydraulic Opened
Axial Thrust: 25,000 lbs.
Capacity: B to P
No. of Jaws: 2
Maximum Rod Size: 4-1/2 inches
Drill Slide and Feed Cylinder
Maximum Pull: 24,000 lbs.
Maximum Thrust: 16,000 lbs.
Stroke: 70 inches
Length: 122 inches
Depth Capacity:
B Size: 5,700 feet (1,750m)
N Size: 4,250 feet (1,300m)
H Size: 2,700 feet (825m)
B Size: 5,700 feet (1,750m)
N Size: 4,250 feet (1,300m)
H Size: 2,700 feet (825m)
Drill Head
H Size Hydraulic Chuck
Belt Drive with 2.77:1 Ratio
Torque
Maximum: 1,254 ft-lbs. @522 RPM
Minimum: 428 ft-lbs. @1,500 RPM
More Torque is Available in Reverse for Rod Breaking, (1,790 ft-lbs.) Reverse Pressure is set at 5,000 PSI While Max Pressure Forward is 3,500 PSI
H Size Hydraulic Chuck
Belt Drive with 2.77:1 Ratio
Torque
Maximum: 1,254 ft-lbs. @522 RPM
Minimum: 428 ft-lbs. @1,500 RPM
More Torque is Available in Reverse for Rod Breaking, (1,790 ft-lbs.) Reverse Pressure is set at 5,000 PSI While Max Pressure Forward is 3,500 PSI
Torque
Maximum: 1,254 ft-lbs. @522 RPM
Minimum: 428 ft-lbs. @1,500 RPM
More Torque is Available in Reverse for Rod Breaking, (1,790 ft-lbs.) Reverse Pressure is set at 5,000 PSI While Max Pressure Forward is 3,500 PSI
Maximum: 1,254 ft-lbs. @522 RPM
Minimum: 428 ft-lbs. @1,500 RPM
More Torque is Available in Reverse for Rod Breaking, (1,790 ft-lbs.) Reverse Pressure is set at 5,000 PSI While Max Pressure Forward is 3,500 PSI
Hydraulic Chuck (Hydracore Link Chuck)
Operation: Spring Closed, Hydraulic Opened
Axial Thrust: 30,000 lbs.
Capacity: B to H
No. of Jaws: 3
Maximum Rod Size: 3-1/2 inches
Operation: Spring Closed, Hydraulic Opened
Axial Thrust: 30,000 lbs.
Capacity: B to H
No. of Jaws: 3
Maximum Rod Size: 3-1/2 inches
Foot Clamp
Operation: Accumulator Closed, Hydraulic Opened
Axial Thrust: 25,000 lbs.
Capacity: B to P
No. of Jaws: 2
Maximum Rod Size: 4-1/2 inches
Operation: Accumulator Closed, Hydraulic Opened
Axial Thrust: 25,000 lbs.
Capacity: B to P
No. of Jaws: 2
Maximum Rod Size: 4-1/2 inches
Drill Slide and Feed Cylinder
Maximum Pull: 24,000 lbs.
Maximum Thrust: 16,000 lbs.
Stroke: 70 inches
Length: 122 inches
Maximum Pull: 24,000 lbs.
Maximum Thrust: 16,000 lbs.
Stroke: 70 inches
Length: 122 inches
Location: Western Canada
