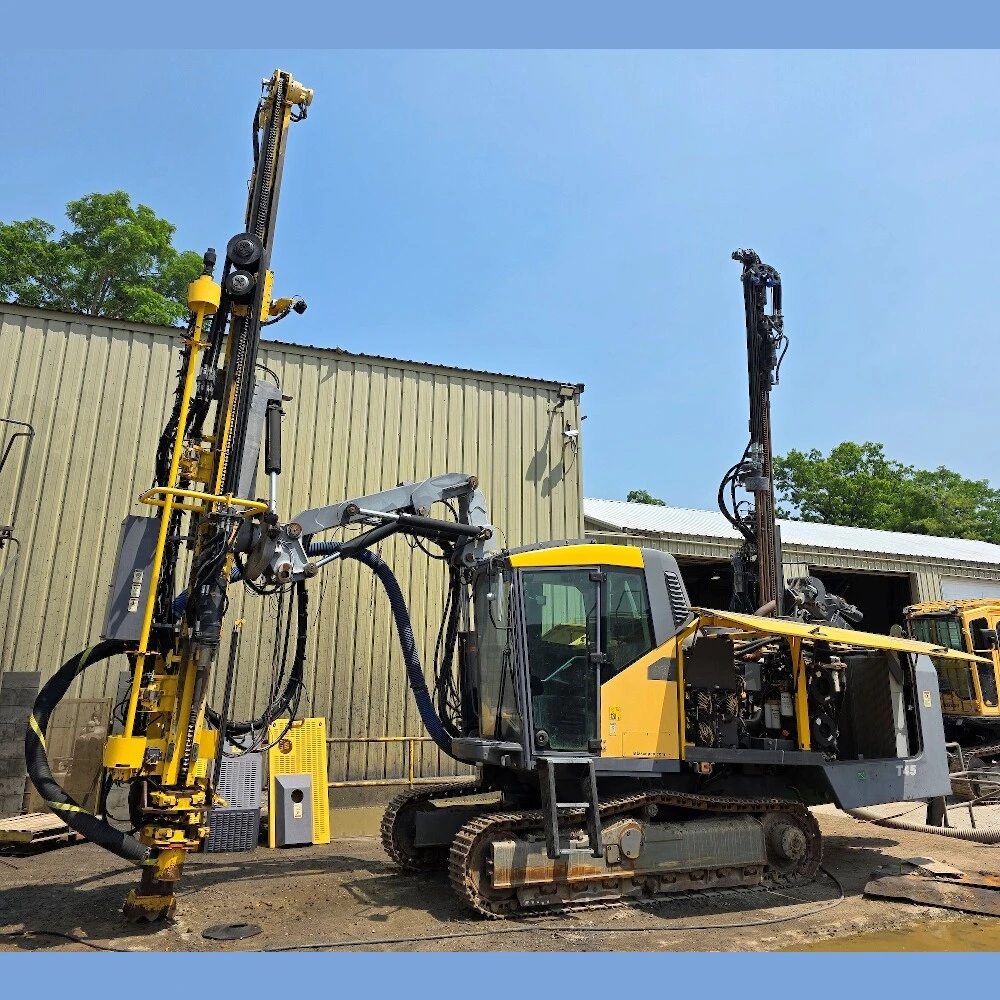

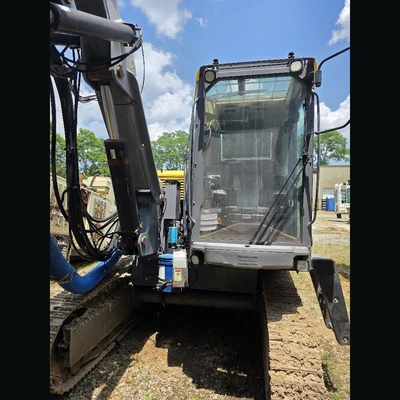

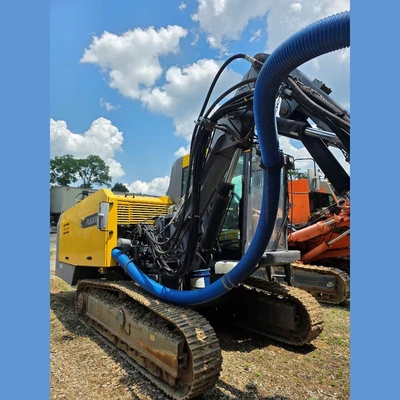

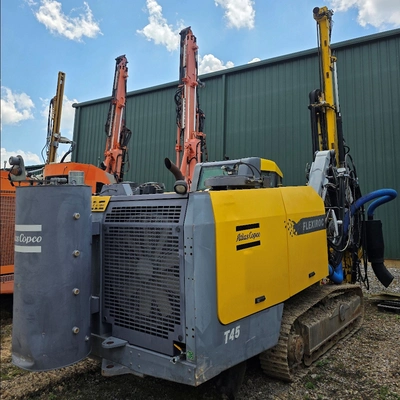

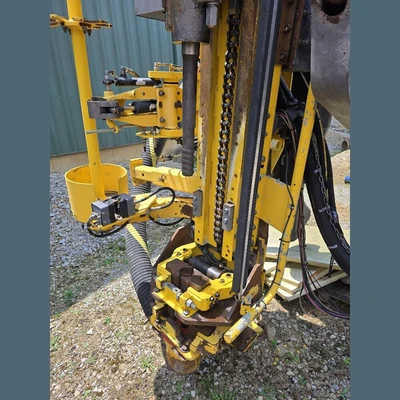

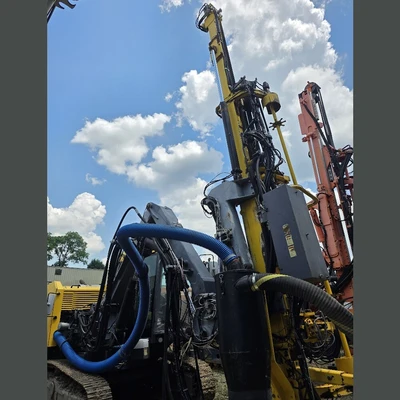

USED 2014 ATLAS COPCO FLEXIROC T45-11

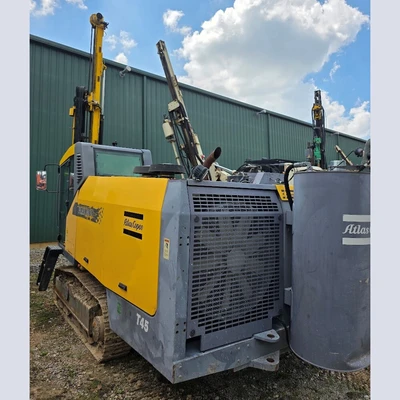

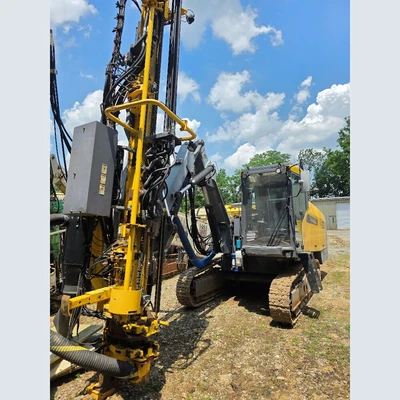

Atlas Copco FlexiROC T45-11 Drill
Make: Atlas Copco
Model: FlexiROC T45-11
Type: Quarry Drill
Year: 2014

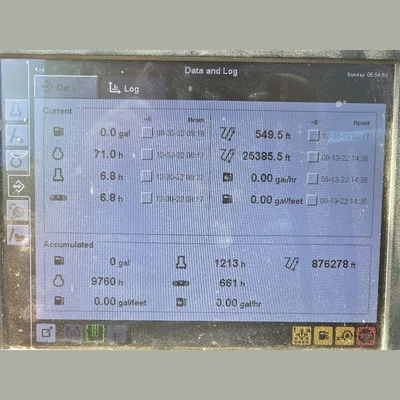

Engine/Chassis Hours: 9,760 Hours
Percussion Hours:
Current: 6.8 Hours
Accumulated: 1,213 Hours
Current: 6.8 Hours
Accumulated: 1,213 Hours
Condition: Used, Reported in Good Condition
Set Up for T51 - Can Be Converted

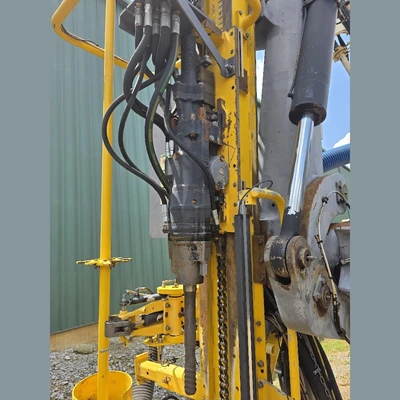

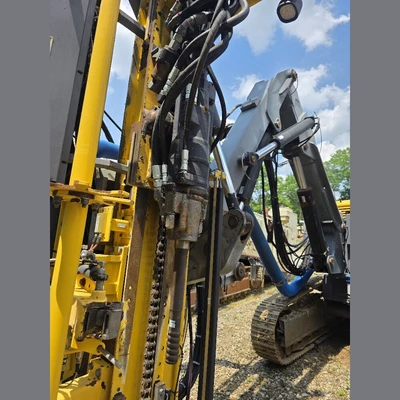

Rock Drill: Atlas Copco COP2560 Drifter - Recently Redone

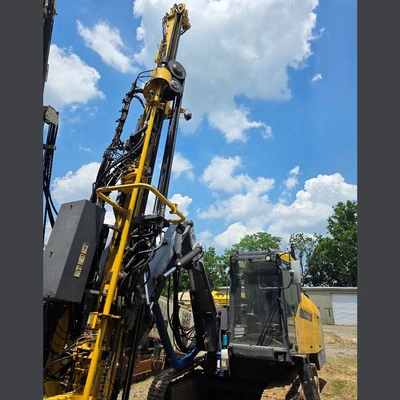

Boom: Folding Boom

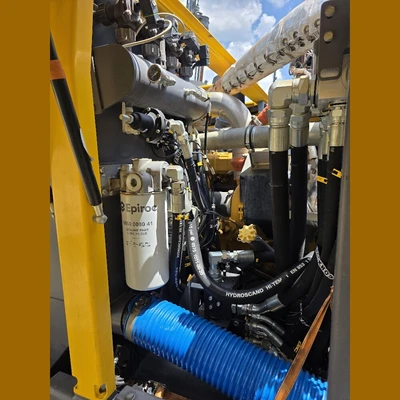

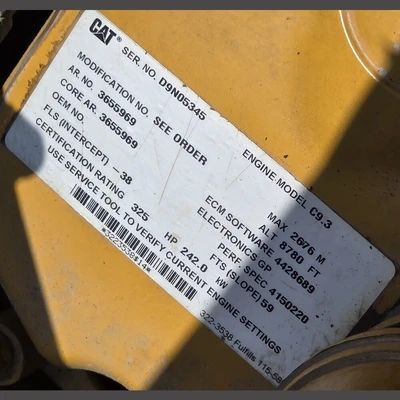

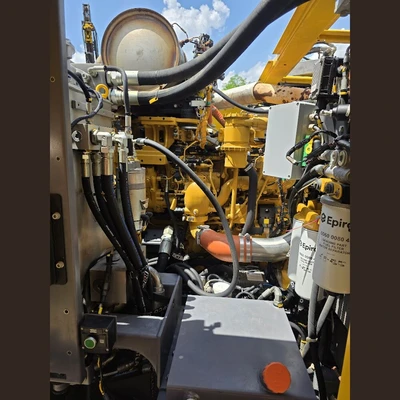

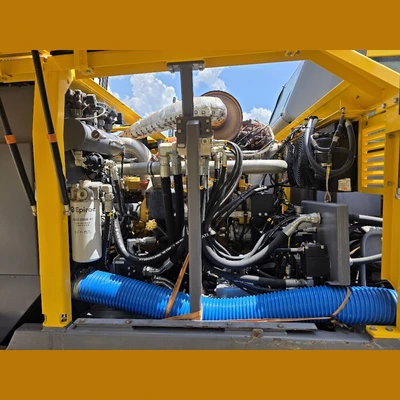

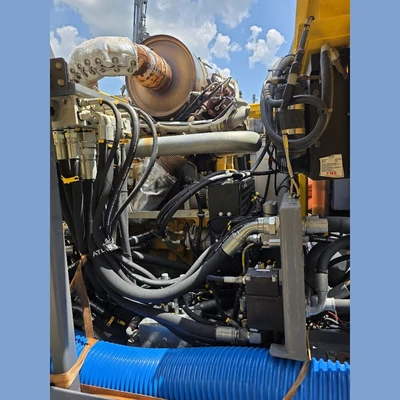

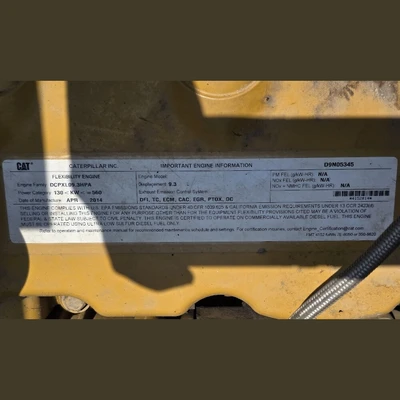

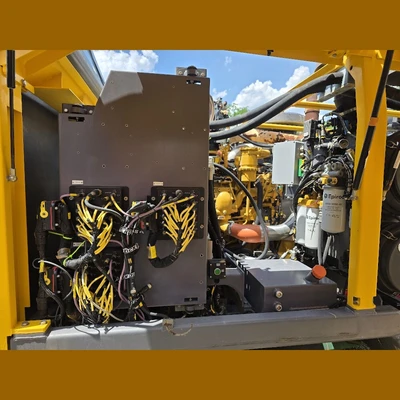

Engine: Caterpillar C9.3 Diesel Engine
Power Output: 325HP (242kW)
Displacement: 9.3L
Power Output: 325HP (242kW)
Displacement: 9.3L
General Model Specifications:
Hole Range:
T45, T51: 89–127mm (3.5in– 5in)
T45, T51 Max Hole Depth: 29m (95ft) - Hydraulic Rod Handling System with 3.6m (12in) Extension Rods and a 4.2m (14in) Starter Rod
Hydraulic Rock Drill: COP 2560
Impact Power: 25kW (33.5HP)
Hydraulic Pressure: 230 bar (3,335 PSI)
Impact Rate: 44Hz
Torque: 1,555Nm (1,147 lbf/ft)

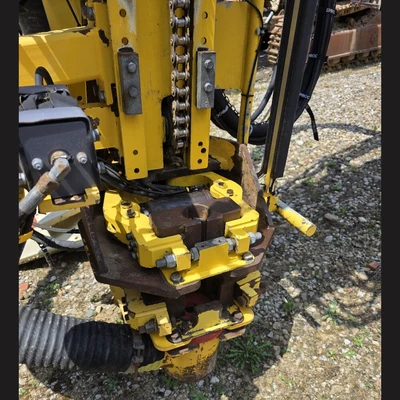

Feed: T45-11
Feed Extension: 1,150mm (3ft 9in)
Feed Rate, Max: 0.9 m/s (177 ft/min)
Feed Force, Max: 20 kN (4,496 lbf)
Tractive Pull, Max: 30 kN (6,744 lbf)
Total Length: 7,700mm (25ft 3in)
Travel Length: 4,610mm (15ft 2in)

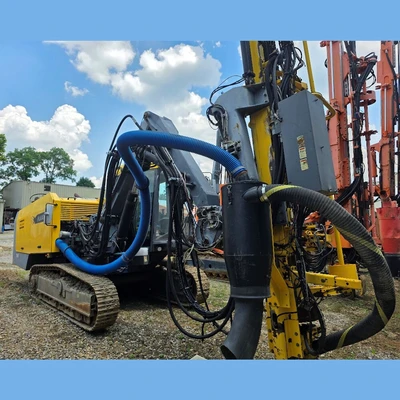

Dust Collector: DCT 200

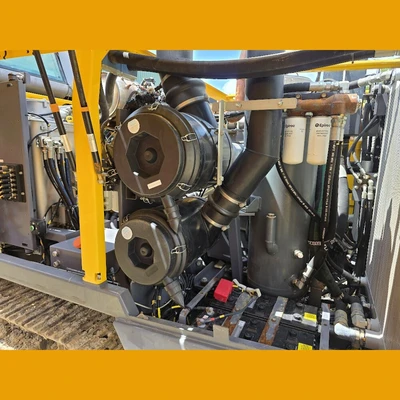

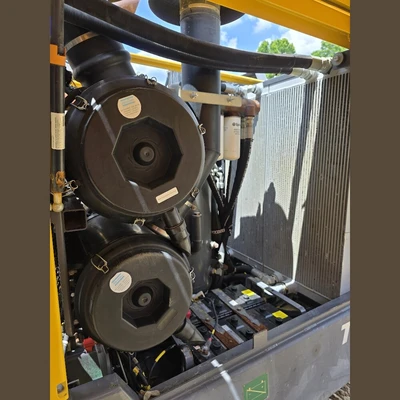

Compressor: Atlas Copco C146-07, Screw Type Compressor
Carrier:
Tramming Speed: 3.4 km/h (2.1 mph)
Track Oscillation: ±10°
Ground Clearance: 405mm (16in)
Hole Range:
T45, T51: 89–127mm (3.5in– 5in)
T45, T51 Max Hole Depth: 29m (95ft) - Hydraulic Rod Handling System with 3.6m (12in) Extension Rods and a 4.2m (14in) Starter Rod
T45, T51: 89–127mm (3.5in– 5in)
T45, T51 Max Hole Depth: 29m (95ft) - Hydraulic Rod Handling System with 3.6m (12in) Extension Rods and a 4.2m (14in) Starter Rod
Hydraulic Rock Drill: COP 2560
Impact Power: 25kW (33.5HP)
Hydraulic Pressure: 230 bar (3,335 PSI)
Impact Rate: 44Hz
Torque: 1,555Nm (1,147 lbf/ft)
Impact Power: 25kW (33.5HP)
Hydraulic Pressure: 230 bar (3,335 PSI)
Impact Rate: 44Hz
Torque: 1,555Nm (1,147 lbf/ft)
Feed: T45-11
Feed Extension: 1,150mm (3ft 9in)
Feed Rate, Max: 0.9 m/s (177 ft/min)
Feed Force, Max: 20 kN (4,496 lbf)
Tractive Pull, Max: 30 kN (6,744 lbf)
Total Length: 7,700mm (25ft 3in)
Travel Length: 4,610mm (15ft 2in)
Feed Extension: 1,150mm (3ft 9in)
Feed Rate, Max: 0.9 m/s (177 ft/min)
Feed Force, Max: 20 kN (4,496 lbf)
Tractive Pull, Max: 30 kN (6,744 lbf)
Total Length: 7,700mm (25ft 3in)
Travel Length: 4,610mm (15ft 2in)
Dust Collector: DCT 200
Compressor: Atlas Copco C146-07, Screw Type Compressor
Carrier:
Tramming Speed: 3.4 km/h (2.1 mph)
Track Oscillation: ±10°
Ground Clearance: 405mm (16in)
Tramming Speed: 3.4 km/h (2.1 mph)
Track Oscillation: ±10°
Ground Clearance: 405mm (16in)
Location: Eastern USA
