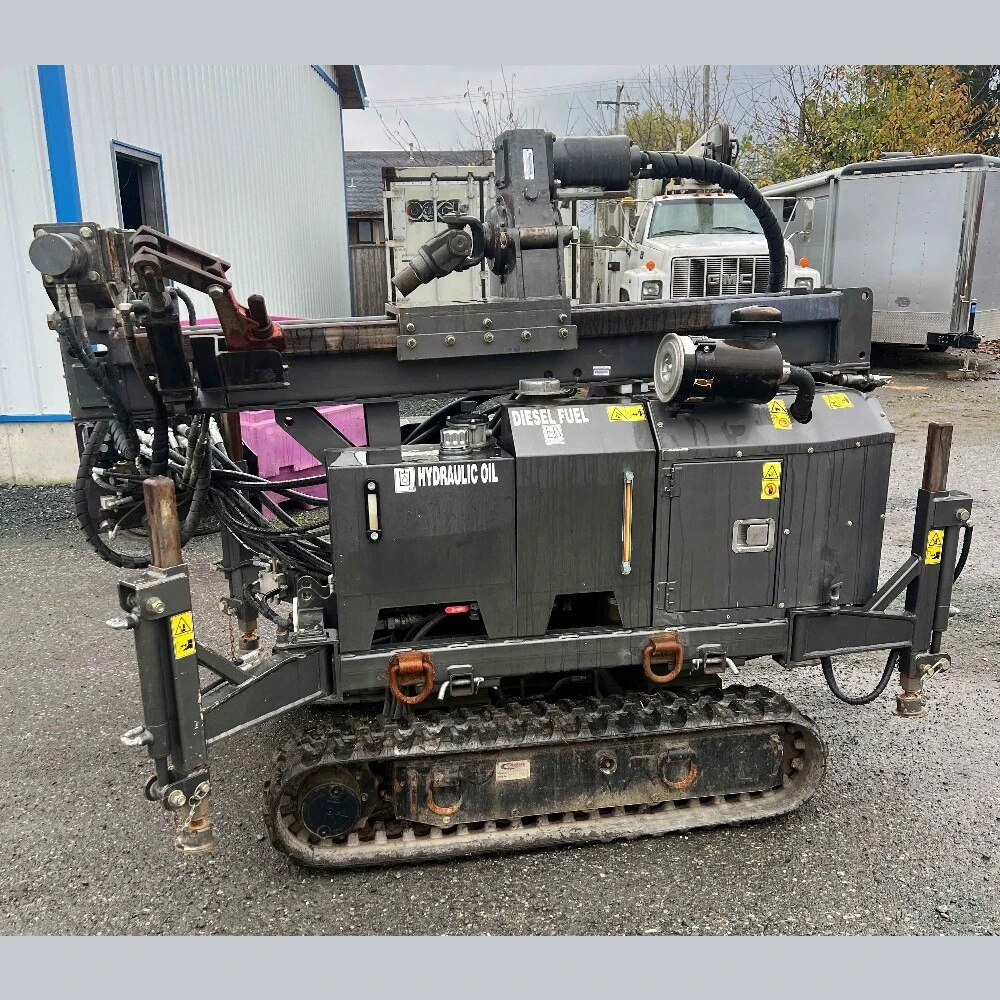

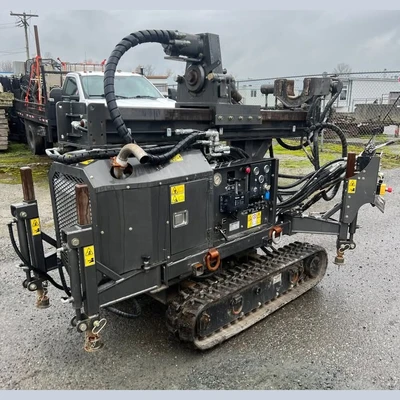

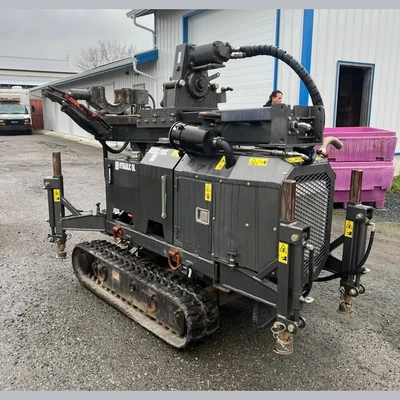

USED 2023 MULTI-POWER PRODUCTS L.A.D.

2023 Multipower L.A.D. Geotechnical Drill
Make: Multi-Power Products
Model: L.A.D.
Type: Track-Mounted Limited-Access Geotechnical and Environmental Drill
Year: 2023
Hours: 227 Hours on Meter
Condition: Used Condition
Applications:
Drilling Auger (Hollow and Solid Stem)
RAB and RC (Rotary Air Blast and Reverse Circulation)
Advancing Casing ODEX
Mud Rotary
Micro Piles
SPT Hammer (Needs Hammer)
Diamond Core (Needs Additional Accessory Package)
Drilling Auger (Hollow and Solid Stem)
RAB and RC (Rotary Air Blast and Reverse Circulation)
Advancing Casing ODEX
Mud Rotary
Micro Piles
SPT Hammer (Needs Hammer)
Diamond Core (Needs Additional Accessory Package)
Features:

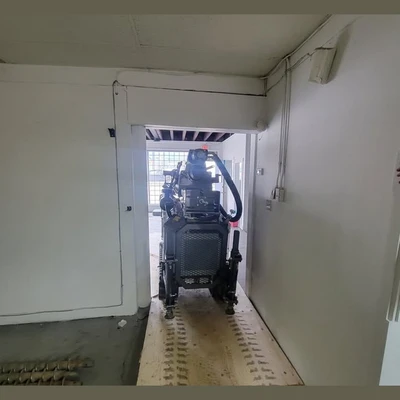

34” Width for Tight Access - Fits Through Doorways
89" Height
10,000 lbs. Pullback
3,500 lbs. Torque
Retractable/Extendable Tracks
Low-Impact Rubber Tracks
Class Leading 45HP Power Unit
Runs 2.5ft Tooling
Removable Foot Clamp and Breakout Wrench
Can be Broken Down into (3) Light-Weight Modules for Helicopter Transport
34” Width for Tight Access - Fits Through Doorways
89" Height
10,000 lbs. Pullback
3,500 lbs. Torque
Retractable/Extendable Tracks
Low-Impact Rubber Tracks
Class Leading 45HP Power Unit
Runs 2.5ft Tooling
Removable Foot Clamp and Breakout Wrench
Can be Broken Down into (3) Light-Weight Modules for Helicopter Transport
Depth Capacities: (Based on 300 CFM/200 PSI Compressor - *Depending on ground conditions)
4-1/2” Solid Stem Auger: 200ft/60m*
6-5/8” Hollow Stem Auger: 75ft/23m*
3-1/2” (89mm) Air Rotary Drilling: 300ft/100m*
4-1/2” Solid Stem Auger: 200ft/60m*
6-5/8” Hollow Stem Auger: 75ft/23m*
3-1/2” (89mm) Air Rotary Drilling: 300ft/100m*
General Model Specifications:
Prime Mover:
Standard Unit: Kubota V1505T, 4-Cylinder, Turbo-Charged Diesel Engine
Power: 44.2 HP @ 3000 RPM
Track & Undercarriage Package:
Model: Chermack 2B 60” Track
Design: Compact, Rubber Track Set
Speed: 2.6 MPH

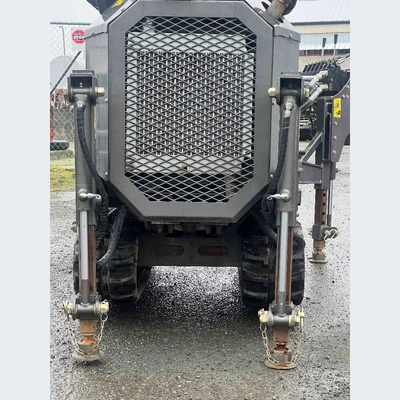

Stabilizers: (4) Hydraulic Stabilizers
Top Drive Rotation Unit:
Max Torque: 2,500 lbs./ft
RPM: 0-95 RPM
Spindle: Floating w/ HD U-Joint Assembly 1-5/8” Hex
Rotation Motor: Char-Lynn 6K Series
Mast and Feed:
Design: Double Rod Cylinder and Chain Feed
Pullback: 12,500 lbs.
Pulldown: 12,500 lbs.
Feed Stroke: 66” - Longer Feed Stroke Option Available
Working Angle: 45° to 90° Degree
Hydraulic System:
Design: Fully Hydraulic, No Electronics, Open Loops
Capacity: 20 GPM
System Pressure: 3000 PSI
Filtration: 10 micron
Components: Sauer Danfoss, Char-Lynn & Parker

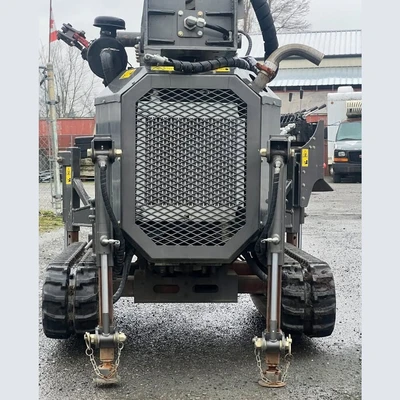

Heat Exchanger: Air-Oil

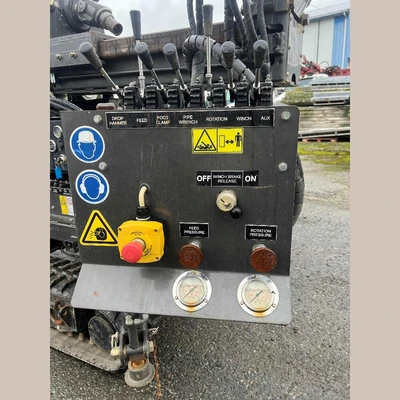

Control Panel:
Panel: Feed, Rotate, L&R Track, SPT Hammer Control and Setup Functions
Gauges: Rotation, Holdback & Air Pressure
Opening: 6 - 1/4”
Footclamp:
Design: Two Hydraulic Cylinder & Jaw/Bolt-on, Removable Design
Clamping Force: 20,000 lbs.
Opening: 6 -1/4”
Prime Mover:
Standard Unit: Kubota V1505T, 4-Cylinder, Turbo-Charged Diesel Engine
Power: 44.2 HP @ 3000 RPM
Standard Unit: Kubota V1505T, 4-Cylinder, Turbo-Charged Diesel Engine
Power: 44.2 HP @ 3000 RPM
Track & Undercarriage Package:
Model: Chermack 2B 60” Track
Design: Compact, Rubber Track Set
Speed: 2.6 MPH
Stabilizers: (4) Hydraulic Stabilizers
Model: Chermack 2B 60” Track
Design: Compact, Rubber Track Set
Speed: 2.6 MPH
Stabilizers: (4) Hydraulic Stabilizers
Top Drive Rotation Unit:
Max Torque: 2,500 lbs./ft
RPM: 0-95 RPM
Spindle: Floating w/ HD U-Joint Assembly 1-5/8” Hex
Rotation Motor: Char-Lynn 6K Series
Max Torque: 2,500 lbs./ft
RPM: 0-95 RPM
Spindle: Floating w/ HD U-Joint Assembly 1-5/8” Hex
Rotation Motor: Char-Lynn 6K Series
Mast and Feed:
Design: Double Rod Cylinder and Chain Feed
Pullback: 12,500 lbs.
Pulldown: 12,500 lbs.
Feed Stroke: 66” - Longer Feed Stroke Option Available
Working Angle: 45° to 90° Degree
Design: Double Rod Cylinder and Chain Feed
Pullback: 12,500 lbs.
Pulldown: 12,500 lbs.
Feed Stroke: 66” - Longer Feed Stroke Option Available
Working Angle: 45° to 90° Degree
Hydraulic System:
Design: Fully Hydraulic, No Electronics, Open Loops
Capacity: 20 GPM
System Pressure: 3000 PSI
Filtration: 10 micron
Components: Sauer Danfoss, Char-Lynn & Parker
Heat Exchanger: Air-Oil
Design: Fully Hydraulic, No Electronics, Open Loops
Capacity: 20 GPM
System Pressure: 3000 PSI
Filtration: 10 micron
Components: Sauer Danfoss, Char-Lynn & Parker
Heat Exchanger: Air-Oil
Control Panel:
Panel: Feed, Rotate, L&R Track, SPT Hammer Control and Setup Functions
Gauges: Rotation, Holdback & Air Pressure
Opening: 6 - 1/4”
Panel: Feed, Rotate, L&R Track, SPT Hammer Control and Setup Functions
Gauges: Rotation, Holdback & Air Pressure
Opening: 6 - 1/4”
Footclamp:
Design: Two Hydraulic Cylinder & Jaw/Bolt-on, Removable Design
Clamping Force: 20,000 lbs.
Opening: 6 -1/4”
Design: Two Hydraulic Cylinder & Jaw/Bolt-on, Removable Design
Clamping Force: 20,000 lbs.
Opening: 6 -1/4”
Dimensions: (Working)
Length: 8ft 3in (2.5m)
Width:
Tracks Out: 5ft 6in (1.7m)
Tracks In: 2ft 8in (0.85m)
Height:
Mast Up: 7ft 5in (2.4m)
Walking: 6ft (1.8m)
Length: 8ft 3in (2.5m)
Width:
Tracks Out: 5ft 6in (1.7m)
Tracks In: 2ft 8in (0.85m)
Tracks Out: 5ft 6in (1.7m)
Tracks In: 2ft 8in (0.85m)
Height:
Mast Up: 7ft 5in (2.4m)
Walking: 6ft (1.8m)
Mast Up: 7ft 5in (2.4m)
Walking: 6ft (1.8m)
Dimensions: (Transport)
Length: 115in
Width: 34in
Height: 69in
Weight: 3,500 Lbs.
Length: 115in
Width: 34in
Height: 69in
Weight: 3,500 Lbs.
Location: Western Canada
