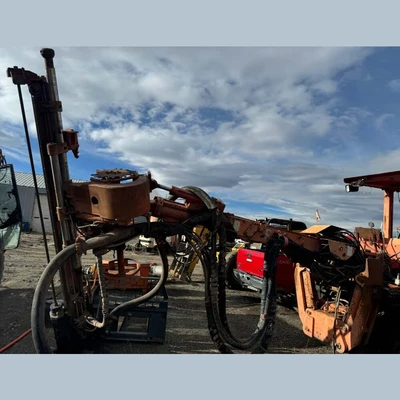

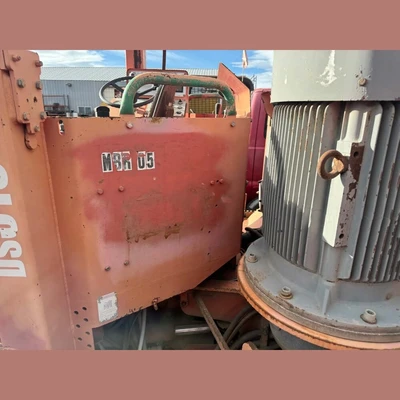

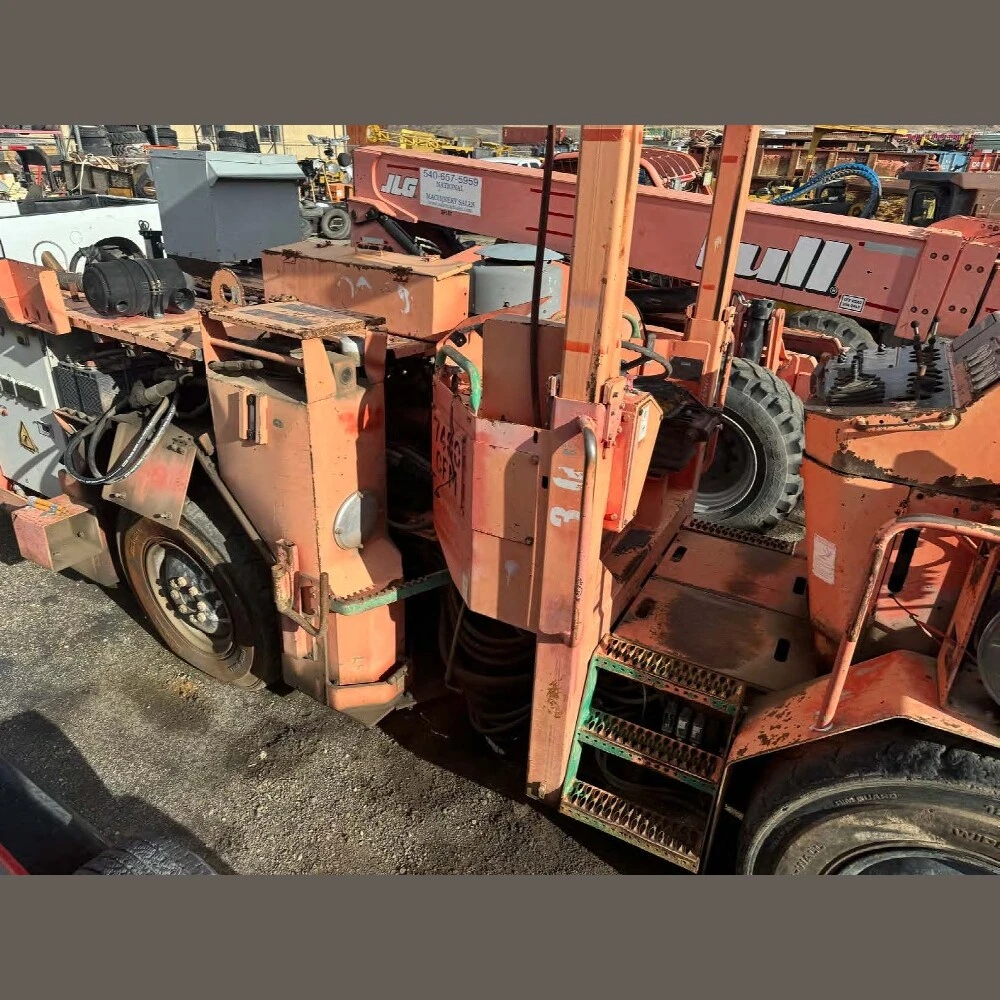

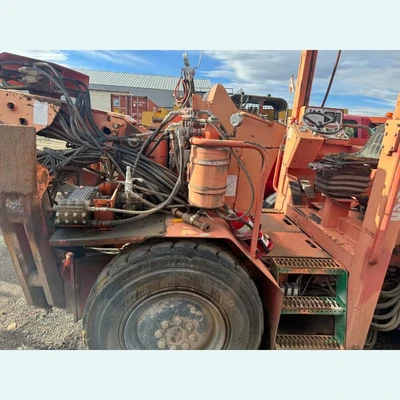

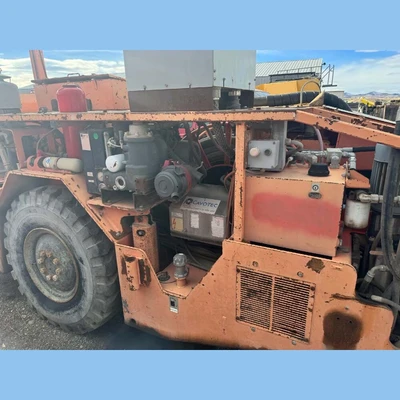

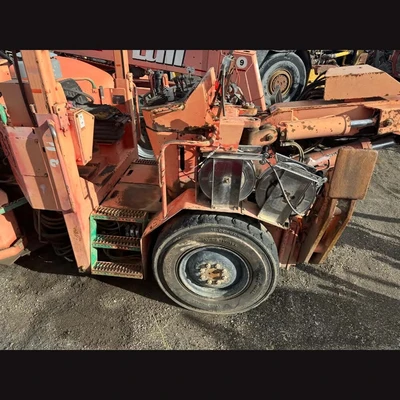

USED 2008 SANDVIK DS310

Sandvik DS310 Bolter
Make: Sandvik
Model: DS310
Type: Bolter
Style: Jumbo Drill
Year: 2008
Condition: Used Condition
Hours:
Engine: Hour Meter Showing 864 Hours
Percussion: Hour Meter Showing 1,622 Hours
Compressor: Hour Meter Showing 3,823 Hours
Engine: Hour Meter Showing 864 Hours
Percussion: Hour Meter Showing 1,622 Hours
Compressor: Hour Meter Showing 3,823 Hours
General Model Specifications:
Main Specifications:
Carrier: (1) TC 5
Safety Canopy: (1) FOPS / ROPS
Rock Drill: (1) HYDRASTAR 200
Bolting Head: (1) TU-C
Boom: (1) B 26 XL B
Control System: (1) THC 560 B
Powerpack: (1) HP 560 (55 kW)
Shank Lubrication Device: (1) KVL 10-1
Air Compressor: (1) CT 10
Water Pump: (1) WBP 1
Main Switch: (1) MSE 05
Cable Reel: (1) TCR 1
Length: 10,800 mm
Width:  1,750 mm
Height:  2,100/3,100mm
Weight (without Options): 13,000 kg
Tramming Speed (Horizontal): 12 km/h
13%=1;7=8°: 5 km/h
Gradeability, Max: 35%
Noise Level: < 98 dB(A)
Main Specifications:
Carrier: (1) TC 5
Safety Canopy: (1) FOPS / ROPS
Rock Drill: (1) HYDRASTAR 200
Bolting Head: (1) TU-C
Boom: (1) B 26 XL B
Control System: (1) THC 560 B
Powerpack: (1) HP 560 (55 kW)
Shank Lubrication Device: (1) KVL 10-1
Air Compressor: (1) CT 10
Water Pump: (1) WBP 1
Main Switch: (1) MSE 05
Cable Reel: (1) TCR 1
Length: 10,800 mm
Width:  1,750 mm
Height:  2,100/3,100mm
Weight (without Options): 13,000 kg
Tramming Speed (Horizontal): 12 km/h
13%=1;7=8°: 5 km/h
Gradeability, Max: 35%
Noise Level: < 98 dB(A)
Carrier: (1) TC 5
Safety Canopy: (1) FOPS / ROPS
Rock Drill: (1) HYDRASTAR 200
Bolting Head: (1) TU-C
Boom: (1) B 26 XL B
Control System: (1) THC 560 B
Powerpack: (1) HP 560 (55 kW)
Shank Lubrication Device: (1) KVL 10-1
Air Compressor: (1) CT 10
Water Pump: (1) WBP 1
Main Switch: (1) MSE 05
Cable Reel: (1) TCR 1
Length: 10,800 mm
Width:  1,750 mm
Height:  2,100/3,100mm
Weight (without Options): 13,000 kg
Tramming Speed (Horizontal): 12 km/h
13%=1;7=8°: 5 km/h
13%=1;7=8°: 5 km/h
Gradeability, Max: 35%
Noise Level: < 98 dB(A)
Location: Western USA
