USED 2008 HYDRACORE 2000

Hydracore 2000 Diamond Drill
Make: Hydracore
Model: 2000
Year: 2008
Condition: Used, Reported in Good Condition
Hydracore Variable Speed “H” size Drill Head and Link Chuck
Hydraulic Foot Clamp B – P Size
4-Cyl Isuzu Motor
Model: 4BGTCW
Aftercooled
Model: 4BGTCW
Aftercooled
Main Pump: 60 GPM, 3000 PSI
Auxiliary Pumps: (2) 10 GPM, 2500 PSI
Feed Pump: 1 GPM, 3000 PSI
Hydraulic Tank: 12.5 Gallons (US)
Cooling Water: Cooled, Heat Exchanger
Full Guarding On Moving Parts
110% Spill Containment

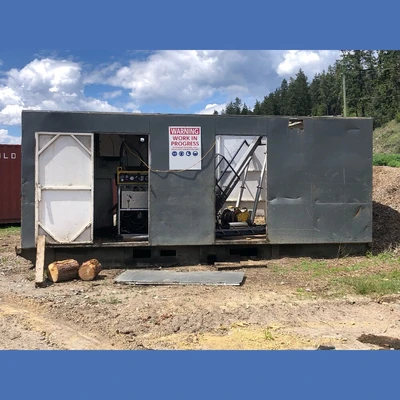

Currently Mounted in Shack But Capable to Fly
General Model Specifications:
Depth Capacity:
B: 1,350m Recommended (1,850m Max)
N: 1,050m Recommended (1,400m Max)
H: 650m Recommended (850 Max)
Move Method: Helicopter, Truck
Drill Method: Core (B, N, H)
Power: 130HP (97kW)
Drill Torque: 1,250 ft-lbs. (1,700Nm)
Pull Back: 24,000 lbs. (10,900 Kg) (@2500 PSI, Hydraulic Pressure 3500 PSI Max)
Thrust: 16,000 lbs. (@2500 PSI, Hydraulic Pressure 3500 PSI Max)
Feed Stroke: 70in (1.78m)
Rod Length: 10ft (3m)
Rod Pull Length: 20ft (6m)
Max. Weight/Move: 1,100 lb (500 Kg)
Total Weight: 3,860 lb (1,750 Kg)
Depth Capacity:
B: 1,350m Recommended (1,850m Max)
N: 1,050m Recommended (1,400m Max)
H: 650m Recommended (850 Max)
B: 1,350m Recommended (1,850m Max)
N: 1,050m Recommended (1,400m Max)
H: 650m Recommended (850 Max)
Move Method: Helicopter, Truck
Drill Method: Core (B, N, H)
Power: 130HP (97kW)
Drill Torque: 1,250 ft-lbs. (1,700Nm)
Pull Back: 24,000 lbs. (10,900 Kg) (@2500 PSI, Hydraulic Pressure 3500 PSI Max)
Thrust: 16,000 lbs. (@2500 PSI, Hydraulic Pressure 3500 PSI Max)
Feed Stroke: 70in (1.78m)
Rod Length: 10ft (3m)
Rod Pull Length: 20ft (6m)
Max. Weight/Move: 1,100 lb (500 Kg)
Total Weight: 3,860 lb (1,750 Kg)
Included:
Brand New Spare Set of Hydraulic Motors
Spare Rebuilt Drill Motor
Complete Spare Chuck
Mud Tank with Mixer
Eli Pump Pressure Pump
Brand New Spare Set of Hydraulic Motors
Spare Rebuilt Drill Motor
Complete Spare Chuck
Mud Tank with Mixer
Eli Pump Pressure Pump
Location: Western Canada
