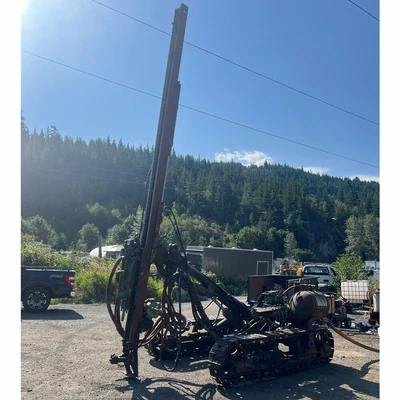

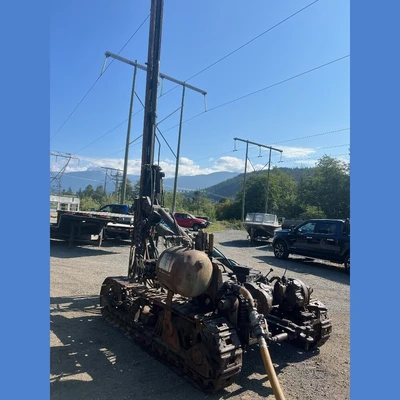

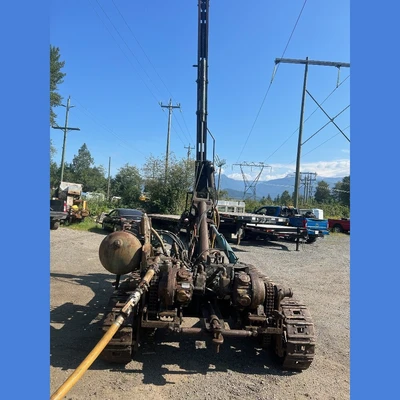

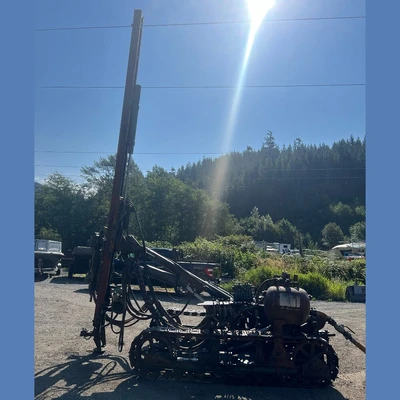

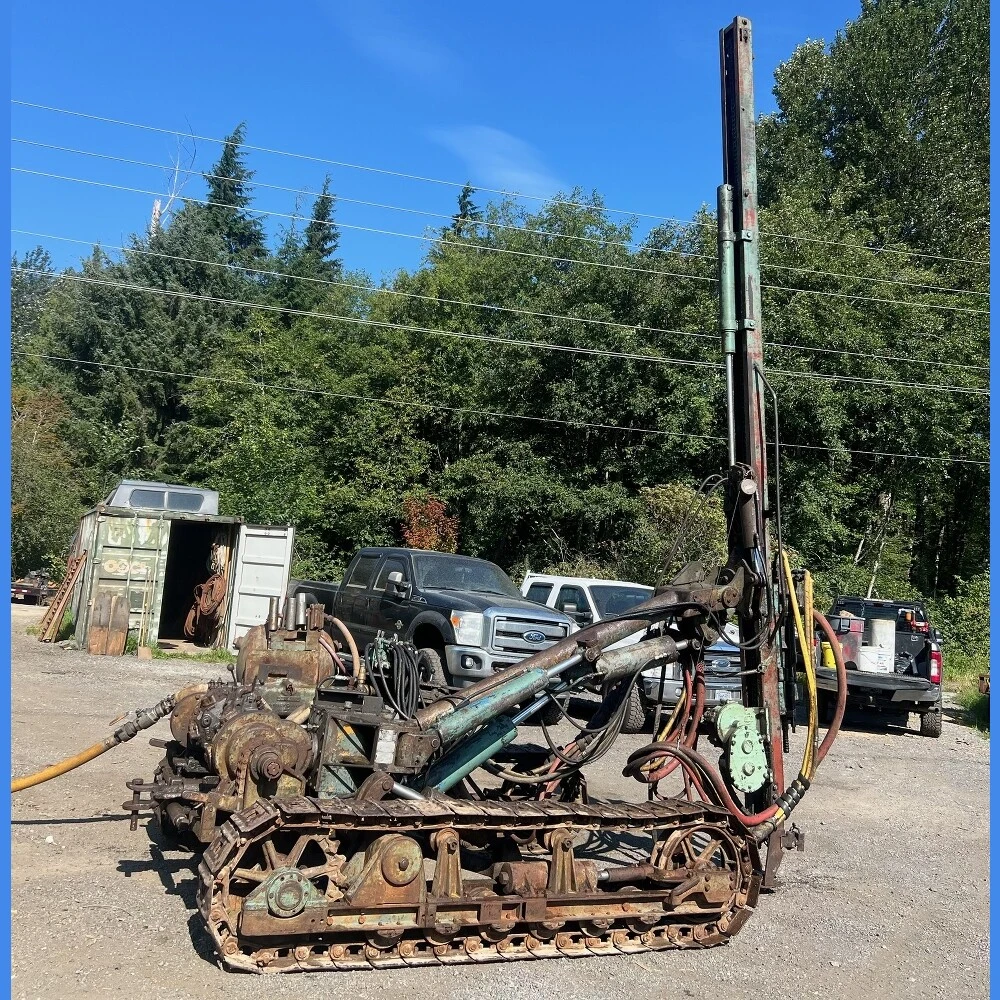

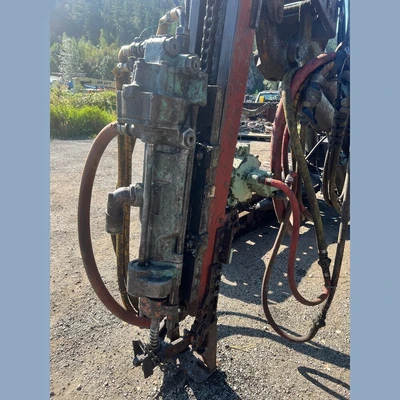

USED GARDNER DENVER ATD-3200A

Gardner Denver ATD-3200A Air Track Drill
Make: Gardner Denver

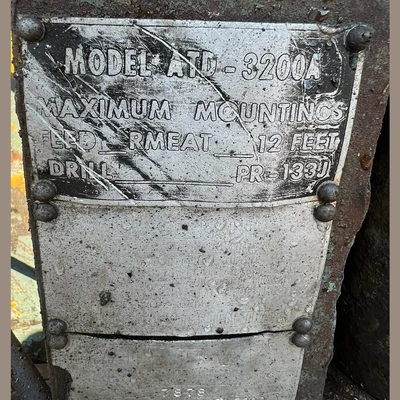

Model: ATD-3200A
Type: Air Track Drill
Condition: Used Condition

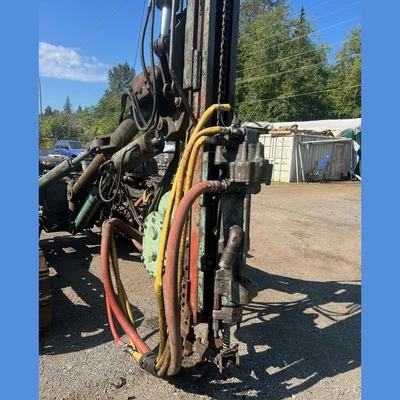

Drifter Drill: PR-133J
5in Diameter Drill Holes
333 Lbs. Weight
5in Diameter Drill Holes
333 Lbs. Weight
Feed: RME-12
Swing: 12ft 8in @ 45° Elevation - 2.5ft Past Tracks
Reach/Max Horizontal Drill Height: 9ft 8in Height for Horizontal Drilling

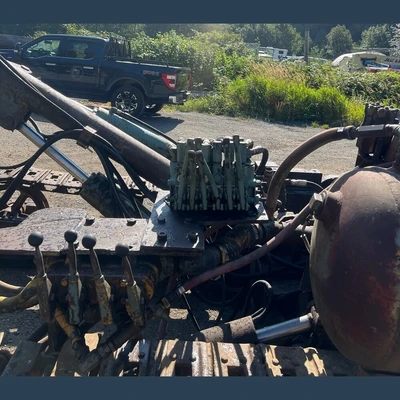

Controls: Hammer Blow, Rotation Speed, Feed Pressure, and Blowing Air
General Model Specifications:
Effective Boom Length: 7ft 4in
Overall Track Length: 9ft 3in
Ground Contact: 1826in²
Max Horizontal Drill Height: 9ft 8in
Max Drill Pattern: 12ft 8in
Distance to Steel in Front of Track with Boom @ 45°: 1ft 6.5in
Axle to Rear of Track: 33in
Draw Bar Extension: 7in
Effective Boom Length: 7ft 4in
Overall Track Length: 9ft 3in
Ground Contact: 1826in²
Max Horizontal Drill Height: 9ft 8in
Max Drill Pattern: 12ft 8in
Distance to Steel in Front of Track with Boom @ 45°: 1ft 6.5in
Axle to Rear of Track: 33in
Draw Bar Extension: 7in
Location: Western Canada
