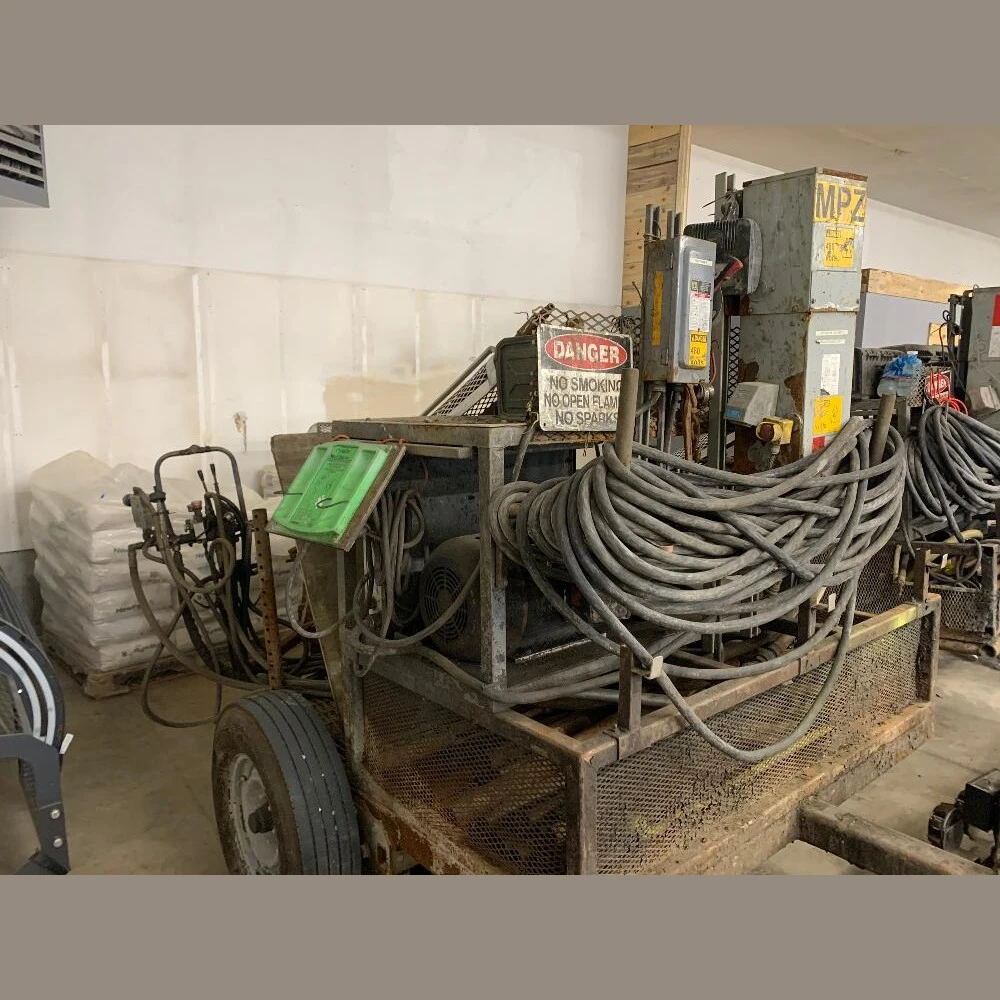

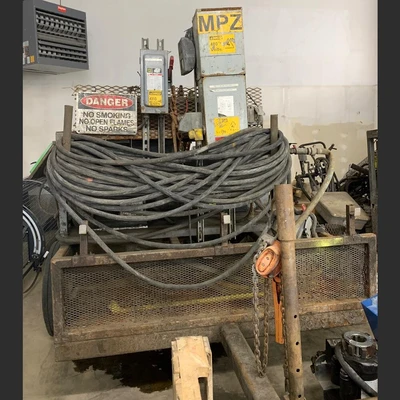

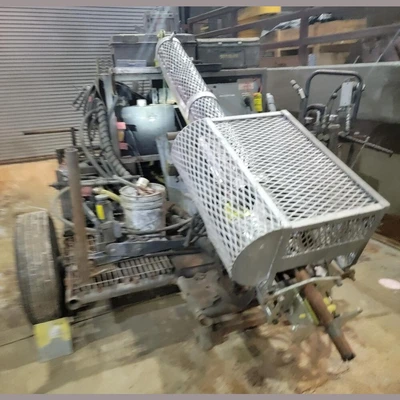

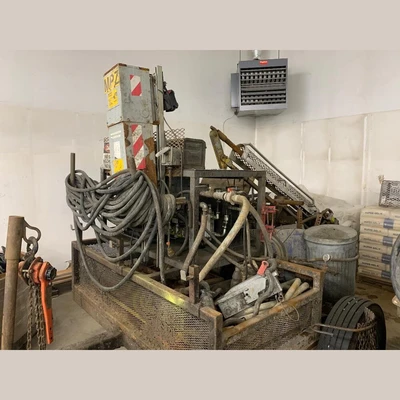

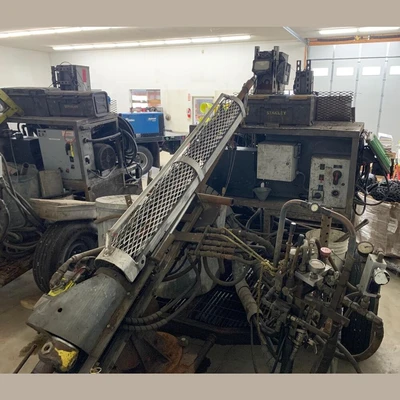

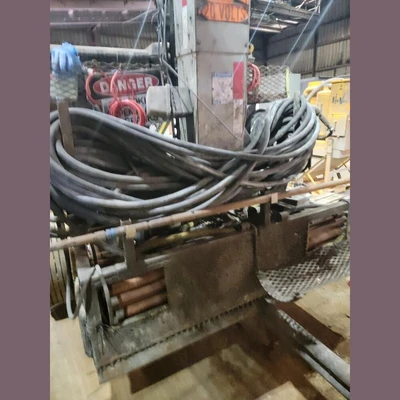

USED COEUR PRODUCTS TERMITE

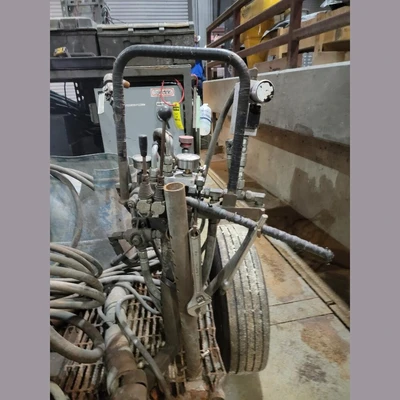

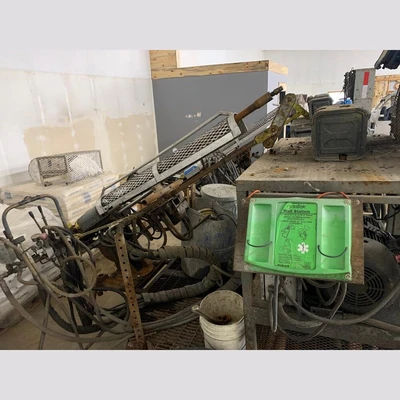

Coeur Termite Diamond Core Drill
Quantity: (1) Drill with (2nd) Drill Subject to Availability
Make: Coeur Products
Model: Termite
Depth Capacity: Optimal Up to 100m (300ft)
Drill is Equipped to Drill AQ Diameter Core Holes up to 300ft in Length
Drill is Capable of Drilling BQ Size
Drill is Equipped to Drill AQ Diameter Core Holes up to 300ft in Length
Drill is Capable of Drilling BQ Size

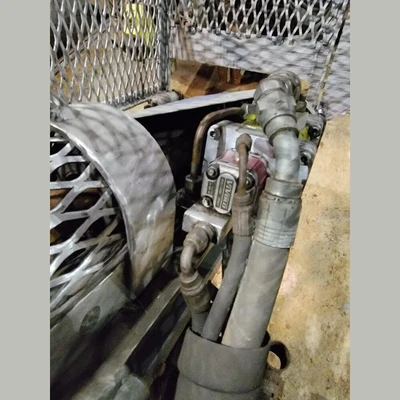

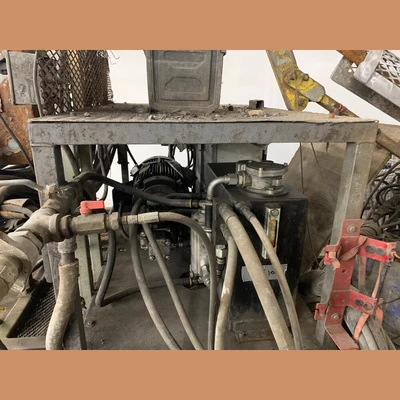

Electric Over Hydraulic
Voltage: 480 Volt
Condition: Used Condition
Turntable Allows for 180-Degree Azimuth Rotation Without Moving the Drill
Can Drill Minus 90° Degree to Plus 45° Degree Dip
Always Stored in Heated Shop
Mine-Ready with Guarding

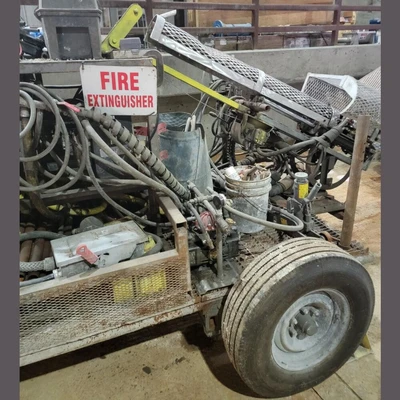

Wheeled Trailer Mount
Trailer Mounted Setup can be Pulled Behind Mine Tractors or Pickup Trucks
Trailer Mounted Setup can be Pulled Behind Mine Tractors or Pickup Trucks
Optional Drill Deck For Fast Moves
Container of Tooling, Bits, and Spares including Reflex EX-AQ Downhole Survey Tool
General Model Specifications: @ 50 Liters/Minute, 180 bar
Max. Feed Force: 20 kN (Approx. 4,400 lbs.)
Max. Pull Force: 18 kN (Approx. 4,000 lbs.)
Revolutions: 1450 RPM
Rod Running Speed: 1.7m/sec (Approx. 4.6ft/sec)
Max. Feed Speed: 1.3m/min (Approx. 3.3ft/min)
Stroke: 0.5m (Approx. 20in)
Power: 15kW (Approx. 20HP)
Max. Feed Force: 20 kN (Approx. 4,400 lbs.)
Max. Pull Force: 18 kN (Approx. 4,000 lbs.)
Revolutions: 1450 RPM
Rod Running Speed: 1.7m/sec (Approx. 4.6ft/sec)
Max. Feed Speed: 1.3m/min (Approx. 3.3ft/min)
Stroke: 0.5m (Approx. 20in)
Power: 15kW (Approx. 20HP)
Location: Western USA
