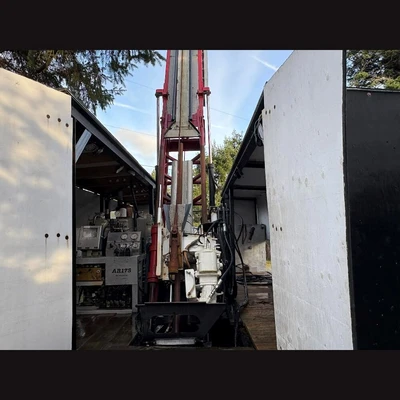

USED 2008 AMERICAN RECON AR 175 SIMILAR TO BOART LONGYEAR LF230

AR175 Diamond Core Drill
Make: American Recon
Model: AR 175
Similar to Boart Longyear LF230
Similar to Boart Longyear LF230
Type: Diamond Core Drill
Year: 2008
Condition: Used Condition - Rebuilt and Ready-to-Work
Complete Service (2) Years Ago, Started Occasionally to Keep the Components Lubed
Complete Service (2) Years Ago, Started Occasionally to Keep the Components Lubed
Depth Capacity: 1750m with HQ

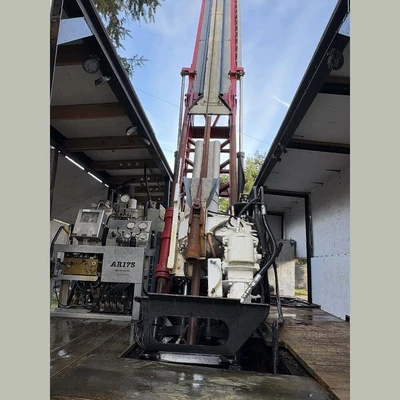

Rotation Unit: LF 90 Head with PQ Nitro Chuck
Rod Pull Capability: 30ft Rod Pull Capable with Direct Line High Speed Hoist
Wireline: High Speed Direct Drive Wireline

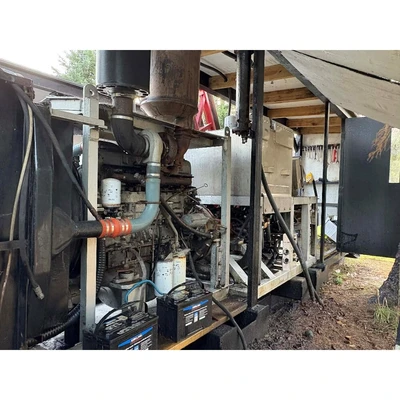

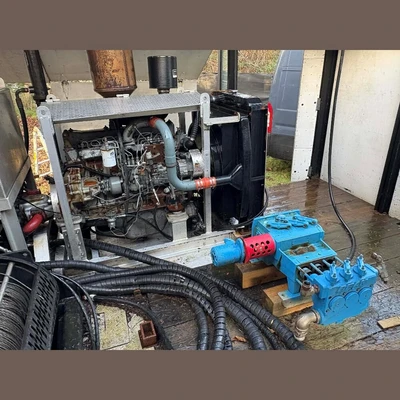

Engine: 300HP Isuzu Tier 1 Diesel Engine (Non-OEM Motor, 1-Year of Use, Still in Production)
Control Panel: User-Friendly Control Panel
Guarding: Front Guarding that Complies with BC Standards, May Require Additional Protection Around Winch Area

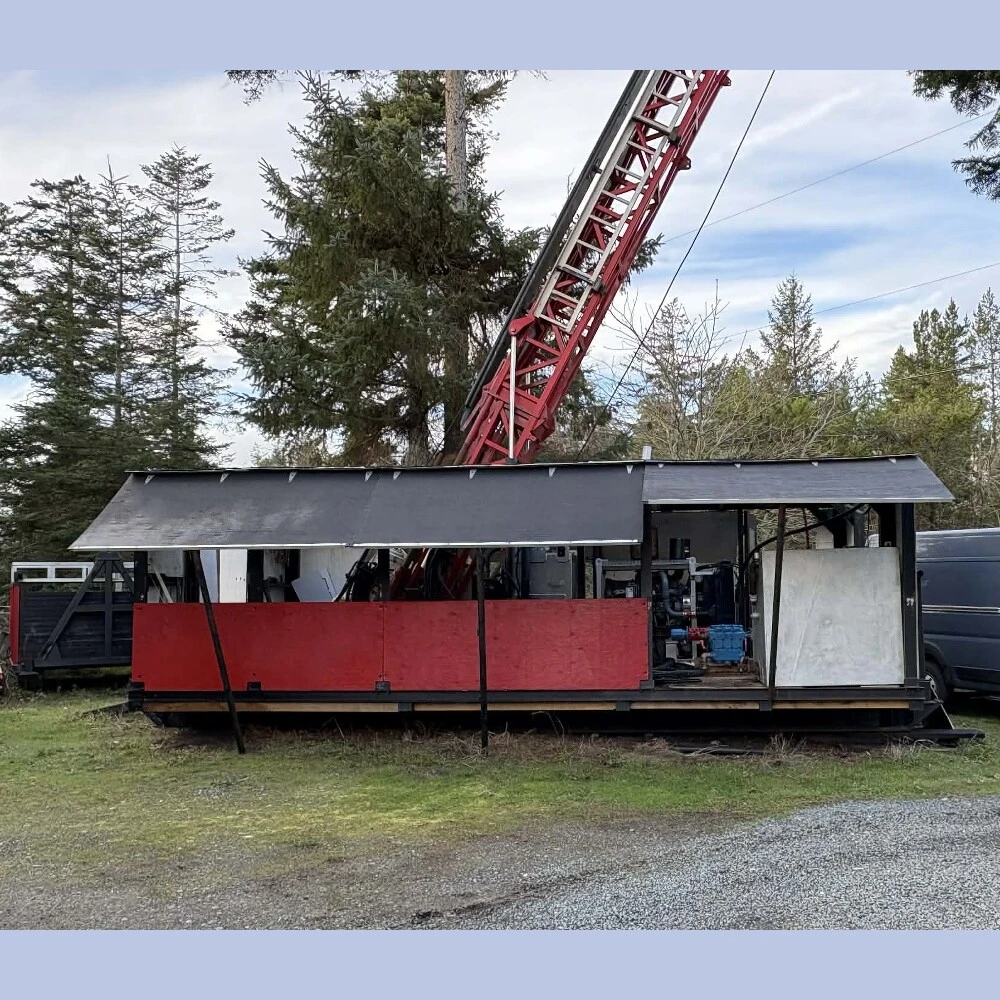

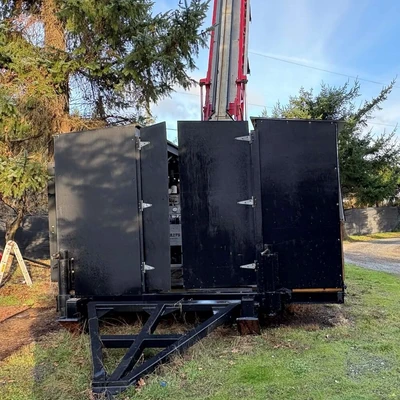

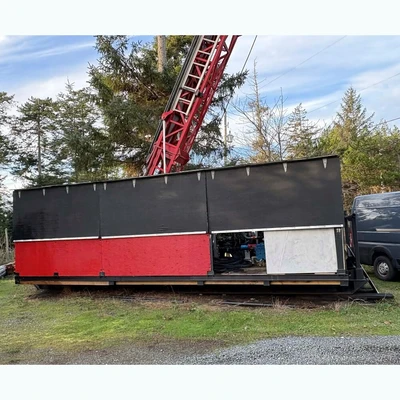

Enclosure/Drill Shack: Heavy-Duty Skid Frame with Extreme Wear Plating on Skid
Leveling Legs on Front End

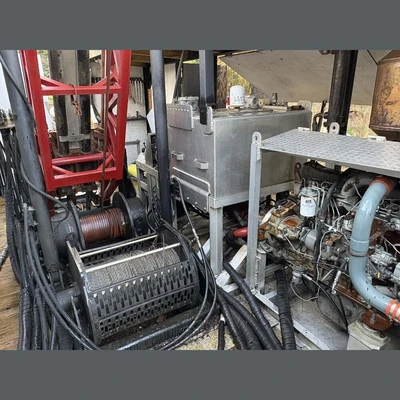

In-Shack Aluminum Mixing Tank with 455 FMC Piston Pump with Flat Valves
Shack Height: 11ft (for Transport)
Shack Width: 13ft while Working (Collapses to 10ft for Hauling)
Shack Length: 24ft Shack Length
29ft with Skid
41ft Overall with Mast Overhang
Leveling Legs on Front End
In-Shack Aluminum Mixing Tank with 455 FMC Piston Pump with Flat Valves
Shack Height: 11ft (for Transport)
Shack Width: 13ft while Working (Collapses to 10ft for Hauling)
Shack Length: 24ft Shack Length
29ft with Skid
41ft Overall with Mast Overhang
29ft with Skid
41ft Overall with Mast Overhang
Package Includes:

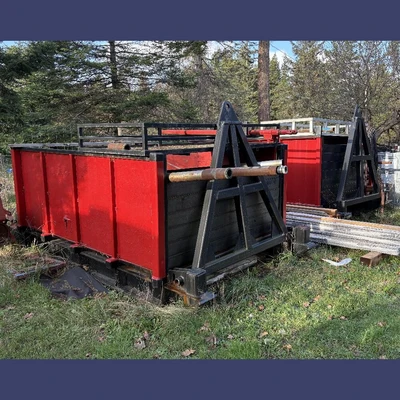

(2) "Almost New" Condition Best Built Rod Sloops
2000ft New HQ Rods
2200ft New NDH Rods
400ft HWT Casing

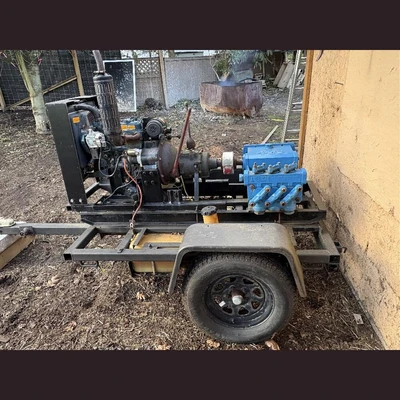

Trailer-Mounted FMC 435 Piston Pump Powered by a 4-Speed Kubota
10 Lengths (100ft) of 800-PSI Hose
All Spare Hydraulic Pumps and Motors
Complete EZ Shot Tool
(5) Rebuilt HQ Back Ends
(5) NQ Back Ends
Spare 435 Piston Pump
Lots of Bits and Pieces
(2) "Almost New" Condition Best Built Rod Sloops
2000ft New HQ Rods
2200ft New NDH Rods
400ft HWT Casing
Trailer-Mounted FMC 435 Piston Pump Powered by a 4-Speed Kubota
10 Lengths (100ft) of 800-PSI Hose
All Spare Hydraulic Pumps and Motors
Complete EZ Shot Tool
(5) Rebuilt HQ Back Ends
(5) NQ Back Ends
Spare 435 Piston Pump
Lots of Bits and Pieces
Transport Dimensions:
Length: 41ft
Width: 10ft
Height: 11ft
Length: 41ft
Width: 10ft
Height: 11ft
Location: Western Canada
