USED 2010 ATLAS COPCO CS1000 P6L

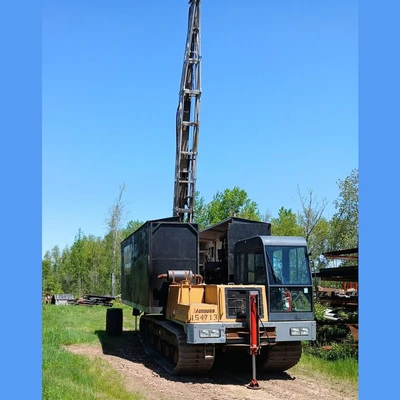

Atlas Copco CS1000 Track-Mounted Diamond Core Drill
Make: Atlas Copco
Model: CS1000 P6L
Type: Diamond Core Drill
Style: Track-Mounted on Morooka MST 1500
Year: 2010
Condition: Used Condition
Hours:
Drill: 4,000 Hours (Approx.)
Engine: 2,200 Hours (Approx.)

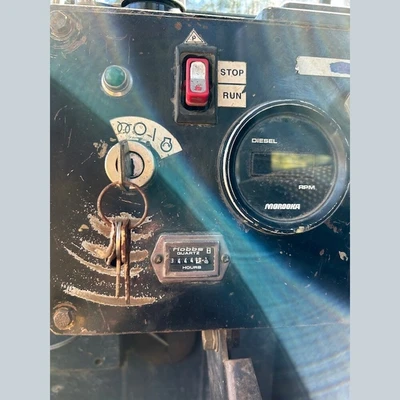

Morooka MST 1500: 2,700 Hours on Meter
Morooka MST 800 VD: 3,400 Hours on Meter
Drill: 4,000 Hours (Approx.)
Engine: 2,200 Hours (Approx.)
Morooka MST 1500: 2,700 Hours on Meter
Morooka MST 800 VD: 3,400 Hours on Meter
Footclamp: Oddessy Footclamp

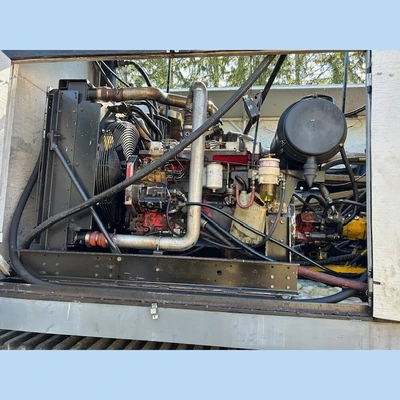

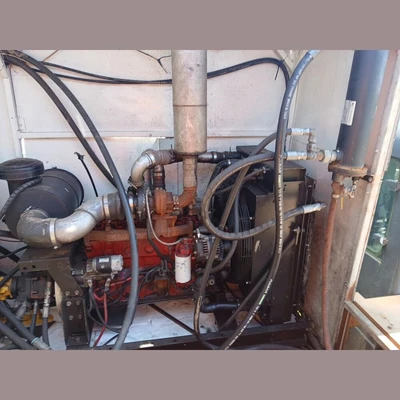

Drive: 176HP Cummins Diesel Engine (2024)
Cummins 5.9 Liter, 6-Cylinder, Turbo-Charged
Cummins 5.9 Liter, 6-Cylinder, Turbo-Charged
Water Pump: 435 Bean Water Pump
Pressure: 1200 PSI
Pressure: 1200 PSI
Oil-Water Cooler
Has Radiator in Front of Motor to Cool Hydraulics
Has Radiator in Front of Motor to Cool Hydraulics
Fuel Tanks on Board

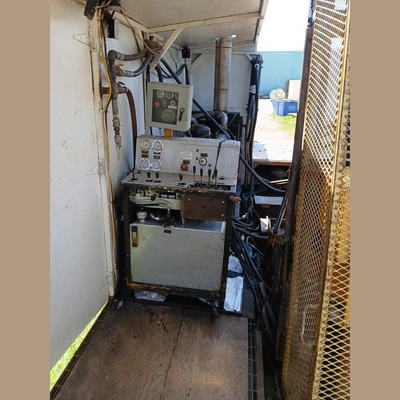

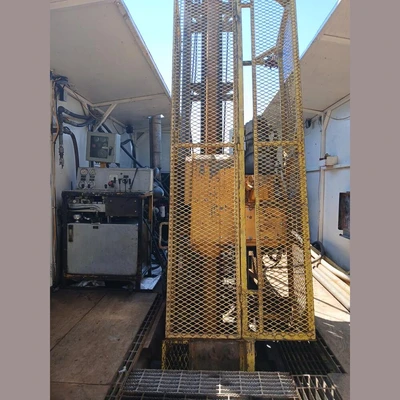

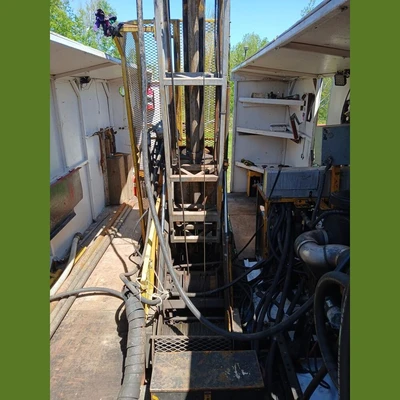

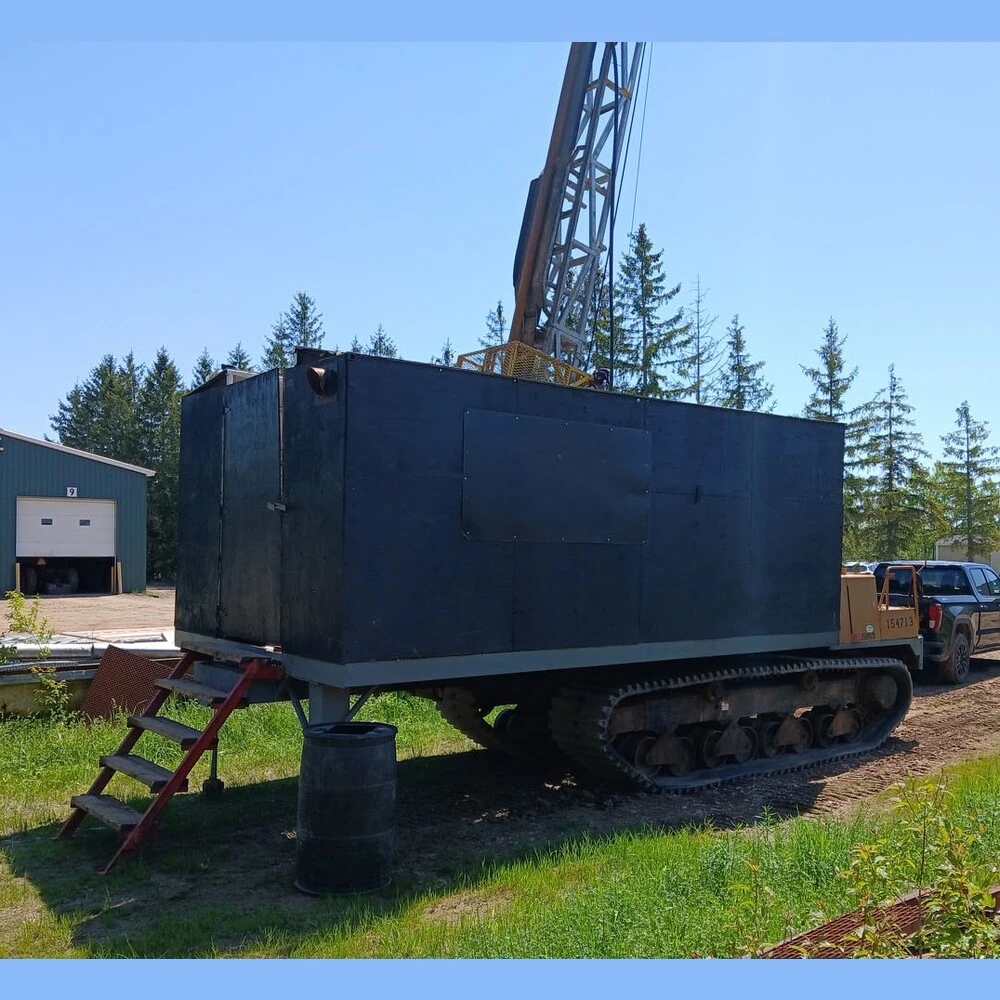

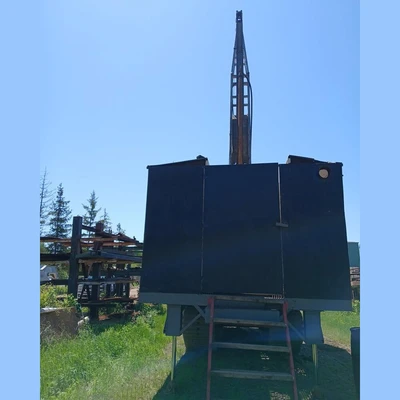

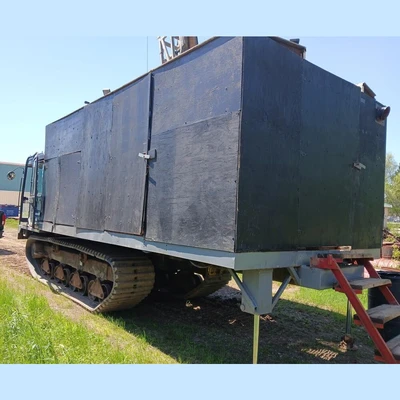

Drill Shack: Completely Shacked in for Winter Operations
with Steps
with Steps
Carrier(s):

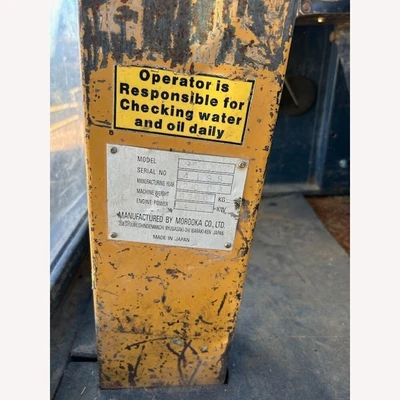

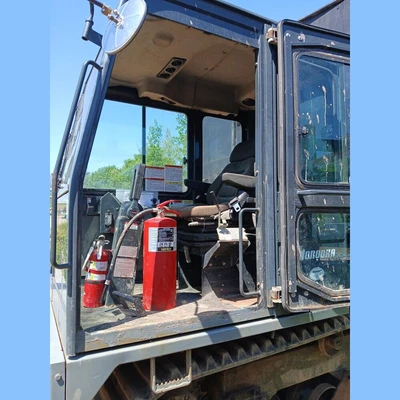

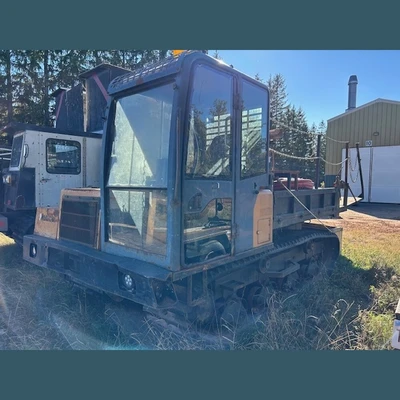

2013 Morooka MST 1500 - With High and Low Range
2008 Morooka MST 800 VD
2013 Morooka MST 1500 - With High and Low Range
2008 Morooka MST 800 VD
General Model Specifications:
Depth Capacity Coring: (Wireline or Conventional) - Depth Rating Based On Vertical & Dry Hole
B Wireline: 4,500 ft (1,370 m)
N Wireline: 3,500 ft (1,070 m)
H Wireline: 2,400 ft (730 m)
P Wireline:  1,300 ft (400 m)
Main Hoist:
Single Line Capacity - Bare Drum: 12,000 lbs. (5,443 kg)
Double Line Capacity - Bare Drum: 24,000 lbs. (10,886 kg)
Line Speed - Bare Drum: 132 ft/min (40 m/min)
Cable Size: 110 Feet x 9/16in (33.5m x 143mm)
Wireline:
Capacity:
6,000ft of 3/16in (1,830m of 4.76mm)
3,200ft of 1/4in (975m of 6.35mm)
Line Pull:
Bare Drum: 2,500 lbs. (1,134 kg)
Full Drum: 700 lbs. (318 kg)
Line Speed:
Bare Drum: 390 ft/min (119 m/min)
Full Drum: 1,500 ft/min (457 m/min)
Mast and Feed System:
Feed Travel: 11.5 ft (3.5 m)
Feed Speeds: Fast and Slow with Variable Control
Thrust: 12,250 lbs. (5,556 kg)
Pull: 20,000 lbs. (9,070 kg)
Drilling Angle: 45° to 90° Degrees
Rod Pull Length: 20ft (6.09m)
Power Unit:
MFG: Cummins
Model: 6BTA 5.9 Liter 6-Cylinder
Power: 175 HP (131kW)
RPM: 2,500
Engine Type: Diesel Turbocharged/After-Cooled
Cooling: Water
Hydraulic System:
Primary Pump: 3,500 PSI - 43 GPM (24.1 MPA - 162 LPM)
Secondary Pump: 3,000 PSI - 15 GPM (20.6 MPA - 56 LPM)
Auxiliary Pump: 2,500 PSI · 8 GPM (17.2 MPA - 30 LPM)
Hydraulic Oil Cooling: Air
Drill Head And Spindle Speeds:
Power: Hydraulic Motor - Variable Speed/Reversible
Final Drive: 4in HV Chain Drive in Oil Bath - 2.5:1 Ratio
Range Selection: Manual Control from Operator's Station
Hinged Head: Swing Away
Spindle: 4 5/8in (117mm)
Spindle Speeds:
Gear:
Ratio:
Speed:
Torque: ft-lbs (NM)
1st
6.63:1
130-196
3,232-2,218 (4,382-3,007
2nd
3.17:1
270-410
1,545-1,060 (2,095-1,437)
3rd
1.72:1
500-756
839-575 (1,138-780)
4th
1.00:1
857-1,300
488-335 (662-454)
Chuck Assembly:
Type: Hydraulic Open, Spring Closed
Maximum Inside Diameter: 4 5/8in (117mm)
Holding Capacity: 40,000 lbs. (18,143 kg)
Depth Capacity Coring: (Wireline or Conventional) - Depth Rating Based On Vertical & Dry Hole
B Wireline: 4,500 ft (1,370 m)
N Wireline: 3,500 ft (1,070 m)
H Wireline: 2,400 ft (730 m)
P Wireline:  1,300 ft (400 m)
B Wireline: 4,500 ft (1,370 m)
N Wireline: 3,500 ft (1,070 m)
H Wireline: 2,400 ft (730 m)
P Wireline:  1,300 ft (400 m)
Main Hoist:
Single Line Capacity - Bare Drum: 12,000 lbs. (5,443 kg)
Double Line Capacity - Bare Drum: 24,000 lbs. (10,886 kg)
Line Speed - Bare Drum: 132 ft/min (40 m/min)
Cable Size: 110 Feet x 9/16in (33.5m x 143mm)
Single Line Capacity - Bare Drum: 12,000 lbs. (5,443 kg)
Double Line Capacity - Bare Drum: 24,000 lbs. (10,886 kg)
Line Speed - Bare Drum: 132 ft/min (40 m/min)
Cable Size: 110 Feet x 9/16in (33.5m x 143mm)
Wireline:
Capacity:
6,000ft of 3/16in (1,830m of 4.76mm)
3,200ft of 1/4in (975m of 6.35mm)
Line Pull:
Bare Drum: 2,500 lbs. (1,134 kg)
Full Drum: 700 lbs. (318 kg)
Line Speed:
Bare Drum: 390 ft/min (119 m/min)
Full Drum: 1,500 ft/min (457 m/min)
Capacity:
6,000ft of 3/16in (1,830m of 4.76mm)
3,200ft of 1/4in (975m of 6.35mm)
6,000ft of 3/16in (1,830m of 4.76mm)
3,200ft of 1/4in (975m of 6.35mm)
Line Pull:
Bare Drum: 2,500 lbs. (1,134 kg)
Full Drum: 700 lbs. (318 kg)
Bare Drum: 2,500 lbs. (1,134 kg)
Full Drum: 700 lbs. (318 kg)
Line Speed:
Bare Drum: 390 ft/min (119 m/min)
Full Drum: 1,500 ft/min (457 m/min)
Bare Drum: 390 ft/min (119 m/min)
Full Drum: 1,500 ft/min (457 m/min)
Mast and Feed System:
Feed Travel: 11.5 ft (3.5 m)
Feed Speeds: Fast and Slow with Variable Control
Thrust: 12,250 lbs. (5,556 kg)
Pull: 20,000 lbs. (9,070 kg)
Drilling Angle: 45° to 90° Degrees
Rod Pull Length: 20ft (6.09m)
Power Unit:
MFG: Cummins
Model: 6BTA 5.9 Liter 6-Cylinder
Power: 175 HP (131kW)
RPM: 2,500
Engine Type: Diesel Turbocharged/After-Cooled
Cooling: Water
MFG: Cummins
Model: 6BTA 5.9 Liter 6-Cylinder
Power: 175 HP (131kW)
RPM: 2,500
Engine Type: Diesel Turbocharged/After-Cooled
Cooling: Water
Hydraulic System:
Primary Pump: 3,500 PSI - 43 GPM (24.1 MPA - 162 LPM)
Secondary Pump: 3,000 PSI - 15 GPM (20.6 MPA - 56 LPM)
Auxiliary Pump: 2,500 PSI · 8 GPM (17.2 MPA - 30 LPM)
Hydraulic Oil Cooling: Air
Primary Pump: 3,500 PSI - 43 GPM (24.1 MPA - 162 LPM)
Secondary Pump: 3,000 PSI - 15 GPM (20.6 MPA - 56 LPM)
Auxiliary Pump: 2,500 PSI · 8 GPM (17.2 MPA - 30 LPM)
Hydraulic Oil Cooling: Air
Drill Head And Spindle Speeds:
Power: Hydraulic Motor - Variable Speed/Reversible
Final Drive: 4in HV Chain Drive in Oil Bath - 2.5:1 Ratio
Range Selection: Manual Control from Operator's Station
Hinged Head: Swing Away
Spindle: 4 5/8in (117mm)
Spindle Speeds:
Gear:
Ratio:
Speed:
Torque: ft-lbs (NM)
1st
6.63:1
130-196
3,232-2,218 (4,382-3,007
2nd
3.17:1
270-410
1,545-1,060 (2,095-1,437)
3rd
1.72:1
500-756
839-575 (1,138-780)
4th
1.00:1
857-1,300
488-335 (662-454)
Power: Hydraulic Motor - Variable Speed/Reversible
Final Drive: 4in HV Chain Drive in Oil Bath - 2.5:1 Ratio
Range Selection: Manual Control from Operator's Station
Hinged Head: Swing Away
Spindle: 4 5/8in (117mm)
Spindle Speeds:
Gear:
Ratio:
Speed:
Torque: ft-lbs (NM)
1st
6.63:1
130-196
3,232-2,218 (4,382-3,007
2nd
3.17:1
270-410
1,545-1,060 (2,095-1,437)
3rd
1.72:1
500-756
839-575 (1,138-780)
4th
1.00:1
857-1,300
488-335 (662-454)
Gear:
Ratio:
Speed:
Torque: ft-lbs (NM)
1st
6.63:1
130-196
3,232-2,218 (4,382-3,007
2nd
3.17:1
270-410
1,545-1,060 (2,095-1,437)
3rd
1.72:1
500-756
839-575 (1,138-780)
4th
1.00:1
857-1,300
488-335 (662-454)
Chuck Assembly:
Type: Hydraulic Open, Spring Closed
Maximum Inside Diameter: 4 5/8in (117mm)
Holding Capacity: 40,000 lbs. (18,143 kg)
Type: Hydraulic Open, Spring Closed
Maximum Inside Diameter: 4 5/8in (117mm)
Holding Capacity: 40,000 lbs. (18,143 kg)
Location: Atlantic Canada
