USED ATLAS COPCO 1838ME
Overview
Specs

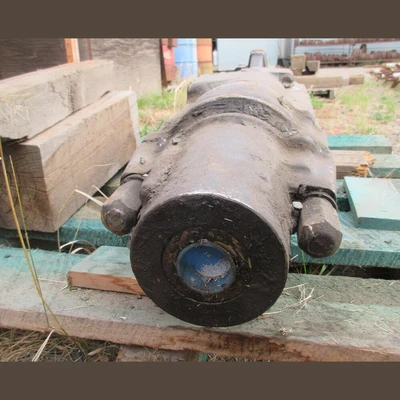

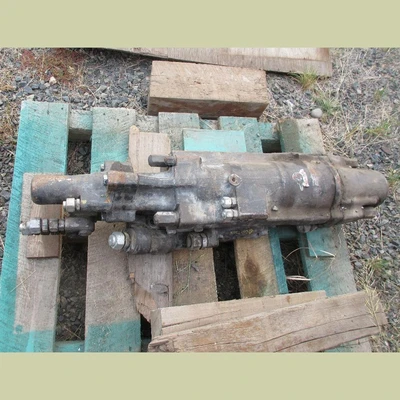

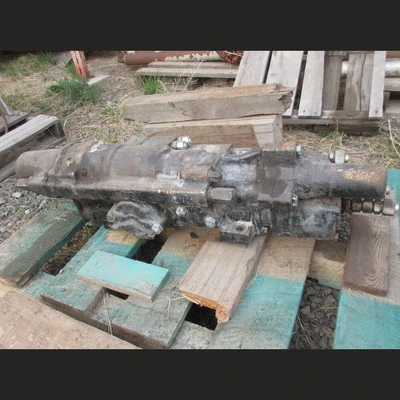

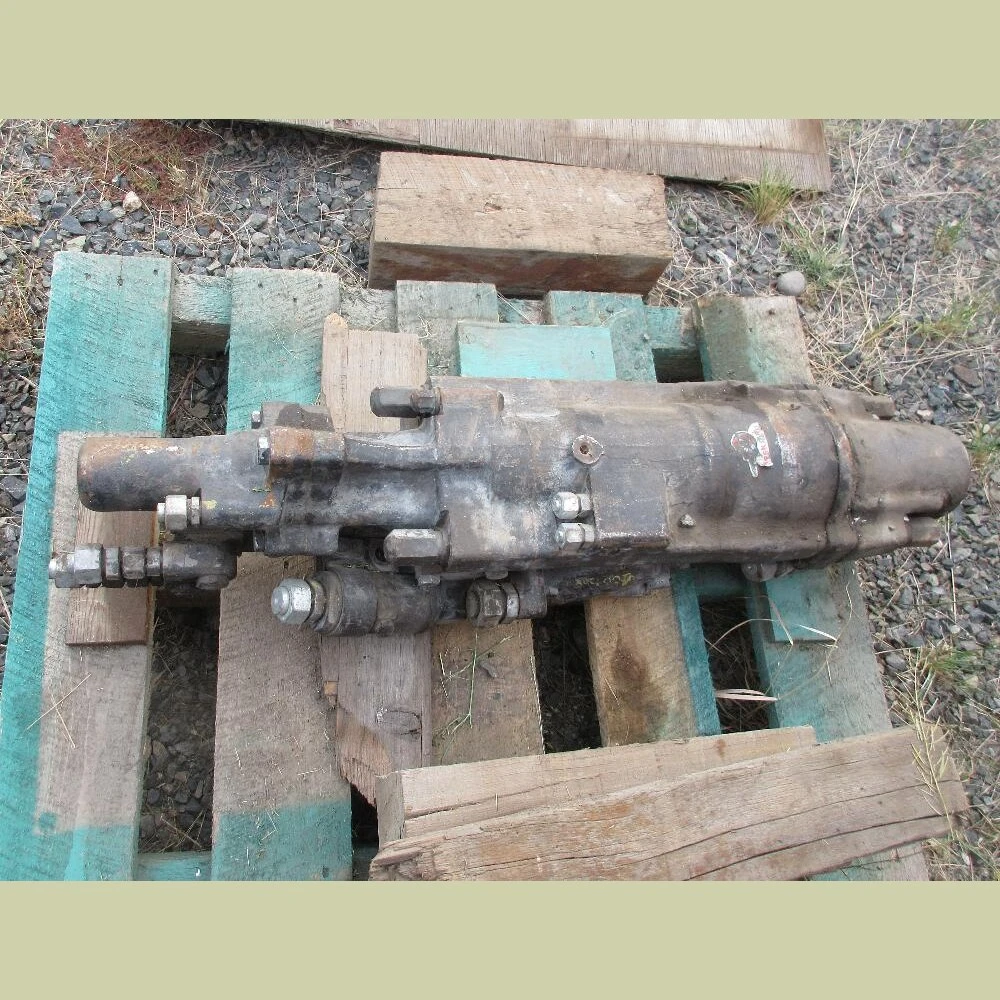

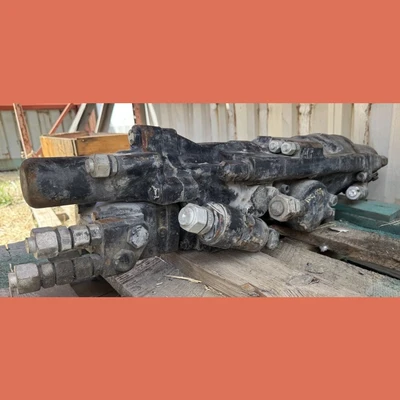

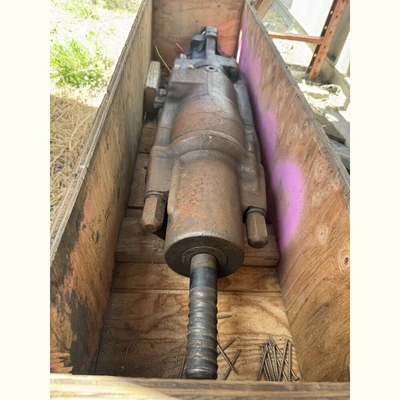

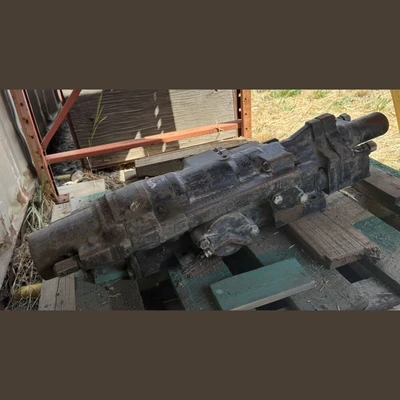

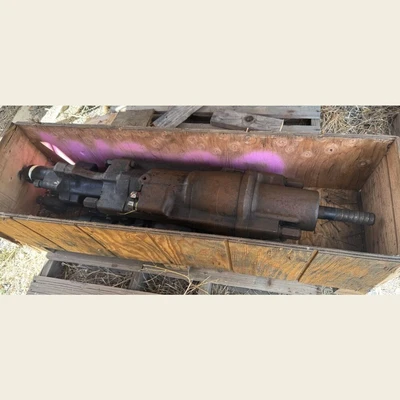

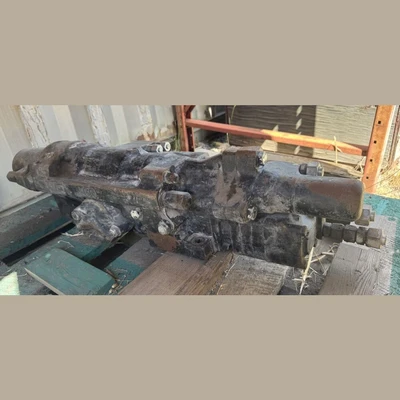

Atlas Copco 1838ME Hydraulic Rock Drill
Quantity: 2 Units Available
Make: Atlas Copco

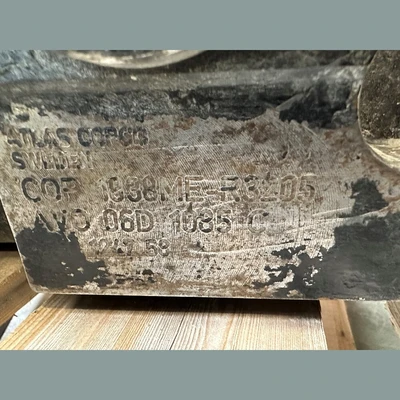

Model: 1838ME
Type: Drifter Drill - Hydraulic Rock Drill
Condition: used
View Spec Sheet Below
General Model Specifications:
Hole Range: 38mm–76mm
Impact Ratings:
Impact Power: 18kW
Input Power to Rock Drill: 31kW
Hydraulic Pressure: 230 bar Max.
Flow Rate: 75–92 l/min
Impact Frequency: 60Hz
Impact Energy: 330 Nm
Flushing Flow and Pressure:
Flushing Water Pressure: 25 bar
Lubricating Air Consumption: 5 l/sec @ 2 bar
Flushing Water Consumption: 40–120 l/min
Rotation Motors:
Type: 05 OMS100/07 OMS160
Rotation Range: 0–340/215 RPM
Torque: 640/1000 Nm Max
Working Pressure: 210 bar
Oil Consumption: 75 l/min
Hole Range: 38mm–76mm
Impact Ratings:
Impact Power: 18kW
Input Power to Rock Drill: 31kW
Hydraulic Pressure: 230 bar Max.
Flow Rate: 75–92 l/min
Impact Frequency: 60Hz
Impact Energy: 330 Nm
Impact Power: 18kW
Input Power to Rock Drill: 31kW
Hydraulic Pressure: 230 bar Max.
Flow Rate: 75–92 l/min
Impact Frequency: 60Hz
Impact Energy: 330 Nm
Flushing Flow and Pressure:
Flushing Water Pressure: 25 bar
Lubricating Air Consumption: 5 l/sec @ 2 bar
Flushing Water Consumption: 40–120 l/min
Flushing Water Pressure: 25 bar
Lubricating Air Consumption: 5 l/sec @ 2 bar
Flushing Water Consumption: 40–120 l/min
Rotation Motors:
Type: 05 OMS100/07 OMS160
Rotation Range: 0–340/215 RPM
Torque: 640/1000 Nm Max
Working Pressure: 210 bar
Oil Consumption: 75 l/min
Type: 05 OMS100/07 OMS160
Rotation Range: 0–340/215 RPM
Torque: 640/1000 Nm Max
Working Pressure: 210 bar
Oil Consumption: 75 l/min
Overall Dimensions:
Length Without Shank Adapter: 1,008mm
Width including Connectors: 251mm
Height: 223mm
Height Over Drill Center: 88mm
Weight: 170 kg
Length Without Shank Adapter: 1,008mm
Width including Connectors: 251mm
Height: 223mm
Height Over Drill Center: 88mm
Weight: 170 kg
Location: Savona, British Columbia, Canada
