USED ATLAS COPCO 1132

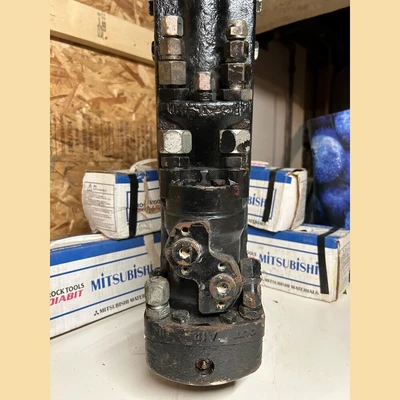

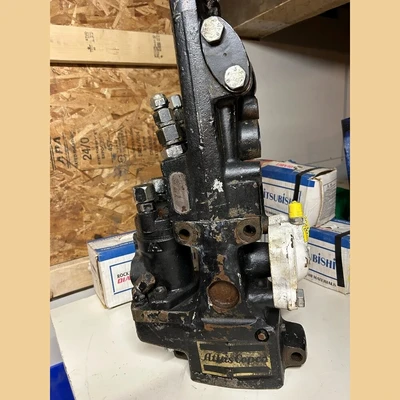

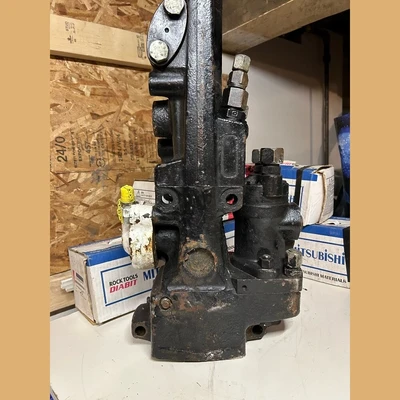

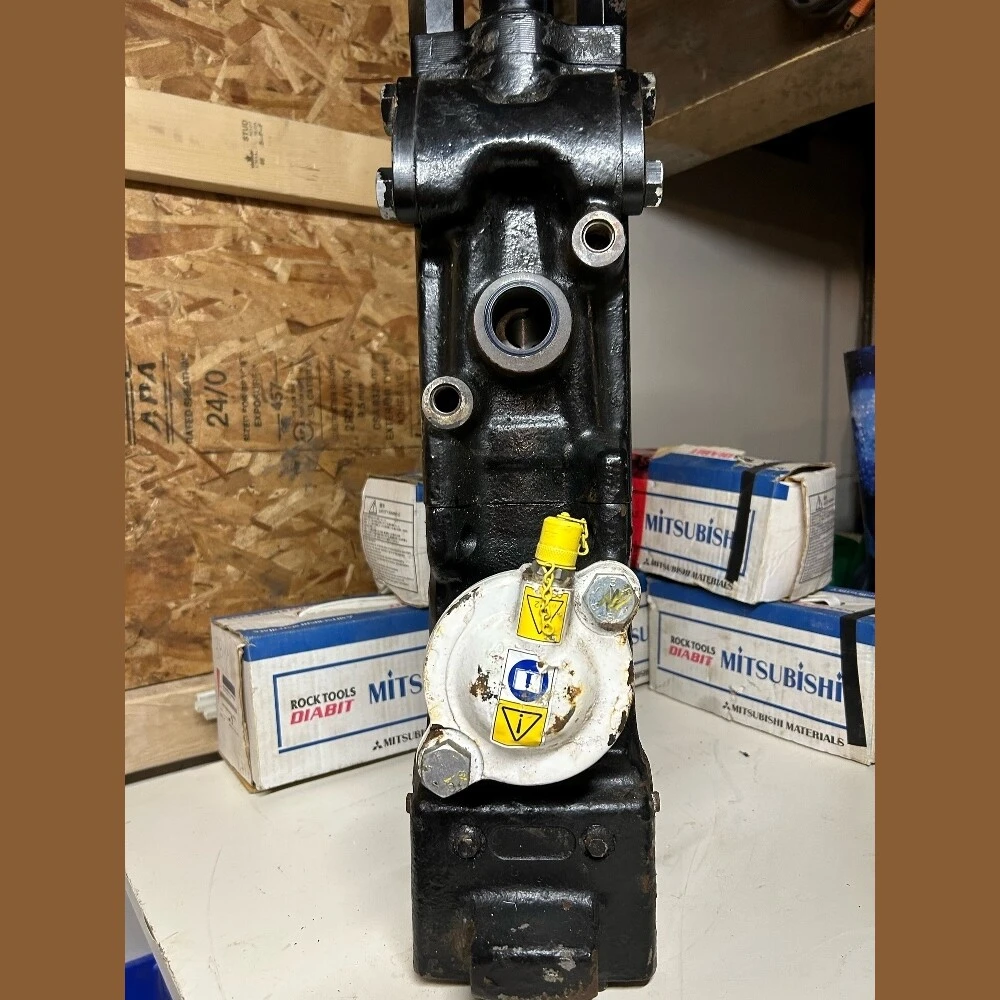

Atlas Copco 1132 Drifter Drill

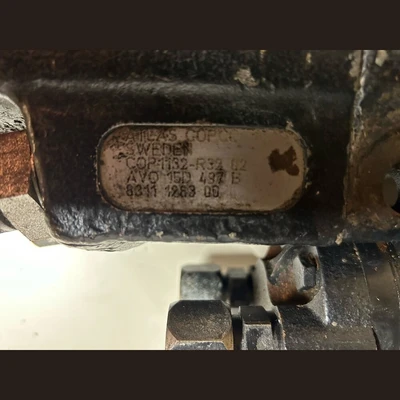

Make: Atlas Copco
Model: 1132
Type: Drifter Drill

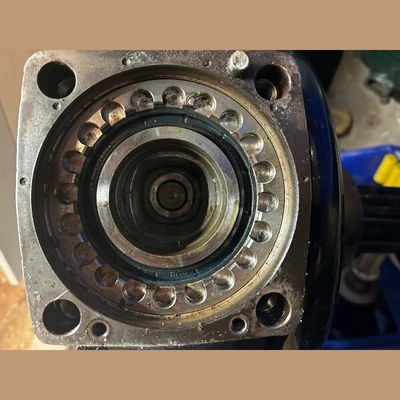

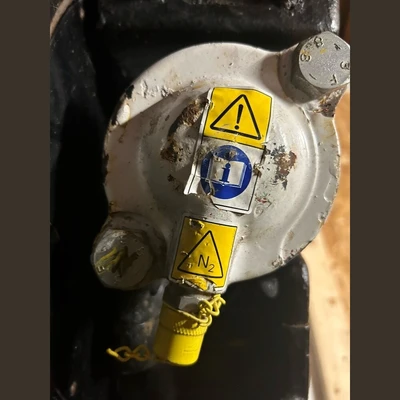

Condition: Unused, Needs Accumulator and Bottom Bearing Taper

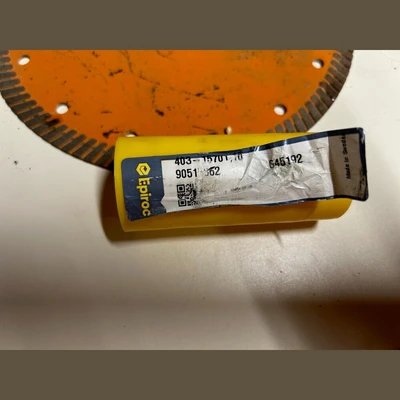

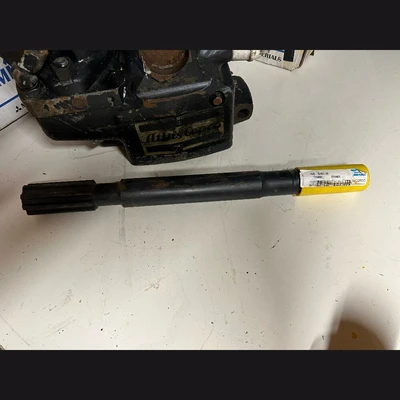

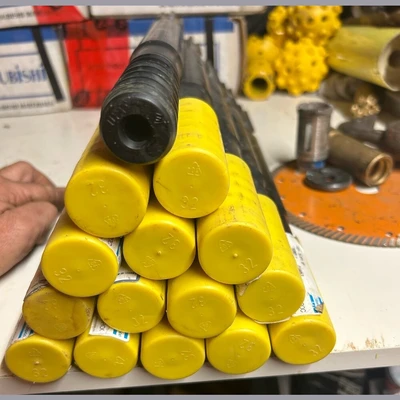

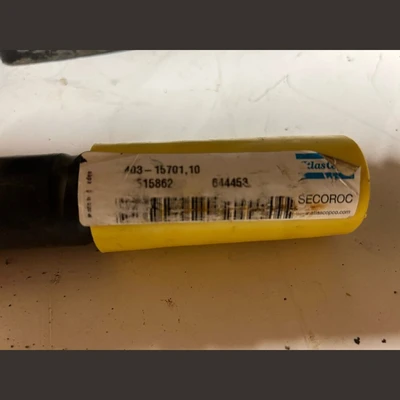

15 - R32 Shank Adapter/Striking Bars (403-15701,10)
Hole Range: 33mm-51mm (1.3in-2in)
Impact Ratings:
Impact Power (Max): 11kW (14.75HP)
Input Power to Rock Drill (Max): 20kW (26.8HP)
Hydraulic Pressure (Max): 210 bar (3,045 PSI)
Flow Rate: 65 L/min (2.3 CFM)
Impact Frequency: 100Hz
Impact Power (Max): 11kW (14.75HP)
Input Power to Rock Drill (Max): 20kW (26.8HP)
Hydraulic Pressure (Max): 210 bar (3,045 PSI)
Flow Rate: 65 L/min (2.3 CFM)
Impact Frequency: 100Hz
Flushing Flow and Pressure:
Flushing Water Pressure (Max): 25 bar (362.6 PSI)
Lubricating Air Consumption at 2 bar (29 PSI): 3-4 L/s (6.3-8.5 CFM)
Flushing Water Consumption: 25-100 L/min (0.9-3.5 CFM)
Flushing Water Pressure (Max): 25 bar (362.6 PSI)
Lubricating Air Consumption at 2 bar (29 PSI): 3-4 L/s (6.3-8.5 CFM)
Flushing Water Consumption: 25-100 L/min (0.9-3.5 CFM)
Overall Dimensions:
Length Without Shank Adapter: 735mm (2ft 4.9in)
Width Including Connectors: 291mm (11.5in)
Height: 154mm (6in)
Height Over Drill Center: 77mm (3in)
Weight: 75kg (165 Lbs.)
Length Without Shank Adapter: 735mm (2ft 4.9in)
Width Including Connectors: 291mm (11.5in)
Height: 154mm (6in)
Height Over Drill Center: 77mm (3in)
Weight: 75kg (165 Lbs.)
Location: Central Canada
