USED 2006 POLYSIUS PM5 20/10M

POLYSIUS HPGR Polycom High-Pressure Grinding Roll

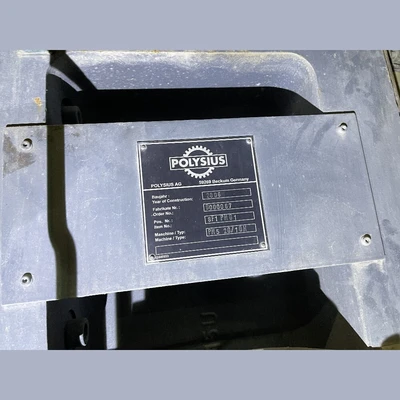

Make: Polysius
Model: PM5 20/10M
Type: High Pressure Grinding Roll
Year: 2006
Capacity: 450 MTPH
Condition: Used, Reported in Good Condition
Complete With:

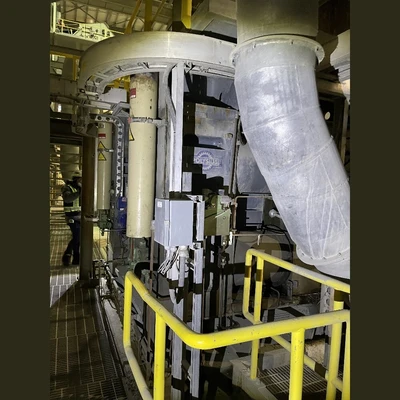

Machine Frame with Feed System

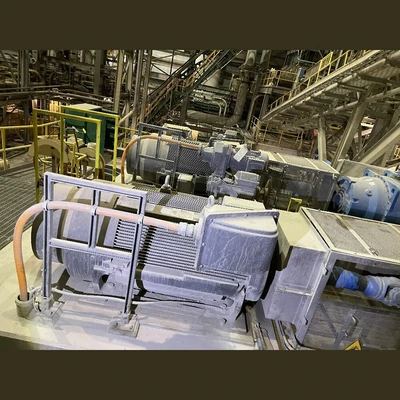

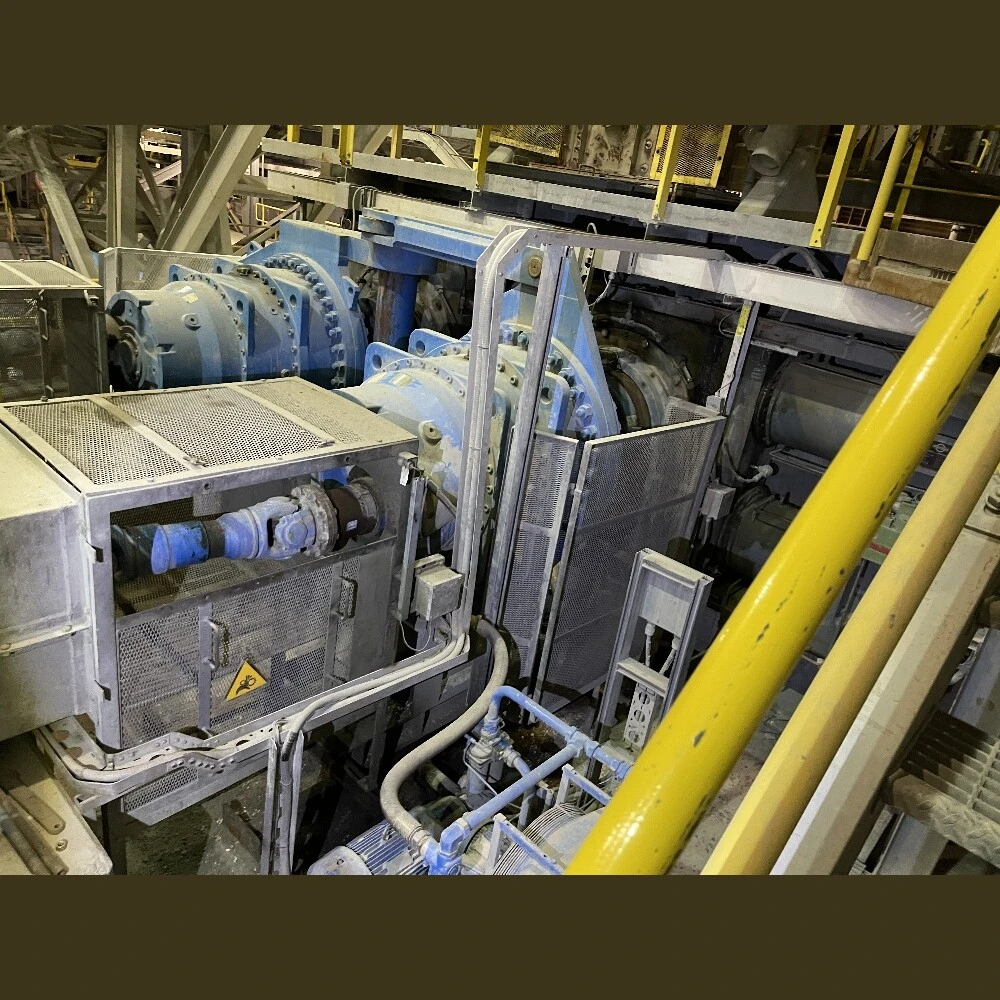

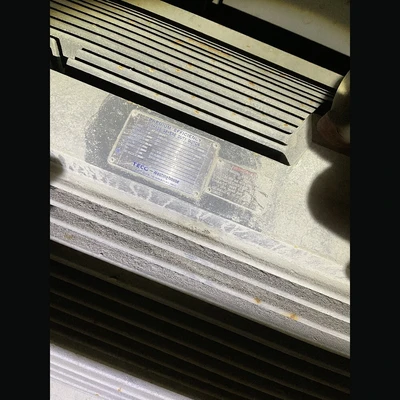

Drive Unit Powered by 2x Teco-Westinghouse Variable Speed Motors
Type: AEJH-SA001
Power Output: 2x 900HP
Voltage: 4000 Volts
RPM: 1188
Spare Parts
Special Tooling
Machine Frame with Feed System
Drive Unit Powered by 2x Teco-Westinghouse Variable Speed Motors
Type: AEJH-SA001
Power Output: 2x 900HP
Voltage: 4000 Volts
RPM: 1188
Type: AEJH-SA001
Power Output: 2x 900HP
Voltage: 4000 Volts
RPM: 1188
Spare Parts
Special Tooling
General Specifications For Polysius Polycom PM5 20/10M Grinding Roll
Type: PM5 20/10M
Roll Diameter: 2,000mm (78.7in)
Roll Width: 1,000mm (39.4in)
Grinding Force: 8,600kN
Motor Power:
2x 1,600HP - Hard Rock Application
2x 900 - Kimberlite Application

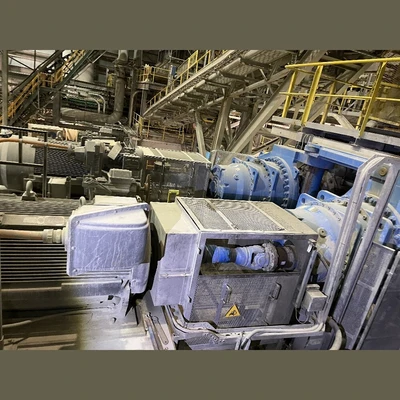

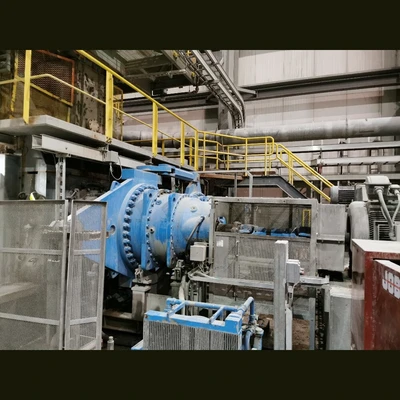

Motor Connection: Cardan Shaft Connection to the Gear Units
Roll Surface Lifetime: 60,000 Hours Iron Ore Pellet Feed, 20,000 Hours Hard Rock Application
Approx. Dimensions:
Length: 9,270mm (365in)
Width: 5,160mm (203in)
Height: 7,500mm (295in)
Type: PM5 20/10M
Roll Diameter: 2,000mm (78.7in)
Roll Width: 1,000mm (39.4in)
Grinding Force: 8,600kN
Motor Power:
2x 1,600HP - Hard Rock Application
2x 900 - Kimberlite Application
2x 1,600HP - Hard Rock Application
2x 900 - Kimberlite Application
Motor Connection: Cardan Shaft Connection to the Gear Units
Roll Surface Lifetime: 60,000 Hours Iron Ore Pellet Feed, 20,000 Hours Hard Rock Application
Approx. Dimensions:
Length: 9,270mm (365in)
Width: 5,160mm (203in)
Height: 7,500mm (295in)
Length: 9,270mm (365in)
Width: 5,160mm (203in)
Height: 7,500mm (295in)
Location: Canada
