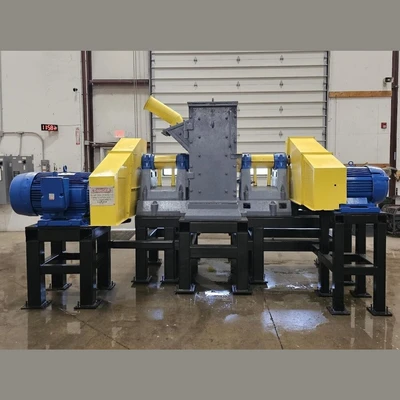

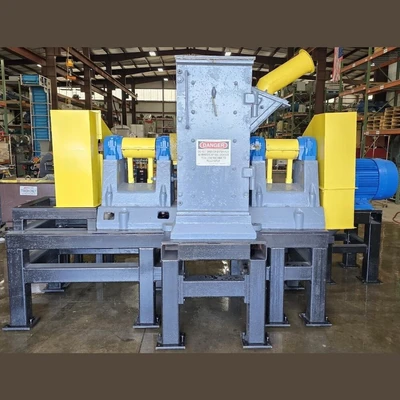

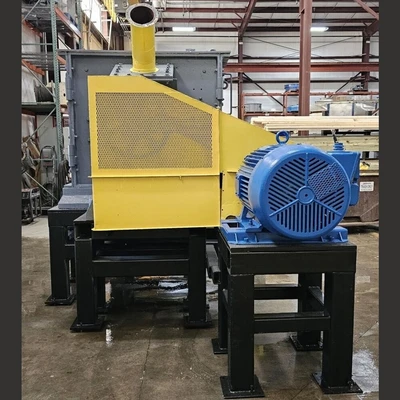

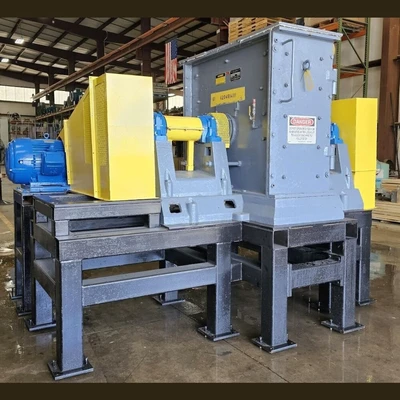

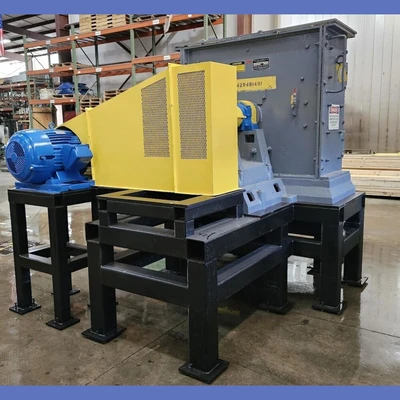

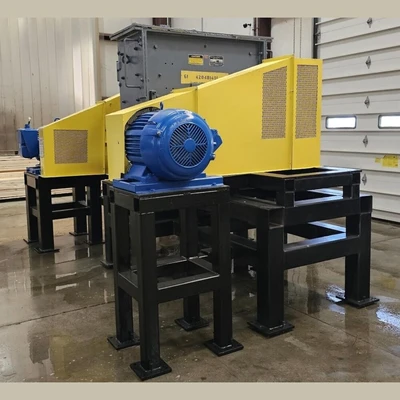

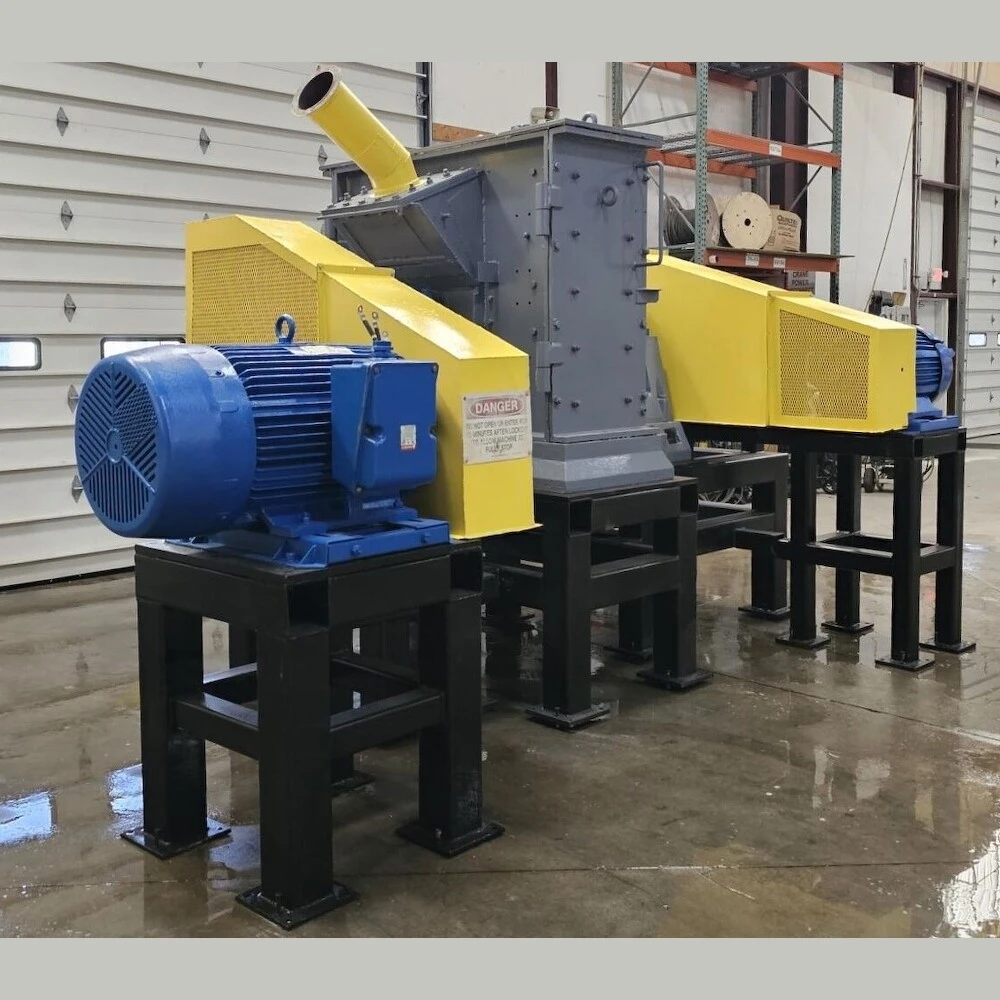

Stedman 44in HD 2-Row Cage Mill

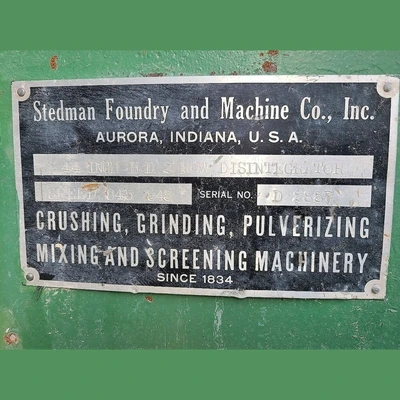

Make: Stedman
Model: HD Disintegrator
Condition: Used
Inlet Chute: 8in Diameter
Milling Chamber: Plate Steel
Area: 17in x 55in
Hinged Side Doors
Internal Wear Plating
Area: 17in x 55in
Hinged Side Doors
Internal Wear Plating

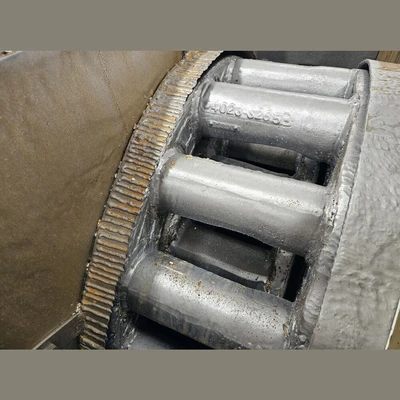

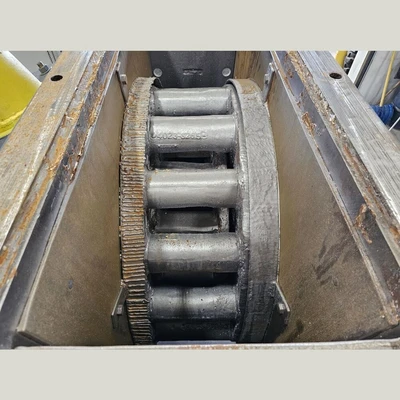

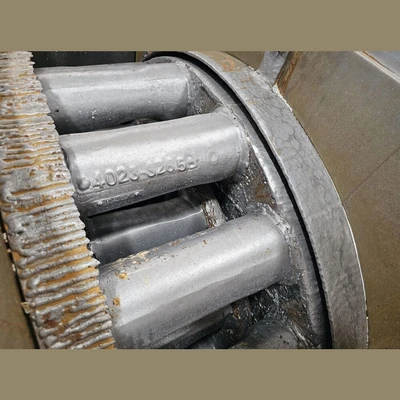

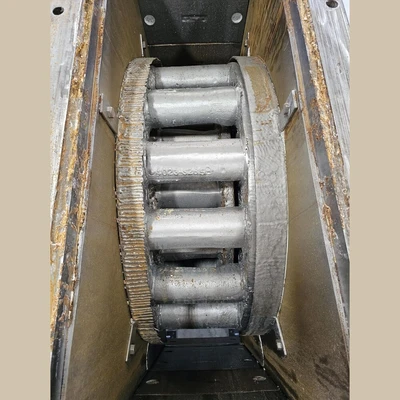

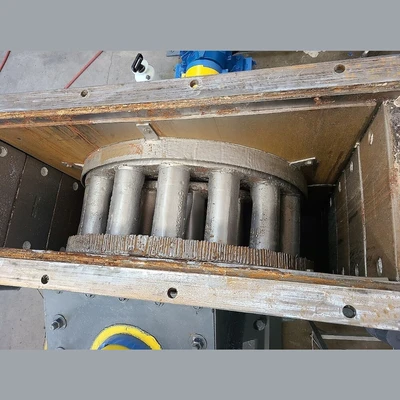

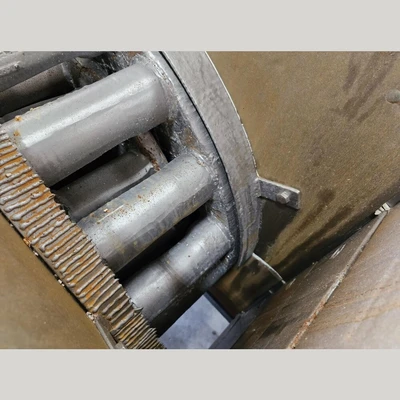

2 Rotating Cages (one inside the other)
Working Speed: 845RPM (machine is reversible)
Drive:
Drive Shafts: cantilevered shafts are twin pillow block supported with packing gland seals on housing

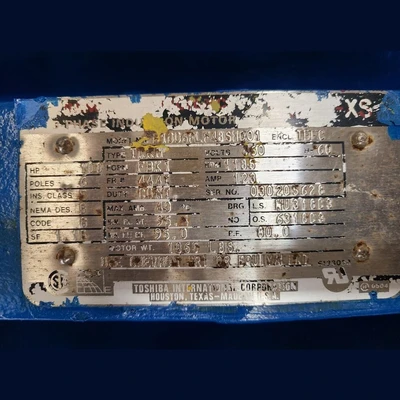

Outside Cage Drive:
Power Output: 100HP
Voltage: 460 Volt
Current: 123 Amp
Rotation Speed: 1,185RPM
Phase: 3-Phase
Attached to V-Belt Reduction Drive

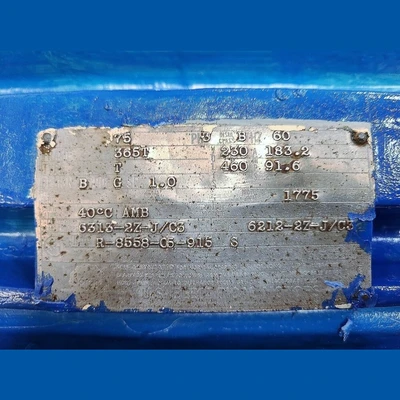

Inside Cage Drive:
Power Output: 75HP
Voltage: 230/460 Volt
Current: 183.2/91.6 Amp
Rotation Speed: 1,775RPM
Attached to V-Belt Reduction Drive
Drive Shafts: cantilevered shafts are twin pillow block supported with packing gland seals on housing
Outside Cage Drive:
Power Output: 100HP
Voltage: 460 Volt
Current: 123 Amp
Rotation Speed: 1,185RPM
Phase: 3-Phase
Attached to V-Belt Reduction Drive
Power Output: 100HP
Voltage: 460 Volt
Current: 123 Amp
Rotation Speed: 1,185RPM
Phase: 3-Phase
Attached to V-Belt Reduction Drive
Inside Cage Drive:
Power Output: 75HP
Voltage: 230/460 Volt
Current: 183.2/91.6 Amp
Rotation Speed: 1,775RPM
Attached to V-Belt Reduction Drive
Power Output: 75HP
Voltage: 230/460 Volt
Current: 183.2/91.6 Amp
Rotation Speed: 1,775RPM
Attached to V-Belt Reduction Drive
Mounted on Base Assembly:
Construction: Welded 6in Square Tubes
Height: 36.75in
Construction: Welded 6in Square Tubes
Height: 36.75in
Total Weight: 21,506lbs
Location: Eastern USA
