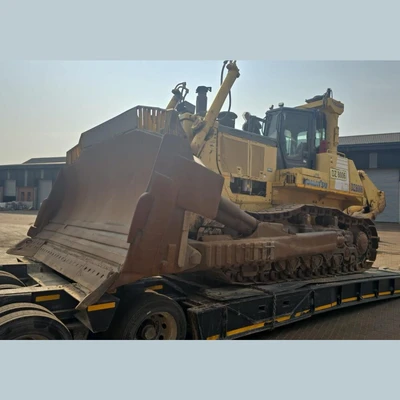

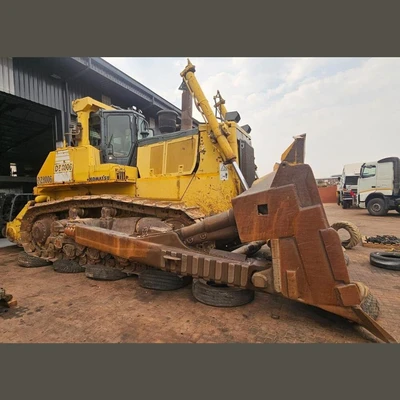

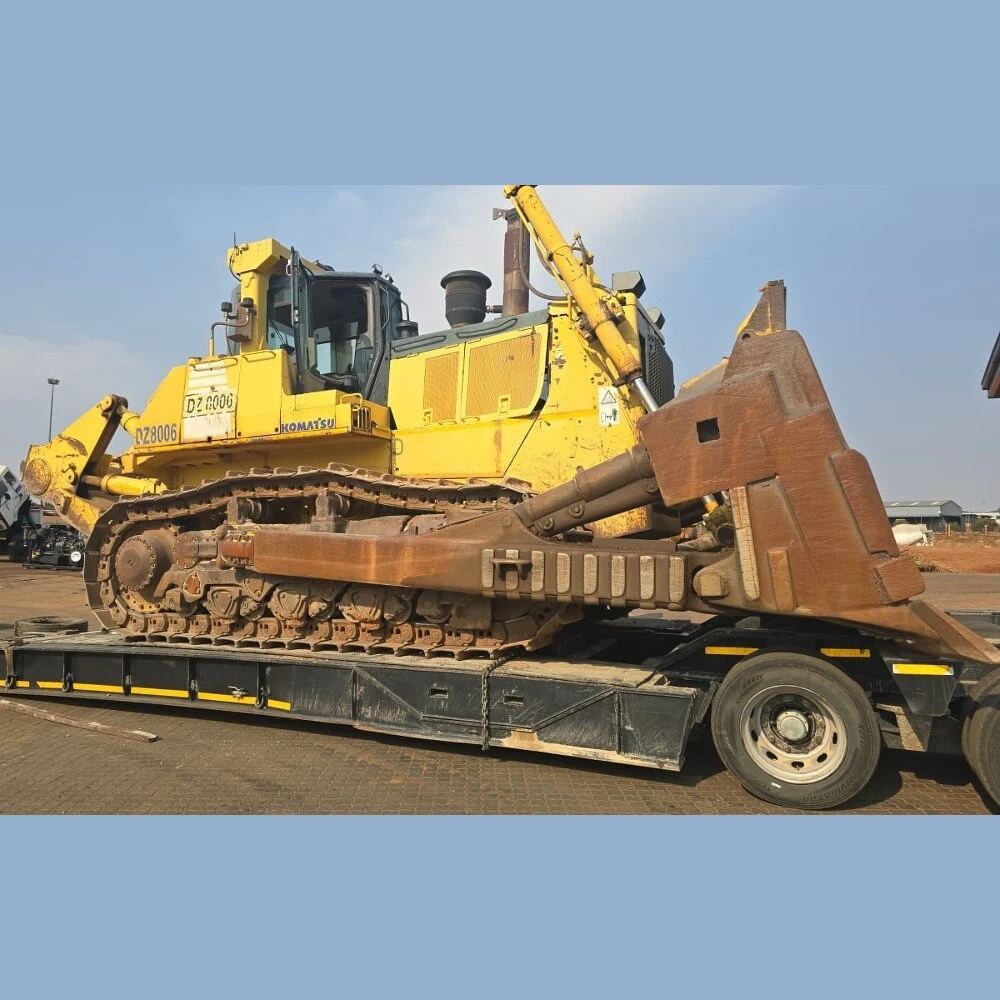

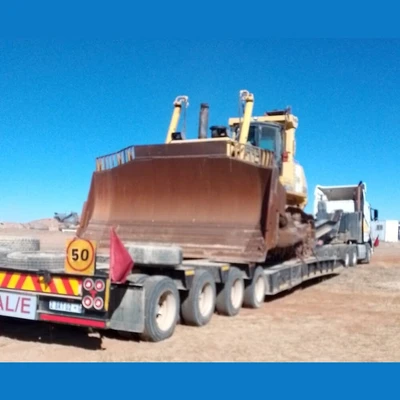

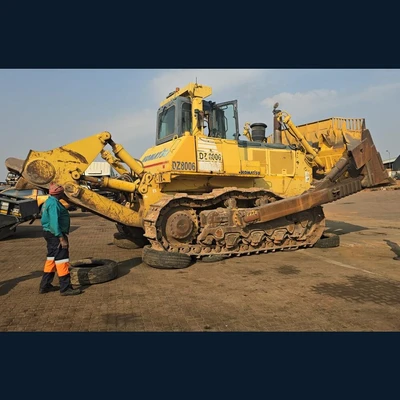

USED 2011 KOMATSU D375-6

2011 Komatsu D375-6 Dozer
Make: Komatsu
Model: D375-6
Type: Dozer
Year: 2011
Hours: 26,000 Hours
Condition: Used Condition - "Needs Work or a Refurbishment"
Movement: Crawler Track
General Model Specifications:
Engine:
Model: Komatsu SAA60170E-5*
Type: 4-Cycle, Water-Cooled, Direct Injection
Aspiration: Turbocharged, Air- to-Air Aftercooled, Cooled EGR
Number of Cylinders: 6-Cylinder
Bore x Stroke: 170mm x 170mm (6.69" x 6.69")
Piston Displacement: 23.15 liter (1,413 in³)
Governor: All-Speed and Mid-Range, Electronic
Horsepower:
SAE J1995 Gross: 636 HP (474 kW)
ISO 9249 / SAE J1349 Net: 610 HP (455 kW)
Transmission: TORQFLOW Transmission
Consists of a Water-Cooled, 3-Element, 1-Stage, 1-Phase Torque Converter with Lockup Clutch and a Planetary Gear, Multiple-Disc Clutch Transmission
Hydraulically Actuated and Force-Lubricated for Optimum Heat Dissipation
Gearshift Lock Lever and Neutral Safety Switch Help Prevent Accidental Starts
Final Drives:
Double Reduction Final Drive of Spur and Planetary Gear Sets to Increase Tractive Effort and Reduce Gear Tooth Stresses
Segmented Sprocket Teeth are Bolt-On for Easy Replacement
Steering System:
PCCS, Joystick Controlled, Wet Multiple-Disc Steering Clutches are Spring Loaded and Hydraulically Released
Wet Multiple-Disc, Pedal/Lever Controlled Steering Brakes are Spring-Actuated, Hydraulically Released
Steering Clutches and Brakes are Interconnected for Easy Responsive Steering
Minimum Turning Radius: 13ft 9in (4.2m)

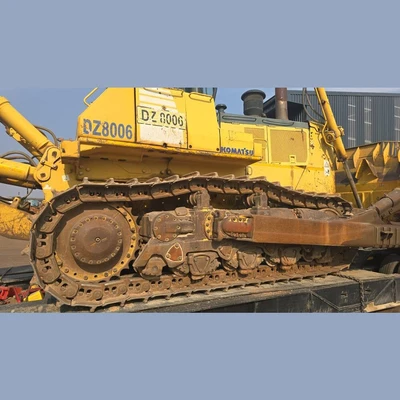

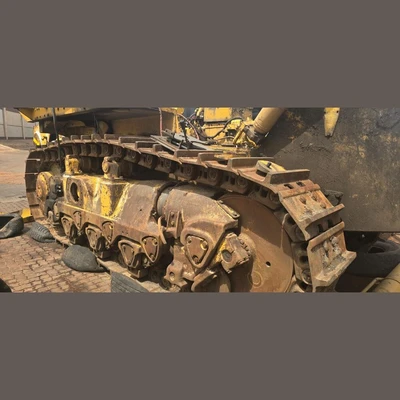

Undercarriage:
Suspension: Oscillating Equalizer Bar and Pivot Shaft
Track Roller Frame: Cylindrical, High-Tensile-Strength Steel Construction
Roller and Idlers: Lubricated Track Rollers
K-Bogie Undercarriage
Extreme Service Track Shoes
Number of Shoes (Each Side): 41
Grouser Height - Single Grouser: 3.7in (93mm)
Shoe Width - Standard: 24in (610mm)
Ground Contact Area: 7,527in² (48,560cm²)
Ground Pressure - Tractor: 15.6 PSI (108 kPa, 1.10kg/cm²)
Number of Track Rollers: 8
Number of Carrier Rollers: 2
Operating Weight:
Tractor Weight: 117,290 Lbs. (53,200 kg)
Operating Weight: 157,940 Lbs. (71,640 kg)
Ground Pressure: 21.0 PSI (145 kPa, 1.48kg/cm²)
Engine:
Model: Komatsu SAA60170E-5*
Type: 4-Cycle, Water-Cooled, Direct Injection
Aspiration: Turbocharged, Air- to-Air Aftercooled, Cooled EGR
Number of Cylinders: 6-Cylinder
Bore x Stroke: 170mm x 170mm (6.69" x 6.69")
Piston Displacement: 23.15 liter (1,413 in³)
Governor: All-Speed and Mid-Range, Electronic
Horsepower:
SAE J1995 Gross: 636 HP (474 kW)
ISO 9249 / SAE J1349 Net: 610 HP (455 kW)
Model: Komatsu SAA60170E-5*
Type: 4-Cycle, Water-Cooled, Direct Injection
Aspiration: Turbocharged, Air- to-Air Aftercooled, Cooled EGR
Number of Cylinders: 6-Cylinder
Bore x Stroke: 170mm x 170mm (6.69" x 6.69")
Piston Displacement: 23.15 liter (1,413 in³)
Governor: All-Speed and Mid-Range, Electronic
Horsepower:
SAE J1995 Gross: 636 HP (474 kW)
ISO 9249 / SAE J1349 Net: 610 HP (455 kW)
SAE J1995 Gross: 636 HP (474 kW)
ISO 9249 / SAE J1349 Net: 610 HP (455 kW)
Transmission: TORQFLOW Transmission
Consists of a Water-Cooled, 3-Element, 1-Stage, 1-Phase Torque Converter with Lockup Clutch and a Planetary Gear, Multiple-Disc Clutch Transmission
Hydraulically Actuated and Force-Lubricated for Optimum Heat Dissipation
Gearshift Lock Lever and Neutral Safety Switch Help Prevent Accidental Starts
Consists of a Water-Cooled, 3-Element, 1-Stage, 1-Phase Torque Converter with Lockup Clutch and a Planetary Gear, Multiple-Disc Clutch Transmission
Hydraulically Actuated and Force-Lubricated for Optimum Heat Dissipation
Gearshift Lock Lever and Neutral Safety Switch Help Prevent Accidental Starts
Final Drives:
Double Reduction Final Drive of Spur and Planetary Gear Sets to Increase Tractive Effort and Reduce Gear Tooth Stresses
Segmented Sprocket Teeth are Bolt-On for Easy Replacement
Double Reduction Final Drive of Spur and Planetary Gear Sets to Increase Tractive Effort and Reduce Gear Tooth Stresses
Segmented Sprocket Teeth are Bolt-On for Easy Replacement
Steering System:
PCCS, Joystick Controlled, Wet Multiple-Disc Steering Clutches are Spring Loaded and Hydraulically Released
Wet Multiple-Disc, Pedal/Lever Controlled Steering Brakes are Spring-Actuated, Hydraulically Released
Steering Clutches and Brakes are Interconnected for Easy Responsive Steering
Minimum Turning Radius: 13ft 9in (4.2m)
PCCS, Joystick Controlled, Wet Multiple-Disc Steering Clutches are Spring Loaded and Hydraulically Released
Wet Multiple-Disc, Pedal/Lever Controlled Steering Brakes are Spring-Actuated, Hydraulically Released
Steering Clutches and Brakes are Interconnected for Easy Responsive Steering
Minimum Turning Radius: 13ft 9in (4.2m)
Undercarriage:
Suspension: Oscillating Equalizer Bar and Pivot Shaft
Track Roller Frame: Cylindrical, High-Tensile-Strength Steel Construction
Roller and Idlers: Lubricated Track Rollers
K-Bogie Undercarriage
Extreme Service Track Shoes
Number of Shoes (Each Side): 41
Grouser Height - Single Grouser: 3.7in (93mm)
Shoe Width - Standard: 24in (610mm)
Ground Contact Area: 7,527in² (48,560cm²)
Ground Pressure - Tractor: 15.6 PSI (108 kPa, 1.10kg/cm²)
Number of Track Rollers: 8
Number of Carrier Rollers: 2
Suspension: Oscillating Equalizer Bar and Pivot Shaft
Track Roller Frame: Cylindrical, High-Tensile-Strength Steel Construction
Roller and Idlers: Lubricated Track Rollers
K-Bogie Undercarriage
Extreme Service Track Shoes
Number of Shoes (Each Side): 41
Grouser Height - Single Grouser: 3.7in (93mm)
Shoe Width - Standard: 24in (610mm)
Ground Contact Area: 7,527in² (48,560cm²)
Ground Pressure - Tractor: 15.6 PSI (108 kPa, 1.10kg/cm²)
Number of Track Rollers: 8
Number of Carrier Rollers: 2
Operating Weight:
Tractor Weight: 117,290 Lbs. (53,200 kg)
Operating Weight: 157,940 Lbs. (71,640 kg)
Ground Pressure: 21.0 PSI (145 kPa, 1.48kg/cm²)
Tractor Weight: 117,290 Lbs. (53,200 kg)
Operating Weight: 157,940 Lbs. (71,640 kg)
Ground Pressure: 21.0 PSI (145 kPa, 1.48kg/cm²)
Ground Pressure: 21.0 PSI (145 kPa, 1.48kg/cm²)
Location: South Africa
