USED HYDROTECH H104C-AS8

Hydrotech H104C-AS8 Cyclone
Quantity: 3 Units Available

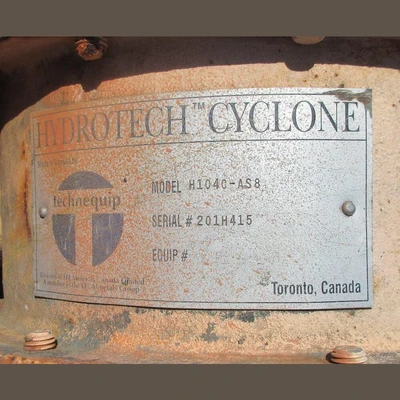

Make: Hydrotech
Model: H104C-AS8
Type: Cyclone
Lining: Ceramic Lined Apex
Condition: Used Condition
Inlet: 3.5in Dia.
Underflow: 3in Dia.
Overflow: 3.5in Dia.
Top Section: 10in Dia. x 5in Long
Mid Section: 10in Dia. x 9in Long

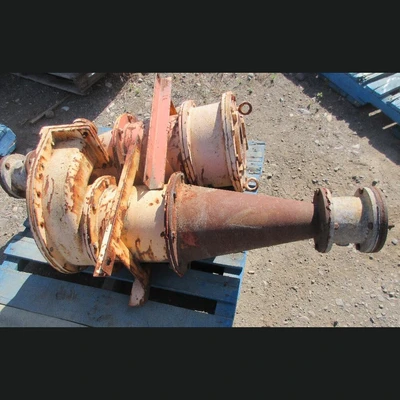

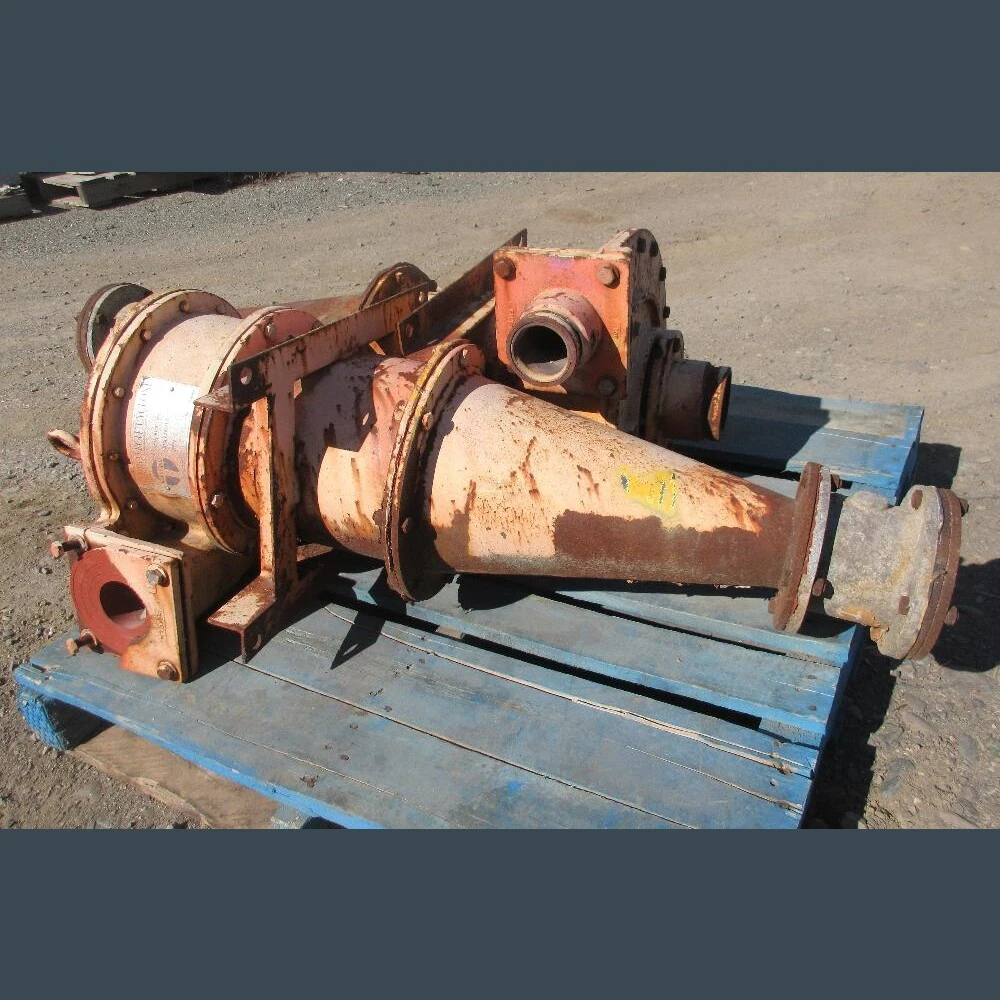

Cone: 17.5in Long x 10in Top Diameter Tapering to 3.5in Dia. at Bottom of Cone
Overall Dimensions:
Length: 36in
Width: 15in
Length: 36in
Width: 15in
Location: Savona, British Columbia, Canada
