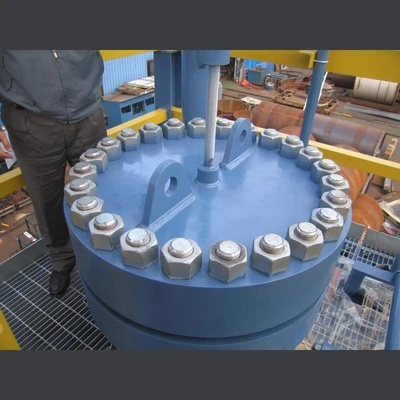

FLSmidth gMAX Wellhead Turndown Desander Hydrocyclone

FLSmidth gMAX Wellhead Turndown Desander Hydrocyclone
Make: FLSmidth
Model: SM-BTH

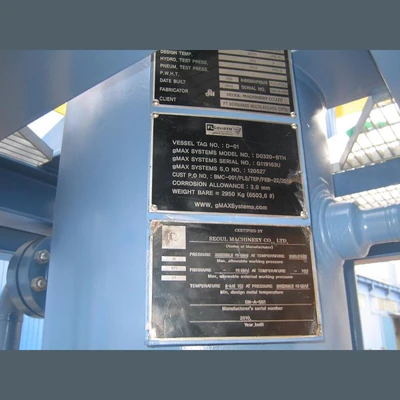

gMax System Model: D0320-BTH

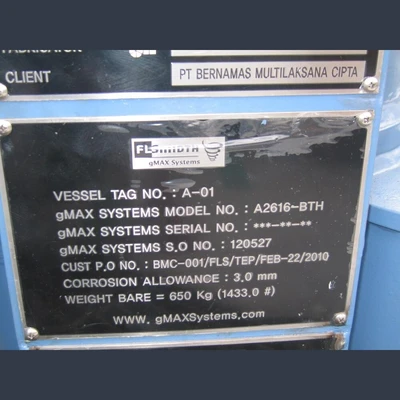

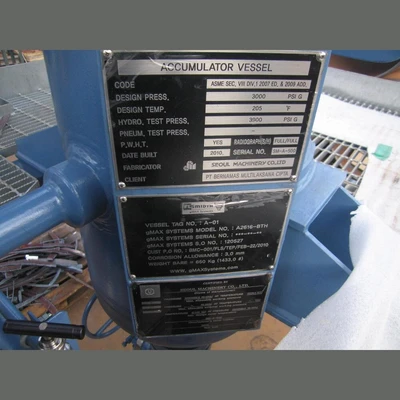

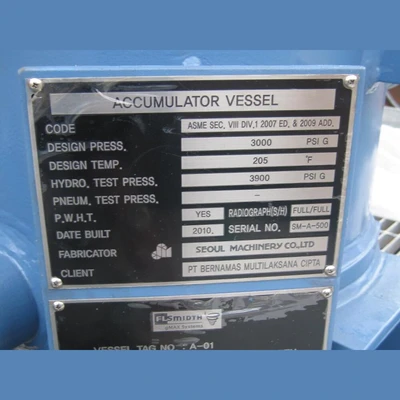

gMax System Model (Accumulator): A2616-BTH
Installed Cyclone Model(s): gMAX3-3133
gMax System Model: D0320-BTH
gMax System Model (Accumulator): A2616-BTH
Installed Cyclone Model(s): gMAX3-3133
Type: Desander Hydrocyclone
Style: Wellhead Turndown
Year: 2010
Condition: Used Condition
Upstream and Downstream Sample Points for Testing Contents

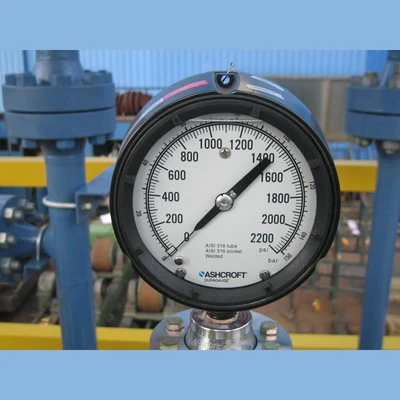

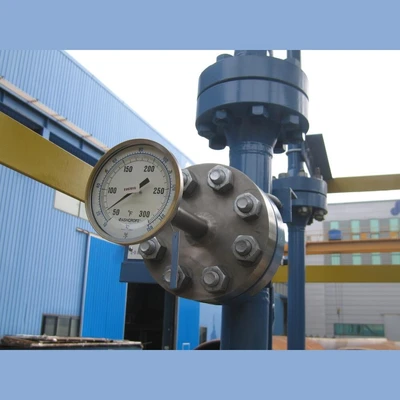

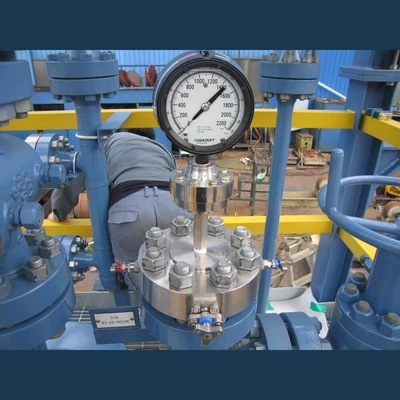

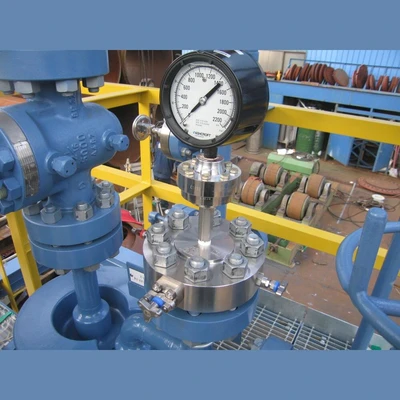

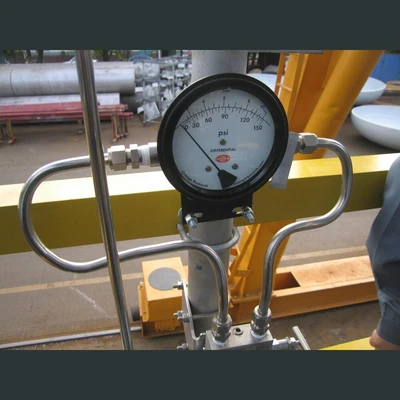

Standard Instrumentation such as Pressure Gauge, Pressure Differential Indicator, Temperature Gauge Included

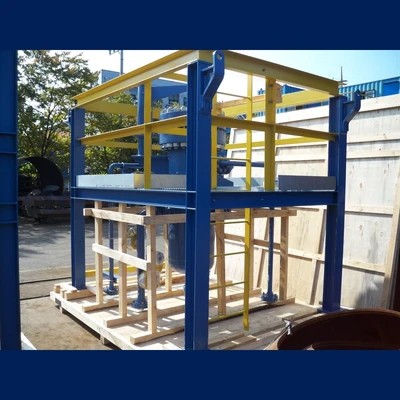

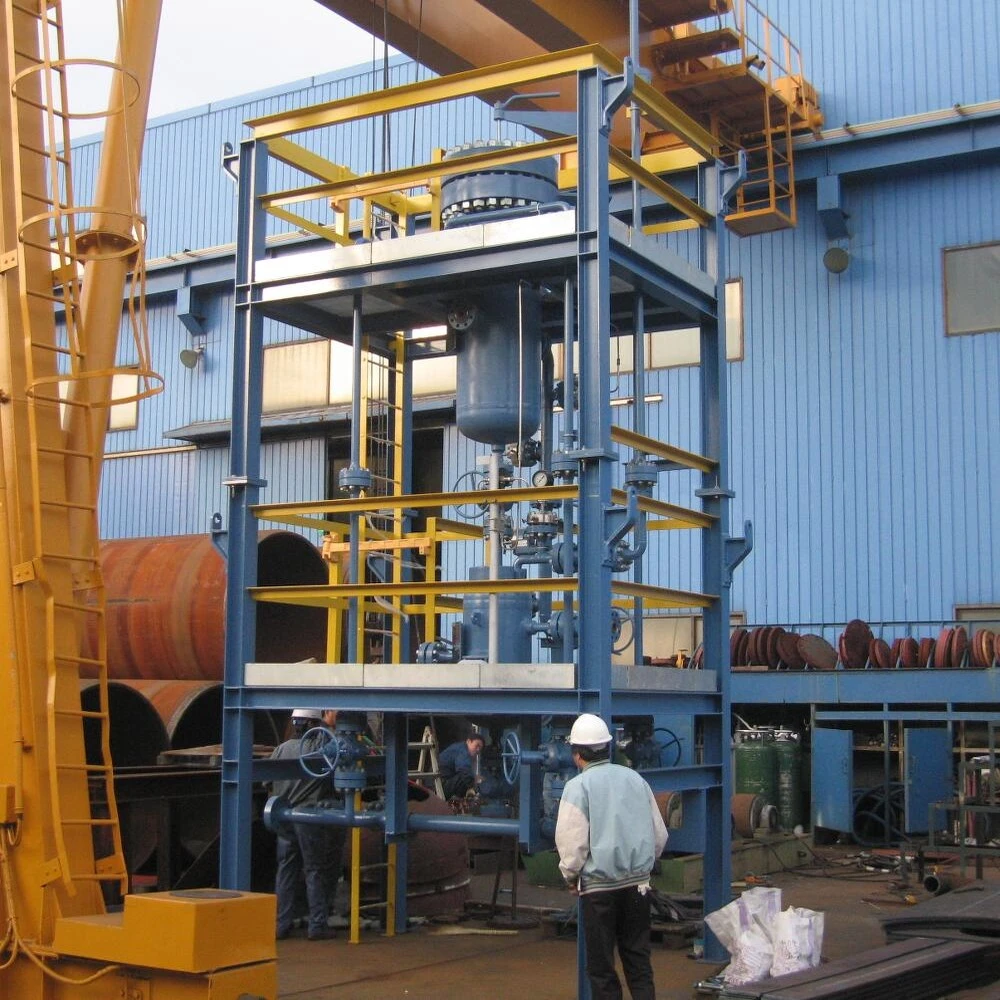

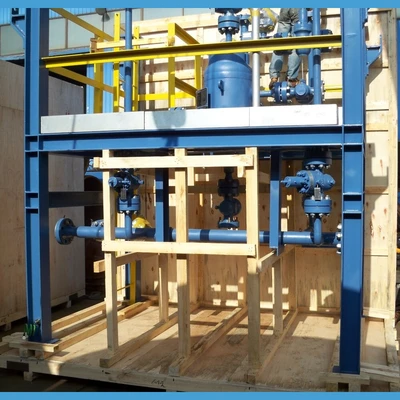

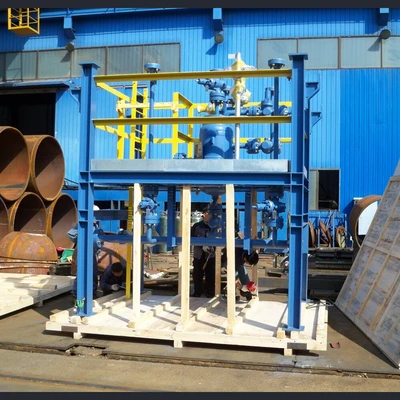

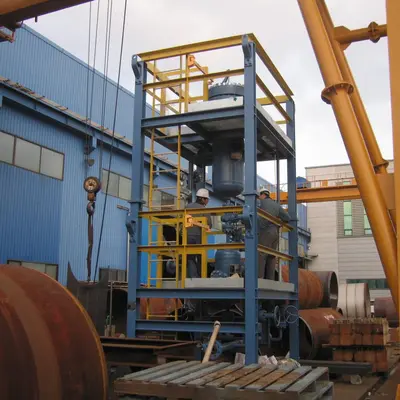

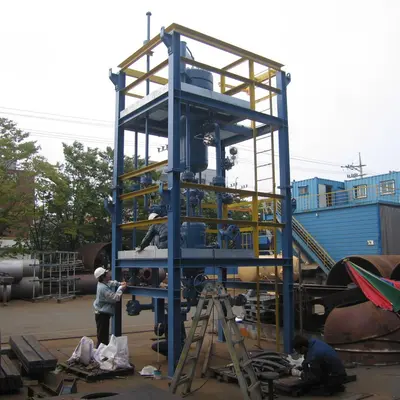

Skid Mounted with Stand
General Model Specifications:
Operating Pressure (Max): 3,000 / 5000 psig
Test Pressure (per Code): 4,500 / 7500 psig
Operating Temperature: -20° to 205° F
Liquid Flow Rates: 5,000 BPD
Gas Flow Rates: 30 MMSCFD
Total gMAX Cyclones - 7 Units
Total Compartment/Chambers: 3 Compartments
Compartment A: 1 Liner
Compartment B: 2 Liners
Compartment C: 4 Liners
Operating Pressure (Max): 3,000 / 5000 psig
Test Pressure (per Code): 4,500 / 7500 psig
Operating Temperature: -20° to 205° F
Liquid Flow Rates: 5,000 BPD
Gas Flow Rates: 30 MMSCFD
Total gMAX Cyclones - 7 Units
Total Compartment/Chambers: 3 Compartments
Compartment A: 1 Liner
Compartment B: 2 Liners
Compartment C: 4 Liners
Total Compartment/Chambers: 3 Compartments
Compartment A: 1 Liner
Compartment B: 2 Liners
Compartment C: 4 Liners
Compartment A: 1 Liner
Compartment B: 2 Liners
Compartment C: 4 Liners
Overall Dimensions:
Length: 3.3m
Width: 2.3m
Height: 7.0m
Weight: 8,800 kg
Length: 3.3m
Width: 2.3m
Height: 7.0m
Weight: 8,800 kg
Location: Indonesia
