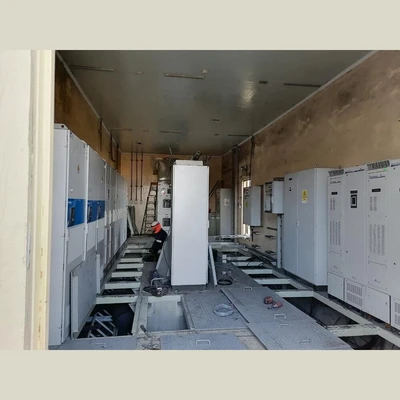

USED FAM ANGA-3J5LM-04C

3,000 TPH Shiploading and Crushing Plant
Make: FAM
Capacity: 3,000 TPH Nominal Capacity
Shipments: 218
Average Shipping Rate: 2,054.4 Tons Per Hour
Tons Loaded: 18,226,912
Hours: 8,873
Max Draft: 17.7m
Vessels: Handy (36,000 Tons) to Cape Size (180,000 Tons)
Shiploaders: 2 Independent Shiploaders - SL01 and SL02
Common Distribution Chute
Nominal Capacity: 3,000 TPH For 2 Shiploader
Distance Shiploader 1 to Shiploader 2: 76m
Distance Center Pivot Point Main Frame-Outer Edge Platform: 4,585m
Distance Center Pivot Point Beam- Center Ship: 28m
Max. Length Beam (Pivot Point Main Frame -Center Telescopic Chute): 44.8m
Min. Length Beam (Pivot Point Main Frame -Center Telescopic Chute): 13.3 m
Telescoping Speed of Beam: 0 – 20 m/min
Pivoting Angle Beam Total: 180°
For Max. Movement in Parking Position: ± 90°
Belt Speeds of Beam Belt: 4.0 m/s
Belt Speed of Distributing Conveyor: 4.0 m/s
Max. Pivot Speed of Beam (Center Telescopic Chute): 10 m/min
Stroke Distance of Telescopic Chute: 20.7m
Lifting Speed of Telescopic Chute: 2/12.0 m/min
Rotation Angle of Distributing Chute: ± 180°
Adjustment Angle of Distributing Chute: 50°
Adjustment Range of Breeches Chute: 1.25m
Common Distribution Chute
Nominal Capacity: 3,000 TPH For 2 Shiploader
Distance Shiploader 1 to Shiploader 2: 76m
Distance Center Pivot Point Main Frame-Outer Edge Platform: 4,585m
Distance Center Pivot Point Beam- Center Ship: 28m
Max. Length Beam (Pivot Point Main Frame -Center Telescopic Chute): 44.8m
Min. Length Beam (Pivot Point Main Frame -Center Telescopic Chute): 13.3 m
Telescoping Speed of Beam: 0 – 20 m/min
Pivoting Angle Beam Total: 180°
For Max. Movement in Parking Position: ± 90°
For Max. Movement in Parking Position: ± 90°
Belt Speeds of Beam Belt: 4.0 m/s
Belt Speed of Distributing Conveyor: 4.0 m/s
Max. Pivot Speed of Beam (Center Telescopic Chute): 10 m/min
Stroke Distance of Telescopic Chute: 20.7m
Lifting Speed of Telescopic Chute: 2/12.0 m/min
Rotation Angle of Distributing Chute: ± 180°
Adjustment Angle of Distributing Chute: 50°
Adjustment Range of Breeches Chute: 1.25m
Boom Conveyor
Installed Drive Power: 55kW
Max. Length: 50.8m
Belt Width: 1600mm
Cavity Angle: 40°
Belt Speed: 4.0 m/s
Type of Conveyor Belt: EP
Belt Cover: Side Wind Sheets
Installed Drive Power: 55kW
Max. Length: 50.8m
Belt Width: 1600mm
Cavity Angle: 40°
Belt Speed: 4.0 m/s
Type of Conveyor Belt: EP
Belt Cover: Side Wind Sheets
Distributing Conveyor
Installed Drive Power: 75kW
Max. Length: Approx. 72.5m
Belt Width: 1600mm
Cavity Angle: 40°
Belt Speed: 4.0 m/s
Type of Conveyor Belt: EP 400/3
Arrangement of Tensioning Station: Center Belt
Belt Cover: Covering Plates and Wind Sheets
Installed Drive Power: 75kW
Max. Length: Approx. 72.5m
Belt Width: 1600mm
Cavity Angle: 40°
Belt Speed: 4.0 m/s
Type of Conveyor Belt: EP 400/3
Arrangement of Tensioning Station: Center Belt
Belt Cover: Covering Plates and Wind Sheets

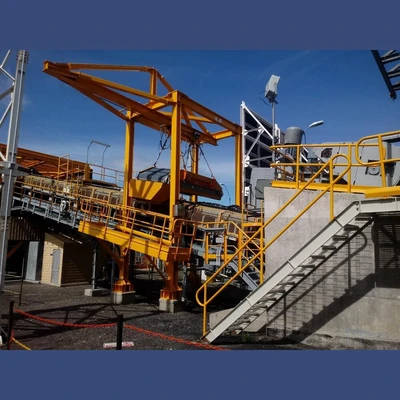

Crushing Equipment:
Capacity: 3,000 TPH (6 Million Tons of Sub-Bituminous Coal)
Disassembled and in Storage
Impact Crushers (2)
Type: HB – SK 11/11
SK: Impact Crusher
Speed: 21 m/s
Product Size: 0 – 160mm
Total Length: 3.6m Approx.
Total Width: 2.2m
Total Height: 2.1m
Total Weight: 15,720 Kgs with Motor
Three-phase motor:
Manufacturer: Loher
Model: ANGA-3J5LM-04C
Voltage: 380/660 Volt
Frequency: 50Hz
Rated Power 250kW
Speed: 1500 RPM

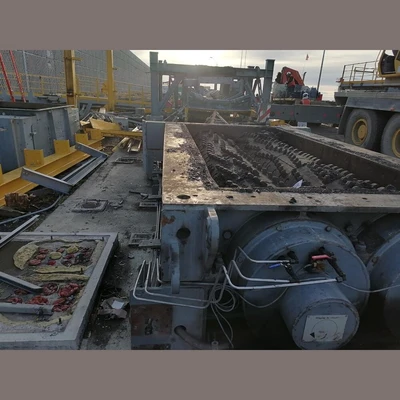

Roller Crushers (2)
Type: SWB 0730
Size: 0730
Roller Diameter: 690mm
Roller Width: 3,000mm
Three-Phase Motor:
Model: K21R 315 LX4 B HB IL NH NS TPM
Voltage: 380/660 Volt
Frequency: 50Hz
Rated Power 2.50kW
Speed: 1490 RPM
Capacity: 3,000 TPH (6 Million Tons of Sub-Bituminous Coal)
Disassembled and in Storage
Impact Crushers (2)
Type: HB – SK 11/11
SK: Impact Crusher
Speed: 21 m/s
Product Size: 0 – 160mm
Total Length: 3.6m Approx.
Total Width: 2.2m
Total Height: 2.1m
Total Weight: 15,720 Kgs with Motor
Three-phase motor:
Manufacturer: Loher
Model: ANGA-3J5LM-04C
Voltage: 380/660 Volt
Frequency: 50Hz
Rated Power 250kW
Speed: 1500 RPM
Roller Crushers (2)
Type: SWB 0730
Size: 0730
Roller Diameter: 690mm
Roller Width: 3,000mm
Three-Phase Motor:
Model: K21R 315 LX4 B HB IL NH NS TPM
Voltage: 380/660 Volt
Frequency: 50Hz
Rated Power 2.50kW
Speed: 1490 RPM
Impact Crushers (2)
Type: HB – SK 11/11
SK: Impact Crusher
Speed: 21 m/s
Product Size: 0 – 160mm
Total Length: 3.6m Approx.
Total Width: 2.2m
Total Height: 2.1m
Total Weight: 15,720 Kgs with Motor
Three-phase motor:
Manufacturer: Loher
Model: ANGA-3J5LM-04C
Voltage: 380/660 Volt
Frequency: 50Hz
Rated Power 250kW
Speed: 1500 RPM
Type: HB – SK 11/11
SK: Impact Crusher
Speed: 21 m/s
Product Size: 0 – 160mm
Total Length: 3.6m Approx.
Total Width: 2.2m
Total Height: 2.1m
Total Weight: 15,720 Kgs with Motor
Three-phase motor:
Manufacturer: Loher
Model: ANGA-3J5LM-04C
Voltage: 380/660 Volt
Frequency: 50Hz
Rated Power 250kW
Speed: 1500 RPM
Manufacturer: Loher
Model: ANGA-3J5LM-04C
Voltage: 380/660 Volt
Frequency: 50Hz
Rated Power 250kW
Speed: 1500 RPM
Roller Crushers (2)
Type: SWB 0730
Size: 0730
Roller Diameter: 690mm
Roller Width: 3,000mm
Three-Phase Motor:
Model: K21R 315 LX4 B HB IL NH NS TPM
Voltage: 380/660 Volt
Frequency: 50Hz
Rated Power 2.50kW
Speed: 1490 RPM
Type: SWB 0730
Size: 0730
Roller Diameter: 690mm
Roller Width: 3,000mm
Three-Phase Motor:
Model: K21R 315 LX4 B HB IL NH NS TPM
Voltage: 380/660 Volt
Frequency: 50Hz
Rated Power 2.50kW
Speed: 1490 RPM
Model: K21R 315 LX4 B HB IL NH NS TPM
Voltage: 380/660 Volt
Frequency: 50Hz
Rated Power 2.50kW
Speed: 1490 RPM

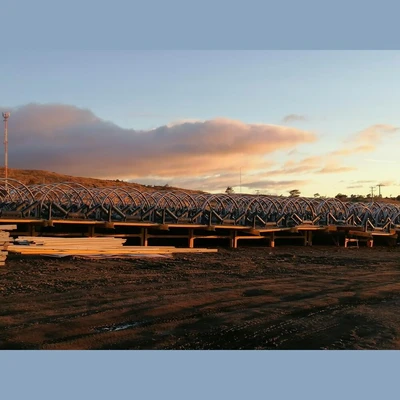

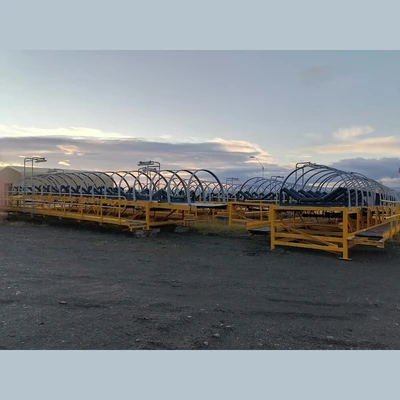

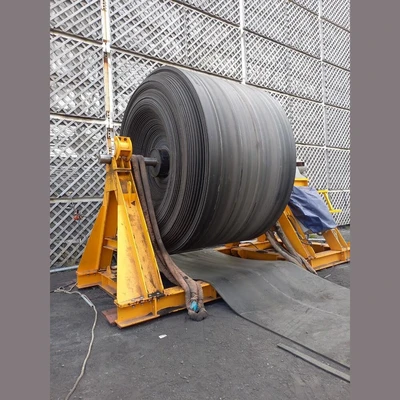

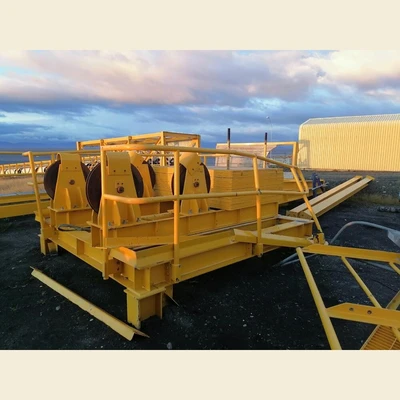

Conveyor Belts:
Currently Disassembled and in Storage
2 Belt Systems (CV-01 and CV-03)
CV-01: Receives Material From Crusher and Conveys to CV-03
CV-03: Conveys Material to Shiploader
Conveyor CV-01:
Length: 280m (Approx.)
Cover: Covered in its Total Length by Fixed and Folding Upper Covers (Half-Round Tubular Metal Structure) and Removable Lower Trays
Capacity: 2,800 – 3,000 TPH
Belt Width: 1,829mm (72in)
Belt Length Between Centers: 277.6m
Elevation: 4.8m
Belt Speed: 3.5 m/s
Design Capacity: 3,300 TPH
Driving Power: 220 kW (300HP)
Driving Pulley Diameter: 800mm (+25mm of Rubber Coating, Herringbone)
Gear Motors: 2 Units of 110kW (150HP)
Starting System: Frequency Variator
Type of Belt: EP-800/3 Thicknesses 10/4 Good Year

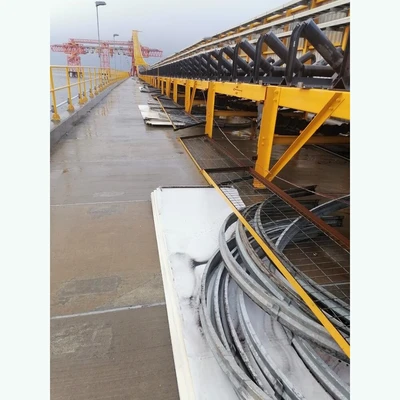

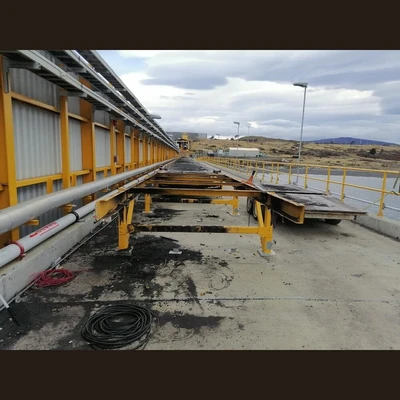

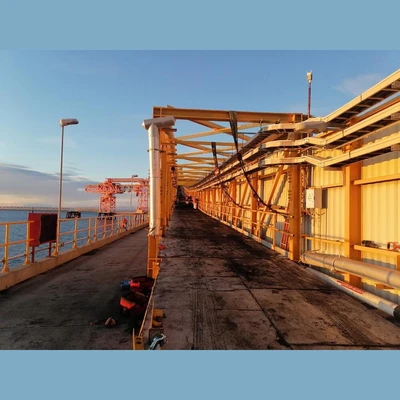

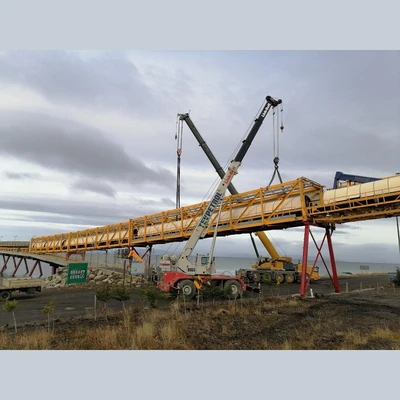

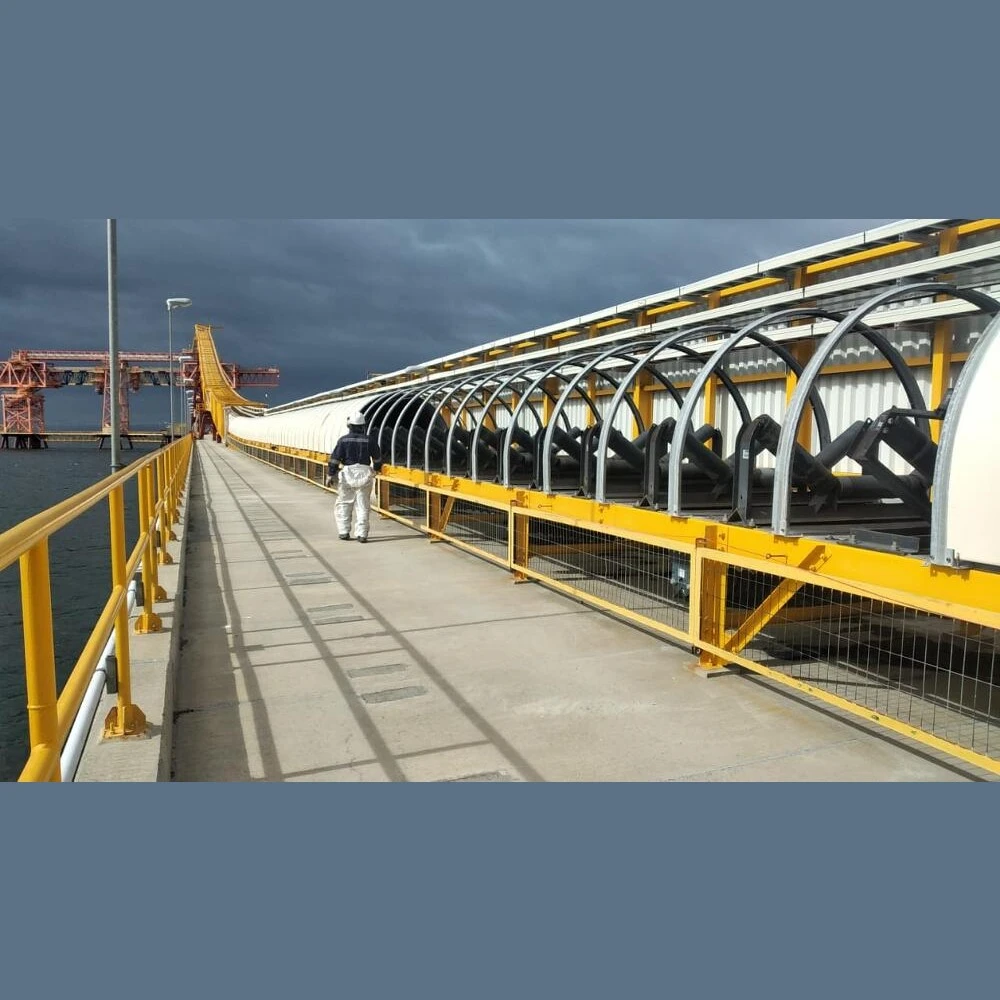

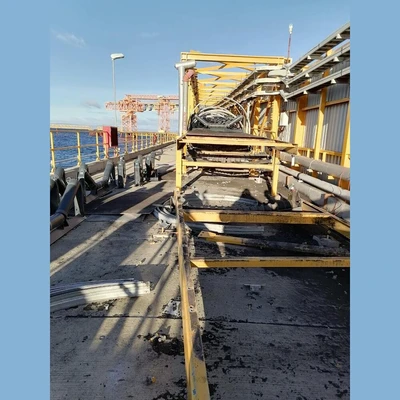

Conveyor CV-03
Length: 758m; Overland - 320m Approx. Above Sea - 438m Approx.
Table Height: 1m

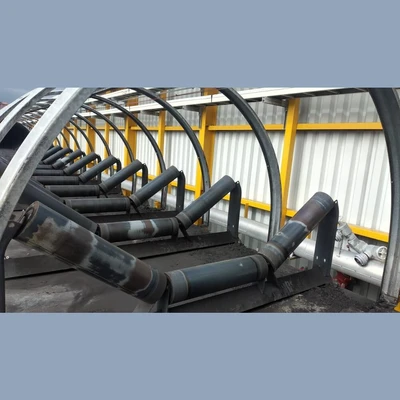

Cover: Covered in its Total Length by Fixed and Folding Upper Covers (Half-Round Tubular Metal Structure) and Removable Lower Trays
Belt Width: 1,829mm (72in)
Elevation: 14.1m
Belt Speed: 3.5 m/s
Design Capacity: 3,300 TPH
Motive Power: 660kW (900HP)
Driving Pulley Diameter: 1000mm (+25 mm of Rubber Coating, Herringbone)
Gearmotors: 2 Units of 330kW (450HP)
Starting System: Frequency Variator
Type of Belt: ST-1250 Thickness 10/4 Good Year
Currently Disassembled and in Storage
2 Belt Systems (CV-01 and CV-03)
CV-01: Receives Material From Crusher and Conveys to CV-03
CV-03: Conveys Material to Shiploader
CV-01: Receives Material From Crusher and Conveys to CV-03
CV-03: Conveys Material to Shiploader
Conveyor CV-01:
Length: 280m (Approx.)
Cover: Covered in its Total Length by Fixed and Folding Upper Covers (Half-Round Tubular Metal Structure) and Removable Lower Trays
Capacity: 2,800 – 3,000 TPH
Belt Width: 1,829mm (72in)
Belt Length Between Centers: 277.6m
Elevation: 4.8m
Belt Speed: 3.5 m/s
Design Capacity: 3,300 TPH
Driving Power: 220 kW (300HP)
Driving Pulley Diameter: 800mm (+25mm of Rubber Coating, Herringbone)
Gear Motors: 2 Units of 110kW (150HP)
Starting System: Frequency Variator
Type of Belt: EP-800/3 Thicknesses 10/4 Good Year
Length: 280m (Approx.)
Cover: Covered in its Total Length by Fixed and Folding Upper Covers (Half-Round Tubular Metal Structure) and Removable Lower Trays
Capacity: 2,800 – 3,000 TPH
Belt Width: 1,829mm (72in)
Belt Length Between Centers: 277.6m
Elevation: 4.8m
Belt Speed: 3.5 m/s
Design Capacity: 3,300 TPH
Driving Power: 220 kW (300HP)
Driving Pulley Diameter: 800mm (+25mm of Rubber Coating, Herringbone)
Gear Motors: 2 Units of 110kW (150HP)
Starting System: Frequency Variator
Type of Belt: EP-800/3 Thicknesses 10/4 Good Year
Conveyor CV-03
Length: 758m; Overland - 320m Approx. Above Sea - 438m Approx.
Table Height: 1m
Cover: Covered in its Total Length by Fixed and Folding Upper Covers (Half-Round Tubular Metal Structure) and Removable Lower Trays
Belt Width: 1,829mm (72in)
Elevation: 14.1m
Belt Speed: 3.5 m/s
Design Capacity: 3,300 TPH
Motive Power: 660kW (900HP)
Driving Pulley Diameter: 1000mm (+25 mm of Rubber Coating, Herringbone)
Gearmotors: 2 Units of 330kW (450HP)
Starting System: Frequency Variator
Type of Belt: ST-1250 Thickness 10/4 Good Year
Length: 758m; Overland - 320m Approx. Above Sea - 438m Approx.
Table Height: 1m
Cover: Covered in its Total Length by Fixed and Folding Upper Covers (Half-Round Tubular Metal Structure) and Removable Lower Trays
Belt Width: 1,829mm (72in)
Elevation: 14.1m
Belt Speed: 3.5 m/s
Design Capacity: 3,300 TPH
Motive Power: 660kW (900HP)
Driving Pulley Diameter: 1000mm (+25 mm of Rubber Coating, Herringbone)
Gearmotors: 2 Units of 330kW (450HP)
Starting System: Frequency Variator
Type of Belt: ST-1250 Thickness 10/4 Good Year
Location: South America
