USED 2016 ASTEC BR87-50T

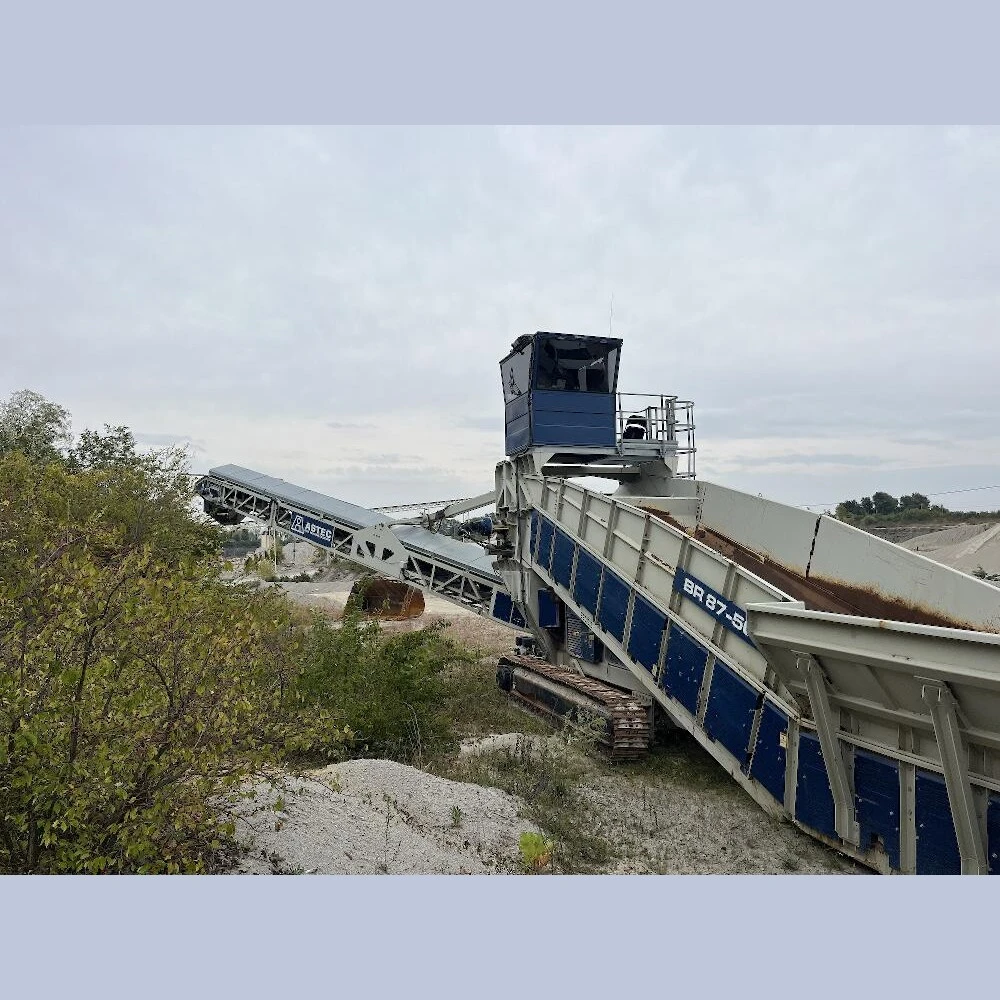

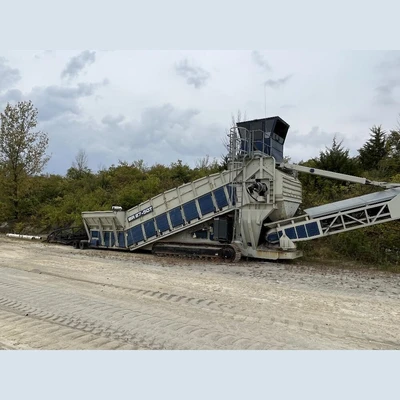

2016 Astec BR87-50T Rail Car Loader
Make: Astec
Model: BR87-50T
Year: 2016
Condition: Used
Hours: 4,500
Throughput Capacity: 600-650 TPH
Total Operating Length (25°): 86ft 9in (26.5m)
Total Operating Width: 14ft 4in (4.4m)
Discharge Conveyor:
Length: 50ft (15m) with Drop Chute
Discharge Height (25°): 11ft 5in (3.5m)
Belt:
Belt Width: 1200mm (48in)
EP 500
Thickness: 3 Ply (5mm Top + 1.5mm Bottom)
5in Diameter Rollers
RHS Conveyor Support Above
2 Hydraulic Drive Motors
2 Hydraulic Rams for Support and Adjustments
60° of Radial Coverage
Steel Lined Feedboot with Rubber Skirting
Folding Head Section for Transport
Length: 50ft (15m) with Drop Chute
Discharge Height (25°): 11ft 5in (3.5m)
Belt:
Belt Width: 1200mm (48in)
EP 500
Thickness: 3 Ply (5mm Top + 1.5mm Bottom)
Belt Width: 1200mm (48in)
EP 500
Thickness: 3 Ply (5mm Top + 1.5mm Bottom)
5in Diameter Rollers
RHS Conveyor Support Above
2 Hydraulic Drive Motors
2 Hydraulic Rams for Support and Adjustments
60° of Radial Coverage
Steel Lined Feedboot with Rubber Skirting
Folding Head Section for Transport

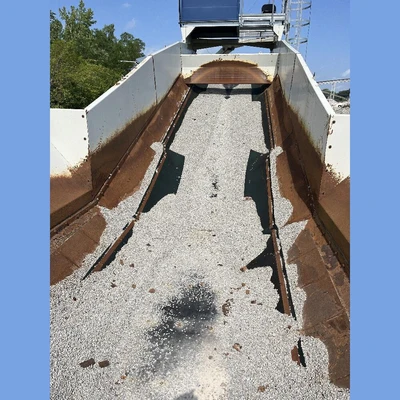

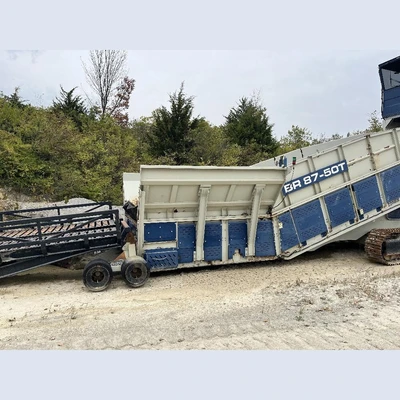

Hopper Feeder:
Hopper Width: 14ft 7in (4.49m)
Hopper Length: 10ft 2in (3.14m)
Lined with 6mm Steel Plate
Belt:
Belt Width: 2200mm (87in)
EP630
Thickness: 4-Ply (6mm Top + 2mm Bottom)
Belt Bolted to Apron Chain
2 Hydraulic Drive Motors and Gearboxes

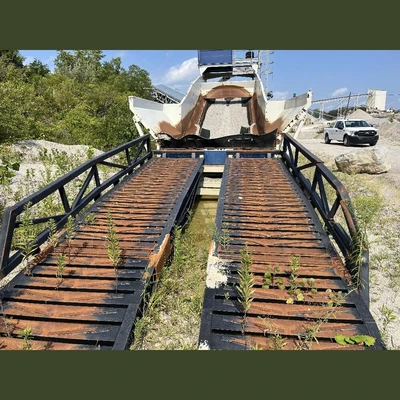

Heavy Duty Feed-In Point for Trucks
Hopper Width: 14ft 7in (4.49m)
Hopper Length: 10ft 2in (3.14m)
Lined with 6mm Steel Plate
Belt:
Belt Width: 2200mm (87in)
EP630
Thickness: 4-Ply (6mm Top + 2mm Bottom)
Belt Bolted to Apron Chain
2 Hydraulic Drive Motors and Gearboxes
Belt Width: 2200mm (87in)
EP630
Thickness: 4-Ply (6mm Top + 2mm Bottom)
Belt Bolted to Apron Chain
2 Hydraulic Drive Motors and Gearboxes
Heavy Duty Feed-In Point for Trucks
2 Hydraulically Extending Jack Legs near the Front
Multiple Large, Lockable, Access Doors

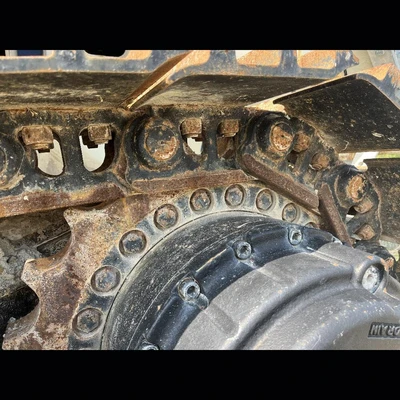

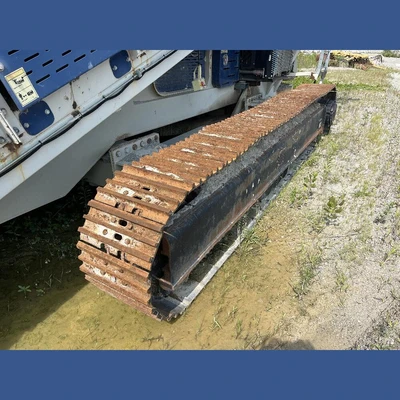

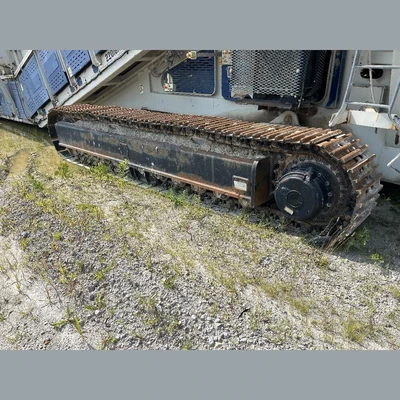

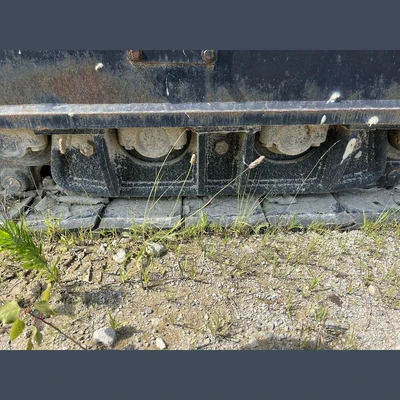

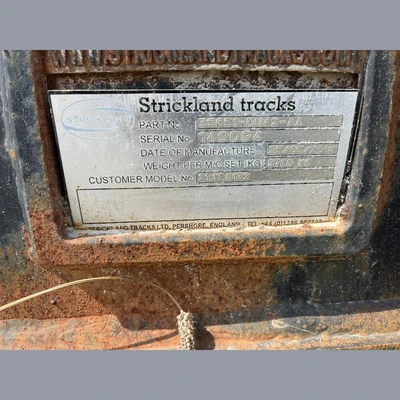

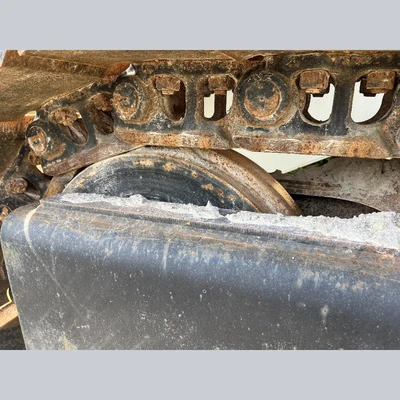

Heavy Duty Tracks:
Length: 13.8ft (4.2m)
Width: 1.3ft (0.4m)
Drive: 2 Integral Hydraulic Motors
Length: 13.8ft (4.2m)
Width: 1.3ft (0.4m)
Drive: 2 Integral Hydraulic Motors
Hydraulics:
Variable Pump System
Capacity: 132 US gal
Oil Type: Grade 32
Variable Pump System
Capacity: 132 US gal
Oil Type: Grade 32

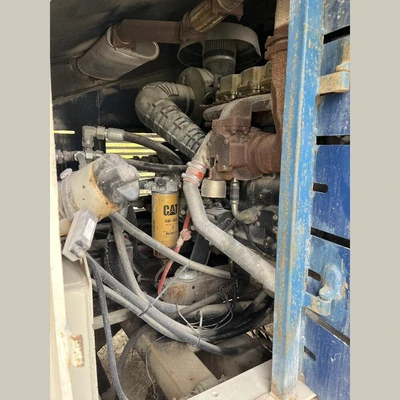

Engine: CAT C4.4 Tier 4 Diesel
Fuel Capacity: 52 US gal (240L)

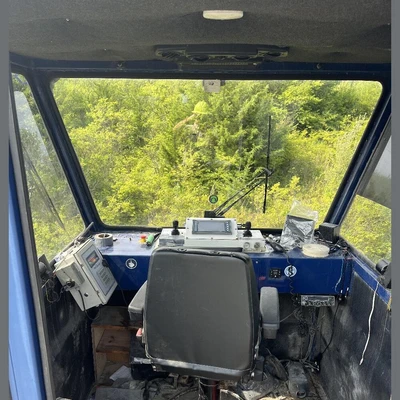

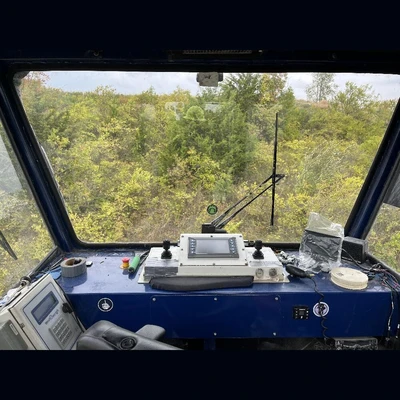

Control Cab with Control Panel
Overall Dimensions:
Transport Length (Head Folded): 72ft 5in (22.1m)
Transport Width (Gearboxes Removed): 10ft 3in (3.15m)
Height: 13.5ft (4.1m)
Weight: 97,003lbs. (44,003kg)
Transport Length (Head Folded): 72ft 5in (22.1m)
Transport Width (Gearboxes Removed): 10ft 3in (3.15m)
Height: 13.5ft (4.1m)
Weight: 97,003lbs. (44,003kg)
Location: Eastern USA
