Jaw and Roll Crusher Plant

Jaw and Roll Crusher Plant
Description: This Jaw and Rolls Plant was Custom-Built for Testing Ore Bucket Samples. The Jaws and Rolls are in Good Condition.
Custom Built Plant
Used for Testing Ore
Very Little Wear
Electric Start
Deutz Diesel Engine - Single Cylinder (12HP)
Single Lever Operation
Single Lever Operation

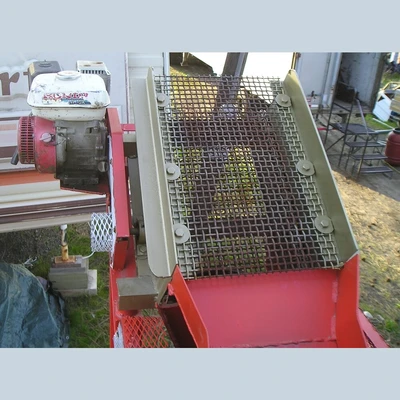

Shaker Screen to send Oversize to Jaw and Undersize to Roll via Chute
Powered Via Honda Engine
Powered Via Honda Engine

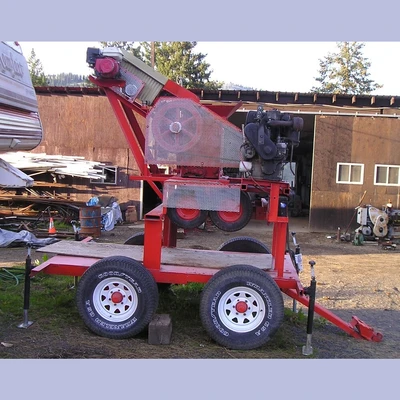

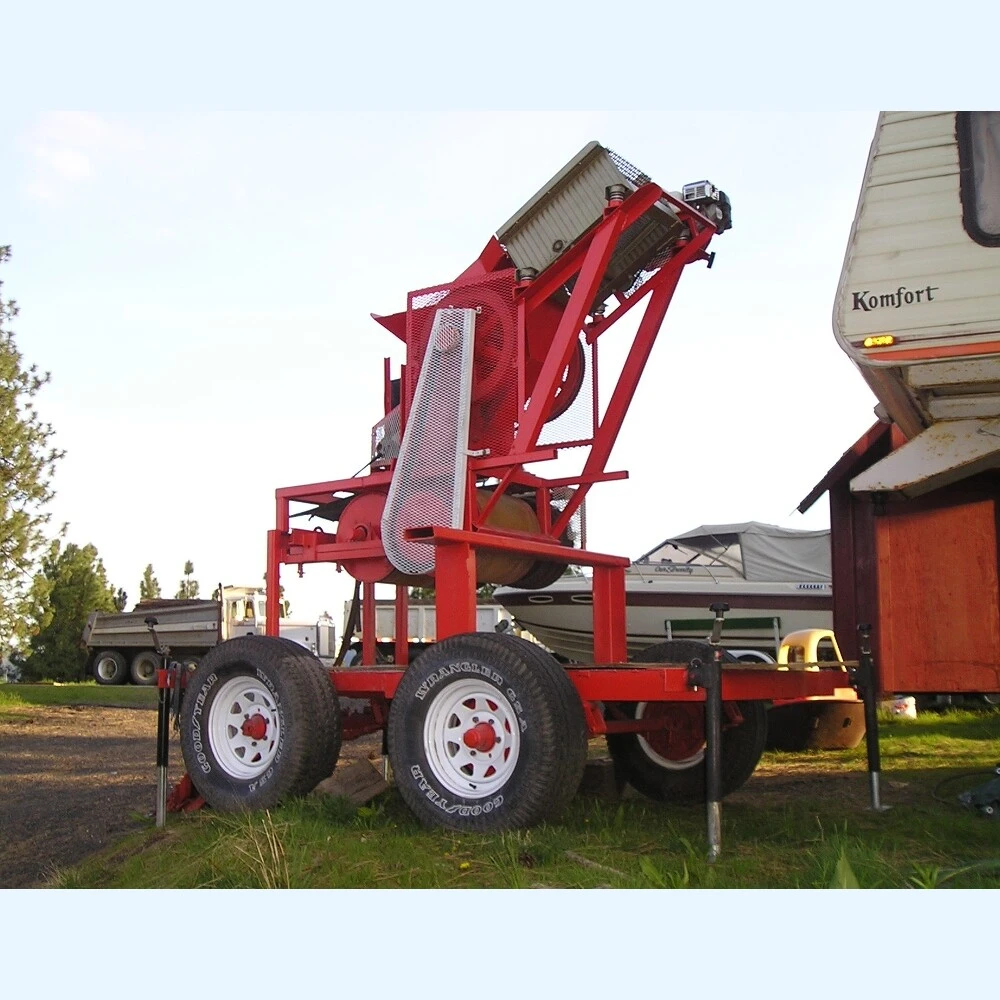

Mounted onto Purpose Built Trailer
Not Highway Towable
Not Highway Towable

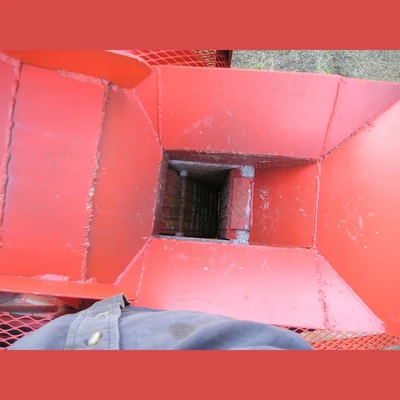

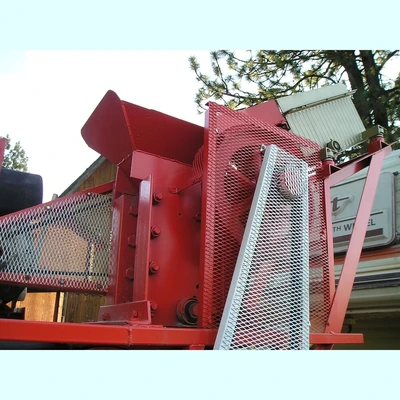

Jaw Crusher:
Size: 6in x 6in
Adjustable
Condition: Jaw Liners are like New
Crushed Product Drops into Roll Crusher Feed
Size: 6in x 6in
Adjustable
Condition: Jaw Liners are like New
Crushed Product Drops into Roll Crusher Feed

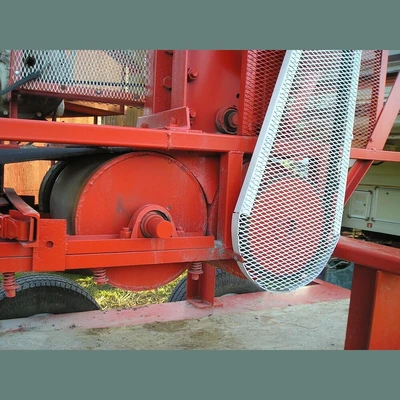

Roll Crusher:
Size: 15.5in Diameter x 18in Long
Tire Driven
Adjustable Rolls to Allow Jaw Crusher Material to Drop Through or Narrow down to 0.25in
Roll Pressure is Adjustable - Air
Relief on Rolls Handled by Adjustable Leaf Spring
Frame Slides: Deltron Material
Size: 15.5in Diameter x 18in Long
Tire Driven
Adjustable Rolls to Allow Jaw Crusher Material to Drop Through or Narrow down to 0.25in
Roll Pressure is Adjustable - Air
Relief on Rolls Handled by Adjustable Leaf Spring
Frame Slides: Deltron Material
Location: Northwest USA
