Surplus 2000 TPH Crushing Conveying Loadout System

Surplus 2000 TPH Crushing Conveying Loadout System
Description: Max 2000 TPH crushing and loadout system including Grizzly Hopper, FAM Apron Feeder, Grundlach Roll Crusher, and Overland Conveyor. Equipment is unused surplus and it has never been installed. It is currently in safe storage with the electrical controls in temperature controlled containment.The system is available as a complete package and we will also consider component package sales. Equipment is available for inspection with notice and we can facilitate packaging and shipping domestically and internationally.Please inquire for more information, drawings, and pricing.
Conveyor System - Summary Details:
Design Parameters:
System Capacity of 1,800 TPH

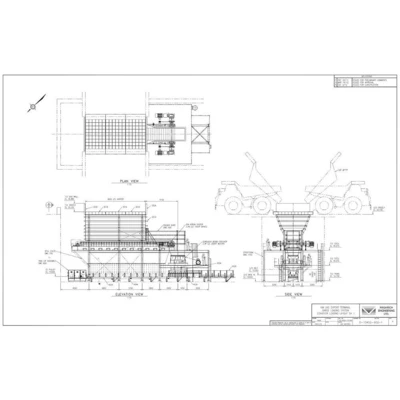

Hopper Designed for End Dumping of CAT 777 Trucks

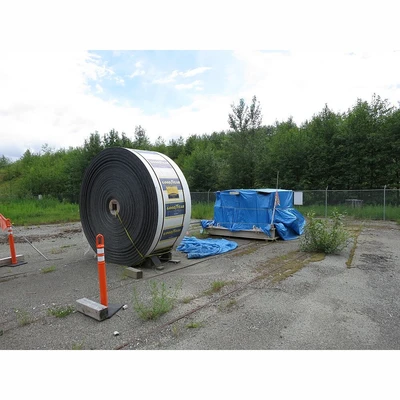

Approximately 260m (800 - 900ft) of Conveyor with 48in Belt
System Capacity of 1,800 TPH
Hopper Designed for End Dumping of CAT 777 Trucks
Approximately 260m (800 - 900ft) of Conveyor with 48in Belt
Major Components:

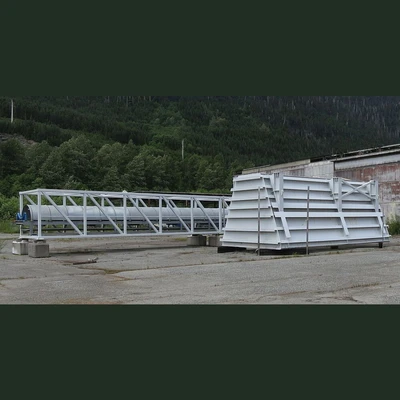

Grizzly and Feed Hopper
Max Volume of 140m³ (183cu yd) Flooded
Normal Operating Volume of 70m³ (92cu yd)

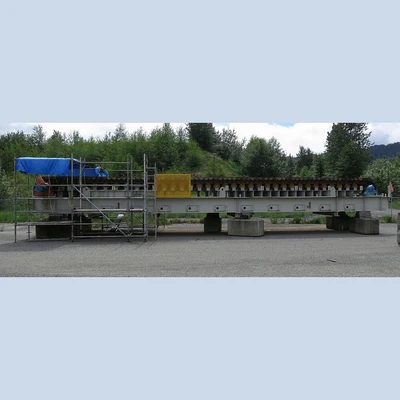

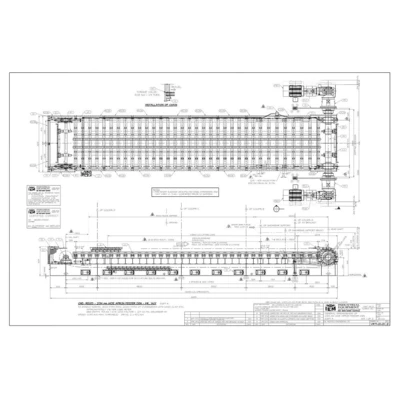

FAM Apron Feeder
2.134m x 13.7m (7ft x 45ft)
2.134m Wide Apron Feeder
Driven By (2) 125HP Motors:  Ultraline 125HP MUV449-BB (Serial #’s JO19885-1 and JO19885-2) (230/460 Volts, 280/140 Amps, 1790 RPM, 444T Frame, Insulation Class F)

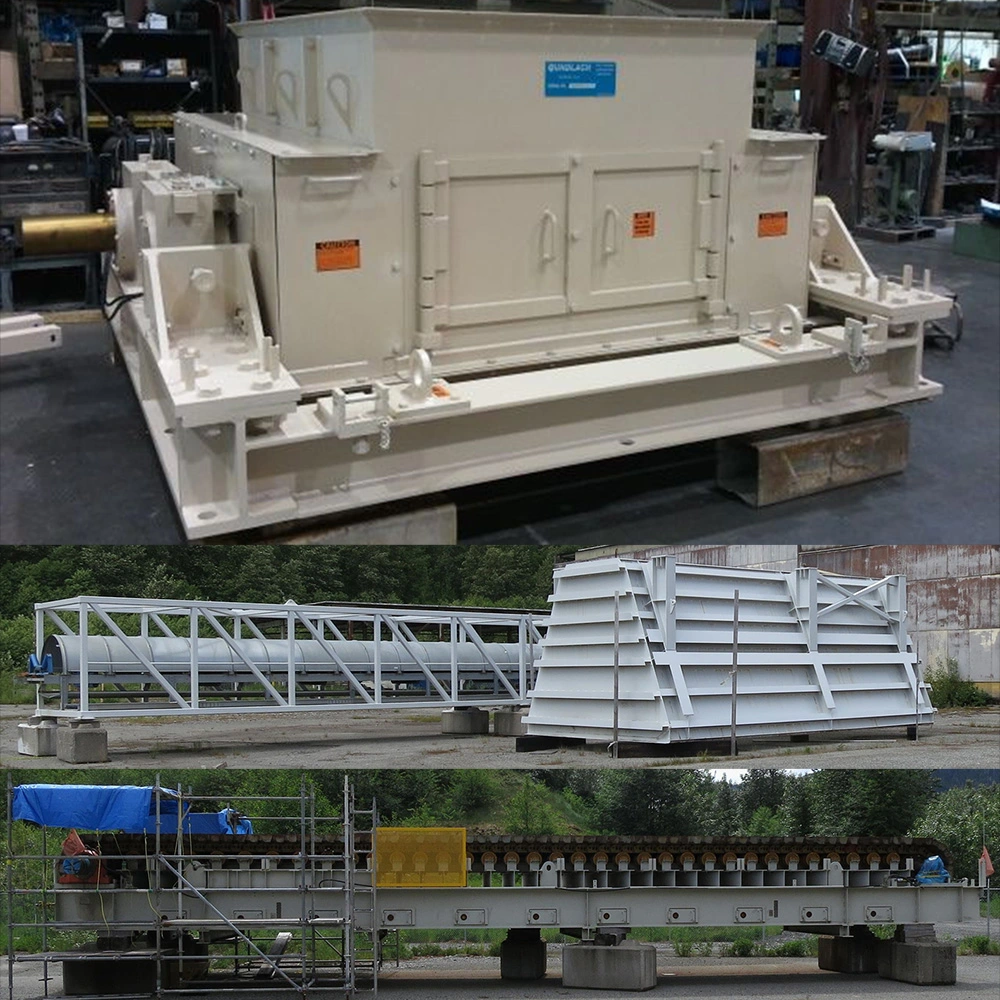

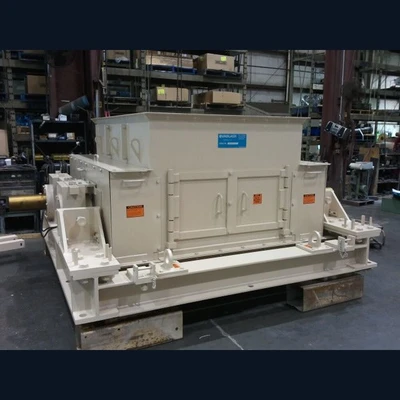

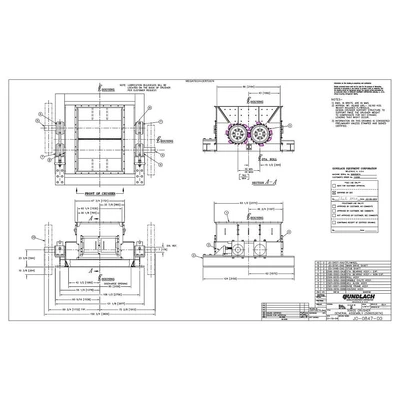

Grundlach Roll Crusher Assembly

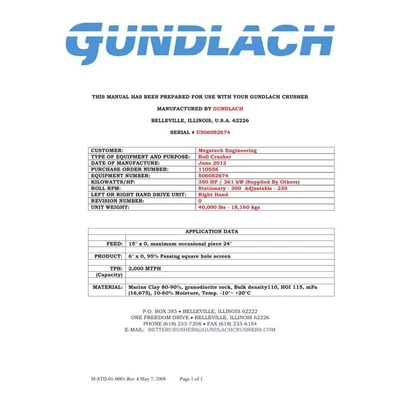

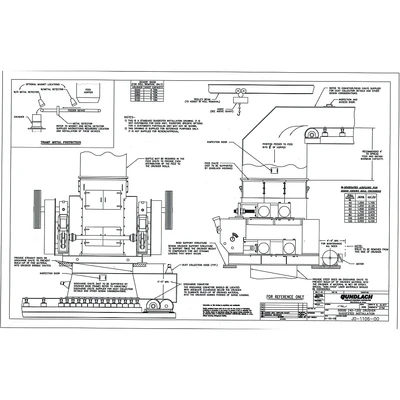

Gundlach 5060S Crusher
Driven By (2) 350HP Motors:  Ultraline-PE MU50066 (Serial #’s 79200122, 79200123) (460 Volts, 421 Amps, 890 RPM, Frame 587UZ, Insulation Class F)
Conveyor Table Assemblies

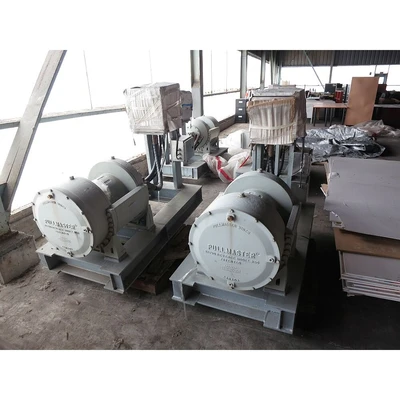

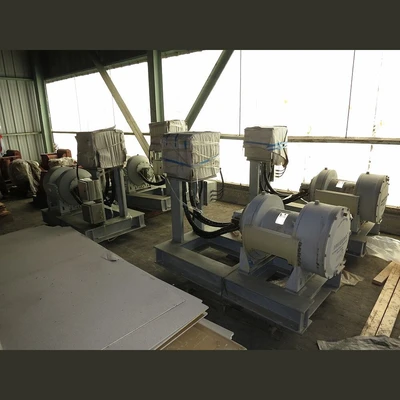

Driven By (1) 150HP Motor:  Ultraline MUV452-BB-115SH-F2 (Serial# JO19360) (460 Volts, 167 Amps, 1790 RPM, Frame 445T, Insulation Class F)
Comes with SEW Eurodrive Gear Reducer:  MC3RLHF07 + Axial Fan with Swing Base for 445T Frame Motor and SEW Eurodrive Torque Arm (Type X160-170, X180-190)
Other Components:
Luff Industries Ltd.

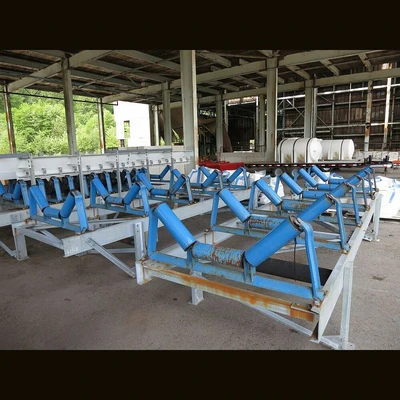

Trough Idler - Equal Roll Steel – 48-453-HSE
Impact Idler - Equal Roll Impact – 48-453-HDE
Carrying Training Idler - HD Trough Training – 48-453-HSTE-U
5in Steel Return Roller (48-054-HSRC c/w 915BPSR Brackets)

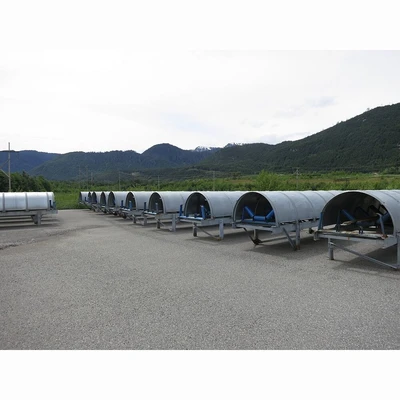

Conveyor Covers – CH-48

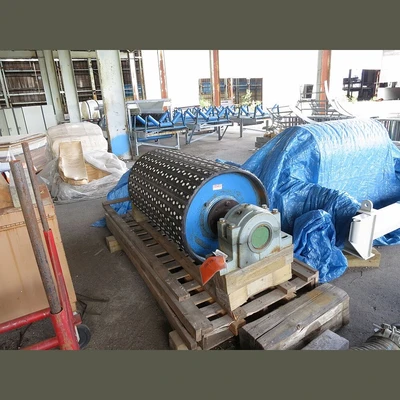

Drums

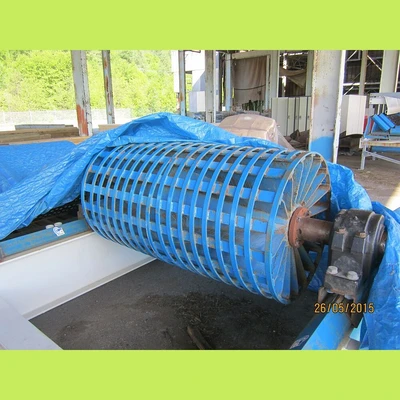

30-XT60-54 FFD (Flat Face Drum)
30-XT45-54 CFWS (Crowned Face Wing Spiral)
Conveyor Components Company
(2) Tilt Switches: Model - CT-201
SKF Canada Ltd.

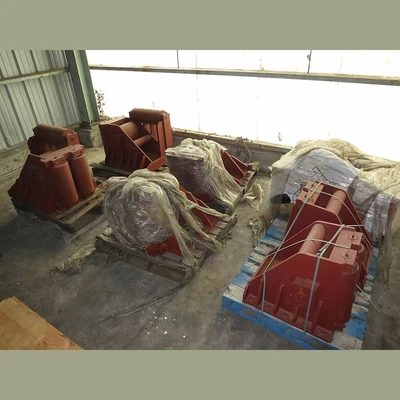

Head Pulley Bearing:  SAFD22534/515
Tail Pulley Bearing:  SAFD22526/407
4B Components Company
(4) Speed Switches:  Model -  M8001V10C
ASGCO
Primary Belt Cleaner Blade – ASG-SK4-42A-1
Secondary Belt Cleaner Blade – ASG-MDX-BLD-RZ-6-TC
V-Plow Blade – M-ASG-5560-1 X 4-48-VP

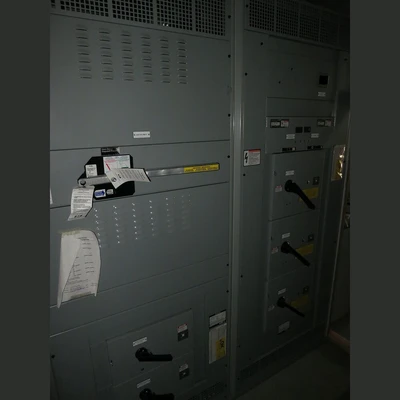

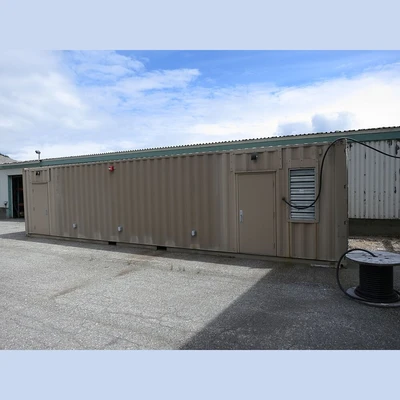

Electrical Control House
40ft SeaCan Container

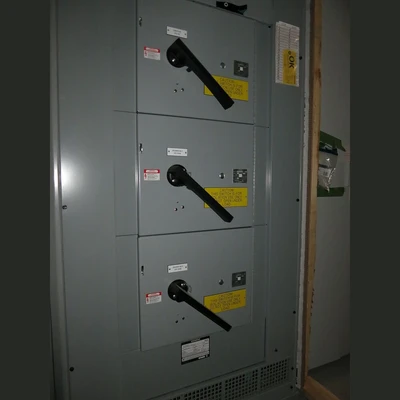

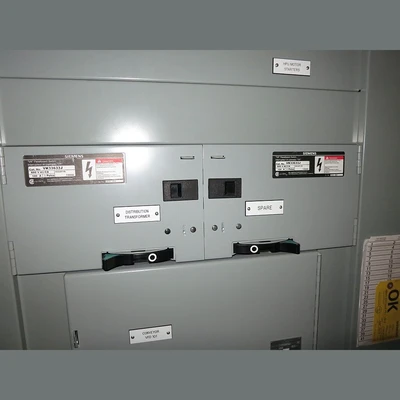

Disconnects and VFDs for Motors
Grizzly and Feed Hopper
Max Volume of 140m³ (183cu yd) Flooded
Normal Operating Volume of 70m³ (92cu yd)
Max Volume of 140m³ (183cu yd) Flooded
Normal Operating Volume of 70m³ (92cu yd)
FAM Apron Feeder
2.134m x 13.7m (7ft x 45ft)
2.134m Wide Apron Feeder
Driven By (2) 125HP Motors:  Ultraline 125HP MUV449-BB (Serial #’s JO19885-1 and JO19885-2) (230/460 Volts, 280/140 Amps, 1790 RPM, 444T Frame, Insulation Class F)
2.134m x 13.7m (7ft x 45ft)
2.134m Wide Apron Feeder
Driven By (2) 125HP Motors:  Ultraline 125HP MUV449-BB (Serial #’s JO19885-1 and JO19885-2) (230/460 Volts, 280/140 Amps, 1790 RPM, 444T Frame, Insulation Class F)
Grundlach Roll Crusher Assembly
Gundlach 5060S Crusher
Driven By (2) 350HP Motors:  Ultraline-PE MU50066 (Serial #’s 79200122, 79200123) (460 Volts, 421 Amps, 890 RPM, Frame 587UZ, Insulation Class F)
Gundlach 5060S Crusher
Driven By (2) 350HP Motors:  Ultraline-PE MU50066 (Serial #’s 79200122, 79200123) (460 Volts, 421 Amps, 890 RPM, Frame 587UZ, Insulation Class F)
Conveyor Table Assemblies
Driven By (1) 150HP Motor:  Ultraline MUV452-BB-115SH-F2 (Serial# JO19360) (460 Volts, 167 Amps, 1790 RPM, Frame 445T, Insulation Class F)
Comes with SEW Eurodrive Gear Reducer:  MC3RLHF07 + Axial Fan with Swing Base for 445T Frame Motor and SEW Eurodrive Torque Arm (Type X160-170, X180-190)
Other Components:
Luff Industries Ltd.
Trough Idler - Equal Roll Steel – 48-453-HSE
Impact Idler - Equal Roll Impact – 48-453-HDE
Carrying Training Idler - HD Trough Training – 48-453-HSTE-U
5in Steel Return Roller (48-054-HSRC c/w 915BPSR Brackets)
Conveyor Covers – CH-48
Drums
30-XT60-54 FFD (Flat Face Drum)
30-XT45-54 CFWS (Crowned Face Wing Spiral)
Conveyor Components Company
(2) Tilt Switches: Model - CT-201
SKF Canada Ltd.
Head Pulley Bearing:  SAFD22534/515
Tail Pulley Bearing:  SAFD22526/407
4B Components Company
(4) Speed Switches:  Model -  M8001V10C
ASGCO
Primary Belt Cleaner Blade – ASG-SK4-42A-1
Secondary Belt Cleaner Blade – ASG-MDX-BLD-RZ-6-TC
V-Plow Blade – M-ASG-5560-1 X 4-48-VP
Driven By (1) 150HP Motor:  Ultraline MUV452-BB-115SH-F2 (Serial# JO19360) (460 Volts, 167 Amps, 1790 RPM, Frame 445T, Insulation Class F)
Comes with SEW Eurodrive Gear Reducer:  MC3RLHF07 + Axial Fan with Swing Base for 445T Frame Motor and SEW Eurodrive Torque Arm (Type X160-170, X180-190)
Other Components:
Luff Industries Ltd.
Trough Idler - Equal Roll Steel – 48-453-HSE
Impact Idler - Equal Roll Impact – 48-453-HDE
Carrying Training Idler - HD Trough Training – 48-453-HSTE-U
5in Steel Return Roller (48-054-HSRC c/w 915BPSR Brackets)
Conveyor Covers – CH-48
Drums
30-XT60-54 FFD (Flat Face Drum)
30-XT45-54 CFWS (Crowned Face Wing Spiral)
Conveyor Components Company
(2) Tilt Switches: Model - CT-201
SKF Canada Ltd.
Head Pulley Bearing:  SAFD22534/515
Tail Pulley Bearing:  SAFD22526/407
4B Components Company
(4) Speed Switches:  Model -  M8001V10C
ASGCO
Primary Belt Cleaner Blade – ASG-SK4-42A-1
Secondary Belt Cleaner Blade – ASG-MDX-BLD-RZ-6-TC
V-Plow Blade – M-ASG-5560-1 X 4-48-VP
Luff Industries Ltd.
Trough Idler - Equal Roll Steel – 48-453-HSE
Impact Idler - Equal Roll Impact – 48-453-HDE
Carrying Training Idler - HD Trough Training – 48-453-HSTE-U
5in Steel Return Roller (48-054-HSRC c/w 915BPSR Brackets)
Conveyor Covers – CH-48
Drums
30-XT60-54 FFD (Flat Face Drum)
30-XT45-54 CFWS (Crowned Face Wing Spiral)
Trough Idler - Equal Roll Steel – 48-453-HSE
Impact Idler - Equal Roll Impact – 48-453-HDE
Carrying Training Idler - HD Trough Training – 48-453-HSTE-U
5in Steel Return Roller (48-054-HSRC c/w 915BPSR Brackets)
Conveyor Covers – CH-48
Drums
30-XT60-54 FFD (Flat Face Drum)
30-XT45-54 CFWS (Crowned Face Wing Spiral)
30-XT60-54 FFD (Flat Face Drum)
30-XT45-54 CFWS (Crowned Face Wing Spiral)
Conveyor Components Company
(2) Tilt Switches: Model - CT-201
(2) Tilt Switches: Model - CT-201
SKF Canada Ltd.
Head Pulley Bearing:  SAFD22534/515
Tail Pulley Bearing:  SAFD22526/407
Head Pulley Bearing:  SAFD22534/515
Tail Pulley Bearing:  SAFD22526/407
4B Components Company
(4) Speed Switches:  Model -  M8001V10C
(4) Speed Switches:  Model -  M8001V10C
ASGCO
Primary Belt Cleaner Blade – ASG-SK4-42A-1
Secondary Belt Cleaner Blade – ASG-MDX-BLD-RZ-6-TC
V-Plow Blade – M-ASG-5560-1 X 4-48-VP
Primary Belt Cleaner Blade – ASG-SK4-42A-1
Secondary Belt Cleaner Blade – ASG-MDX-BLD-RZ-6-TC
V-Plow Blade – M-ASG-5560-1 X 4-48-VP
Electrical Control House
40ft SeaCan Container
Disconnects and VFDs for Motors
40ft SeaCan Container
Disconnects and VFDs for Motors
Location: Western Canada
