USED ZENITH MINERALS XZM 221

Zenith Minerals XZM Ultrafine Grinding Mill
Make: Zenith Minerals
Model: XZM 221
Type: Ultrafine Grinding Mill
Style: Complete Mill
Condition: Unused, New Surplus

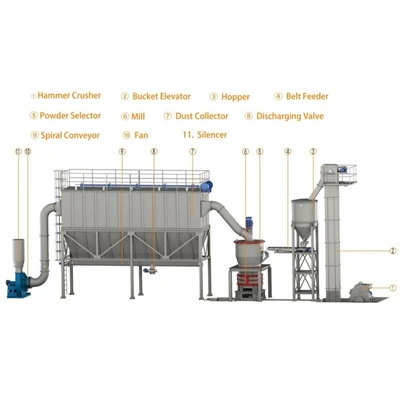

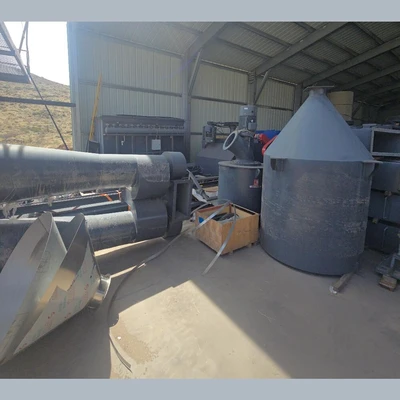

Includes:
Ultrafine Grinding Mill
Powder Selector
Dust Collector
Fan
Silencer
Crusher
Elevator
Stock Bin and Feeder
Ultrafine Grinding Mill
Powder Selector
Dust Collector
Fan
Silencer
Crusher
Elevator
Stock Bin and Feeder
Description: The XZM Ultrafine Grinding Mill is suitable to produce fine and superfine powder. It can be used to process non-flammable and non-explosive brittle material whose Moh’s hardness is below 6.
General Model Specifications:
Average Working Diameter: 800mm
Qty. of Ring (Layers): 3
Axial Rotation Speed: 230-240 RPM
Input Size: ≤10mm
Final Product Size Range: 325-2500 Mesh
Capacity: 0.4-4 TPH
Main Motor Power: 75kW
Analytical Engine Power: 18.5kW
Blower Motor Power: 45kW

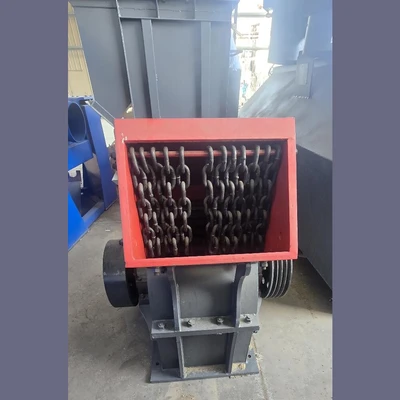

Crusher:
Model: PC400×600
Power: 18.5kW

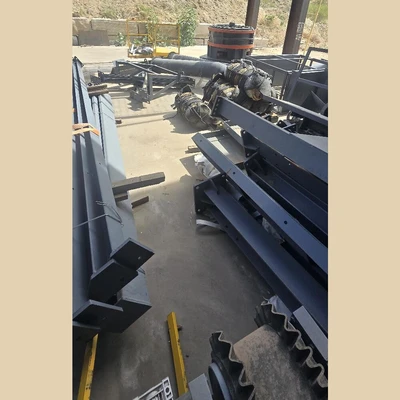

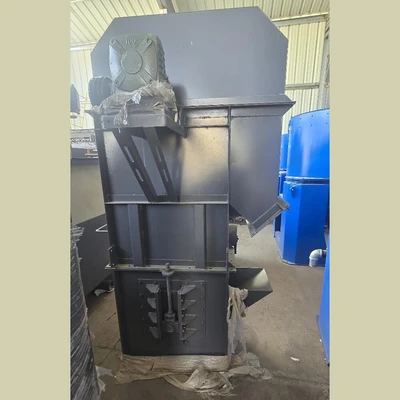

Elevator:
Model: TH-200
Power: 3kW
Vibrating Feeder:
Model: 300×60×1.8 Φ159-1.8
Power: 1.5kW
Discharge Screw Conveyor:
Model: LS219-4.5/LS219-3
Power: 3kW
Discharge Valve:
Model: ZJD-200
Power: 0.75kW×2 / 0.75kW×1

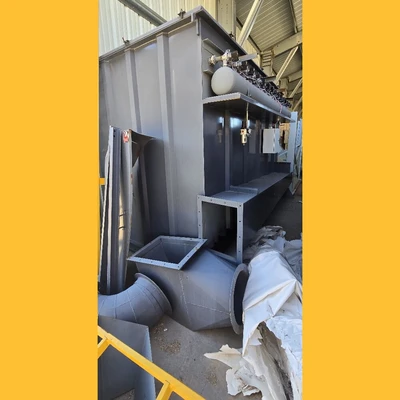

Pulse Dust Collectors
Model: DMC120/DMC160
Air Compressor:
Model: LGY-2.8/8
Power: 15kW
Average Working Diameter: 800mm
Qty. of Ring (Layers): 3
Axial Rotation Speed: 230-240 RPM
Input Size: ≤10mm
Final Product Size Range: 325-2500 Mesh
Capacity: 0.4-4 TPH
Main Motor Power: 75kW
Analytical Engine Power: 18.5kW
Blower Motor Power: 45kW
Crusher:
Model: PC400×600
Power: 18.5kW
Model: PC400×600
Power: 18.5kW
Elevator:
Model: TH-200
Power: 3kW
Model: TH-200
Power: 3kW
Vibrating Feeder:
Model: 300×60×1.8 Φ159-1.8
Power: 1.5kW
Model: 300×60×1.8 Φ159-1.8
Power: 1.5kW
Discharge Screw Conveyor:
Model: LS219-4.5/LS219-3
Power: 3kW
Model: LS219-4.5/LS219-3
Power: 3kW
Discharge Valve:
Model: ZJD-200
Power: 0.75kW×2 / 0.75kW×1
Model: ZJD-200
Power: 0.75kW×2 / 0.75kW×1
Pulse Dust Collectors
Model: DMC120/DMC160
Model: DMC120/DMC160
Air Compressor:
Model: LGY-2.8/8
Power: 15kW
Model: LGY-2.8/8
Power: 15kW
Location: Western USA
