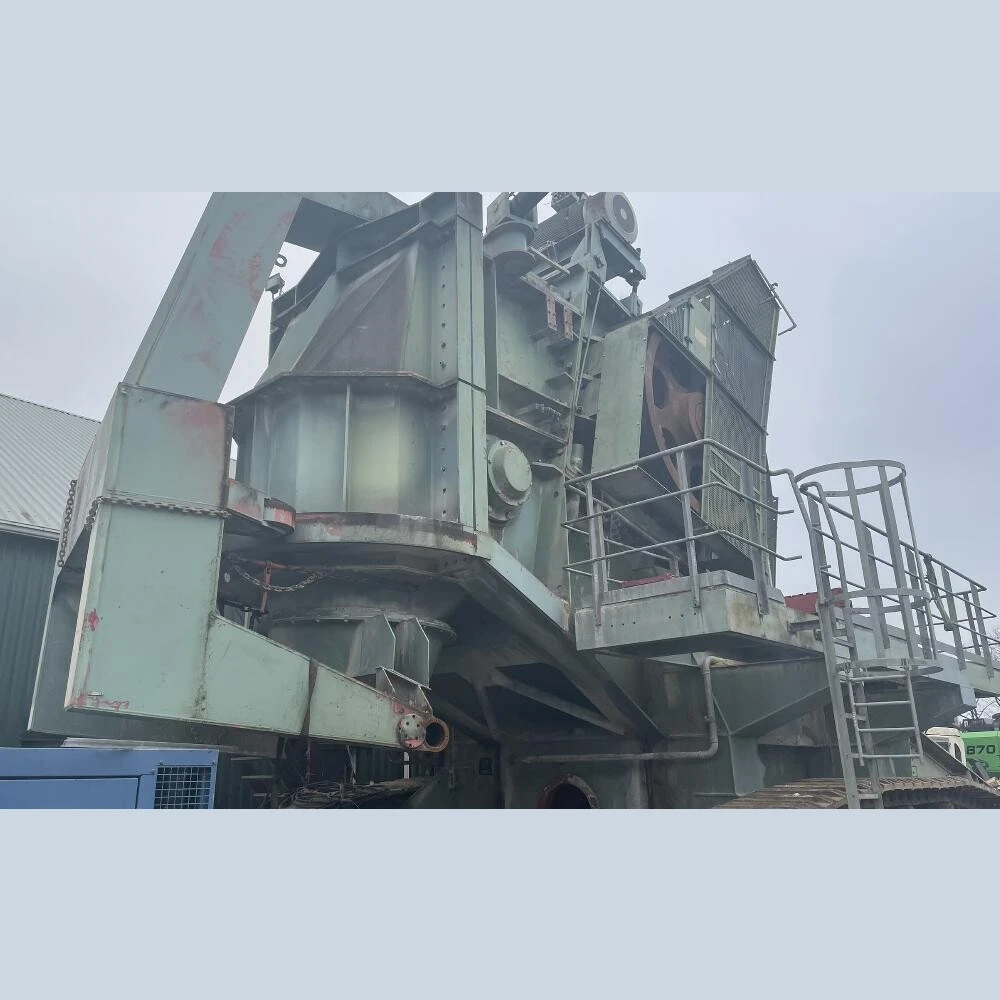

USED 1994 KRUPP FÖRDERTECHNIK SWB 18/18

Krupp SWB 18/18 Primary Impact Roll Crusher
Make: KRUPP FÖRDERTECHNIK
Model: SWB 18/18
Type: Primary Impact Plant
Year: 1994
Condition: Used Condition
Rotor Weight: 26 Tons

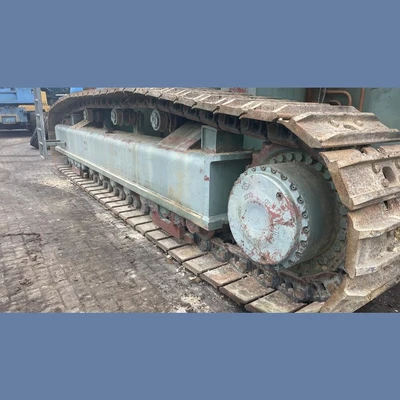

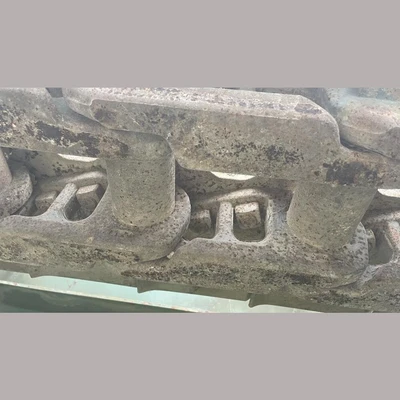

Portable - Mounted on Crawler Tracks
Main Components & Construction of Mobile Krupp Crusher

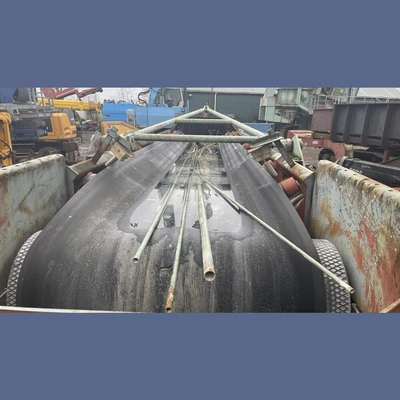

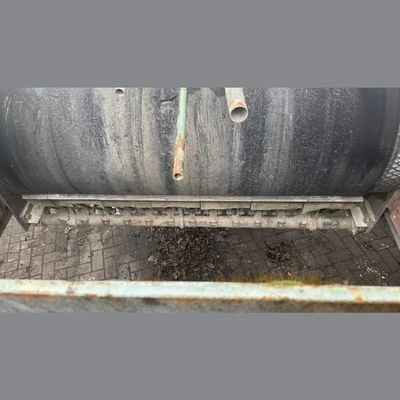

The Feed Hopper is Loaded and Feeds the Crushing Plant with Material (Limestone, Coal, Demolition Waste, Recycling and Natural Stone) The Feed Conveyor conveys the Material from the Feed Hopper through the Impact Roller Crusher. The Crushed Material is transferred with the Swivel Belt (with Hydraulic Height Adjustment)
The Feed Hopper is Loaded and Feeds the Crushing Plant with Material (Limestone, Coal, Demolition Waste, Recycling and Natural Stone) The Feed Conveyor conveys the Material from the Feed Hopper through the Impact Roller Crusher. The Crushed Material is transferred with the Swivel Belt (with Hydraulic Height Adjustment)
Technical Specifications:
Task Material: Limestone, Natural Stone, Coal, Recycling
Max Feed Size: 1,100mm x 1,800mm (43in x 70.5in)
Throughput: 1,000-3,000 TPH
End Grain: 90% 0-250mm, 0-500mm, (0-150mm) Depending on the Height Setting of the Impact Roller
Feed Hopper: Sheet Steel Welded Construction With Strong Ribs, Heating Channels, and a Drag Chain
Capacity: Approx. 30m³
Feed Height: Approx. 4,400mm
Feed Width: Approx. 5,000mm
Max Bucket Width for Feeding: 6,000mm

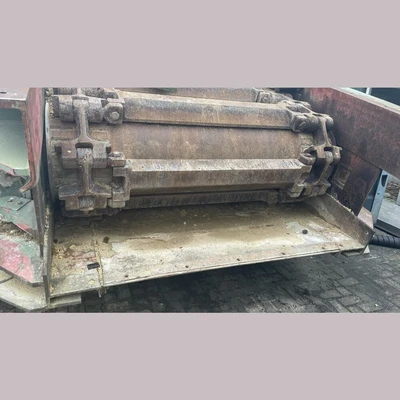

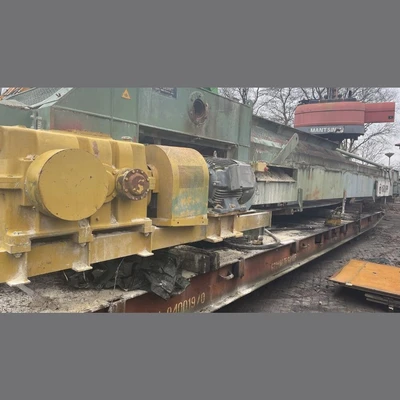

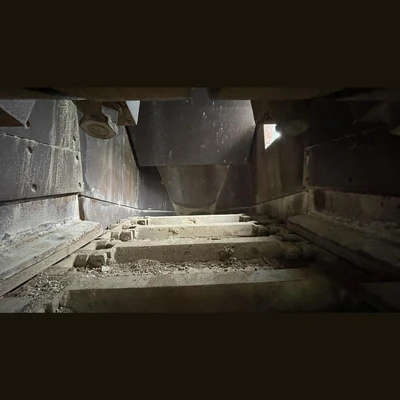

Feed Conveyor: Feed Conveyor pulls the Material from the Feeder and passes through the Impact Roller Crusher
Chain Conveyor Type: OTK 630/1800 x 12800
Conveyor Width: 1,800mm
Center Distance: 12,800mm
Tilt: 13.5°
Pitch Circle Diameter: 630mm
Number of Chain Cords: 2 Pieces
Chain Type: Fork Chain Forged
Conveyor Speed: 0- 10.3 Meters per Minute
Drive: Hydraulic Drive with Hydraulic Motor (132kW Installed Pump Capacity)

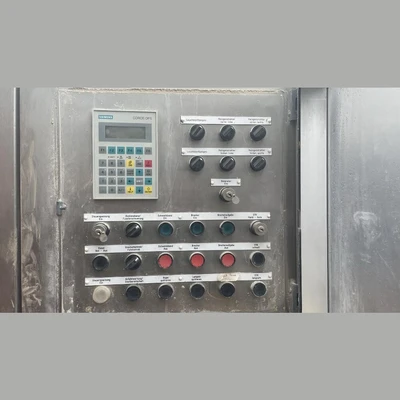

The Speed of the Feed Conveyor and thus the Feed Rate for the Crusher are Automatically Controlled by the Active Power Consumption of the Crusher Motors and Increased or Decreased depending on the Load. If the Load on the Crusher Motors exceeds the Maximum Value, the Feed Conveyor is Stopped for a Period of Time Until the Load has Returned to its Normal Value. This Control with Associated Safety Features ensures Optimal Crusher Loading.
Impact Roll Crusher SWB 18/18:
Main Parts of the Impact Roller Crusher:

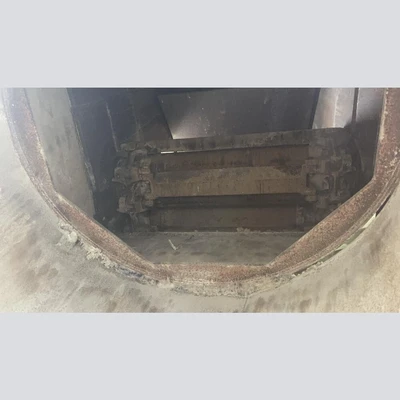

Crusher Housing with Maintenance Flaps

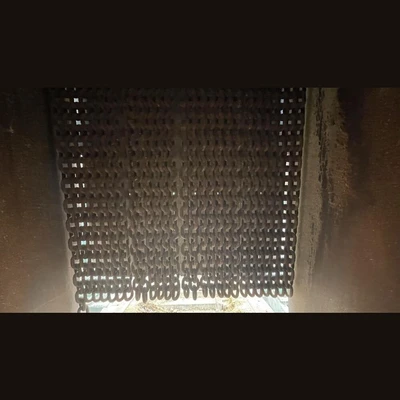

Crusher Inlet with Chain Curtain and Rubber Apron

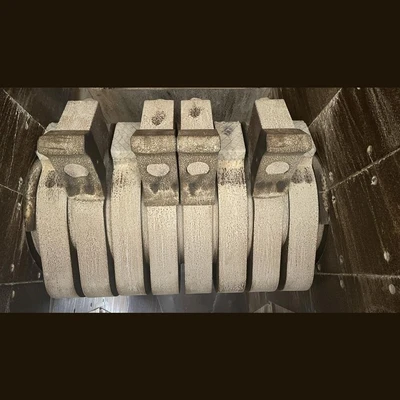

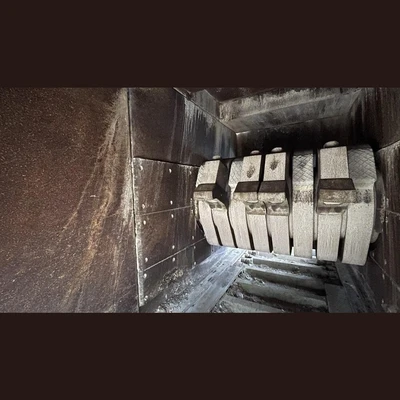

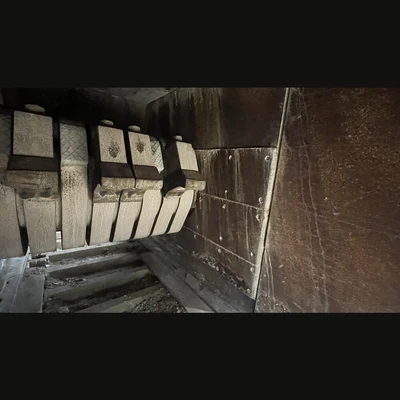

Rotor with Replaceable Manganese Impact Heads
Crusher Outlet with Baffle Plate Guide Plate
Type: SWB 18/18
Rotor Diameter: 1800mm
Rotor Width: 1800mm
Inlet: 1800 x 2200mm
Rotor Weight: 26,000 kgs
Peripheral Speed: Approx. 17m/s, 19m/s or 22m/s

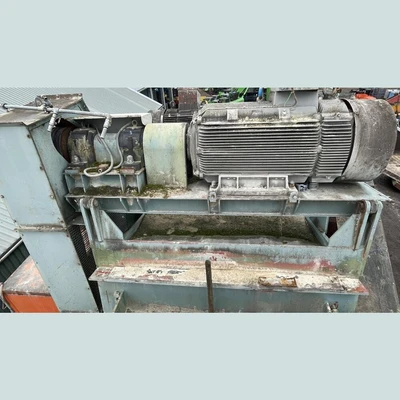

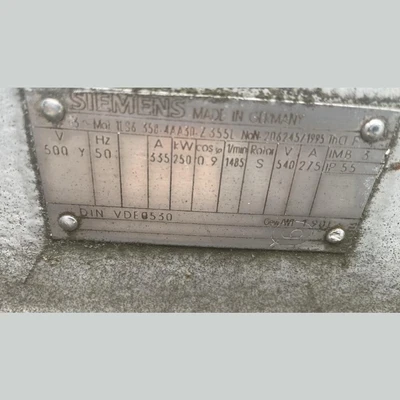

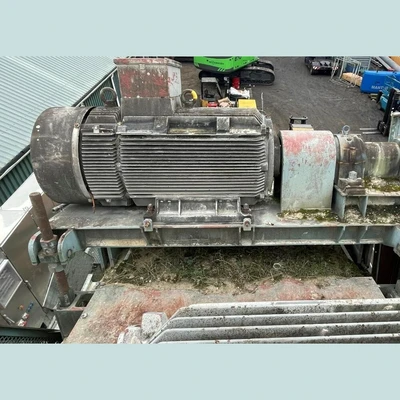

Drive Power: 500kW (2x 250kW)
Motors: Slip Ring Rotor
The Height of the Rotor is Adjusted via Two Hydraulic Cylinders in 50mm Increments, which then Determines the Final Grain Size
Hydraulic System:
Main Parts:
Hydraulic Unit
132kW Pump for Feed Conveyor Drive or Crawler Track
4kW Pump for Swivel and Pull Cylinder of the Swivel Belt and to Raise the Rotor or Lowering to Adjust the Final Grain

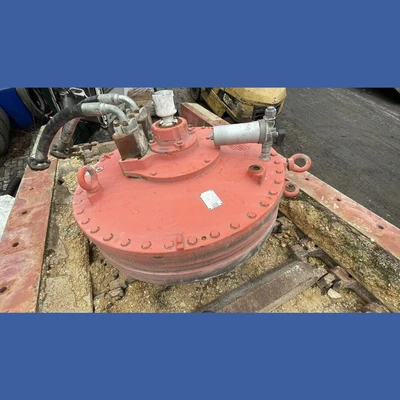

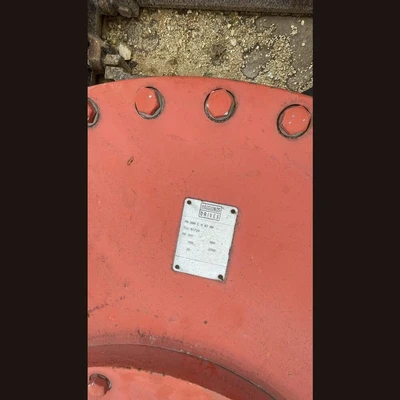

Hägglunds Hydraulic Motor for the Feed Conveyor Drive

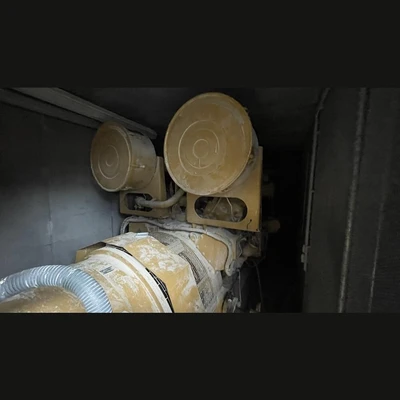

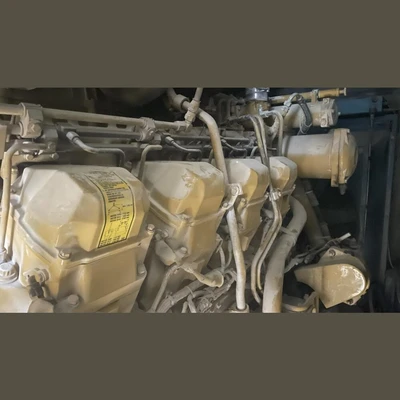

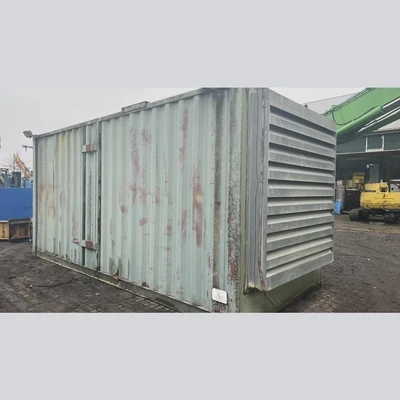

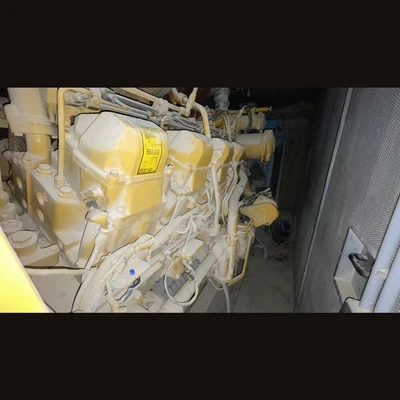

Caterpillar Diesel Generator: CAT 3508TA (B-Series)
Engine:
Maximum Power: 1100HP
Rated Speed: 1800 RPM
Minimum Power: 1000HP
Configuration of Engine: V-8 Four-Stroke Diesel Engine
Intake System with Turbocharging/Intercooling
Caterpillar Generator:
kW/kVA: 800kW (1000kVA)
Rotating Speed: 1500 RPM
Voltage: 400 Volts
Current: 962 Amps
Frequency: 50Hz
Diesel Engine and Generator are Built on a Common Base Frame
Task Material: Limestone, Natural Stone, Coal, Recycling
Max Feed Size: 1,100mm x 1,800mm (43in x 70.5in)
Throughput: 1,000-3,000 TPH
End Grain: 90% 0-250mm, 0-500mm, (0-150mm) Depending on the Height Setting of the Impact Roller
Feed Hopper: Sheet Steel Welded Construction With Strong Ribs, Heating Channels, and a Drag Chain
Capacity: Approx. 30m³
Feed Height: Approx. 4,400mm
Feed Width: Approx. 5,000mm
Max Bucket Width for Feeding: 6,000mm
Capacity: Approx. 30m³
Feed Height: Approx. 4,400mm
Feed Width: Approx. 5,000mm
Max Bucket Width for Feeding: 6,000mm
Feed Conveyor: Feed Conveyor pulls the Material from the Feeder and passes through the Impact Roller Crusher
Chain Conveyor Type: OTK 630/1800 x 12800
Conveyor Width: 1,800mm
Center Distance: 12,800mm
Tilt: 13.5°
Pitch Circle Diameter: 630mm
Number of Chain Cords: 2 Pieces
Chain Type: Fork Chain Forged
Conveyor Speed: 0- 10.3 Meters per Minute
Drive: Hydraulic Drive with Hydraulic Motor (132kW Installed Pump Capacity)
The Speed of the Feed Conveyor and thus the Feed Rate for the Crusher are Automatically Controlled by the Active Power Consumption of the Crusher Motors and Increased or Decreased depending on the Load. If the Load on the Crusher Motors exceeds the Maximum Value, the Feed Conveyor is Stopped for a Period of Time Until the Load has Returned to its Normal Value. This Control with Associated Safety Features ensures Optimal Crusher Loading.
Chain Conveyor Type: OTK 630/1800 x 12800
Conveyor Width: 1,800mm
Center Distance: 12,800mm
Tilt: 13.5°
Pitch Circle Diameter: 630mm
Number of Chain Cords: 2 Pieces
Chain Type: Fork Chain Forged
Conveyor Speed: 0- 10.3 Meters per Minute
Drive: Hydraulic Drive with Hydraulic Motor (132kW Installed Pump Capacity)
The Speed of the Feed Conveyor and thus the Feed Rate for the Crusher are Automatically Controlled by the Active Power Consumption of the Crusher Motors and Increased or Decreased depending on the Load. If the Load on the Crusher Motors exceeds the Maximum Value, the Feed Conveyor is Stopped for a Period of Time Until the Load has Returned to its Normal Value. This Control with Associated Safety Features ensures Optimal Crusher Loading.
Impact Roll Crusher SWB 18/18:
Main Parts of the Impact Roller Crusher:
Crusher Housing with Maintenance Flaps
Crusher Inlet with Chain Curtain and Rubber Apron
Rotor with Replaceable Manganese Impact Heads
Crusher Outlet with Baffle Plate Guide Plate
Type: SWB 18/18
Rotor Diameter: 1800mm
Rotor Width: 1800mm
Inlet: 1800 x 2200mm
Rotor Weight: 26,000 kgs
Peripheral Speed: Approx. 17m/s, 19m/s or 22m/s
Drive Power: 500kW (2x 250kW)
Motors: Slip Ring Rotor
The Height of the Rotor is Adjusted via Two Hydraulic Cylinders in 50mm Increments, which then Determines the Final Grain Size
Main Parts of the Impact Roller Crusher:
Crusher Housing with Maintenance Flaps
Crusher Inlet with Chain Curtain and Rubber Apron
Rotor with Replaceable Manganese Impact Heads
Crusher Outlet with Baffle Plate Guide Plate
Crusher Housing with Maintenance Flaps
Crusher Inlet with Chain Curtain and Rubber Apron
Rotor with Replaceable Manganese Impact Heads
Crusher Outlet with Baffle Plate Guide Plate
Type: SWB 18/18
Rotor Diameter: 1800mm
Rotor Width: 1800mm
Inlet: 1800 x 2200mm
Rotor Weight: 26,000 kgs
Peripheral Speed: Approx. 17m/s, 19m/s or 22m/s
Drive Power: 500kW (2x 250kW)
Motors: Slip Ring Rotor
The Height of the Rotor is Adjusted via Two Hydraulic Cylinders in 50mm Increments, which then Determines the Final Grain Size
Hydraulic System:
Main Parts:
Hydraulic Unit
132kW Pump for Feed Conveyor Drive or Crawler Track
4kW Pump for Swivel and Pull Cylinder of the Swivel Belt and to Raise the Rotor or Lowering to Adjust the Final Grain
Hägglunds Hydraulic Motor for the Feed Conveyor Drive
Main Parts:
Hydraulic Unit
132kW Pump for Feed Conveyor Drive or Crawler Track
4kW Pump for Swivel and Pull Cylinder of the Swivel Belt and to Raise the Rotor or Lowering to Adjust the Final Grain
Hägglunds Hydraulic Motor for the Feed Conveyor Drive
Hydraulic Unit
132kW Pump for Feed Conveyor Drive or Crawler Track
4kW Pump for Swivel and Pull Cylinder of the Swivel Belt and to Raise the Rotor or Lowering to Adjust the Final Grain
Hägglunds Hydraulic Motor for the Feed Conveyor Drive
Caterpillar Diesel Generator: CAT 3508TA (B-Series)
Engine:
Maximum Power: 1100HP
Rated Speed: 1800 RPM
Minimum Power: 1000HP
Configuration of Engine: V-8 Four-Stroke Diesel Engine
Intake System with Turbocharging/Intercooling
Caterpillar Generator:
kW/kVA: 800kW (1000kVA)
Rotating Speed: 1500 RPM
Voltage: 400 Volts
Current: 962 Amps
Frequency: 50Hz
Diesel Engine and Generator are Built on a Common Base Frame
Engine:
Maximum Power: 1100HP
Rated Speed: 1800 RPM
Minimum Power: 1000HP
Configuration of Engine: V-8 Four-Stroke Diesel Engine
Intake System with Turbocharging/Intercooling
Maximum Power: 1100HP
Rated Speed: 1800 RPM
Minimum Power: 1000HP
Configuration of Engine: V-8 Four-Stroke Diesel Engine
Intake System with Turbocharging/Intercooling
Caterpillar Generator:
kW/kVA: 800kW (1000kVA)
Rotating Speed: 1500 RPM
Voltage: 400 Volts
Current: 962 Amps
Frequency: 50Hz
Diesel Engine and Generator are Built on a Common Base Frame
kW/kVA: 800kW (1000kVA)
Rotating Speed: 1500 RPM
Voltage: 400 Volts
Current: 962 Amps
Frequency: 50Hz
Diesel Engine and Generator are Built on a Common Base Frame
Location: Europe
