USED 1990 CEDARAPIDS SP270D3PCU

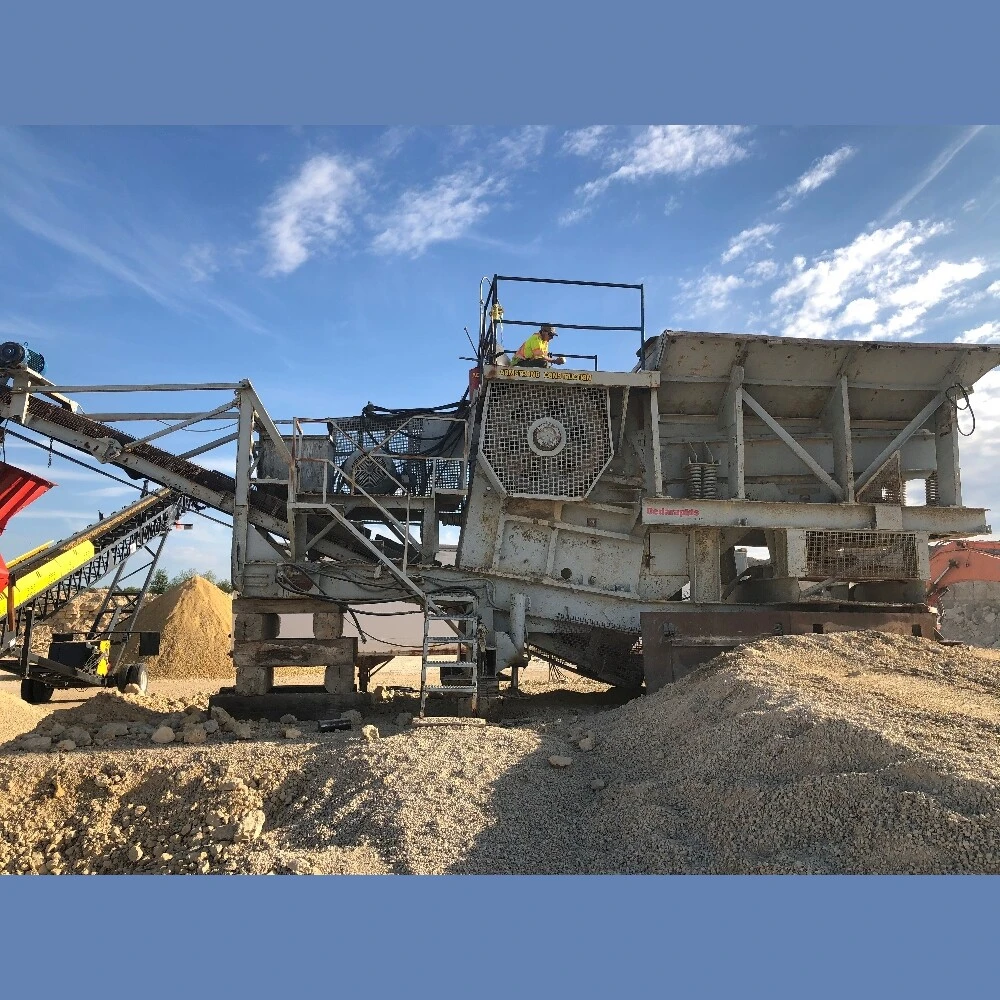

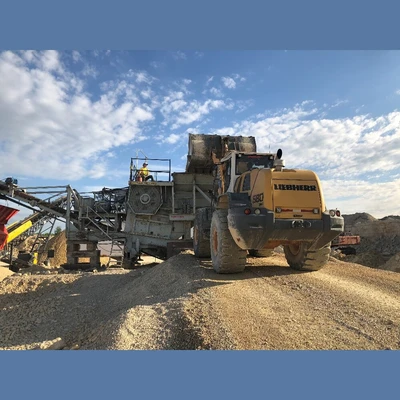

Cedarapids 25x40 Jaw Crusher Plant
Make: Cedarapids
Size: 25in x 40in
Deep Jaw Version
Deep Jaw Version
Year: 1990's Vintage
Condition: Used, Reported in Good Condition
Feed Size: 22.5in x 36in
Discharge Size:
Min: 3.5in
Max: 10in
Min: 3.5in
Max: 10in
Capacity: 225-325 TPH @ 10in Discharge, 75-125 TPH @ 3.5in Discharge
Drive: 150HP
Voltage: 600 Volts
Voltage: 600 Volts

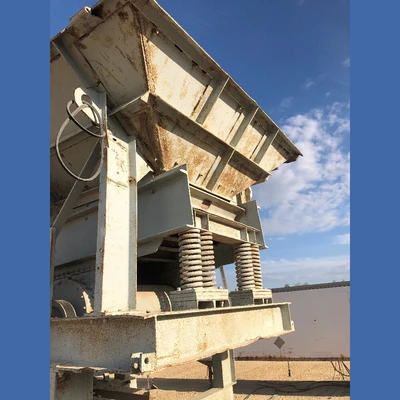

Vibrating Grizzly Feeder
Size: 4ft x 16ft
Drive: 40HP Electric Motor
Voltage: 600 Volts
Size: 4ft x 16ft
Drive: 40HP Electric Motor
Voltage: 600 Volts
Discharge Conveyor:
36in Wide x 20ft Long
With New Belt (Not Installed)
36in Wide x 20ft Long
With New Belt (Not Installed)

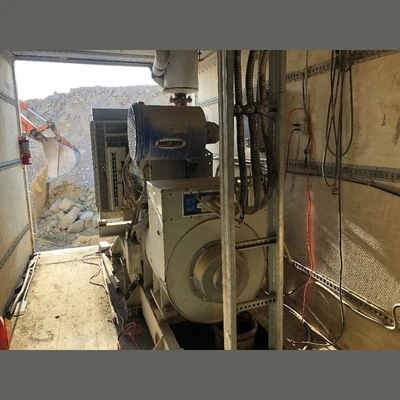

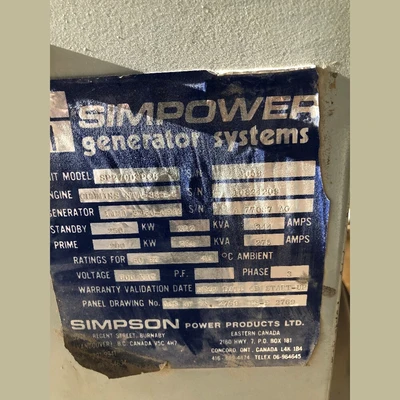

Generator Trailer:
Make: Simpower
Model: SP270D3PCU
Engine: Cummins NTA-855-G
Generator End: LIMA 3150-0949
Duty: Standby or Prime
kVA/kW:
Standby: 250kW (312kVA)
Prime: 200kW (250kVA)
Voltage: 600 VAC
Current:
Standby: 344 Amps
Prime: 275 Amps
Frequency: 60Hz
Phase: 3-Phase

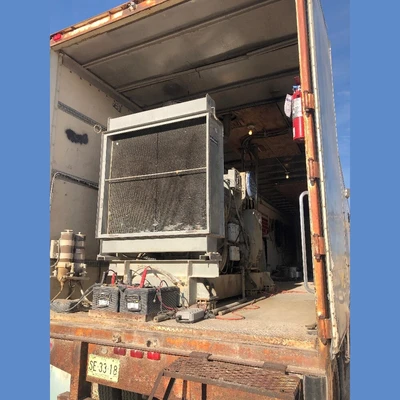

Mounted on Skid, Installed into Trailer

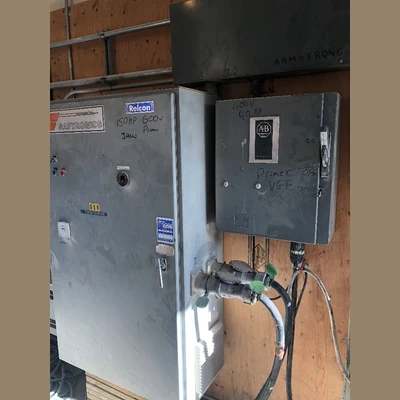

With Switchgear for Jaw Crusher and Vibrating Feeder
Make: Simpower
Model: SP270D3PCU
Engine: Cummins NTA-855-G
Generator End: LIMA 3150-0949
Duty: Standby or Prime
kVA/kW:
Standby: 250kW (312kVA)
Prime: 200kW (250kVA)
Standby: 250kW (312kVA)
Prime: 200kW (250kVA)
Voltage: 600 VAC
Current:
Standby: 344 Amps
Prime: 275 Amps
Standby: 344 Amps
Prime: 275 Amps
Frequency: 60Hz
Phase: 3-Phase
Mounted on Skid, Installed into Trailer
With Switchgear for Jaw Crusher and Vibrating Feeder
Location: Central Canada
