USED TELSMITH 367S

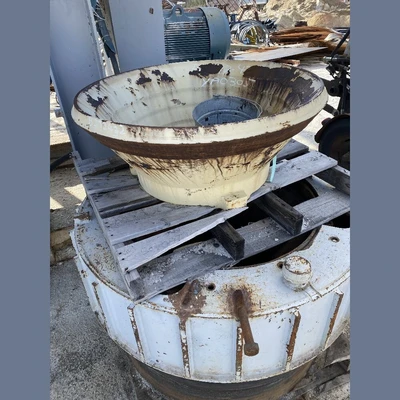

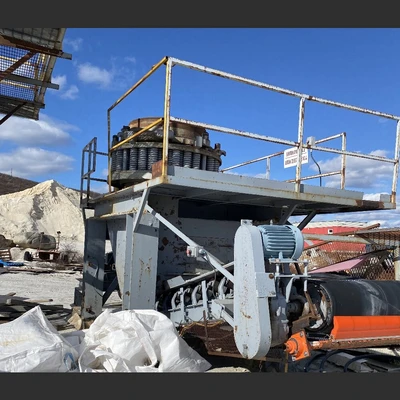

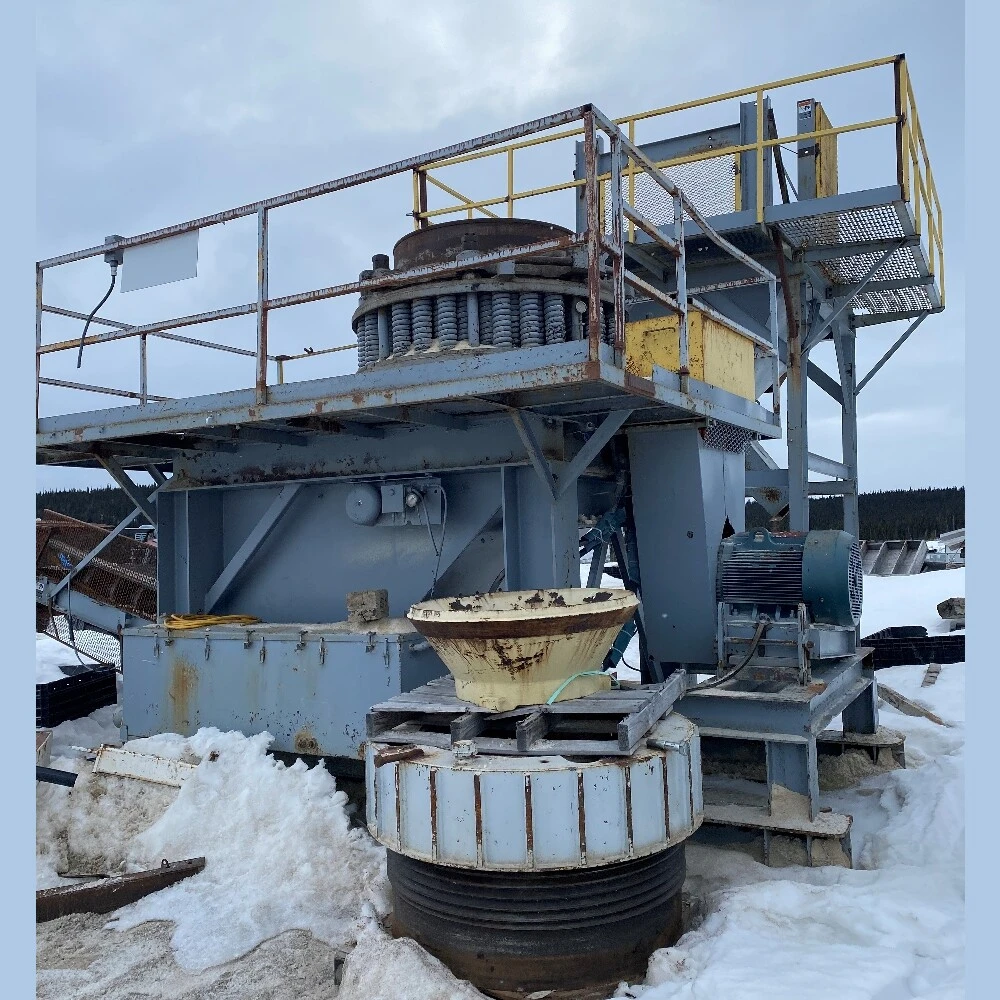

Telsmith Gyrasphere 367S (D Series) Cone Crusher
Make: Telsmith
Model: 367S
Series: D Series
Style: S - Coarse Crushing Cone
Condition: Used, Reported in Good Condition
Max Feed: 7in
Min/Max Discharge: 0.75in - 2in
Max Capacity: 71 TPH@ 0.75in Discharge, 110 TPH@2in Discharge

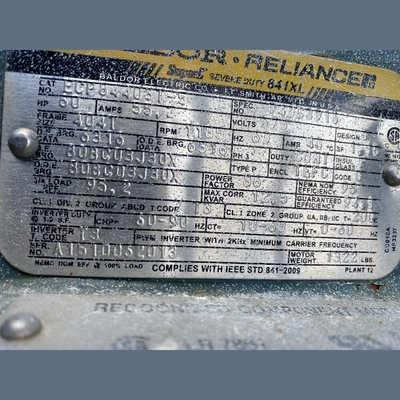

Drive: Baldor-Reliance TEFC Motor
Model: ECP84403T-5
Power Output: 60HP
RPM: 1185
Voltage: 575 Volts
Frequency: 60Hz
Phase: 3-Phase
Model: ECP84403T-5
Power Output: 60HP
RPM: 1185
Voltage: 575 Volts
Frequency: 60Hz
Phase: 3-Phase
Overall Dimensions:
Length: 81.5in
Width: 81.5in
Height: 83.875in
Weight: 25,000 Lbs.
Length: 81.5in
Width: 81.5in
Height: 83.875in
Weight: 25,000 Lbs.
Included:
Structure
Conveyor Under Crusher
Structure
Conveyor Under Crusher
Location: Eastern Canada
