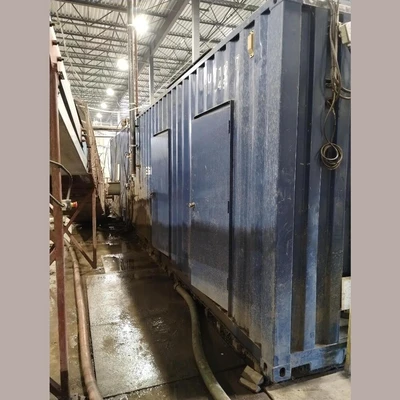

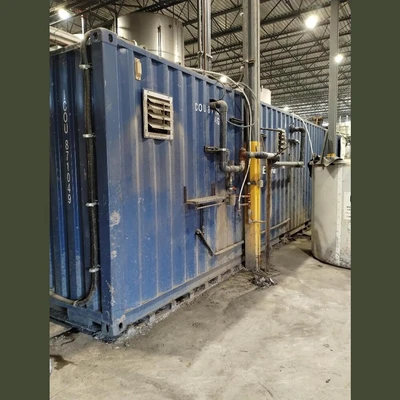

USED ELGIN CLEARWAVE 40™ CONTAINERIZED DEWATERING SYSTEM

Elgin ClearWave 40™ Containerized Dewatering System
Make: Elgin
Model: ClearWave 40™ Containerized Dewatering System
Condition: Used Condition
Overview of Unit Features:
Compact Design for Small Footprint

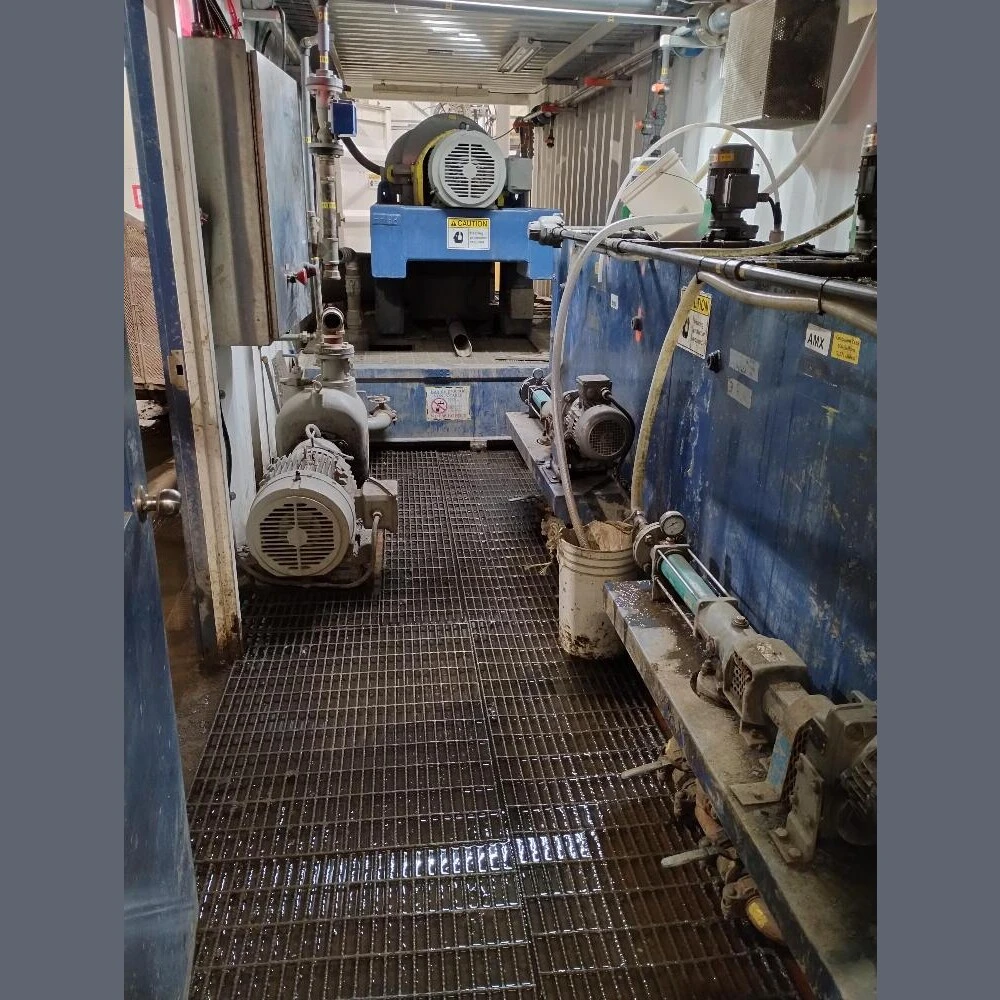

Progressive Cavity Centrifuge Feed Pump for Homogeneous Feed

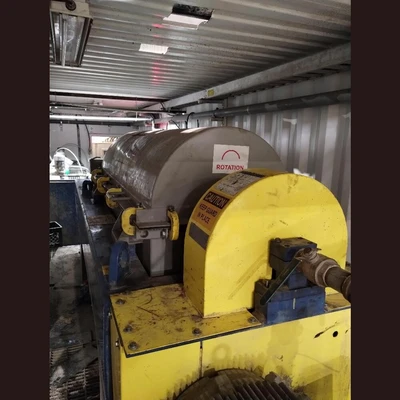

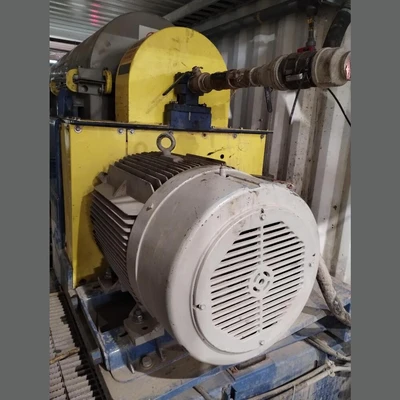

Apex 19FVFD™ Decanter Centrifuge Capable of Producing 2,600 G’s of Force
12in Shafted Screw Conveyor for Easy Cuttings Discharge

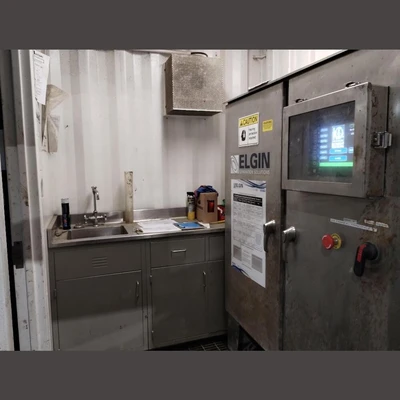

Easy to Use VFD HMI Control Panel with Proprietary Touch Screen Interface
Isolated Mud Testing Lab

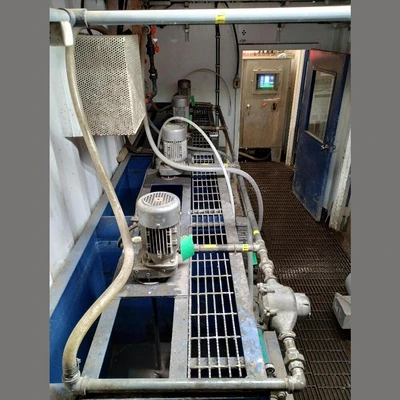

Top Mounted Polymer Tank Agitators and PC Injection Pumps
Integrated Plumbing to Achieve Hydration Residence Time
Compact Design for Small Footprint
Progressive Cavity Centrifuge Feed Pump for Homogeneous Feed
Apex 19FVFD™ Decanter Centrifuge Capable of Producing 2,600 G’s of Force
12in Shafted Screw Conveyor for Easy Cuttings Discharge
Easy to Use VFD HMI Control Panel with Proprietary Touch Screen Interface
Isolated Mud Testing Lab
Top Mounted Polymer Tank Agitators and PC Injection Pumps
Integrated Plumbing to Achieve Hydration Residence Time
View Spec Sheet Below
General Model Specifications:
Length: 40ft (12.14m)
Width: 8ft (2.4m)
Height: 9.5ft (2.9m)
Centrifuge: Apex 19FVFD
Max G-Force: 2,600
Max Speed: 3,100 RPM
Capacity: 500 GPM (31.5 LPS)
Bowl Construction: Stainless Steel
Bowl Diameter: 18.5in Ø (470mm)
Bowl Length: 67in (1,702mm)
Weight: 11,500 lbs. (5,216 kg)
Gearbox Ratio: 80:1
Coagulant Tank: (2) 300 Gallon (2,271 liters)
Flocculant Tank: (2) 300 Gallon (2,271 liters)
Dissolution/Transfer Tank: 1,500 gallon (5,678 liters)
Tank Agitators: (4) 1HP
Electrical: 380V/50Hz or 460V/60Hz – 3 Phase
Length: 40ft (12.14m)
Width: 8ft (2.4m)
Height: 9.5ft (2.9m)
Centrifuge: Apex 19FVFD
Max G-Force: 2,600
Max Speed: 3,100 RPM
Capacity: 500 GPM (31.5 LPS)
Bowl Construction: Stainless Steel
Bowl Diameter: 18.5in Ø (470mm)
Bowl Length: 67in (1,702mm)
Weight: 11,500 lbs. (5,216 kg)
Gearbox Ratio: 80:1
Max G-Force: 2,600
Max Speed: 3,100 RPM
Capacity: 500 GPM (31.5 LPS)
Bowl Construction: Stainless Steel
Bowl Diameter: 18.5in Ø (470mm)
Bowl Length: 67in (1,702mm)
Weight: 11,500 lbs. (5,216 kg)
Gearbox Ratio: 80:1
Coagulant Tank: (2) 300 Gallon (2,271 liters)
Flocculant Tank: (2) 300 Gallon (2,271 liters)
Dissolution/Transfer Tank: 1,500 gallon (5,678 liters)
Tank Agitators: (4) 1HP
Electrical: 380V/50Hz or 460V/60Hz – 3 Phase
Location: Eastern Canada
