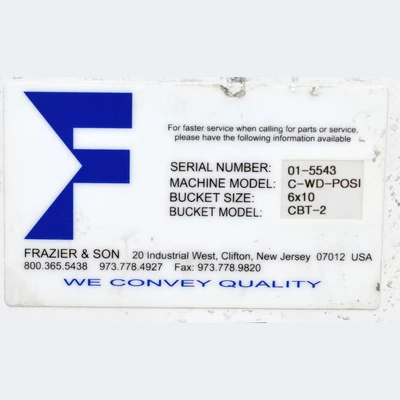

Model: C-W-D-POSI
Bucket Size: 6 in. x 10 in.
Bucket Model: CBT2
Chain Drive

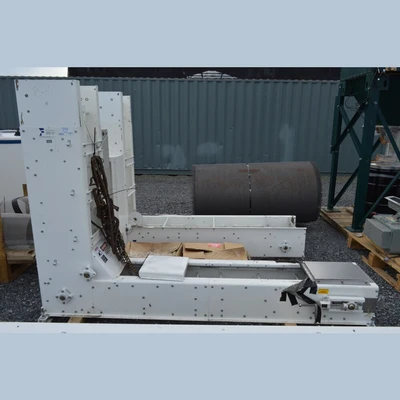

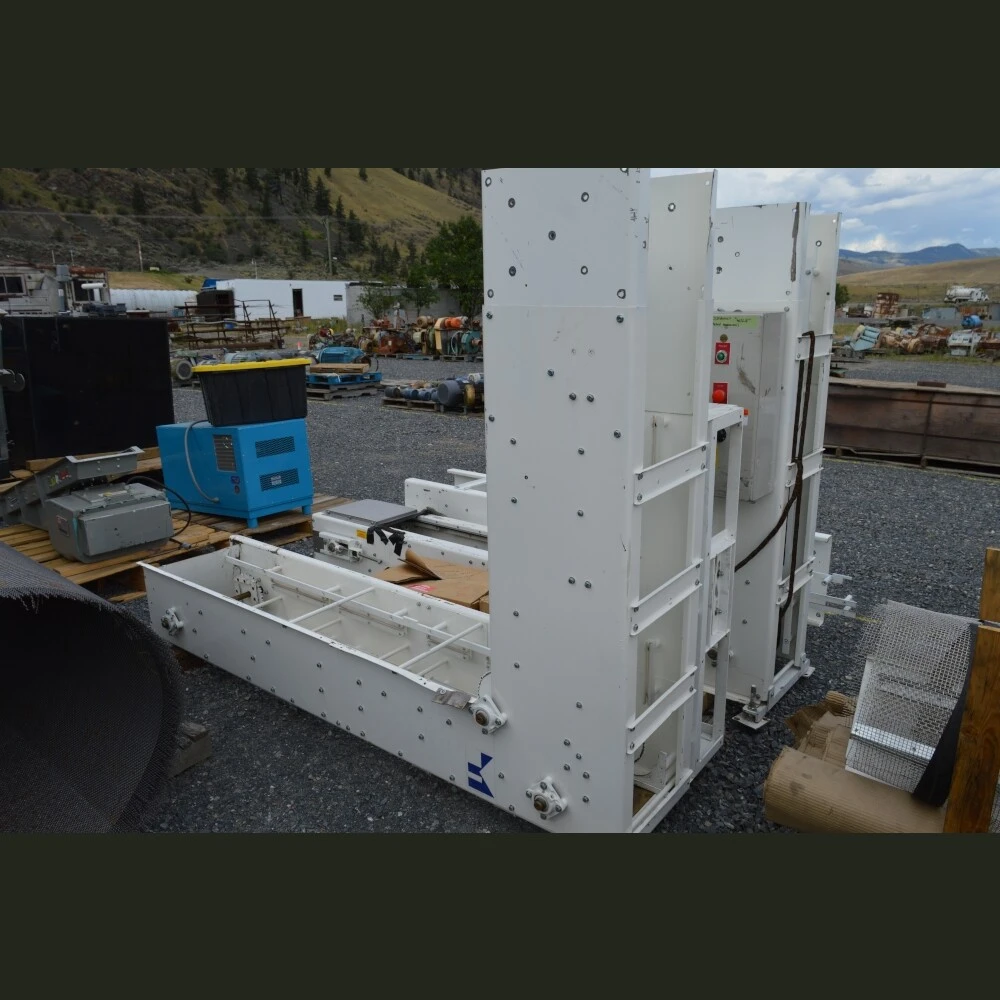

Vertical section 17 ft.
Overall Dimensions: 17 ft. High x 17 in. Wide x 17 in. Deep
Overall Dimensions: 17 ft. High x 17 in. Wide x 17 in. Deep

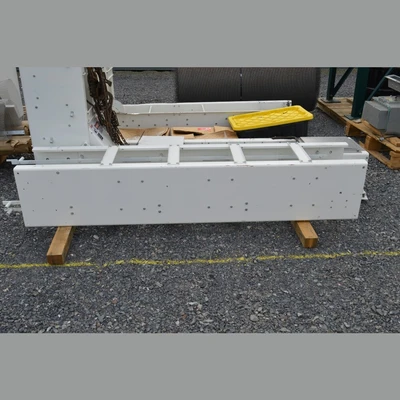

Horizontal sections 8 ft.
Bottom Leg: 8 ft. long x 17 in. Wide x 17 in. Deep
Top Leg: 8 ft. Long x 17 in. Wide x 17 in. Deep
Bottom Leg: 8 ft. long x 17 in. Wide x 17 in. Deep
Top Leg: 8 ft. Long x 17 in. Wide x 17 in. Deep
Buckets Chain Driven.

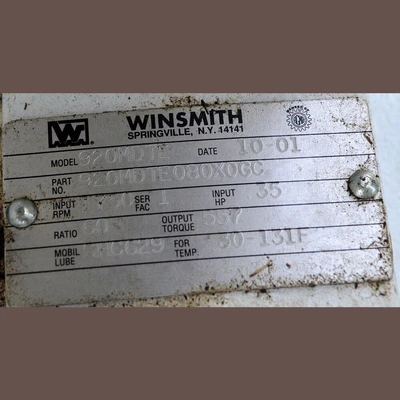

Winsmith Gearhead Reducer
Model: 920MDTE
Ratio: 60:1
Model: 920MDTE
Ratio: 60:1

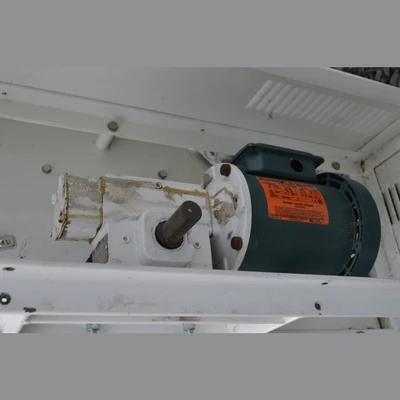

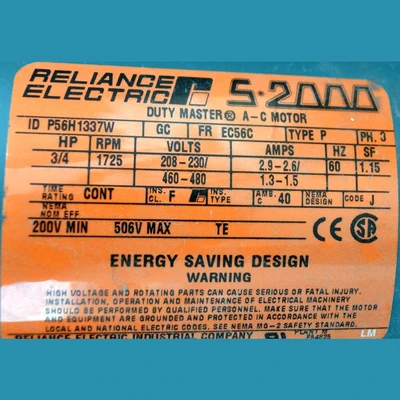

Reliance Motor
3/4 HP
VAC: 208-230/460
RPM: 1725
3/4 HP
VAC: 208-230/460
RPM: 1725

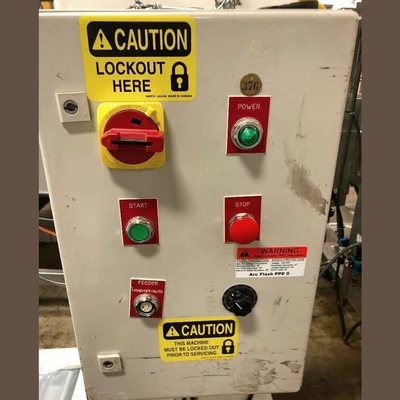

Electrical Control Box Complete With:
Main Power Disconnect
Start/Stop
Emergency Shut Down
Main Power Disconnect
Start/Stop
Emergency Shut Down

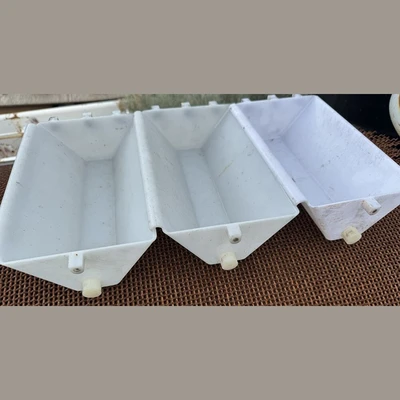

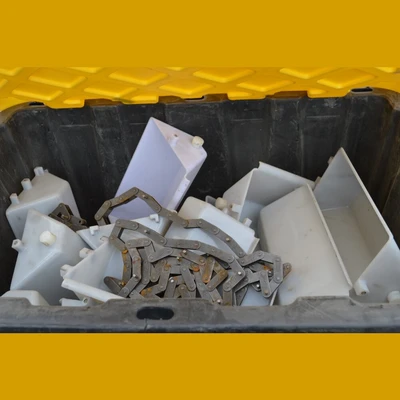

6 in. x 10 in. Buckets
3 in. Deep

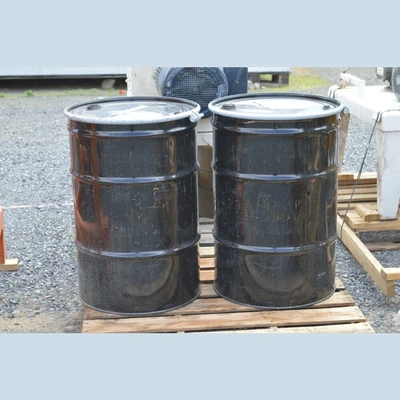

2 x 50 Gallon Drums Full of buckets
3 in. Deep
2 x 50 Gallon Drums Full of buckets
1 Box of Conveyor Covers
Location: British Columbia, Canada
