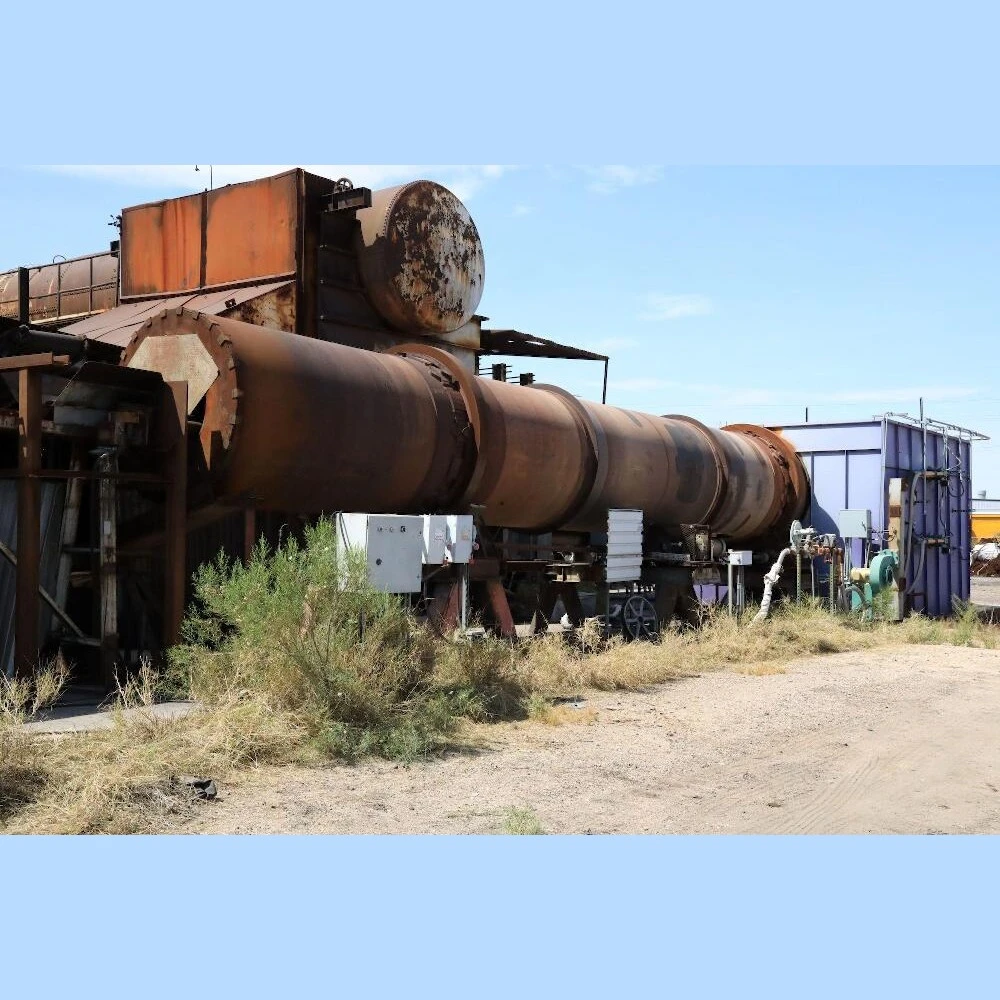

6ft Dia. x 45ft Long Rotary Kiln Incinerator Package

6ft Dia. x 45ft Long Rotary Kiln Incinerator Package
Make: Kippco
Type: Rotary Kiln Incinerator System
Fuel: Natural Gas
Condition: Used Condition

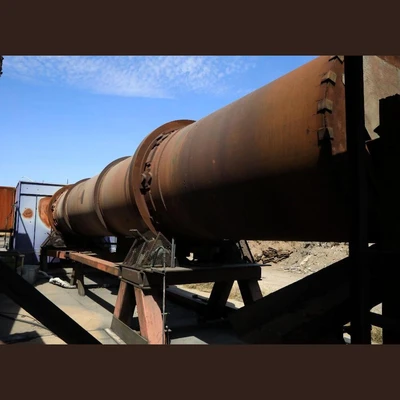

Rotary Kiln: Primary Chamber - Sun Mechanical & Phillips Kiln Services
Quantity: (2) Units
Internal Dimensions: 6ft Dia. x 45ft Long
External Dimensions: 6.05ft Dia. x 45ft Long
Shell Thickness: 0.5in

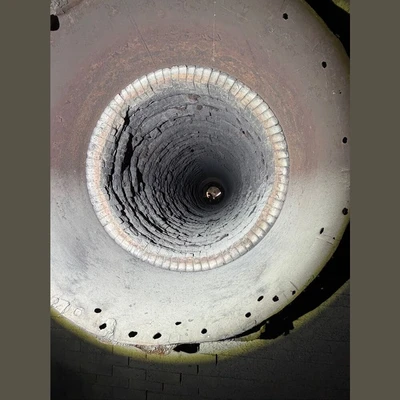

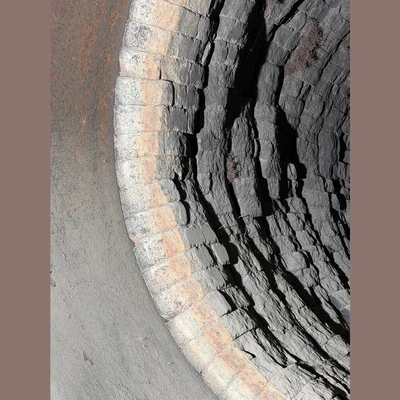

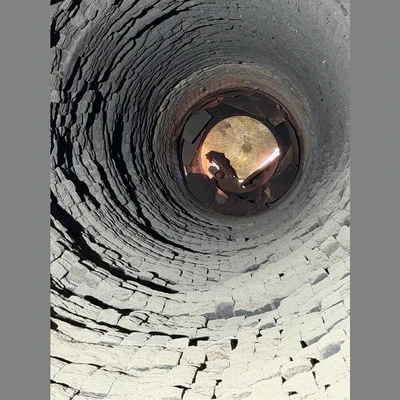

Liners: Firebrick Refractory Lining

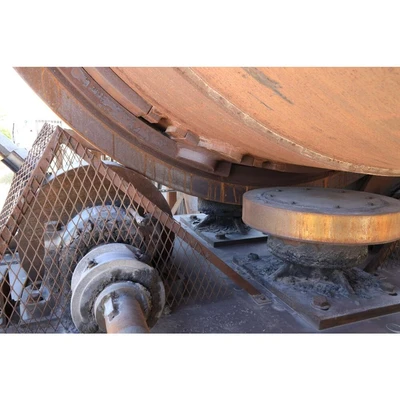

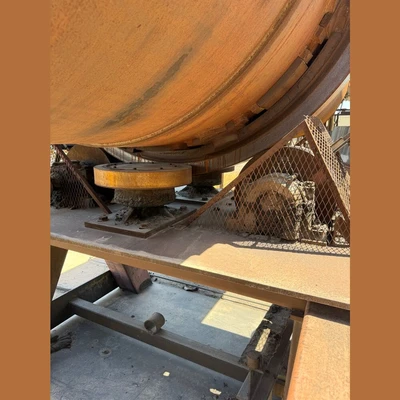

Mounted on Steel Frame with Riding Rings and Trunnion Rollers:

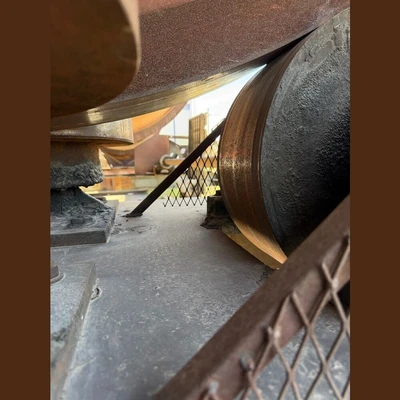

Trunnion Rollers: 20in Dia. x 9in Wide

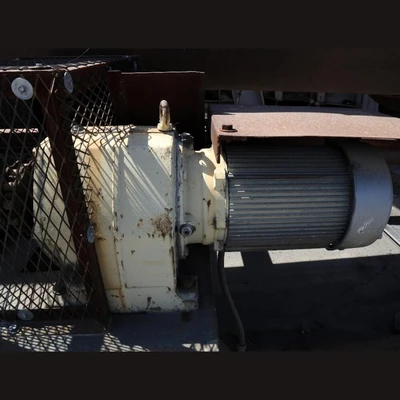

Drive: Electric Motor and Speed Reducer - Gear Drive
Motor: U.S. Electrical Motors (Emerson)
Power Output: 10HP
Rotating Speed: 1755 RPM
Voltage: 230/460 Volts
Current: 27.2/13.6 Amps
Frequency: 60 Hz
Gear Reducer:
Model: CBN25025BS Series
HP Input Rating: 10HP
Speed Input: 1750 RPM
Ratio: 25:1

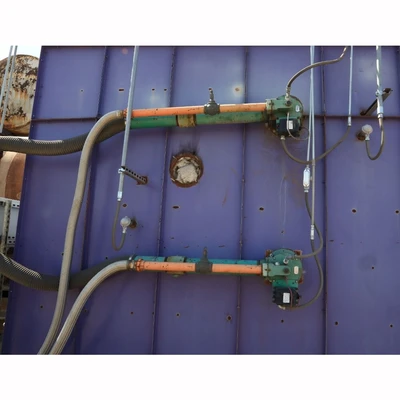

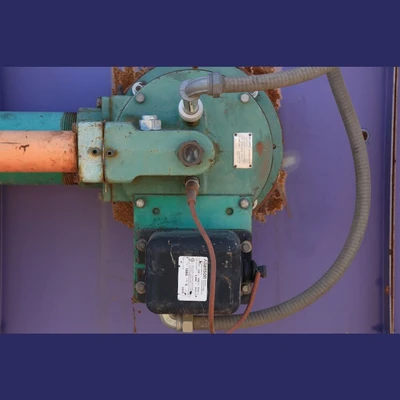

Primary Gas Burner with Combustion Air Motor
Make: Incinomite by Midco
Model: J83DS
Fuel: Natural Gas
Voltage: 120V/60Hz
Max BTU: 800,000
Min BTU: 100,000
Inlet Pressure: 5"–14" W.C.
Gas Valve: Basotrol H91LG-12, 25V/60Hz, 1/2 PSI, CSA listed
Combustion Air Motor: 1HP Fractional Motor
Quantity: (2) Units
Internal Dimensions: 6ft Dia. x 45ft Long
External Dimensions: 6.05ft Dia. x 45ft Long
Shell Thickness: 0.5in
Liners: Firebrick Refractory Lining
Mounted on Steel Frame with Riding Rings and Trunnion Rollers:
Trunnion Rollers: 20in Dia. x 9in Wide
Trunnion Rollers: 20in Dia. x 9in Wide
Drive: Electric Motor and Speed Reducer - Gear Drive
Motor: U.S. Electrical Motors (Emerson)
Power Output: 10HP
Rotating Speed: 1755 RPM
Voltage: 230/460 Volts
Current: 27.2/13.6 Amps
Frequency: 60 Hz
Gear Reducer:
Model: CBN25025BS Series
HP Input Rating: 10HP
Speed Input: 1750 RPM
Ratio: 25:1
Motor: U.S. Electrical Motors (Emerson)
Power Output: 10HP
Rotating Speed: 1755 RPM
Voltage: 230/460 Volts
Current: 27.2/13.6 Amps
Frequency: 60 Hz
Power Output: 10HP
Rotating Speed: 1755 RPM
Voltage: 230/460 Volts
Current: 27.2/13.6 Amps
Frequency: 60 Hz
Gear Reducer:
Model: CBN25025BS Series
HP Input Rating: 10HP
Speed Input: 1750 RPM
Ratio: 25:1
Model: CBN25025BS Series
HP Input Rating: 10HP
Speed Input: 1750 RPM
Ratio: 25:1
Primary Gas Burner with Combustion Air Motor
Make: Incinomite by Midco
Model: J83DS
Fuel: Natural Gas
Voltage: 120V/60Hz
Max BTU: 800,000
Min BTU: 100,000
Inlet Pressure: 5"–14" W.C.
Gas Valve: Basotrol H91LG-12, 25V/60Hz, 1/2 PSI, CSA listed
Combustion Air Motor: 1HP Fractional Motor
Make: Incinomite by Midco
Model: J83DS
Fuel: Natural Gas
Voltage: 120V/60Hz
Max BTU: 800,000
Min BTU: 100,000
Inlet Pressure: 5"–14" W.C.
Gas Valve: Basotrol H91LG-12, 25V/60Hz, 1/2 PSI, CSA listed
Combustion Air Motor: 1HP Fractional Motor
Afterburner:
Quantity: (1) Unit
Enclosure: Steel Housing
Burners: (2) Eclipse Gas Burners
Fuel: Natural Gas
Allanson Ignition Transformers:
Primary Voltage: 120 Volts
Secondary Voltage: 10,000 Volts
Current: 23mA

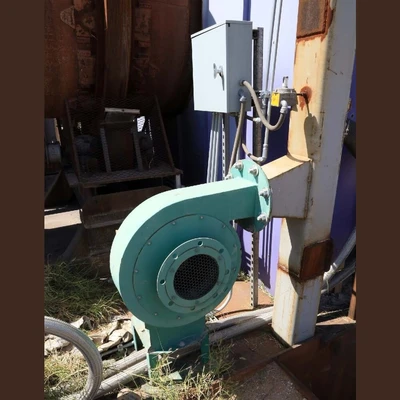

Blower: Centrifugal Combustion Air Blower
Pressure Switch: Antunes JD-2 Pressure Switch
Quantity: (1) Unit
Enclosure: Steel Housing
Burners: (2) Eclipse Gas Burners
Fuel: Natural Gas
Fuel: Natural Gas
Allanson Ignition Transformers:
Primary Voltage: 120 Volts
Secondary Voltage: 10,000 Volts
Current: 23mA
Primary Voltage: 120 Volts
Secondary Voltage: 10,000 Volts
Current: 23mA
Blower: Centrifugal Combustion Air Blower
Pressure Switch: Antunes JD-2 Pressure Switch
Gas Train with Safety Controls:
Pressure Regulator: Sensus 243-12 Natural Gas Pressure Regulator - Main Supply Line
Valves: Double-Block Gas Solenoid Valve Arrangement
Antunes JD-2 Low Gas Pressure Safety Switch
Antunes RHLGP-A Combination High/Low Gas Pressure Switch
High: Up To 50in W.C.
Low: Up To 24in W.C.
Controls: Flame Safeguard Controller - Burner Management
Pressure Regulator: Sensus 243-12 Natural Gas Pressure Regulator - Main Supply Line
Valves: Double-Block Gas Solenoid Valve Arrangement
Antunes JD-2 Low Gas Pressure Safety Switch
Antunes RHLGP-A Combination High/Low Gas Pressure Switch
High: Up To 50in W.C.
Low: Up To 24in W.C.
High: Up To 50in W.C.
Low: Up To 24in W.C.
Controls: Flame Safeguard Controller - Burner Management
Also Available: (2) Spare Eclipse Burner Assemblies - Sold Separately
Location: Western USA
