Length Distance Between Inlet & Discharge: 13 ft.
Enclosure Width: 14 in.
Type: Chain

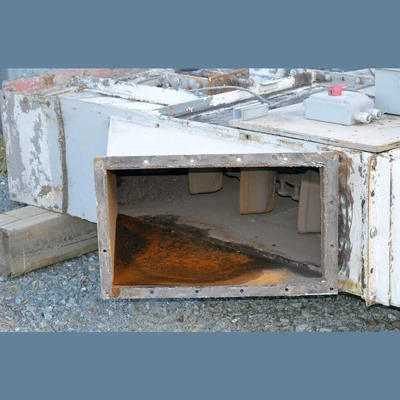

Inlet Dimensions: 15 in. x 26 in.
Discharge Dimensions: 12 in. x 15 in.
Base to Center of Inlet: 4 ft. 3 in.
Base of Center of Discharge: 16 ft. 8 in.

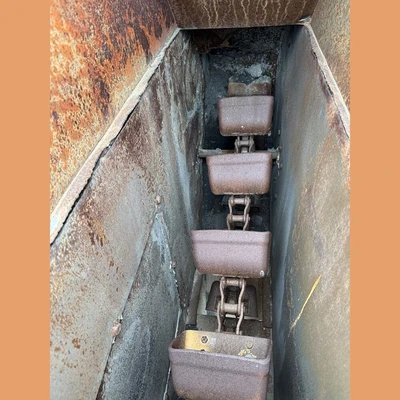

Bucket Size and Makeup: 8 in. x 6 in. Steel
Bucket Spacing: 11 in.

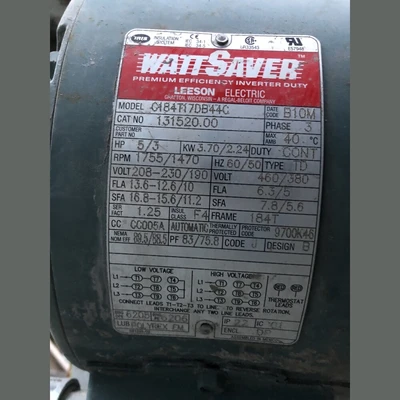

Drive: Leeson Wattsaver
5 hp
208-230/460 Volt
1755 RPM
5 hp
208-230/460 Volt
1755 RPM

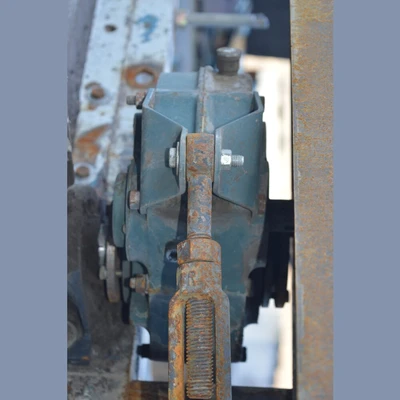

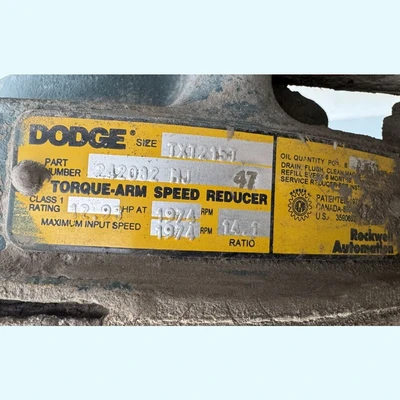

Reduction: Dodge
Size: TXT2A
Size: TXT2A
Overall Dimensions:
7 ft. x 34 in. Wide
7 ft. x 34 in. Wide
Location: British Columbia, Canada
