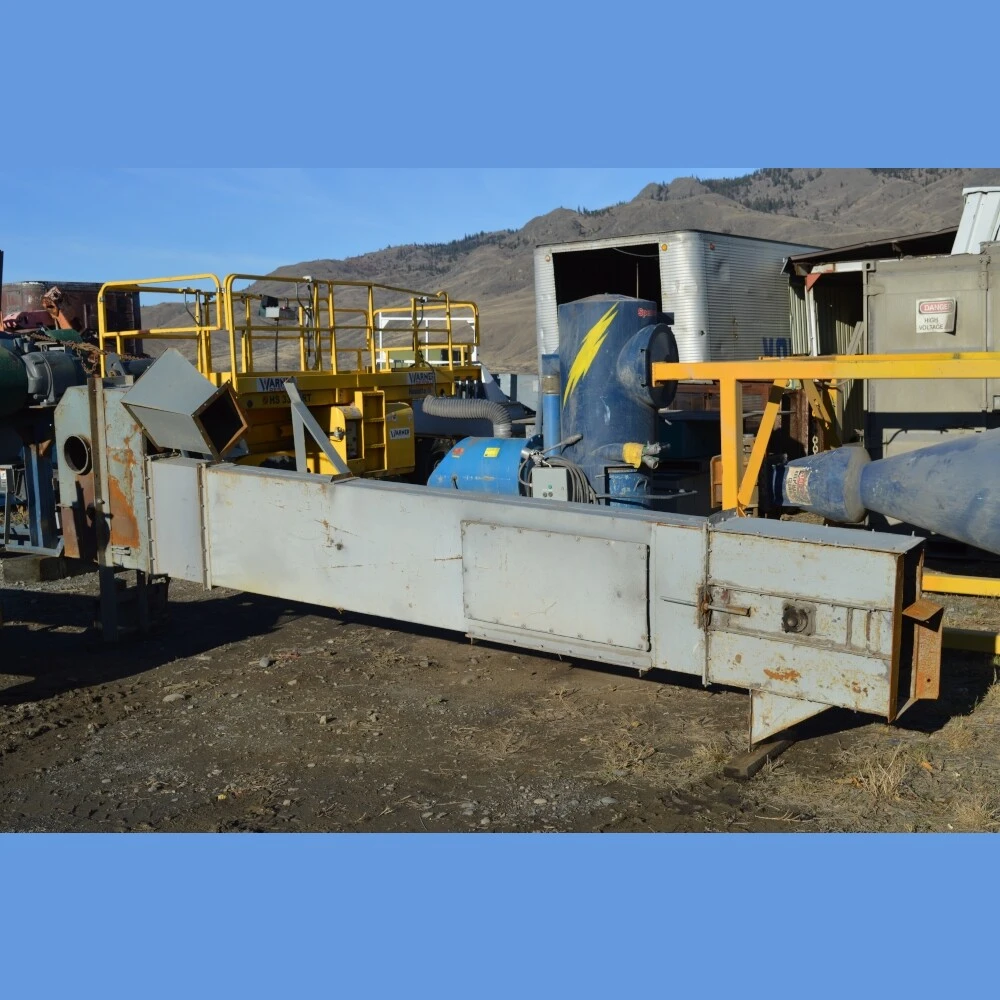

Length Distance Between Inlet & Discharge: 12 ft. 2 in.
Enclosure Width: 8 in.
Type: Belt
Inlet Dimensions: 8 in. x 8 in.

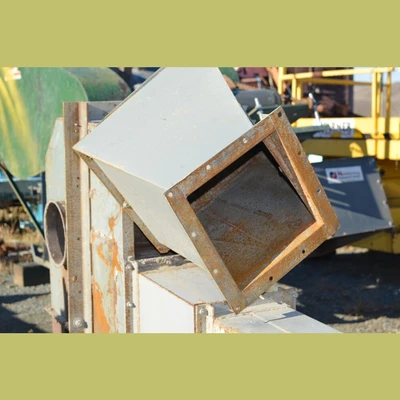

Discharge Dimensions: 10 in. x 10 in.

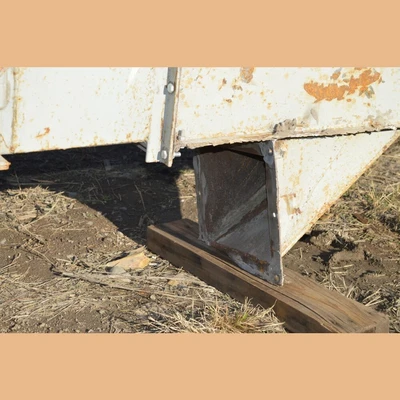

Base to Center of Inlet: 25 in.
Base of Center of Discharge: 14 ft. 3 in.
Bucket Size and Makeup: 5 in. x 6 in. Poly
Bucket Spacing: 11 in.

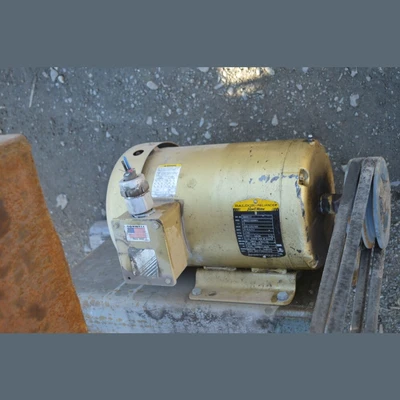

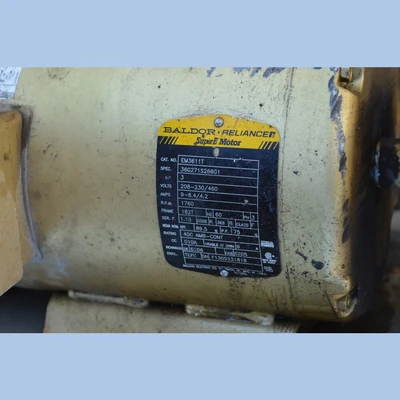

Drive: Baldor
3 hp
230/460 Volt
1750 RPM
Frame: 182T
3 hp
230/460 Volt
1750 RPM
Frame: 182T

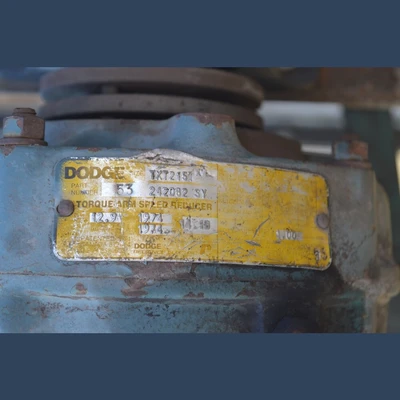

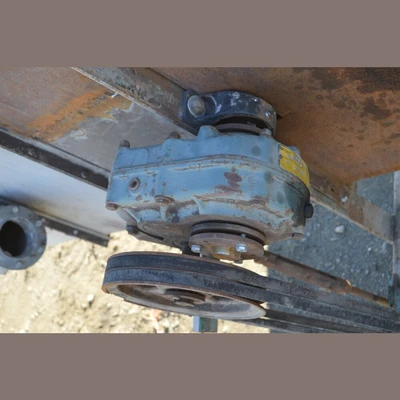

Reduction: Dodge Shaft Mount
Size: TXT 215T
Ratio: 14.10-1
Size: TXT 215T
Ratio: 14.10-1
Overall Dimensions:
62 in. x 26 in. Wide
Height: 17 ft.
62 in. x 26 in. Wide
Height: 17 ft.
Comes with
Modified Discharge
Flanged Reducer5
Modified Discharge
Flanged Reducer5
Location: British Columbia, Canada
